Pinpoint Test F: The Yellow ABS Warning Indicator Does Not Self-Check
WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

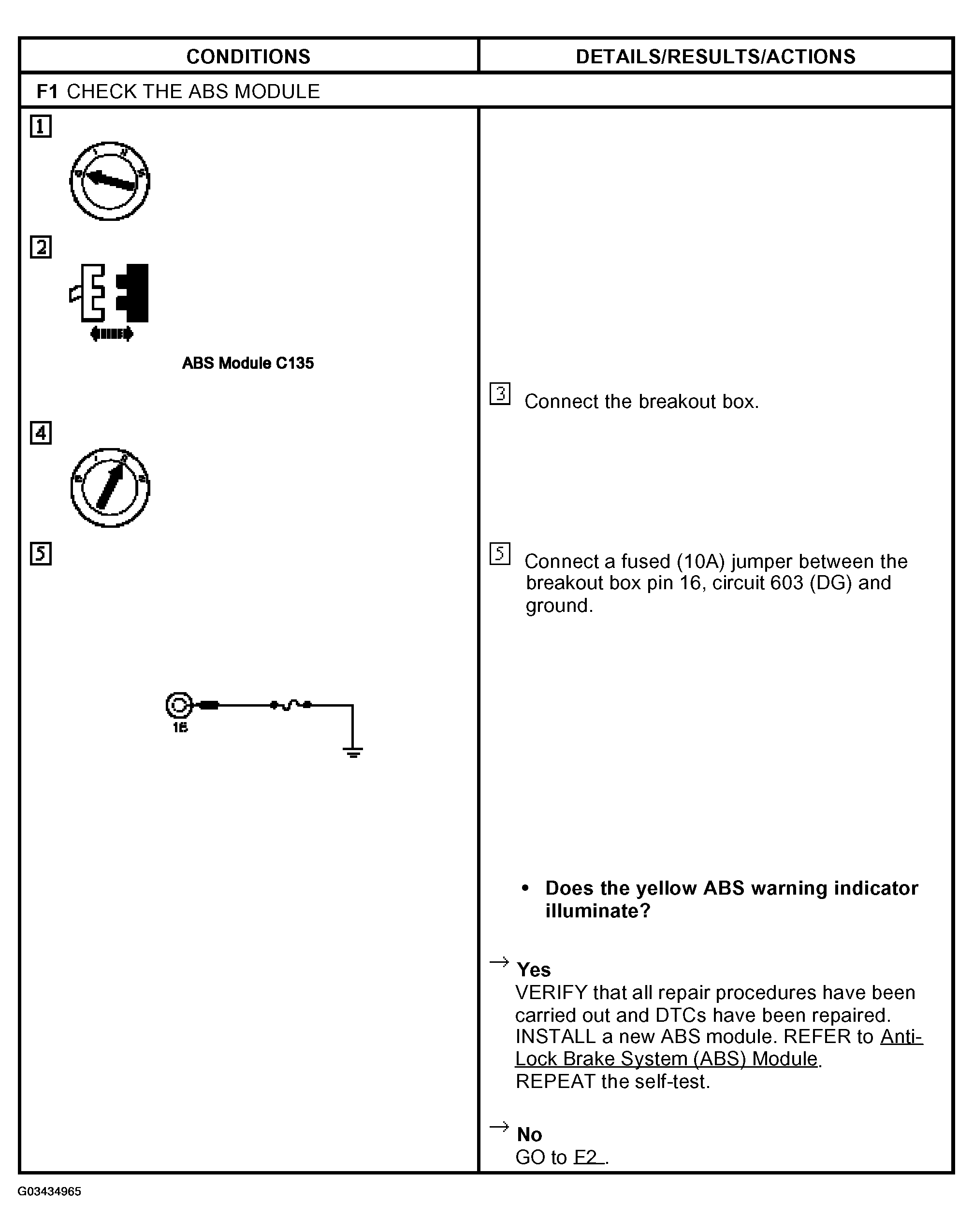

Fig 1: Pinpoint Test F: Yellow ABS Warning Indicator Does Not Self-Check (F1)
Courtesy of FORD MOTOR CO.

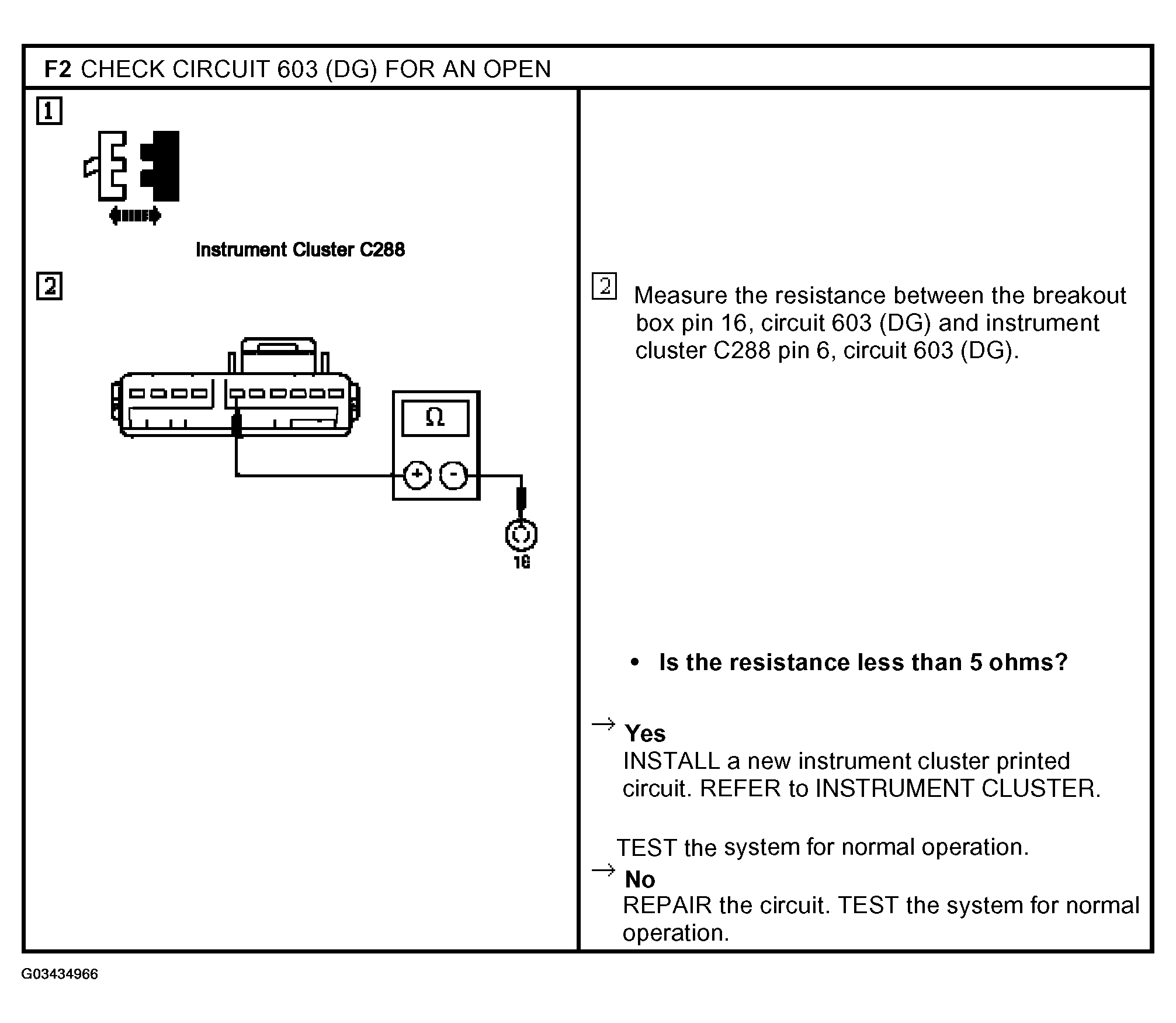

Fig 2: Pinpoint Test F: Yellow ABS Warning Indicator Does Not Self-Check (F2)
