Pinpoint Test C: DTCS C1145, C1155 & C1230 - Anti-Lock Brake Sensor Circuit Failure

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

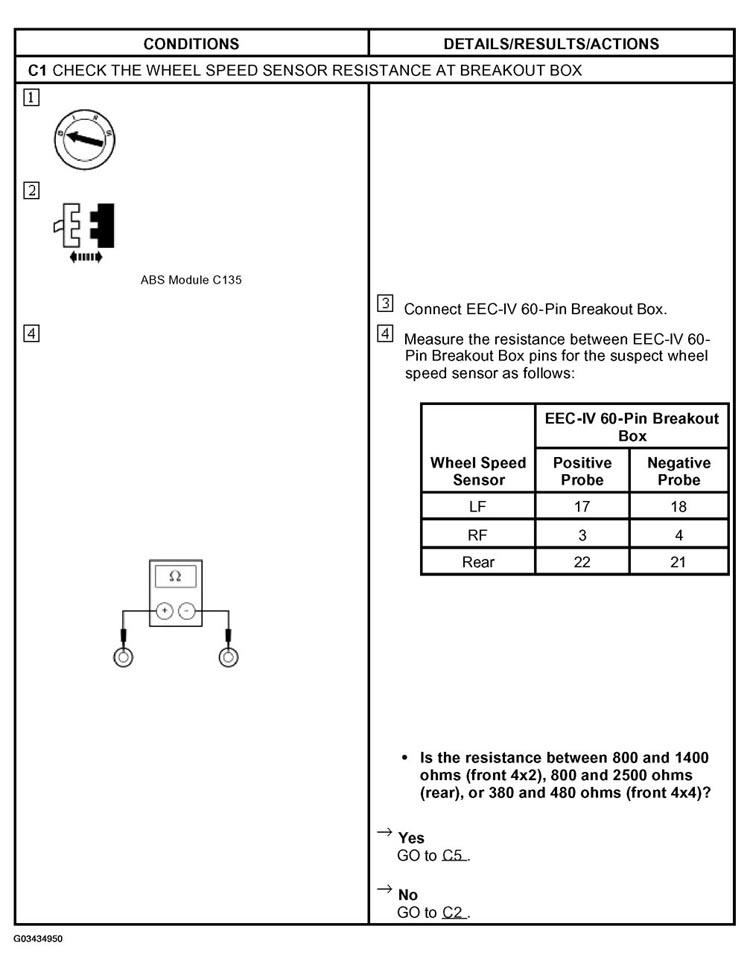

Fig 1: Pinpoint Test C: DTCS C1145, C1155 & C1230 - Anti-Lock Brake Sensor Circuit Failure (C1)

Courtesy of FORD MOTOR CO.

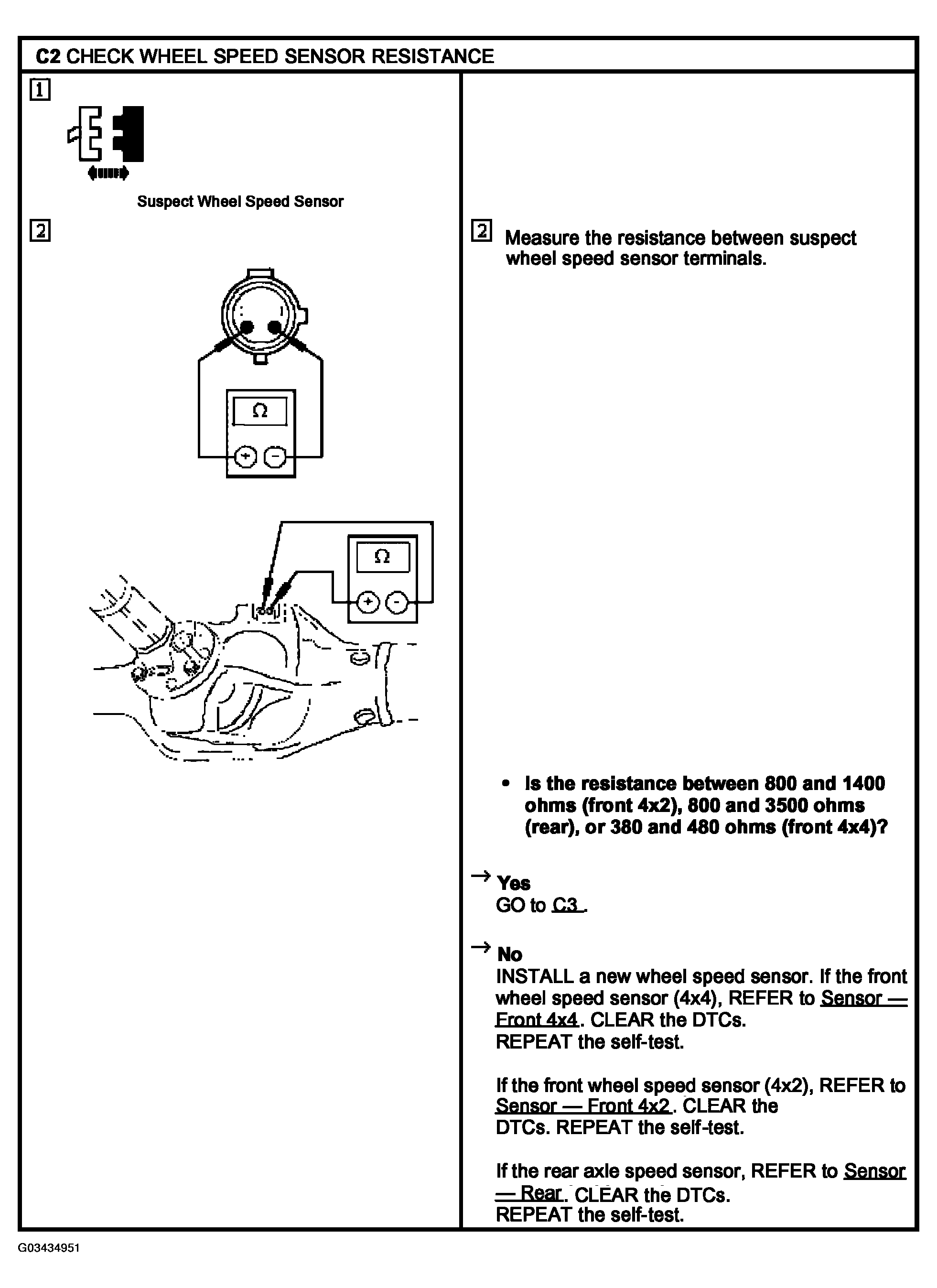

Fig 2: Pinpoint Test C: DTCS C1145, C1155 & C1230 - Anti-Lock Brake Sensor Circuit Failure (C2)

Courtesy of FORD MOTOR CO.

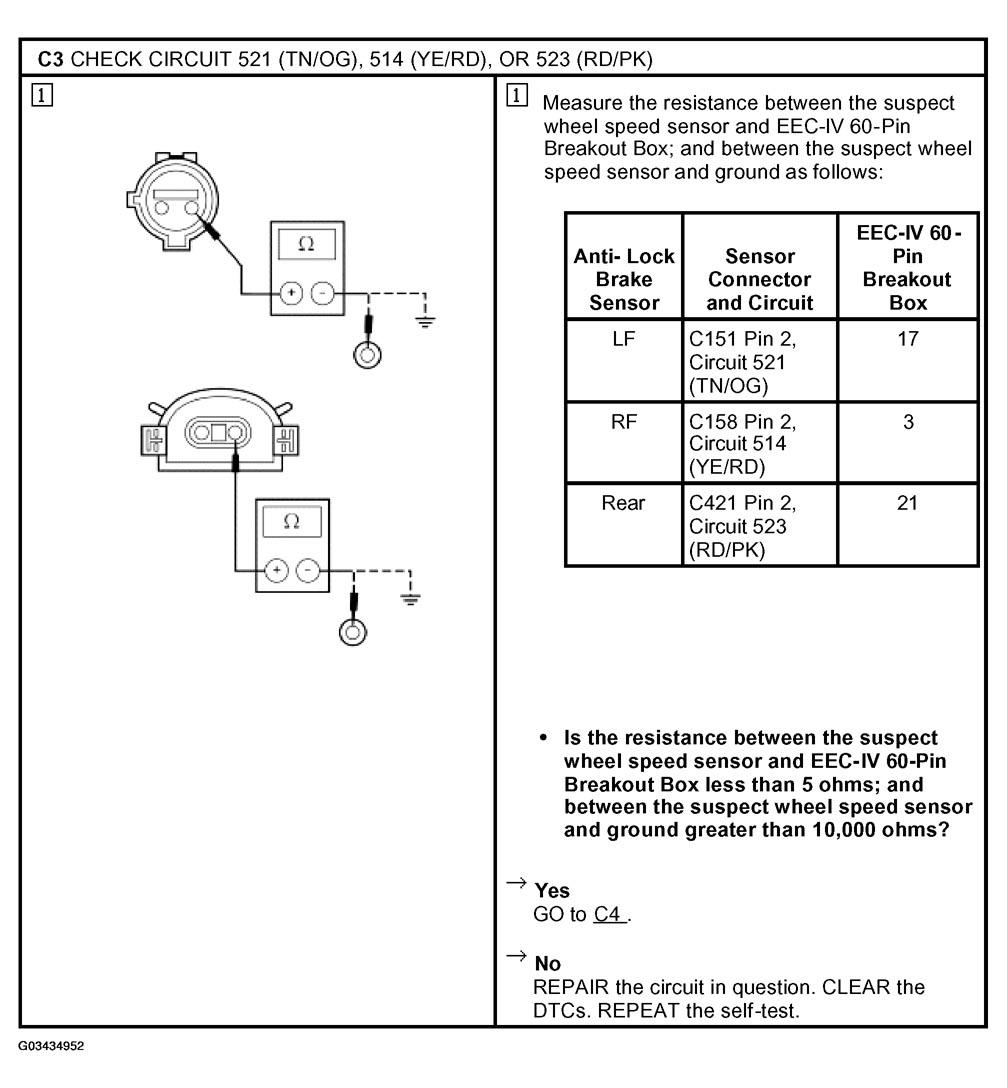

Fig 3: Pinpoint Test C: DTCS C1145, C1155 & C1230 - Anti-Lock Brake Sensor Circuit Failure (C3)

Courtesy of FORD MOTOR CO.

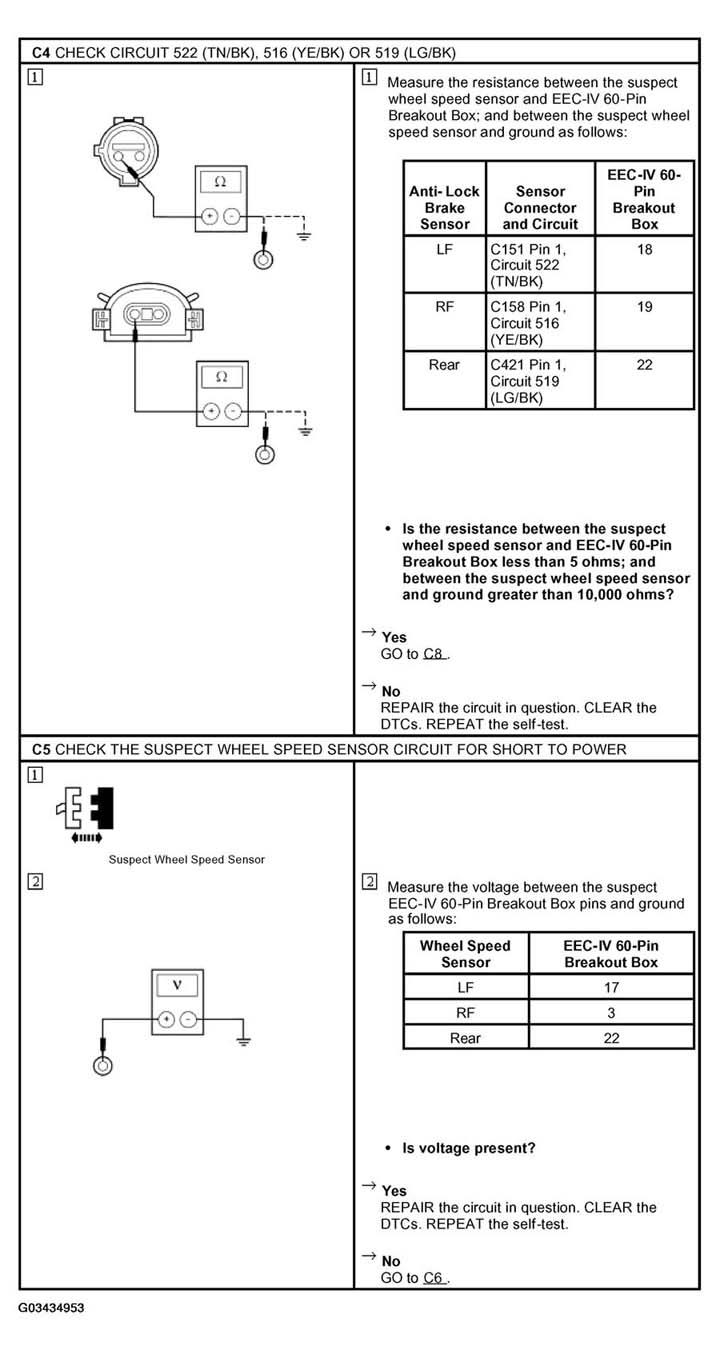

Fig 4: Pinpoint Test C: DTCS C1145, C1155 & C1230 - Anti-Lock Brake Sensor Circuit Failure (C4-C5)

Courtesy of FORD MOTOR CO.

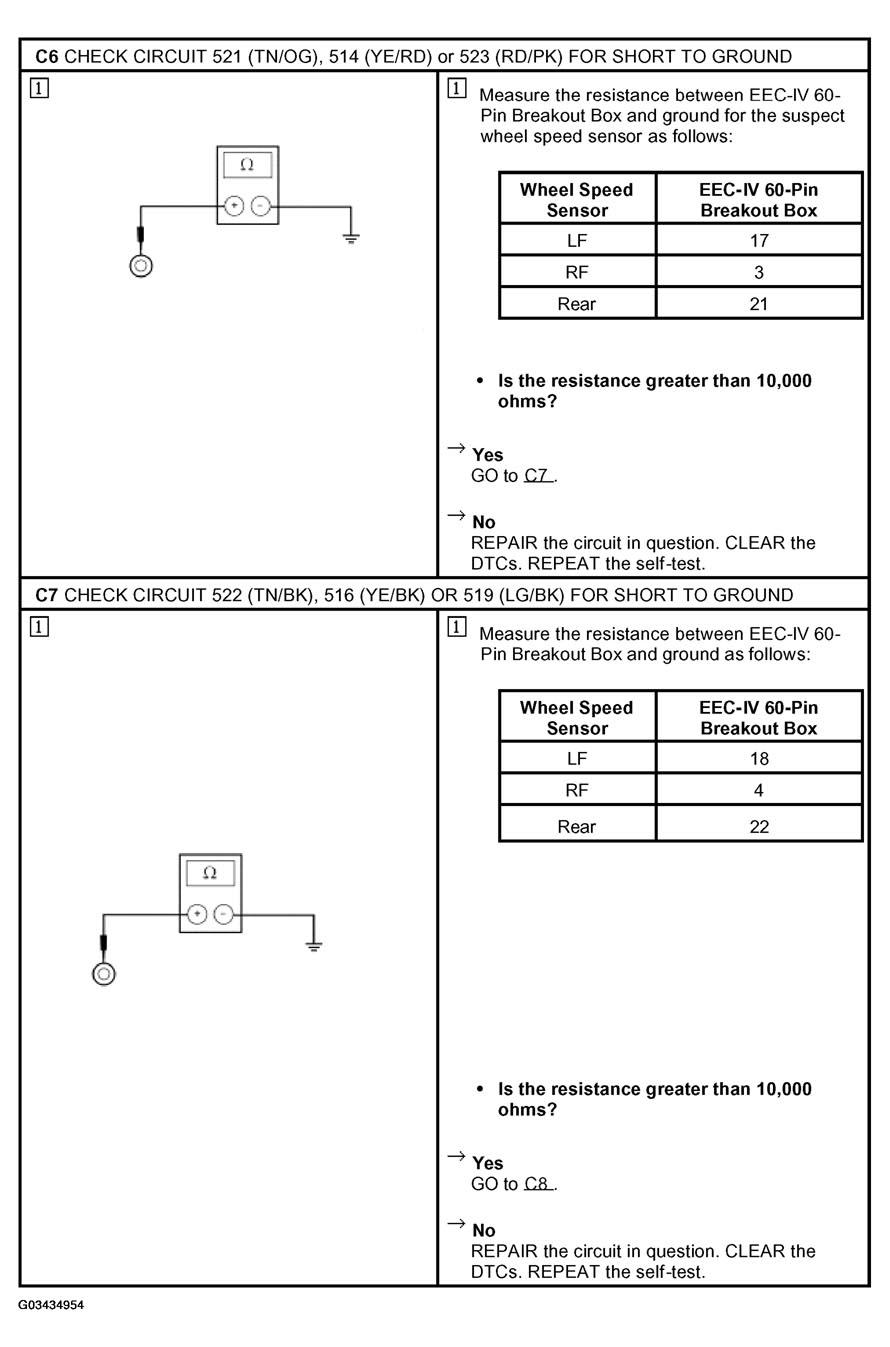

Fig 5: Pinpoint Test C: DTCS C1145, C1155 & C1230 - Anti-Lock Brake Sensor Circuit Failure (C6-C7)

Courtesy of FORD MOTOR CO.

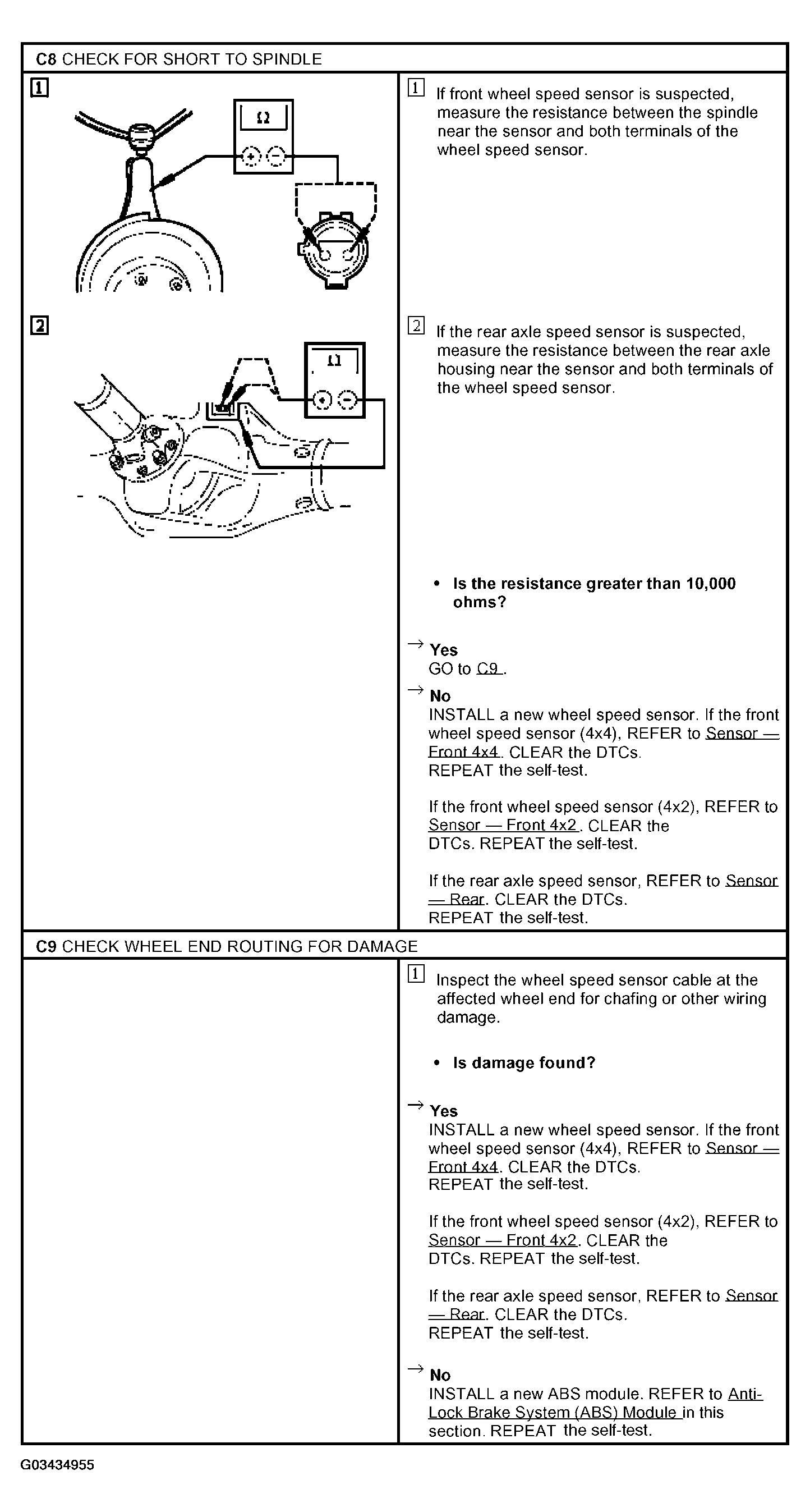

Fig 6: Pinpoint Test C: DTCS C1145, C1155 & C1230 - Anti-Lock Brake Sensor Circuit Failure (C8-C9)

Courtesy of FORD MOTOR CO.
