Drive Pinion Seal: Installation

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Verify that the splines on the pinion stem are free of burrs. If burrs are evident, remove them with a fine crocus cloth. Work in a rotating motion to wipe the pinion clean.
  2. Clean the pinion seal bore.
  3. Install a new collapsible spacer.
  4. Install the original differential pinion bearing and the front axle drive pinion shaft oil slinger.
    Fig 1: Installing Pinion Bearing & Front Axle Drive Pinion Shaft Oil Slinger
    G03434695Courtesy of FORD MOTOR CO.
  5. Lubricate the pinion seal.
  6. NOTE: Pinion seal must be fully seated all the way around or pinion seal damage will occur.
    Fig 2: Installing Pinion Seal
    G03434696Courtesy of FORD MOTOR CO.
  7. Using the special tool, install the pinion seal.
  8. Lubricate the pinion flange splines.
  9. CAUTION: Never use a metal hammer on the pinion flange or install the flange with power tools. If necessary, use a plastic hammer to tap on a tight fitting flange.
    Fig 3: Installing Pinion Flange
    G03434697Courtesy of FORD MOTOR CO.
  10. Align the index marks and install the pinion flange.
  11. Install the new nut hand-tight.
    Fig 4: Installing Pinion Flange Nut
    G03434698Courtesy of FORD MOTOR CO.
  12. CAUTION: Do not loosen the nut to reduce preload. Install a new collapsible spacer and nut if preload reduction is necessary.
    Fig 5: Tightening Pinion Flange Nut
    G03434699Courtesy of FORD MOTOR CO.
  13. Use the special tool to hold the pinion flange while tightening the nut to set the preload.
    • Tighten the nut, rotating the pinion occasionally to ensure the differential pinion bearings are seating correctly. Take frequent differential pinion bearing preload readings by rotating the pinion with a Nm (inch-pound) torque wrench. The final reading must be 0.56 Nm (5 lb-in) more than the initial reading taken during removal.
  14. Align the index marks and position the front driveshaft.
    Fig 6: Positioning Front Driveshaft, Aligning Index Marks
    G03434700Courtesy of FORD MOTOR CO.
  15. Install the universal joint spider retainers and bolts.
    Fig 7: Installing Universal Joint Spider Retainers & Bolts
    G03434701Courtesy of FORD MOTOR CO.
  16. Check the fluid level and, if necessary, fill the axle to specification with lubricant.
  17. Install the caliper and anchor plate assembly.

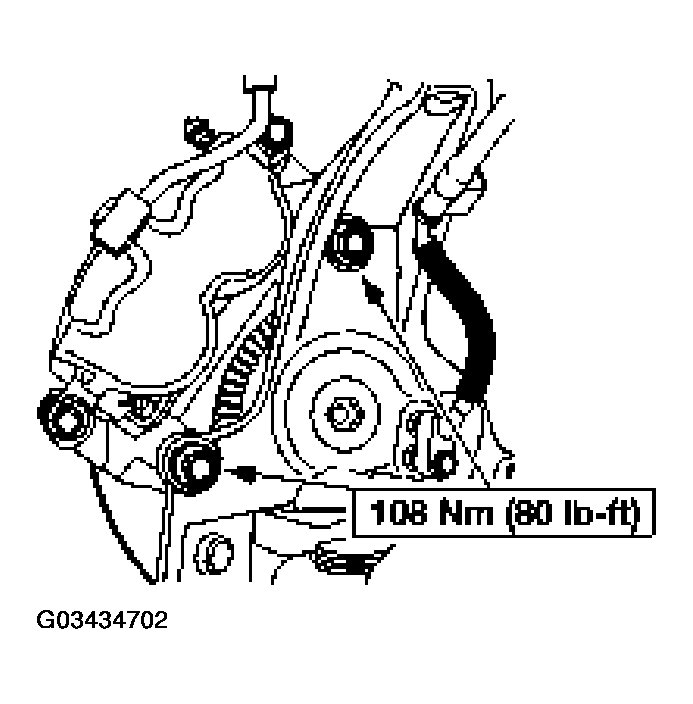

    Fig 8: Installing Caliper & Anchor Plate Assembly
    G03434702Courtesy of FORD MOTOR CO.
  18. Install the wheel and tire assembly. For additional information, refer to WHEELS & TIRES .
  19. Lower the vehicle.
