Axle Tube Bearing: Removal

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Remove the right-hand halfshaft. For additional information, refer to AXLE SHAFTS (4WD) .
Remove the right-hand axle shaft.

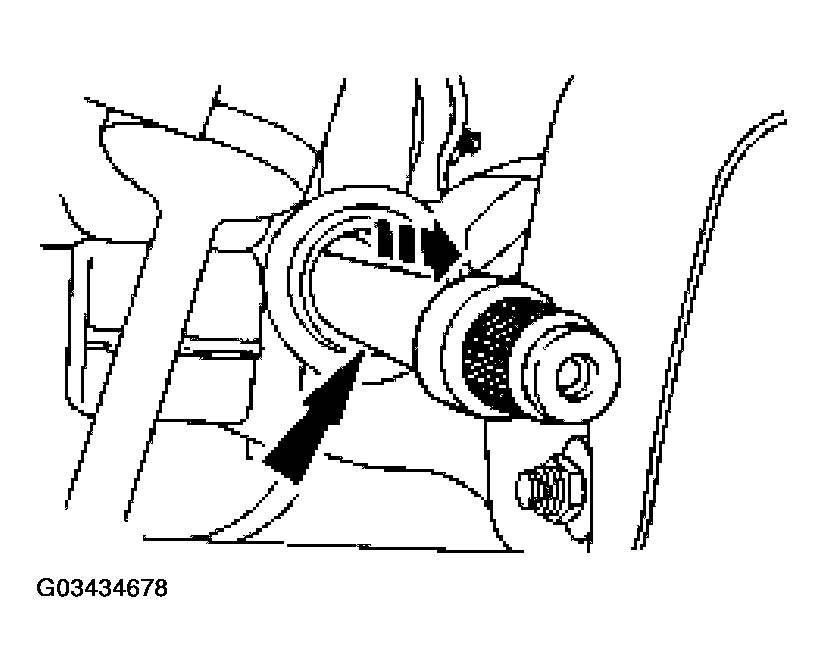

Fig 1: Removing Right-Hand Axle Shaft
Courtesy of FORD MOTOR CO.
Use a converter oil seal remover and a slide hammer to remove the axle seal.

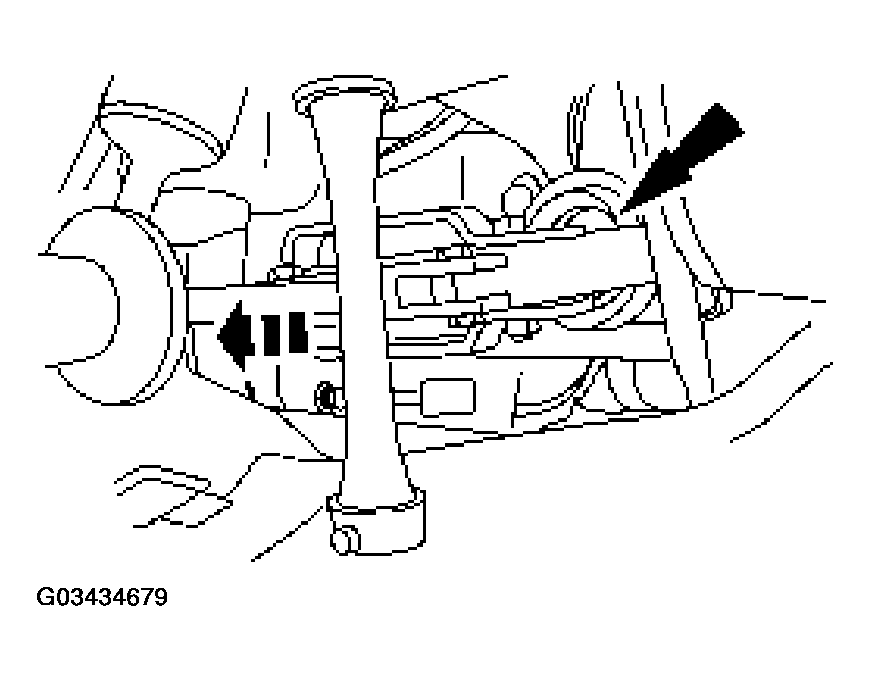

Fig 2: Removing Axle Seal
Courtesy of FORD MOTOR CO.
Use an axle bearing remover and a slide hammer to remove the axle tube bearing.

Fig 3: Removing Axle Tube Bearing
Courtesy of FORD MOTOR CO.
Clean the bearing and seal surfaces of any foreign debris.
