Special Tool(s)

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

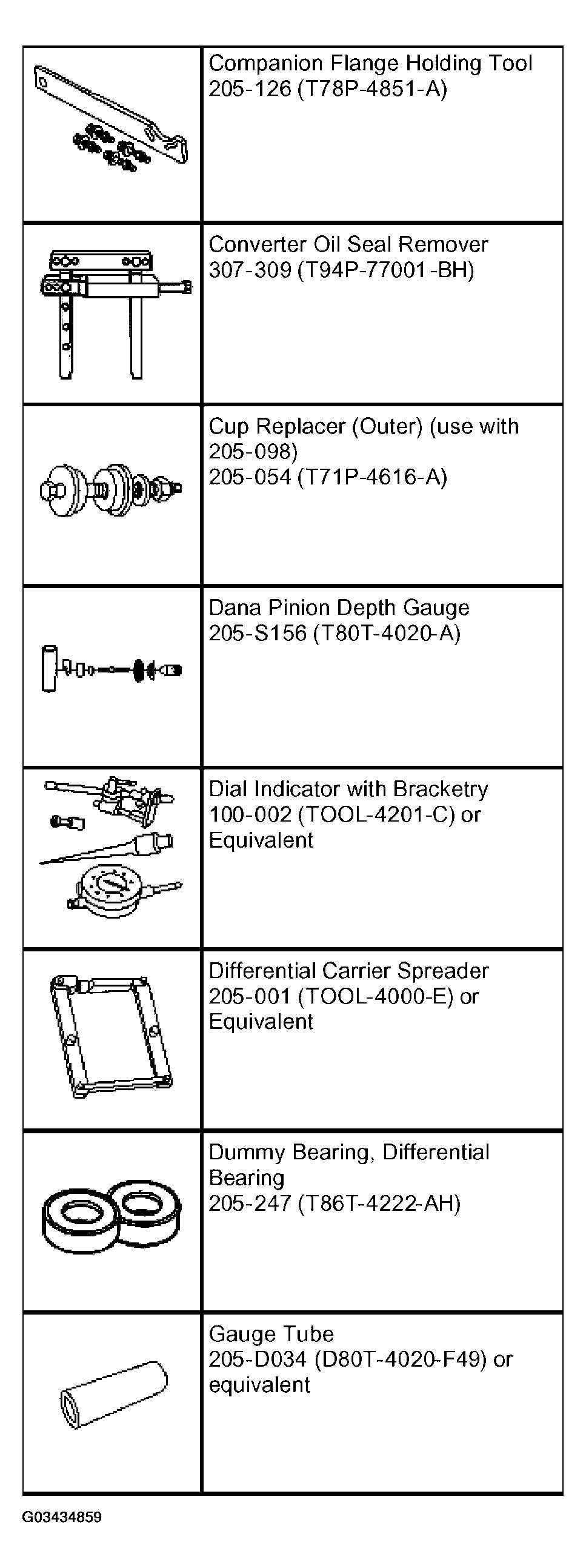

Fig 1: Identifying Special Tool(s) (1 Of 3)

Courtesy of FORD MOTOR CO.

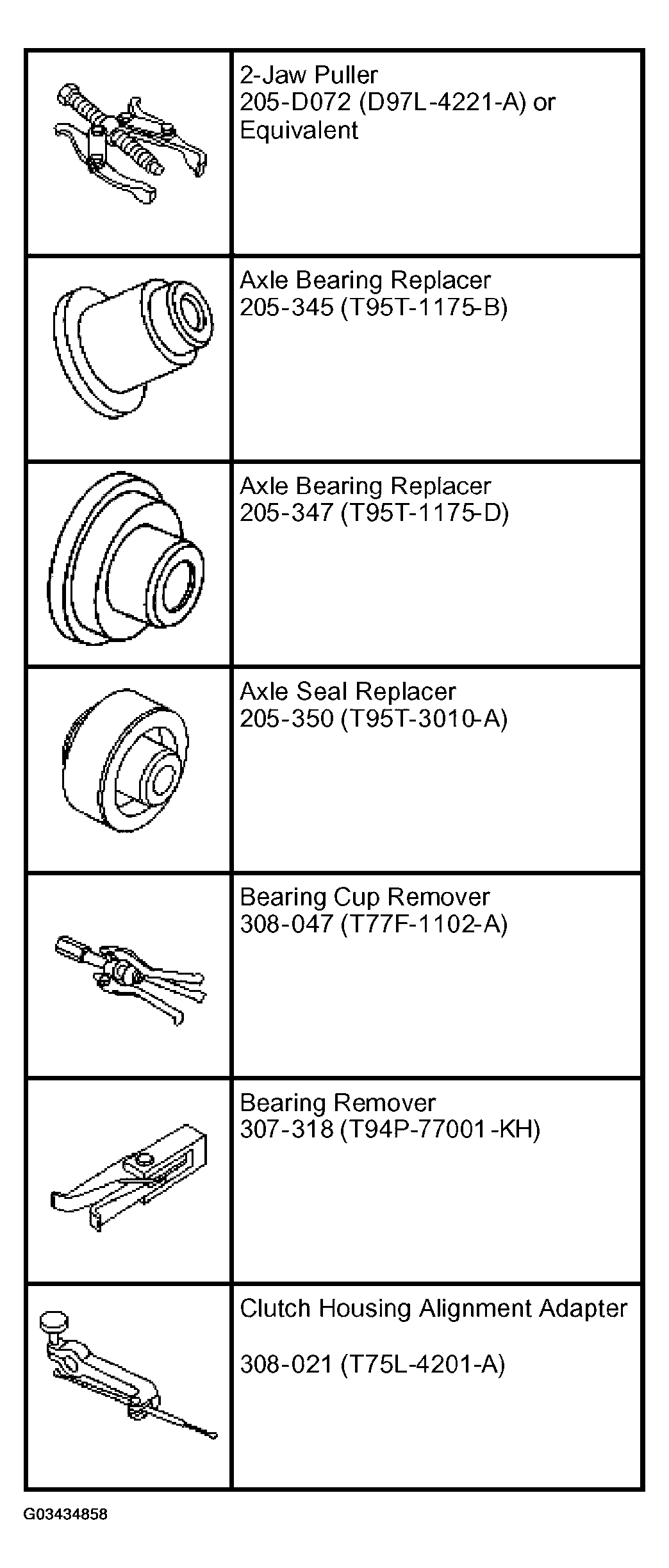

Fig 2: Identifying Special Tool(s) (2 Of 3)

Courtesy of FORD MOTOR CO.

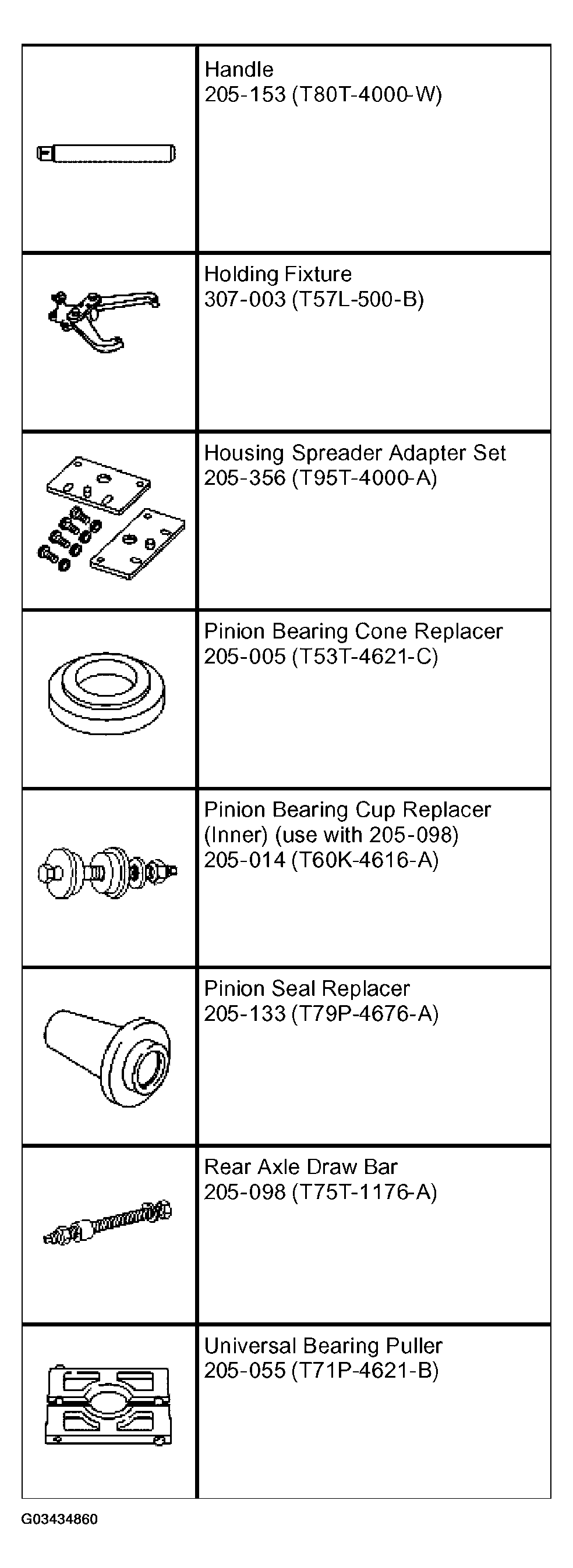

Fig 3: Identifying Special Tool(s) (3 Of 3)

Courtesy of FORD MOTOR CO.
