Disassembly & Assembly: Axle: Disassembly

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Many components and surfaces in the axle are precision machined. Careful handling during disassembly, cleaning, inspection, and assembly will prevent unnecessary damage to machined surfaces.
  1. Remove the front drive axle assembly from the vehicle. For additional information, refer to AXLE ASSEMBLY - FRONT  .
  2. Attach the axle assembly to the special tool.
    Fig 1: Attaching Axle Assembly To Special Tool
    G03434861Courtesy of FORD MOTOR CO.
  3. NOTE: Place a suitable drain pan under the axle.

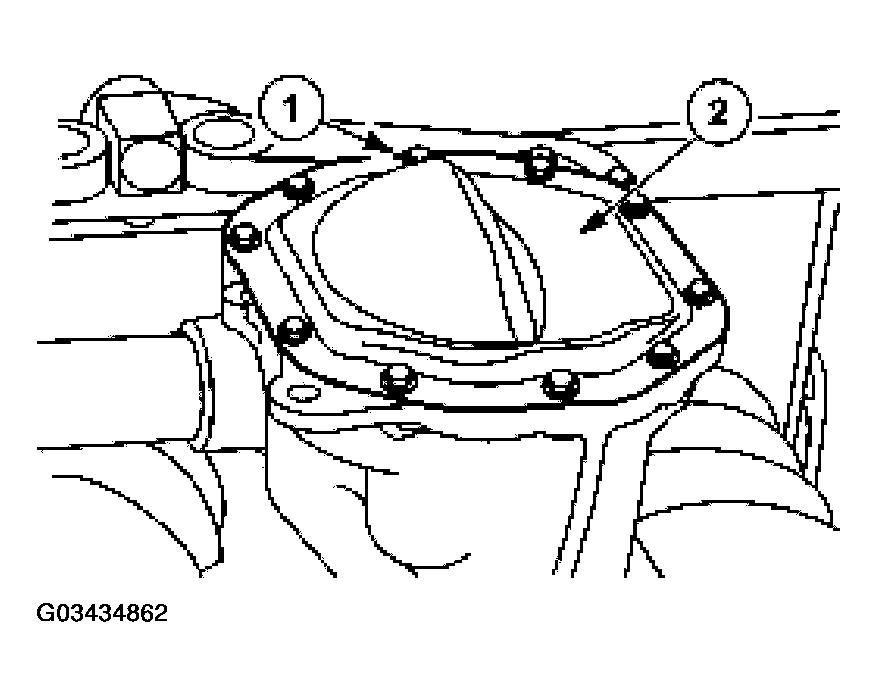

    Fig 2: Removing Differential Housing Cover
    G03434862Courtesy of FORD MOTOR CO.
  4. Remove the differential housing cover.
    1. Remove the bolts.
    2. Remove the differential housing cover.
  5. Drain the axle lubricant from the differential housing.
  6. Remove the axle shaft using a jerking motion.
    Fig 3: Removing Axle Shaft
    G03434863Courtesy of FORD MOTOR CO.
  7. Using the special tool and a suitable impact slide hammer, remove the axle shaft oil seal.
    Fig 4: Removing Axle Shaft Oil Seal
    G03434864Courtesy of FORD MOTOR CO.
  8. Using the special tool and a suitable impact slide hammer, remove the axle shaft bearing.
    Fig 5: Removing Axle Shaft Bearing
    G03434865Courtesy of FORD MOTOR CO.
  9. Using the special tool and a suitable impact slide hammer, remove the axle shaft oil seal.
    Fig 6: Removing Axle Shaft Oil Seal
    G03434866Courtesy of FORD MOTOR CO.
  10. Using the special tool and a suitable impact slide hammer, remove the axle tube bearing.
    Fig 7: Removing Axle Tube Bearing
    G03434867Courtesy of FORD MOTOR CO.
  11. CAUTION: The matched numbers or letters stamped on both of the differential bearing caps and the differential housing must correspond during assembly.

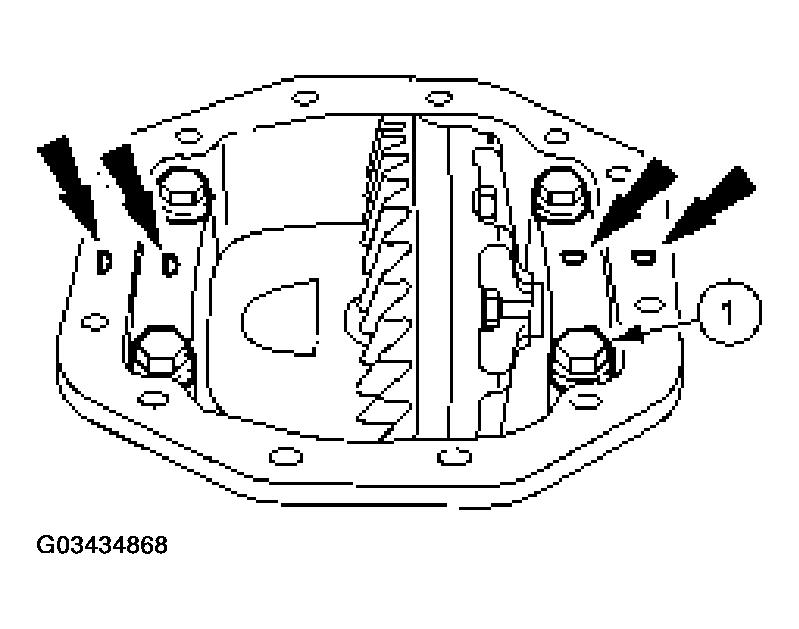

    Fig 8: Removing Differential Bearing Caps
    G03434868Courtesy of FORD MOTOR CO.
  12. Remove the differential bearing caps.
    1. Remove the bolts.
    2. Remove the differential bearing caps.
  13. CAUTION: The Housing Spreader Adapter bolts have a minimum thread engagement as specified.
    Fig 9: Installing Special Tool
    G03434869Courtesy of FORD MOTOR CO.
  14. Install the special tool.
  15. Install the special tools.
    • Position the Clutch Housing Alignment Adapter needle in the Housing Spreader Adapter hole.

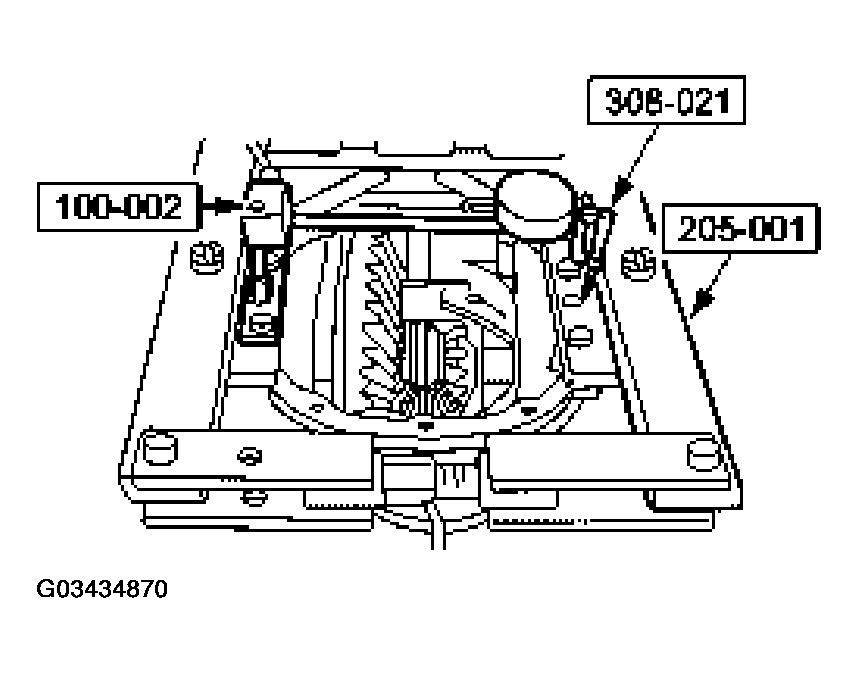

    Fig 10: Installing Special Tool
    G03434870Courtesy of FORD MOTOR CO.
  16. CAUTION: Over spreading can damage the differential housing.

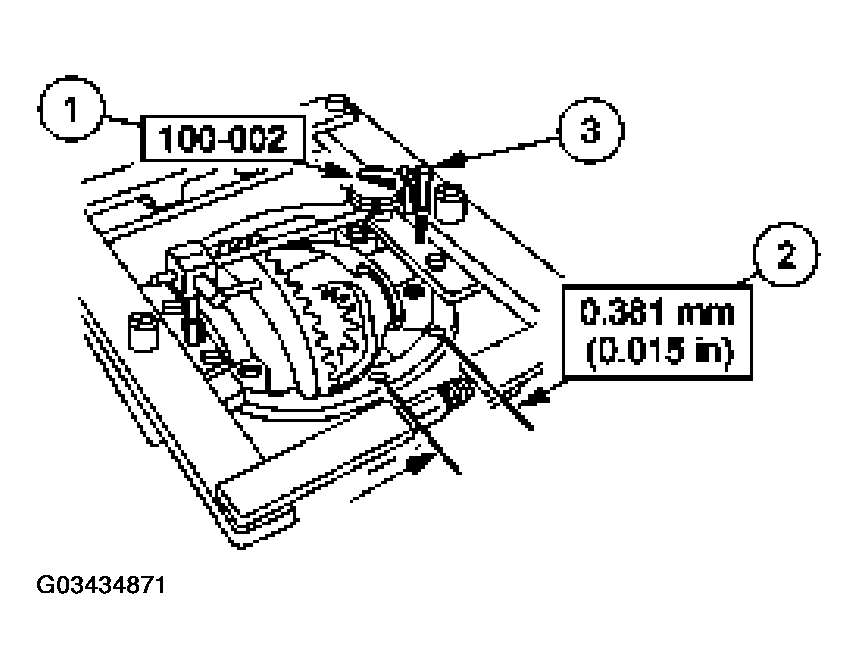

    Fig 11: Spreading Differential Housing To Specification
    G03434871Courtesy of FORD MOTOR CO.
  17. Spread the differential housing to the specification.
    1. Adjust the special tool to zero.
    2. Tighten the Differential Carrier Spreader screw to spread the differential housing to the specification.
    3. Remove the Dial Indicator with Bracketry and the Clutch Housing Alignment Adapter.
  18. CAUTION: Use wood blocks to avoid damaging the differential housing.

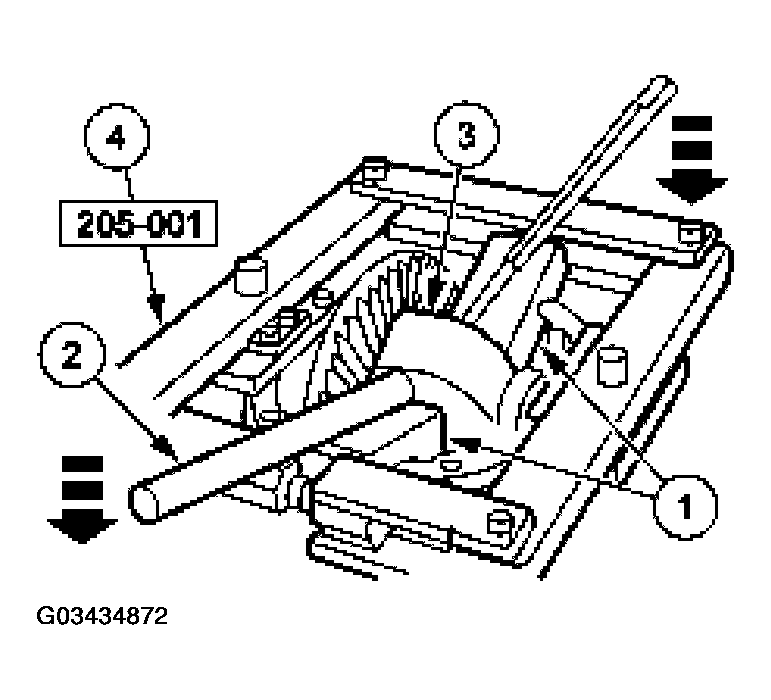

    Fig 12: Removing Differential Assembly From Differential Housing
    G03434872Courtesy of FORD MOTOR CO.
  19. Remove the differential assembly from the differential housing.
    1. Position the wood blocks.
    2. Push downward on the pry bars.
    3. Remove the differential assembly.
    4. Remove the special tool.
  20. Measure the pinion bearing preload.
    • Using a Nm (pound-inch) torque wrench, measure the torque required to maintain pinion rotation. Record the measurement.
    Fig 13: Measuring Pinion Bearing Preload
    G03434873Courtesy of FORD MOTOR CO.
  21. Index-mark the pinion flange and the pinion stem.
    Fig 14: Index-Marking Pinion Flange & Pinion Stem
    G03434874Courtesy of FORD MOTOR CO.
  22. Use the special tool to hold the flange while removing the nut.
    Fig 15: Using Special Tool To Hold Flange While Removing Nut
    G03434875Courtesy of FORD MOTOR CO.
  23. Using the special tool, remove the pinion flange.
    Fig 16: Removing Pinion Flange
    G03434876Courtesy of FORD MOTOR CO.
  24. WARNING: The gear teeth have sharp edges. Handle the gear with care to avoid personal injury.
    CAUTION: Never use a metal hammer on the pinion. Use a soft mallet to drive the pinion out of the differential housing.

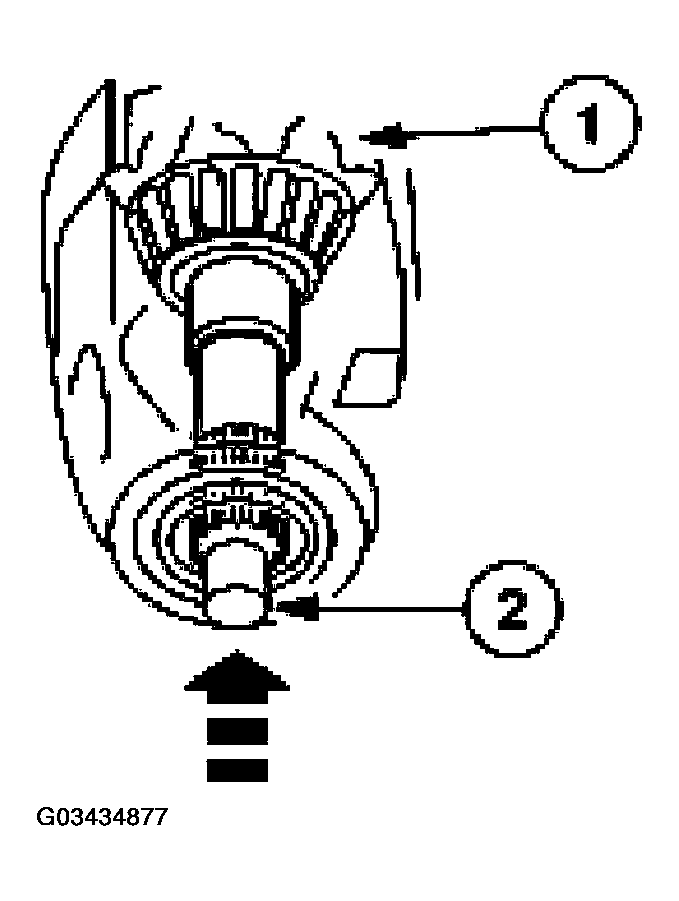

    Fig 17: Removing Pinion From Differential Housing
    G03434877Courtesy of FORD MOTOR CO.
  25. Using a soft-face hammer, remove the pinion from the differential housing.
    1. Hold the pinion inside the differential housing.
    2. Use a soft-face hammer to remove the pinion from the differential housing.
  26. Using the special tool and a suitable impact slide hammer, remove the pinion seal.
    Fig 18: Removing Pinion Seal
    G03434878Courtesy of FORD MOTOR CO.
  27. Remove the front axle drive pinion shaft oil slinger and the differential pinion bearing.
    Fig 19: Removing Front Axle Drive Pinion Shaft Oil Slinger & Differential Pinion Bearing
    G03434879Courtesy of FORD MOTOR CO.
  28. Remove the outer differential drive pinion bearing cup by tapping alternately on each side of the cup to prevent it from cocking in the bore.

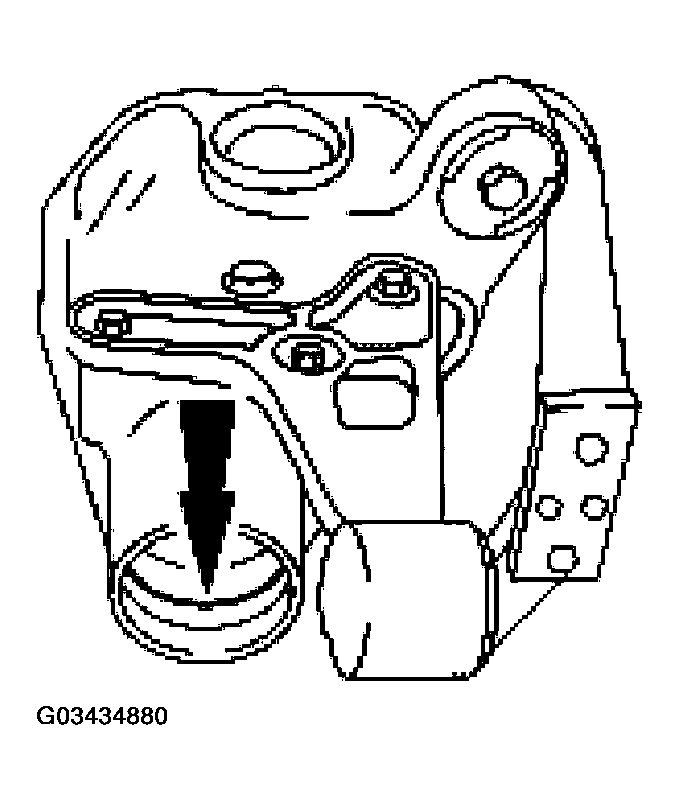

    Fig 20: Removing Outer Differential Drive Pinion Bearing Cup
    G03434880Courtesy of FORD MOTOR CO.
  29. Remove the inner differential drive pinion bearing cup by tapping alternately on each side of the cup to prevent it from cocking in the bore.
    Fig 21: Removing Inner Differential Drive Pinion Bearing Cup
    G03434881Courtesy of FORD MOTOR CO.
  30. Using the special tool and a suitable press, remove the differential pinion bearing.
    Fig 22: Removing Differential Pinion Bearing
    G03434882Courtesy of FORD MOTOR CO.
  31. Remove the pinion position shim from the differential pinion gear. Measure the pinion position shim thickness with a micrometer. Record the measurement.
    Fig 23: Removing Pinion Position Shim
    G03434883Courtesy of FORD MOTOR CO.
  32. Remove the differential ring gear, the differential bearings, and if necessary, disassemble the differential case. For additional information, refer to DIFFERENTIAL CASE  .
