Drive Pinion Seal: Removal

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the pinion flange (4851). For additional information, refer to DRIVE PINION FLANGE .
  2. Using a screwdriver, force the rear axle drive pinion seal metal flange up and strike it with a hammer.
    Fig 1: Bending Rear Axle Drive Pinion Seal Metal Flange Up
    G03434458Courtesy of FORD MOTOR CO.
  3. Using gripping pliers and a hammer, remove the seal.

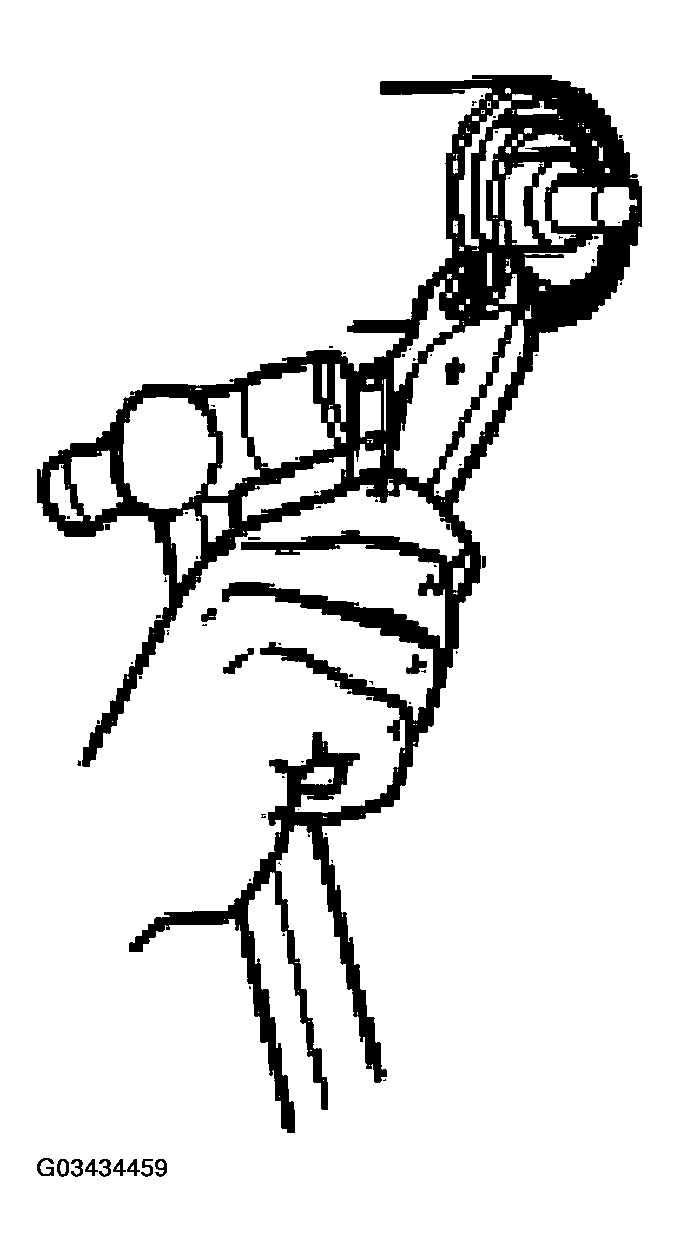

    Fig 2: Removing Rear Axle Drive Pinion Seal
    G03434459Courtesy of FORD MOTOR CO.
