Axle Shaft: Removal

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the rear wheel and tire assembly. For additional information, refer to WHEELS & TIRES .
  3. Remove the brake drum (1126). For additional information, REFER to DISC & DRUM .
  4. Remove the differential housing cover (4033) and drain the lubricant. For additional information, refer to DIFFERENTIAL HOUSING COVER .
  5. Remove the differential pinion shaft (4211).
    1. Remove and discard the bolt.
    2. Remove the differential pinion shaft.

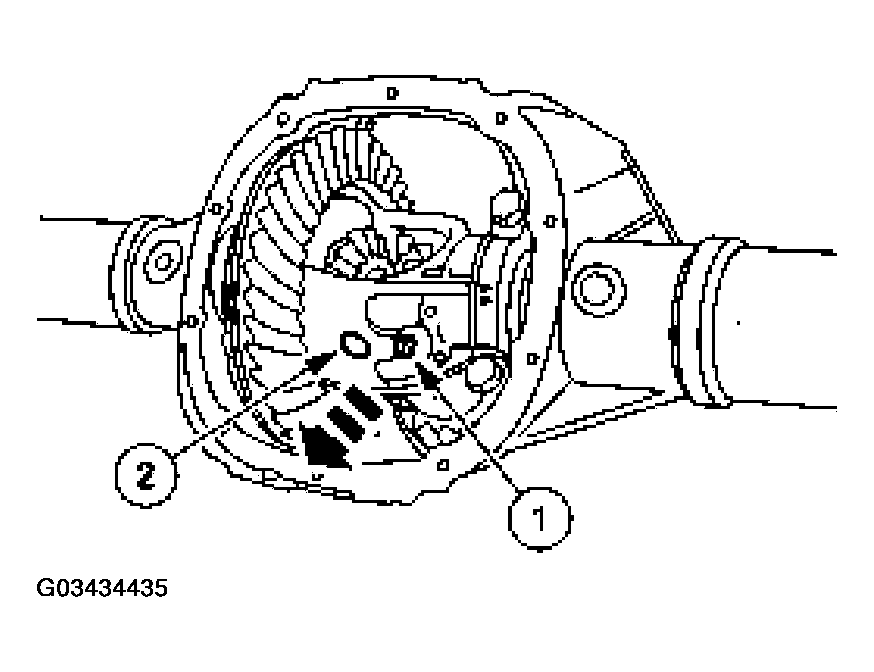

    Fig 1: Removing Differential Pinion Shaft
    G03434435Courtesy of FORD MOTOR CO.
    6. CAUTION: Do not damage the rubber O-ring (4A332) in the U-washer groove.

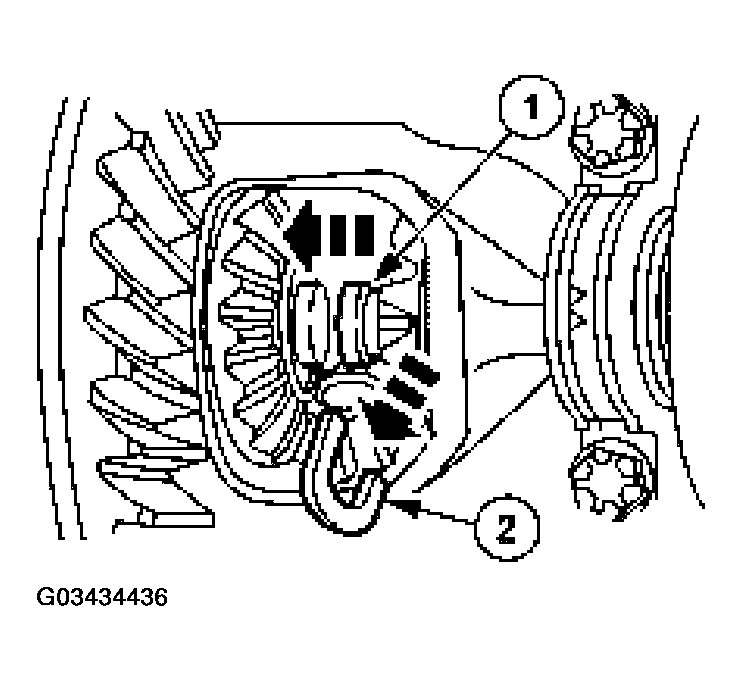

    Fig 2: Removing U-Washer
    G03434436Courtesy of FORD MOTOR CO.
  6. Remove the U-washer (4N237).
    1. Push the axle shaft (4234) inboard.
    2. Remove the U-washer.
    7. CAUTION: Do not damage the wheel bearing oil seal (1177).
    Fig 3: Removing Axle Shaft
    G03434437Courtesy of FORD MOTOR CO.
  7. Remove the axle shaft.
