Cooler Bypass Valve - 4R100 Transmission: Removal

WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL position it on a hoist.
  2. Remove the fluid cooler tubes from the cooler bypass valve (CBV) fitting.

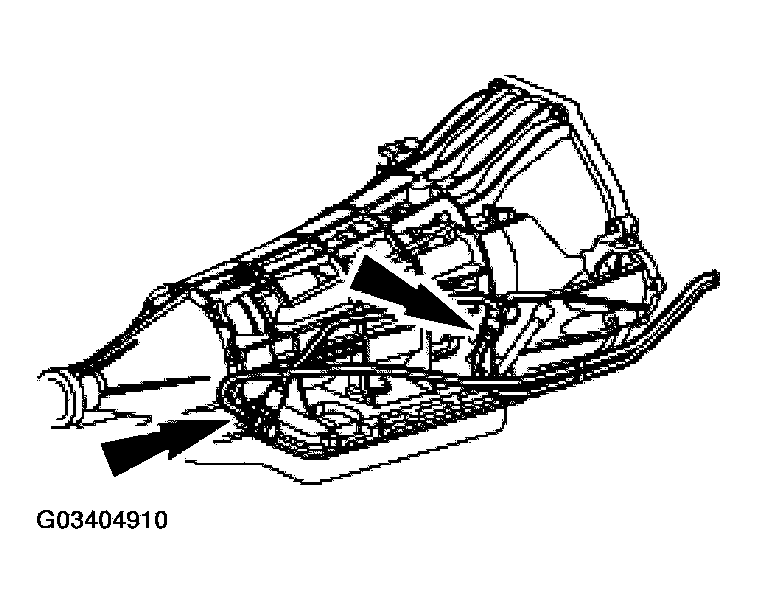

    3. Fig 1: Removing Fluid Cooler Tubes From Cooler Bypass Valve
    G03404910Courtesy of FORD MOTOR CO.
    NOTE: The two rubber coated sealing washers can fall out during removal of the front line case fitting.

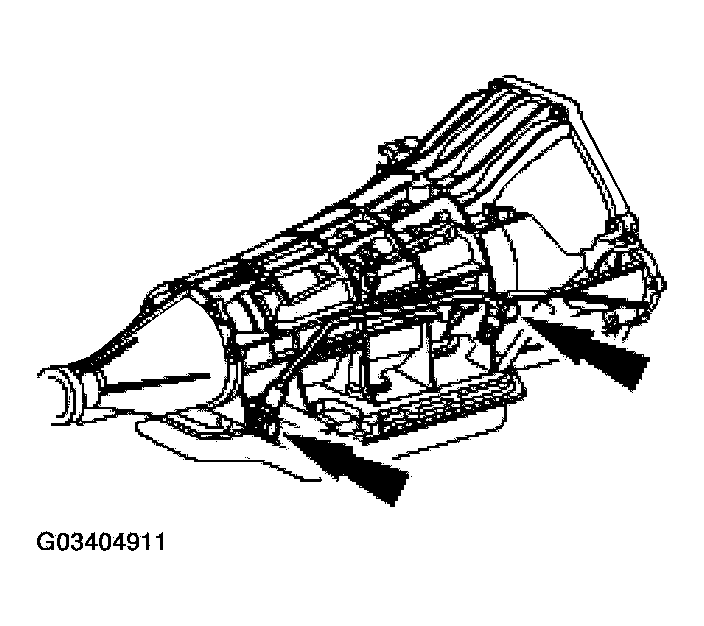

    Fig 2: Removing Cooler Bypass Valve (CBV) From Transmission Case
    G03404911Courtesy of FORD MOTOR CO.
  3. Remove the cooler bypass valve (CBV) from the transmission case.
  4. Disassemble and clean the CBV. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION - 4R100 - E225-E550 .
