Transmission Insulator And Retainer: Removal

WARNING: This page is about a different car, the 2002 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the two nuts, one bolt, and position the hanger aside.

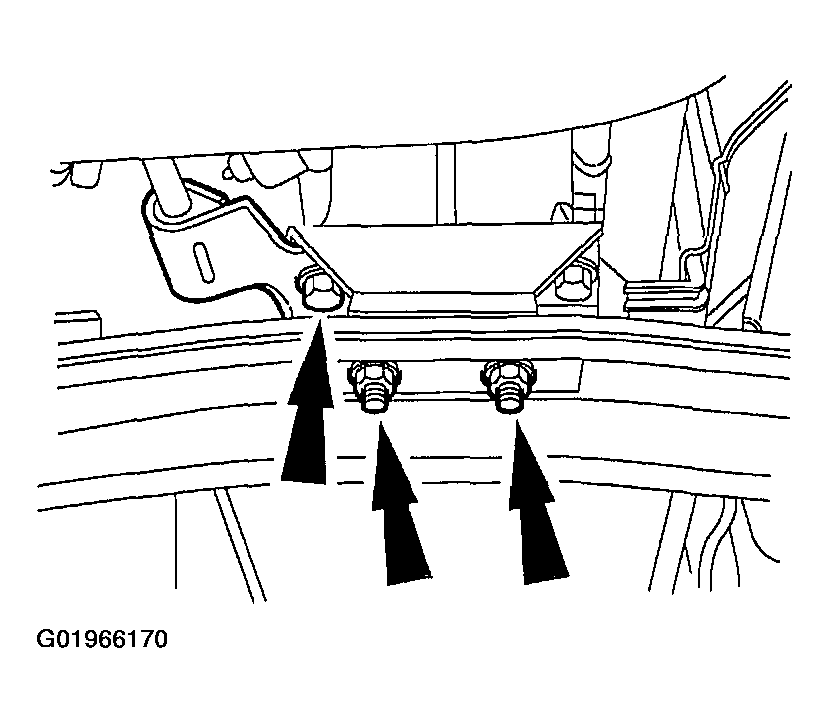

    Fig 1: Removing Retainer Nuts & Repositioning Hanger
    G01966170Courtesy of FORD MOTOR CO.
  3. Position a high lift transmission jack under the transmission.
  4. Raise the transmission until the retainer studs are separated from the transmission support crossmember.

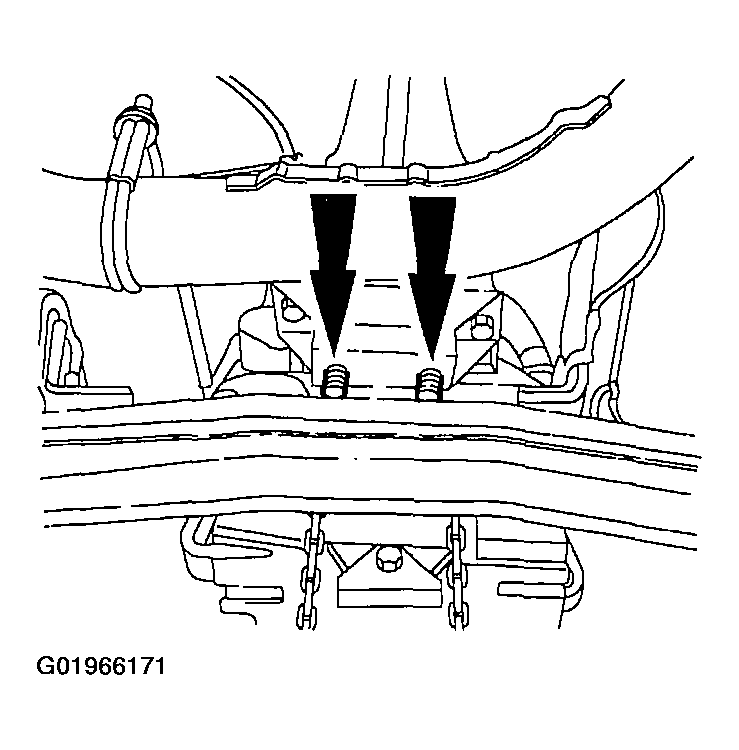

    Fig 2: Raising Transmission Off Of Transmission Support Crossmember
    G01966171Courtesy of FORD MOTOR CO.
  5. Remove the one bolt and the retainer.

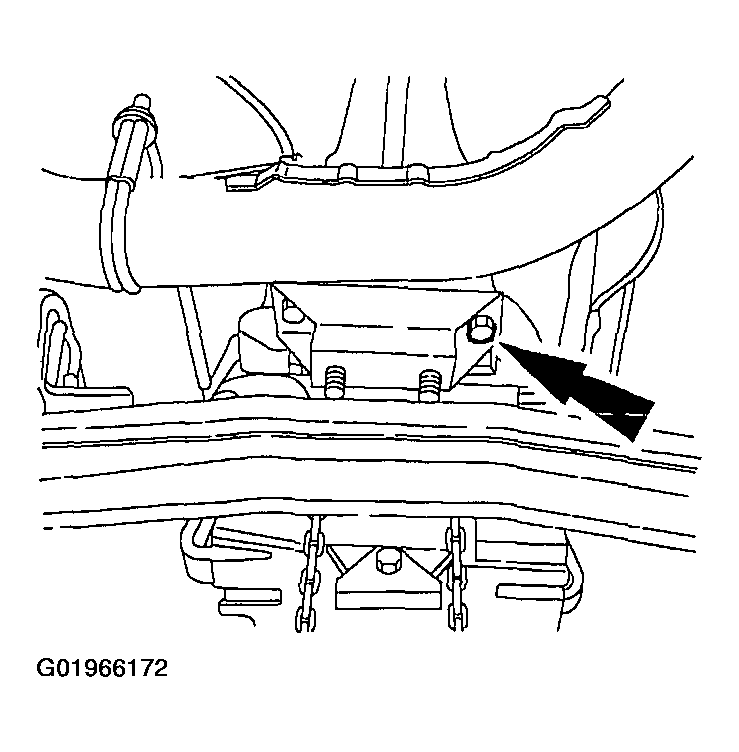

    Fig 3: Removing One Bolt And Retainer
    G01966172Courtesy of FORD MOTOR CO.
