Overdrive Servo: Removal

WARNING: This page is about a different car, the 2002 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the main control valve body. For additional information, refer to MAIN CONTROL VALVE BODY .
    2. NOTE: If the tool is not available, extreme care must be taken. Spring pressure will force overdrive servo piston assembly out of case. Case bore damage may result from trying to pry on overdrive servo internal retaining ring.

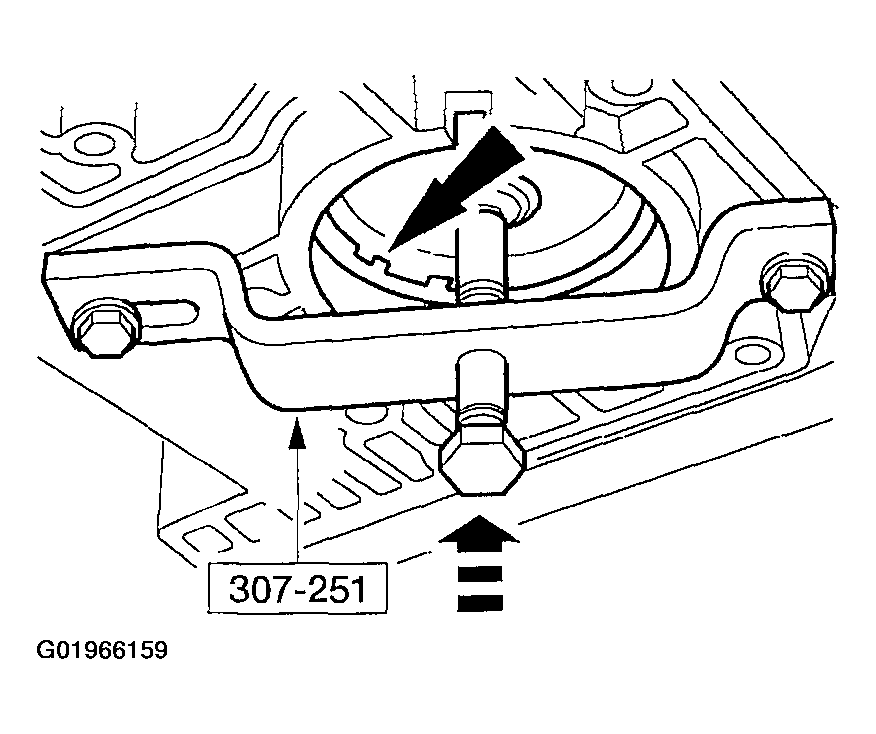

    Fig 1: Removing Overdrive Servo Retaining Ring
    G01966159Courtesy of FORD MOTOR CO.
  2. Using the special tool, compress the servo spring to remove the overdrive servo retaining ring.
  3. Remove the overdrive servo piston and return spring.

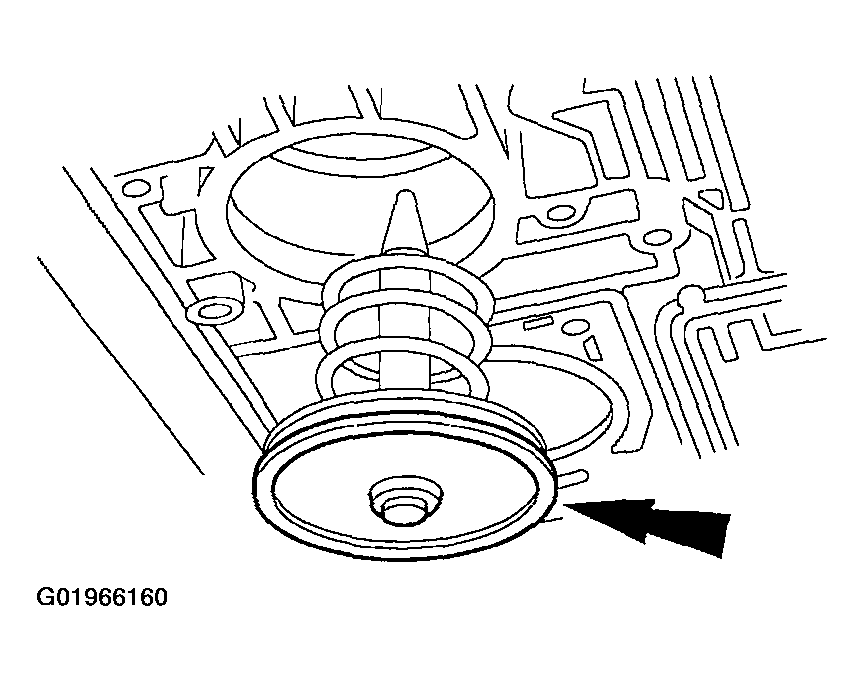

    Fig 2: Removing Overdrive Servo Piston And Return Spring
    G01966160Courtesy of FORD MOTOR CO.
