Manual Control Lever Shaft And Seal: Installation

WARNING: This page is about a different car, the 2002 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the special tool, install the manual control lever seal.

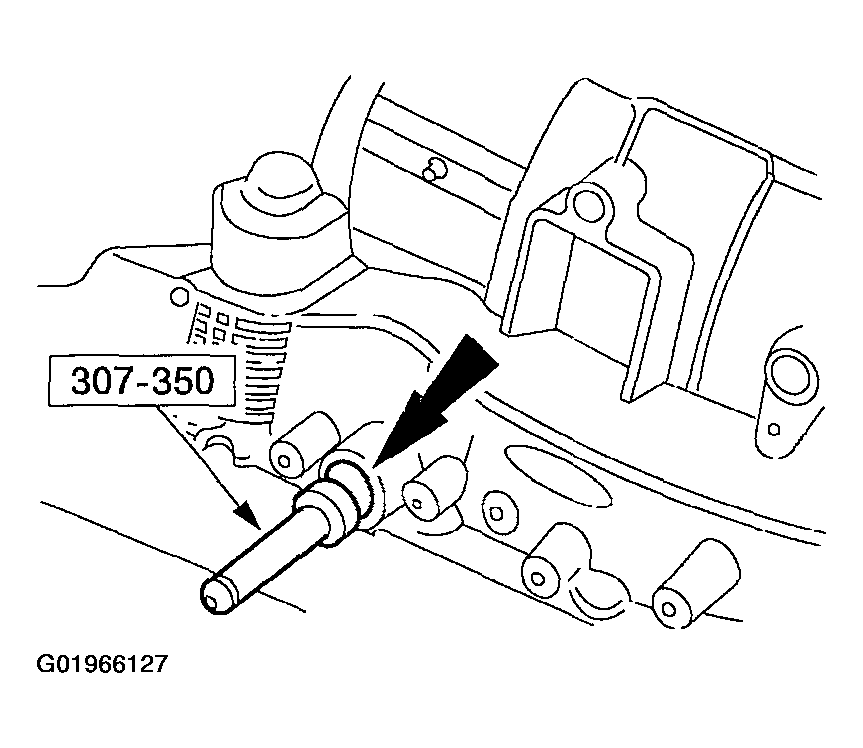

    Fig 1: Installing Manual Control Lever Seal
    G01966127Courtesy of FORD MOTOR CO.
  2. Install the parking lever actuating rod.
    1. Install the manual valve detent lever.
    2. Install the parking lever actuating rod.

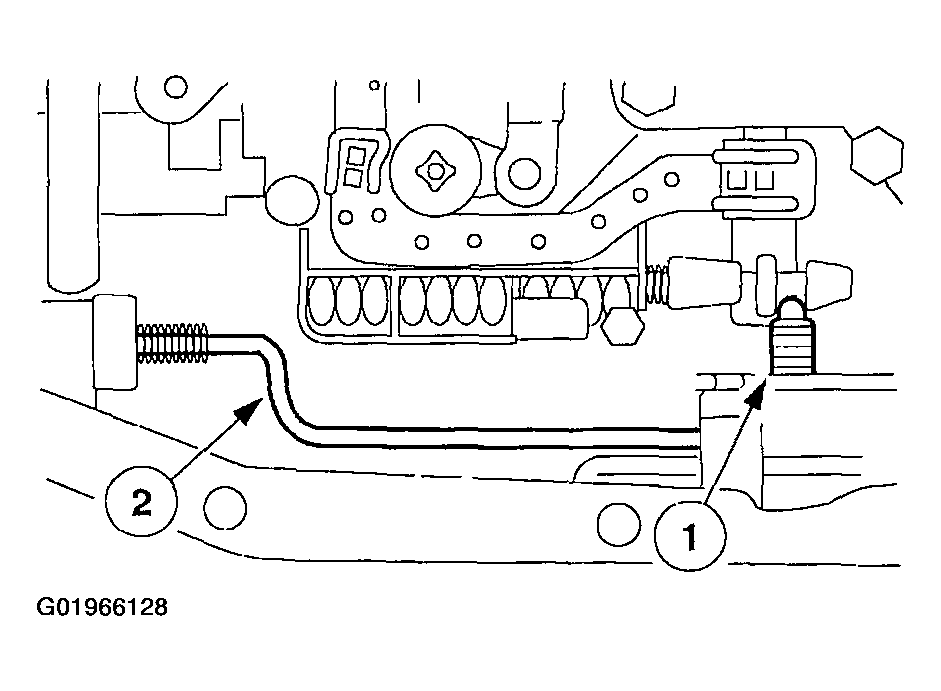

      Fig 2: Installing Parking Lever Actuating Rod
      G01966128Courtesy of FORD MOTOR CO.
  3. Install the manual control lever shaft.
    1. Install the manual control lever shaft.
    2. Install the inner manual control lever shaft nut.
    3. Install the manual lever shaft retaining pin.

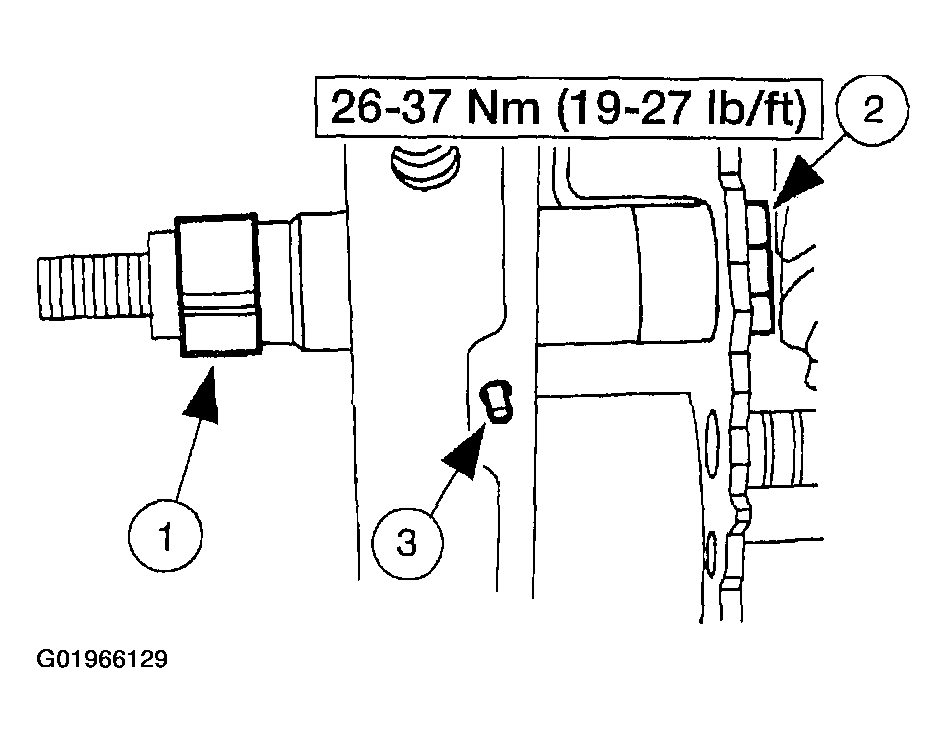

      Fig 3: Installing Manual Control Lever Shaft
      G01966129Courtesy of FORD MOTOR CO.
  4. Install the manual valve detent lever spring.
    1. Position the manual valve detent lever spring.
    2. Install the manual valve detent lever spring bolt.

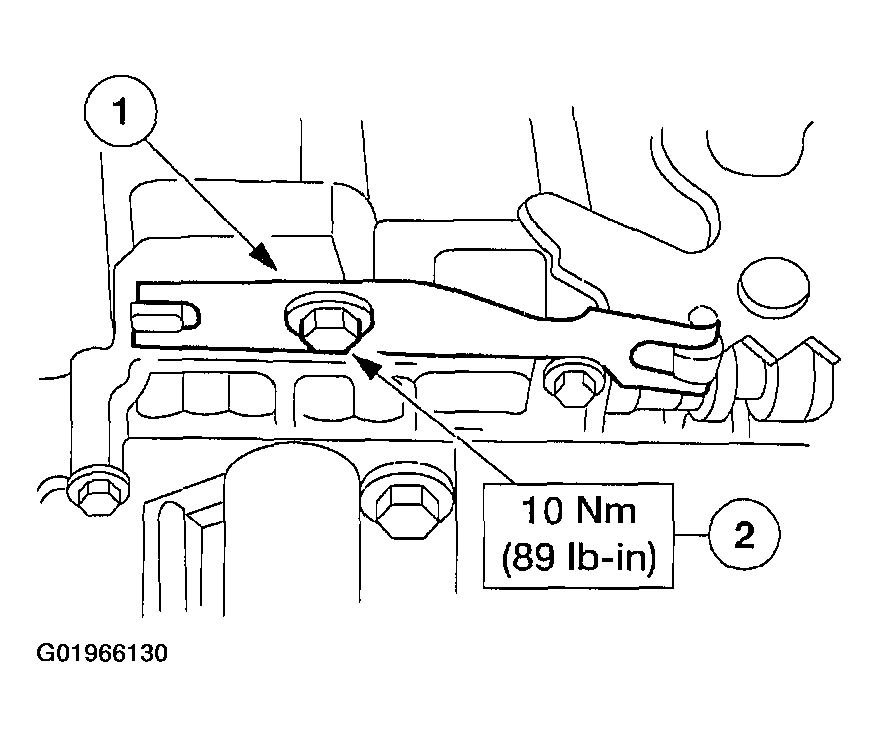

      Fig 4: Installing Manual Valve Detent Lever Spring
      G01966130Courtesy of FORD MOTOR CO.
  5. Install the digital TR sensor.
    1. Install the digital TR sensor.
    2. Loosely install the bolts.
      Fig 5: Installing Digital TR Sensor
      G01966131Courtesy of FORD MOTOR CO.
    6. NOTE: Manual shift lever must be in the neutral position.
    Fig 6: Aligning Digital TR Sensor
    G01966132Courtesy of FORD MOTOR CO.
  6. Using the special tool, align the digital TR sensor.
  7. Tighten the bolts.
    Fig 7: Identifying Tightening Torque Of Digital TR Sensor Bolts
    G01966133Courtesy of FORD MOTOR CO.
  8. Install the manual control lever.
    1. Position the manual control lever.
    2. Install a new manual lever shaft outer nut.

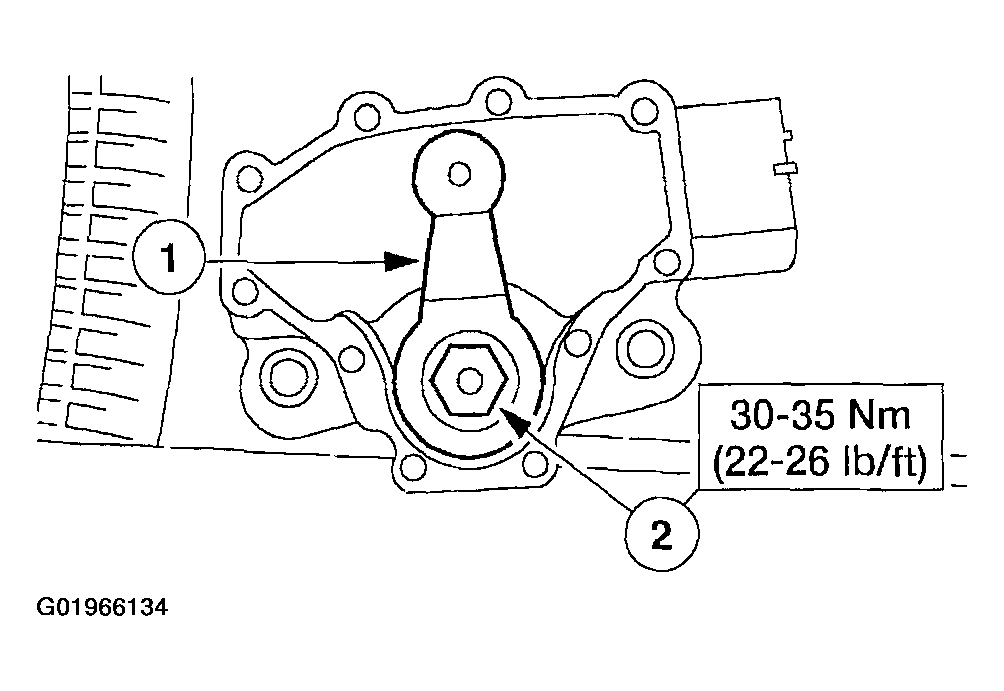

      Fig 8: Installing Manual Control Lever
      G01966134Courtesy of FORD MOTOR CO.
  9. With manual lever in overdrive, connect the shift control cable.
    Fig 9: Connecting Shift Control Cable
    G01966135Courtesy of FORD MOTOR CO.
  10. Install digital TR sensor electrical connector.
  11. Install the filter and transmission fluid pan. For additional information, refer to FLUID PAN, GASKET AND FILTER .
  12. Lower the vehicle.
    13. NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 miles) or more to relearn the strategy.
  13. Connect the battery ground cable.
