Extension Housing Seal And Gasket: Removal

WARNING: This page is about a different car, the 2002 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle.

NOTE: The output shaft and driveshaft are a balanced assembly.

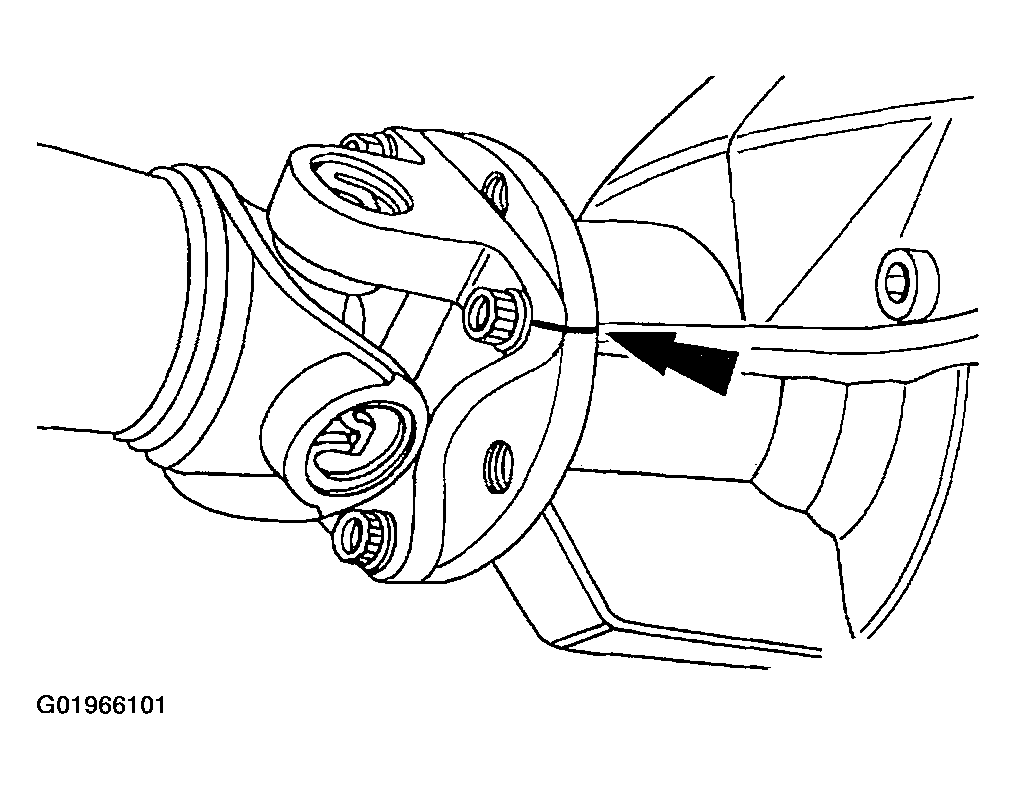

Fig 1: Marking Driveshaft Flange And Rear Pinion Flange

Courtesy of FORD MOTOR CO.

Mark the driveshaft flange and the rear pinion flange for correct alignment during assembly.
Remove the four bolts.

Fig 2: Removing Drive Shaft Bolts
Courtesy of FORD MOTOR CO.
Remove the driveshaft.

Fig 3: Removing Driveshaft
Courtesy of FORD MOTOR CO.

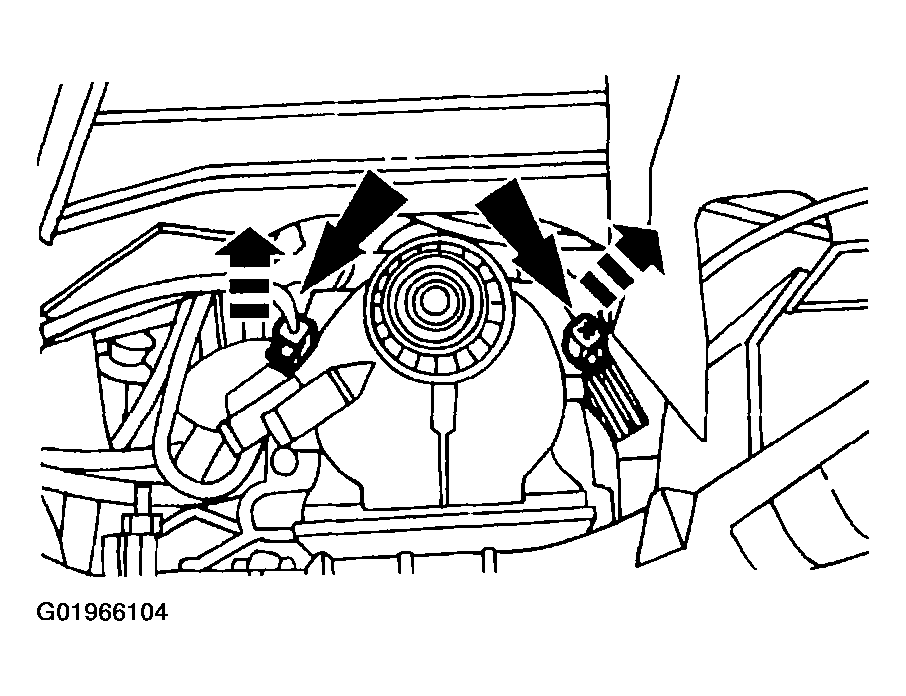

Disconnect the catalyst monitoring sensor harness connectors. Remove the harness bracket.

Fig 4: Disconnecting Catalyst Monitoring Sensor Harness Connectors
Courtesy of FORD MOTOR CO.
Remove the transmission insulator and retainer. For additional information, refer to TRANSMISSION INSULATOR AND RETAINER .

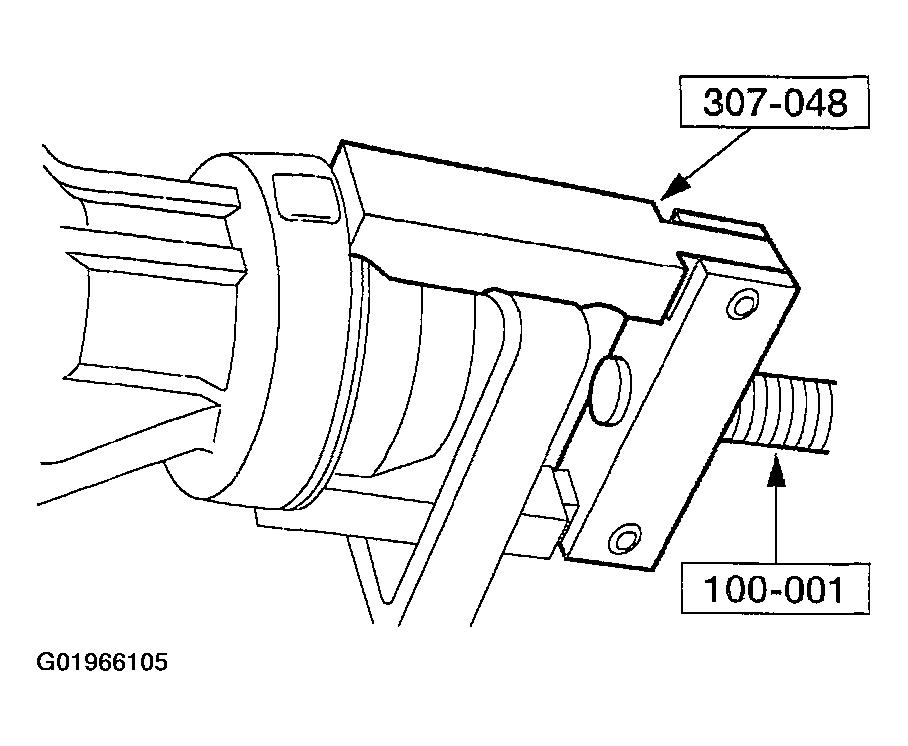

Use the special tools, remove the extension housing seal.

Fig 5: Removing Extension Housing Seal
Courtesy of FORD MOTOR CO.

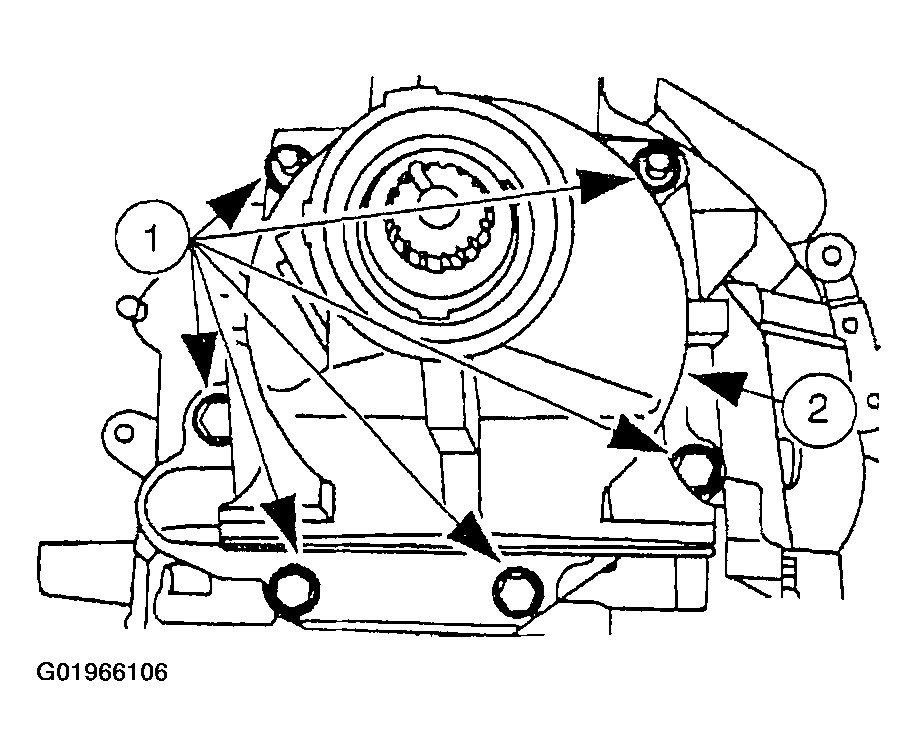

Remove the extension housing and gasket.
1. Remove the bolts and nuts.
2. Remove the extension housing and gasket.

  Fig 6: Removing Extension Housing And Gasket
  Courtesy of FORD MOTOR CO.
