Transmission Fluid Drain And Refill: Draining

WARNING: This page is about a different car, the 2002 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Always refer to the instructions supplied with the flush and fill machine.
NOTE: Draining fluid from the transmission by removing only the fluid pan is acceptable for vehicles that do not have a torque converter drain plug, for normal or severe duty fluid maintenance.
NOTE: A new procedure for draining and adding transmission fluid using a suitable transmission flush and fill machine has been added. The following procedure has different methods for draining and refilling the listed vehicles:

Use the method that is applicable to your vehicle.

All vehicles using a suitable flush and fill machine

  1. Raise the vehicle on a hoist.
  2. Use a suitable flush and fill machine to change the fluid.
  3. When connecting the flush and fill machine, connect the machine to the fluid cooler tube after the fluid cooler on the cooler return line. This will help remove any foreign material trapped in the fluid coolers.

    Refill

  4. Use only clean automatic transmission fluid.
  5. Once the fluid exchange has been completed, disconnect the flush and fill machine. Reconnect any disconnected fluid cooler tubes.
    6. NOTE: If the vehicle was equipped with a fluid filter, install a new filter (XC3Z-7B155-BA).
    Fig 1: Installing New Transmission Fluid Filter
    G01966055Courtesy of FORD MOTOR CO.
  6. Install a new in-line transmission fluid filter.
  7. Lower the vehicle.
  8. With the engine running and the transmission at normal operating temperature 66-77°C (150-170°F), check and adjust the transmission fluid level, and check for any leaks. If fluid is needed, add fluid in increments of 0.24-liter (0.5-pint) until the correct level is achieved (fluid should be in the cross-hatched area of the fluid level indicator).


Vehicles equipped with a torque converter drain plug

  1. Raise the vehicle on a hoist.
  2. If the vehicle is equipped with an in-line transmission fluid filter, remove and discard the filter.
    Fig 1: Identifying Transmission Fluid Filter
    G01966056Courtesy of FORD MOTOR CO.
  3. Loosen the transmission fluid pan bolts and allow the fluid to drain.

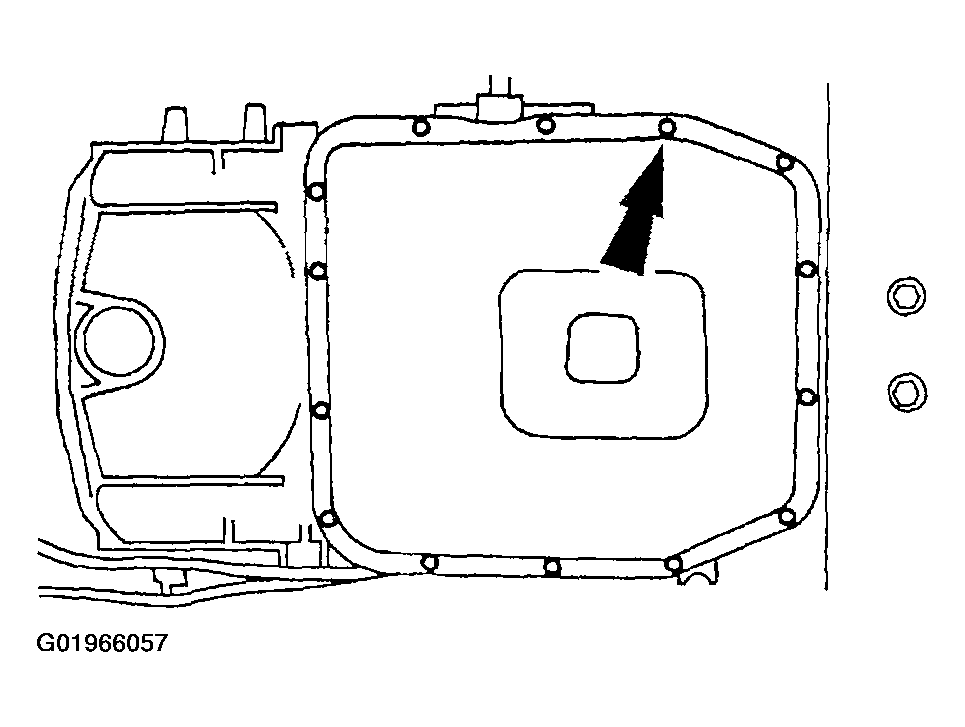

    Fig 2: Locating Transmission Fluid Pan Bolts
    G01966057Courtesy of FORD MOTOR CO.
  4. After the fluid has drained, remove the transmission fluid pan.
    Fig 3: Locating Transmission Fluid Pan
    G01966058Courtesy of FORD MOTOR CO.
  5. Do not remove the fluid filter. It is not necessary to change the fluid filter during a normal maintenance fluid change.
  6. Remove the torque converter drain plug cover.
    Fig 4: Locating Torque Converter Drain Plug Cover
    G01966059Courtesy of FORD MOTOR CO.
  7. Remove the torque converter drain plug and discard.

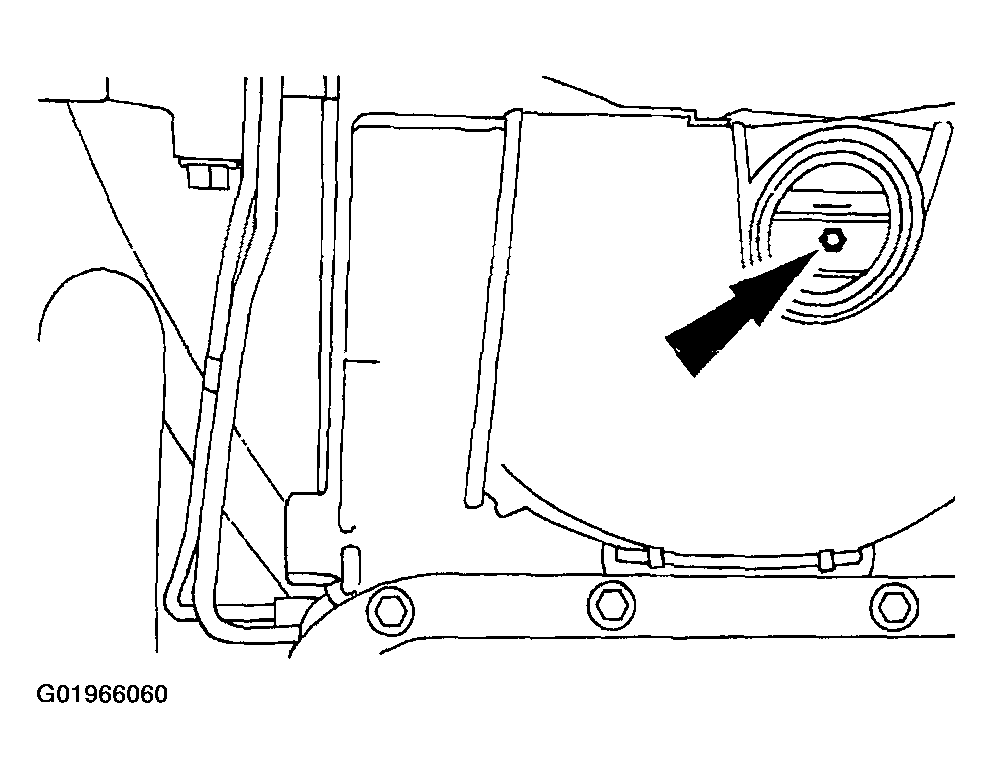

    Fig 5: Locating Torque Converter Drain Plug
    G01966060Courtesy of FORD MOTOR CO.
  8. Clean and inspect the transmission fluid pan, transmission fluid pan gasket and magnet.
    Fig 6: Locating Transmission Fluid Pan Gasket And Magnet
    G01966061Courtesy of FORD MOTOR CO.
  9. Thoroughly flush the cooler tubes. For additional information, refer to TRANSMISSION FLUID COOLER - BACKFLUSHING AND CLEANING .

    Refill

  10. After the torque converter has drained, install a new drain plug.
    Fig 7: Installing New Drain Plug
    G01966062Courtesy of FORD MOTOR CO.
  11. Install the torque converter drain plug cover.

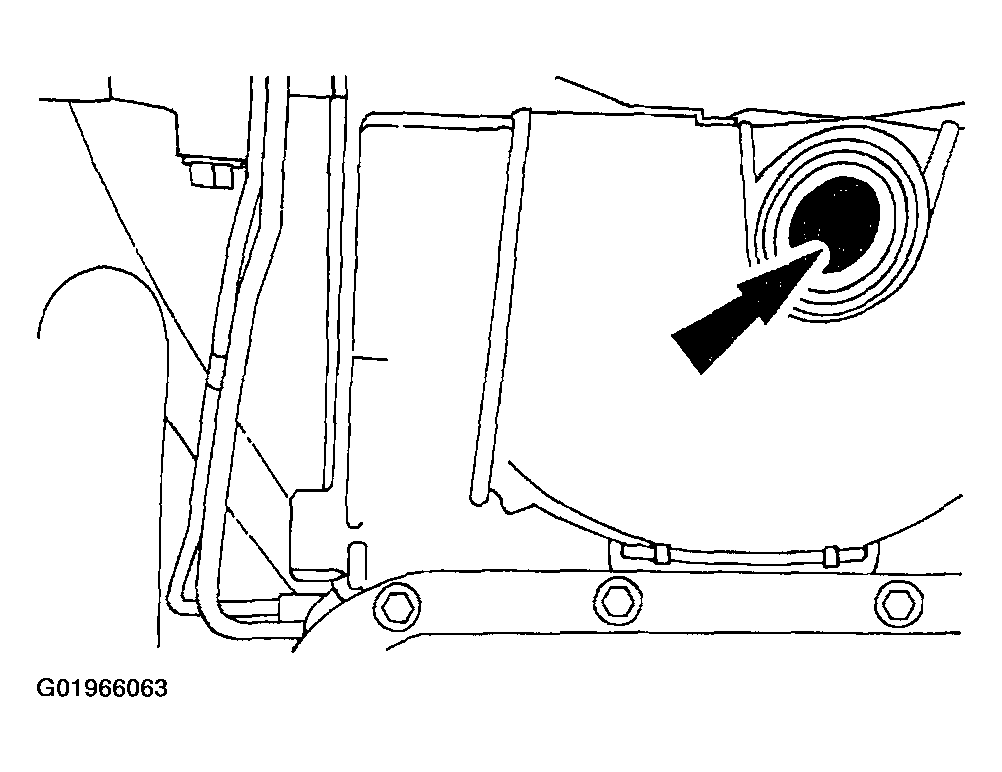

    Fig 8: Installing Torque Converter Drain Plug Cover
    G01966063Courtesy of FORD MOTOR CO.
  12. Position the magnet into the transmission fluid pan.
    Fig 9: Positioning Magnet Into Transmission Fluid Pan
    G01966064Courtesy of FORD MOTOR CO.
    13. NOTE: The fluid pan gasket is reusable, clean and inspect for damage. If not damaged, the gasket should be reused.
  13. Install the fluid pan and gasket.
    1. Position the fluid pan with the gasket in place.
    2. Install the bolts.

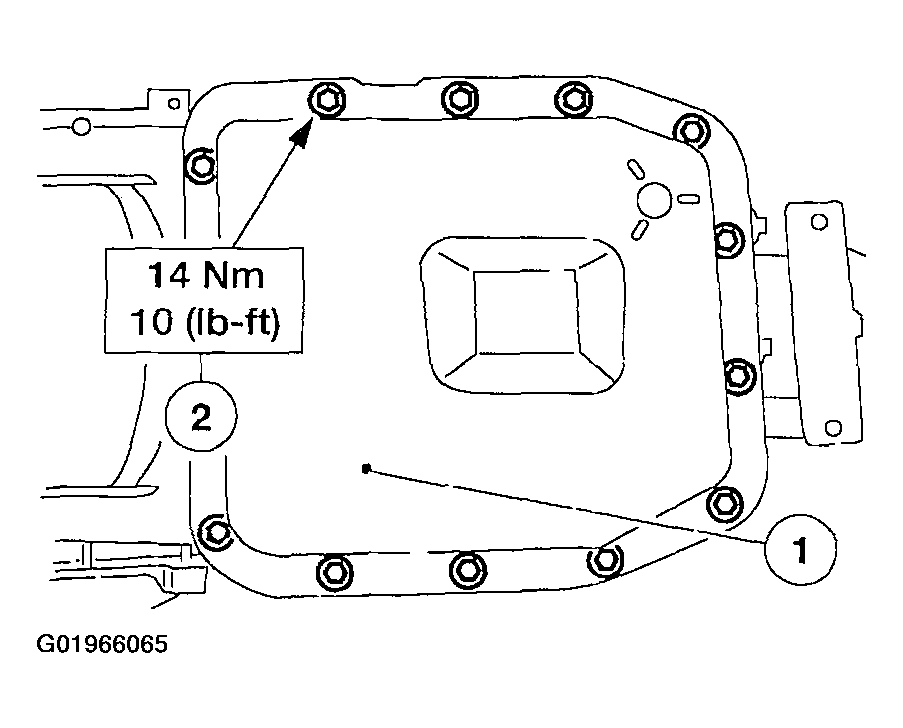

      Fig 10: Tightening Torque Of Fluid Pan Bolts
      G01966065Courtesy of FORD MOTOR CO.
    14. NOTE: If the vehicle was equipped with a fluid filter, install a new filter (XC3Z-7B155-BA).
    Fig 11: Installing New In-Line Transmission Fluid Filter
    G01966066Courtesy of FORD MOTOR CO.
  14. Install a new in-line transmission fluid filter.
  15. Lower the vehicle.
    16. CAUTION: The use of any other transmission fluid can result in the transmission failing to operate in a normal manner or transmission failure.
  16. Fill the transmission.
    • Add 4.7 liters (5 qts) of clean automatic transmission fluid to the transmission through the fluid filler tube.
  17. Start the engine. Move the transmission range selector lever through all the gear ranges, checking for engagements.
  18. With the engine running and the transmission at normal operating temperature 66-77°C (150-170°F), check and adjust the transmission fluid level, and check for any leaks. If fluid is needed, add fluid in increments of 0.24-liter (0.5-pint) until the correct level is achieved (fluid should be in the cross-hatched area of the fluid level indicator).


Vehicles without a torque converter drain plug

  1. Raise the vehicle on a hoist.
  2. If the vehicle is equipped with an in-line transmission fluid filter, remove and discard the filter.
    Fig 1: Removing Transmission Fluid Filter
    G01966067Courtesy of FORD MOTOR CO.
  3. Loosen the transmission fluid pan bolts and allow the fluid to drain.

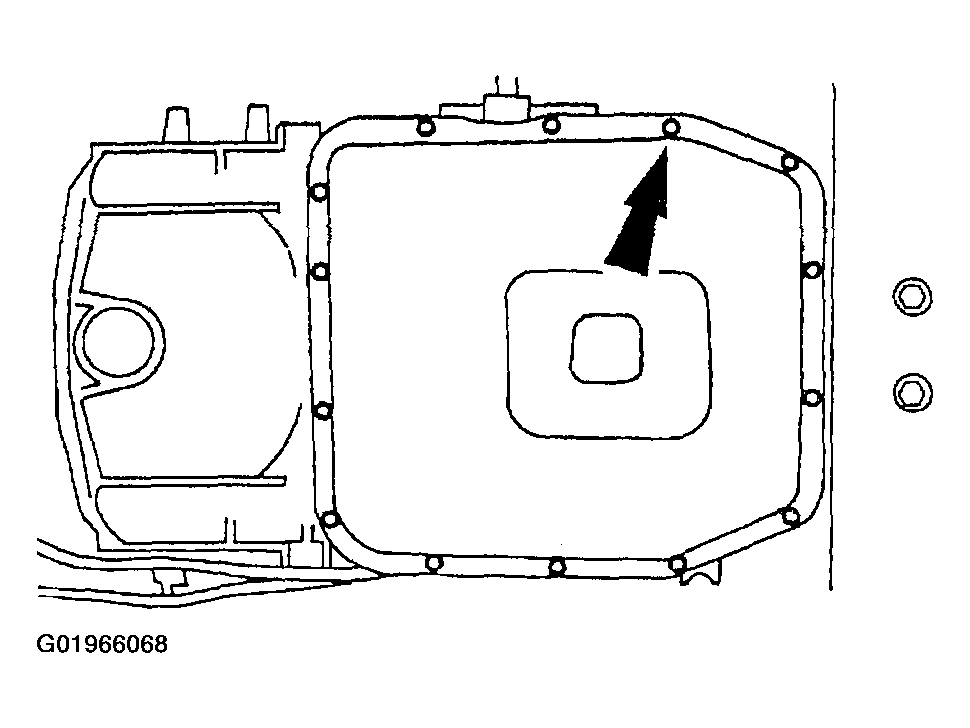

    Fig 2: Identifying Transmission Fluid Pan Bolts For Removing
    G01966068Courtesy of FORD MOTOR CO.
  4. After the fluid has drained, remove the transmission fluid pan.
    Fig 3: Removing Transmission Fluid Pan
    G01966069Courtesy of FORD MOTOR CO.
  5. Do not remove the fluid filter. It is not necessary to change the fluid filter during a normal maintenance fluid change.
  6. Clean and inspect the transmission fluid pan, transmission fluid pan gasket and magnet.
    Fig 4: Locating Transmission Fluid Pan Gasket And Magnet
    G01966070Courtesy of FORD MOTOR CO.
  7. Thoroughly flush the cooler tubes. For additional information, refer to TRANSMISSION FLUID COOLER - BACKFLUSHING AND CLEANING .

    Refill

  8. Position the magnet into the transmission fluid pan.
    Fig 5: Identifying Position Of Magnet Into Transmission Fluid Pan
    G01966071Courtesy of FORD MOTOR CO.
    9. NOTE: The fluid pan gasket is reusable, clean and inspect for damage. If not damaged, the gasket should be reused.
  9. Install the fluid pan and gasket.
    1. Position the fluid pan with the gasket in place.
    2. Install the bolts.

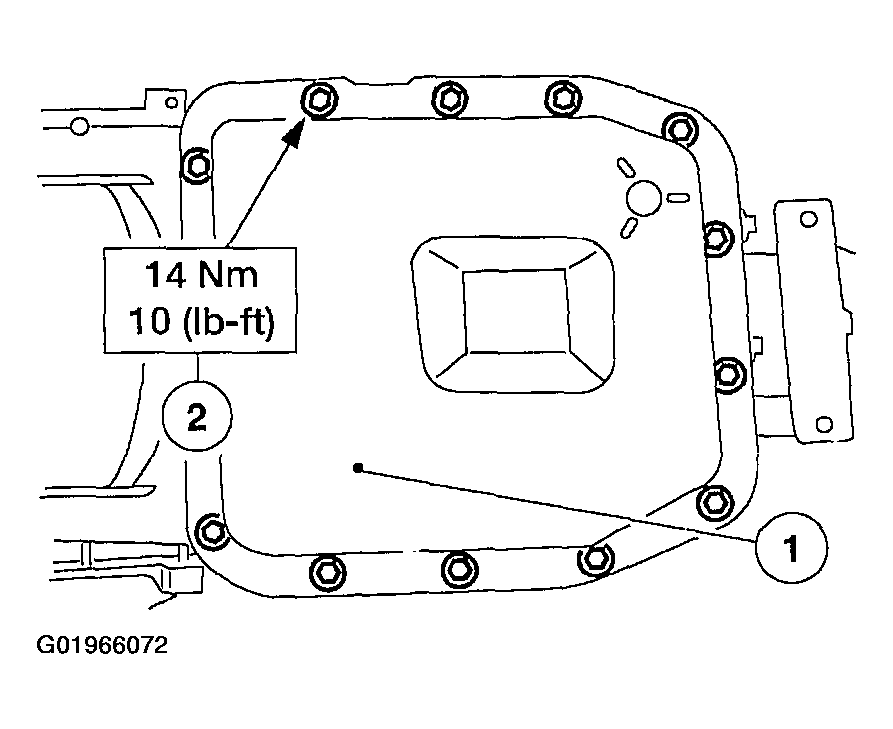

      Fig 6: Identifying Fluid Pan Gasket For Installation
      G01966072Courtesy of FORD MOTOR CO.
    10. NOTE: If the vehicle was equipped with a fluid filter, install a new filter (XC3Z-7B155-BA).
    Fig 7: Installing Transmission Fluid Filter
    G01966073Courtesy of FORD MOTOR CO.
  10. Install a new in-line transmission fluid filter.
  11. Lower the vehicle.
    12. CAUTION: The use of any other transmission fluid can result in the transmission failing to operate in a normal manner or transmission failure.
  12. Fill the transmission.
    • Add 4.7 liters (5 qts) of clean automatic transmission fluid to the transmission through the fluid filler tube.
  13. Start the engine. Move the transmission range selector lever through all the gear ranges, checking for engagements.
  14. With the engine running and the transmission at normal operating temperature 66-77°C (150-170°F), check and adjust the transmission fluid level, and check for any leaks. If fluid is needed, add fluid in increments of 0.24-liter (0.5-pint) until the correct level is achieved (fluid should be in the cross-hatched area of the fluid level indicator).
