Torque Converter One-Way Clutch Check: Procedure

WARNING: This page is about a different car, the 2002 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

Install the special tool in one of the grooves in the stator thrust washer.

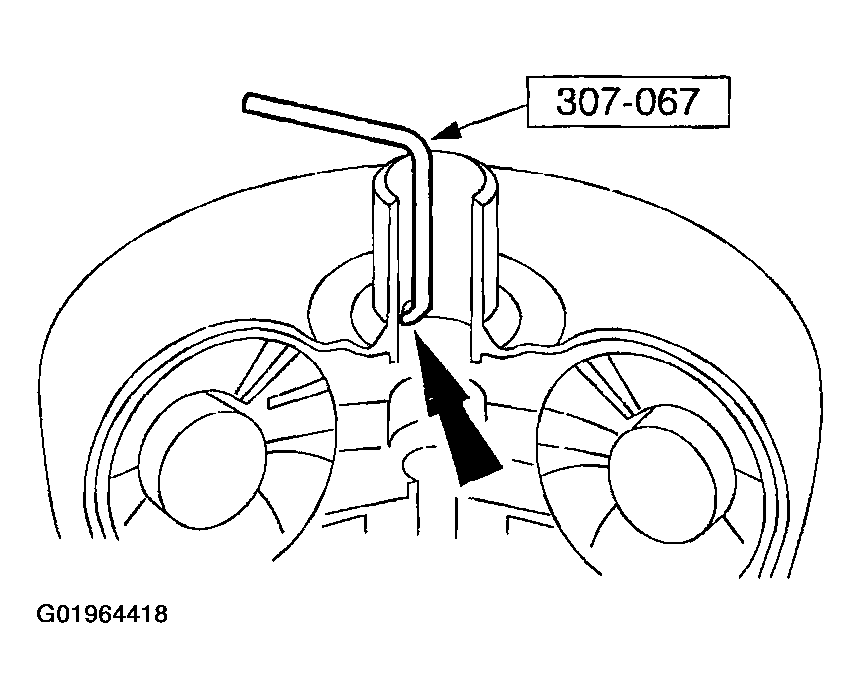

Fig 1: Installing Special Tool In One Of Grooves In Stator Thrust Washer
Courtesy of FORD MOTOR CO.
Install the special tool in the converter pump drive.

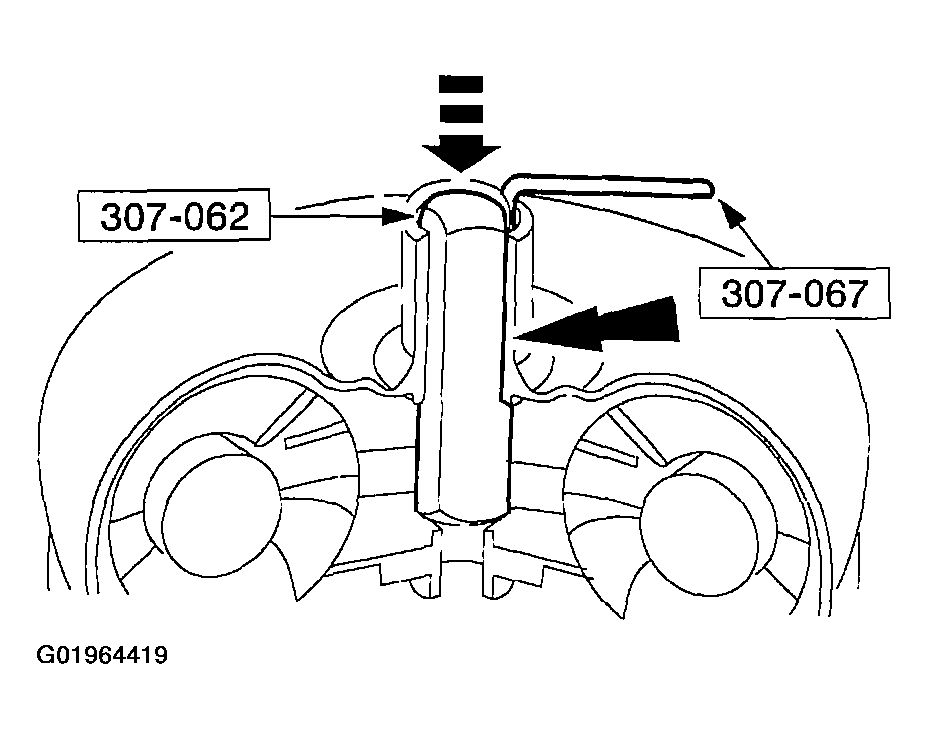

Fig 2: Installing Special Tool In Converter Pump Drive
Courtesy of FORD MOTOR CO.
Use a torque wrench to turn the special tool counterclockwise while holding the special tool stationary.
- The converter should lock up and hold torque.
- The torque converter one-way clutch should rotate freely in the clockwise direction.
- Try the clutch for lockup and hold in at least five positions.
- If the torque converter fails the lockup test torque, install a new or remanufactured torque converter.

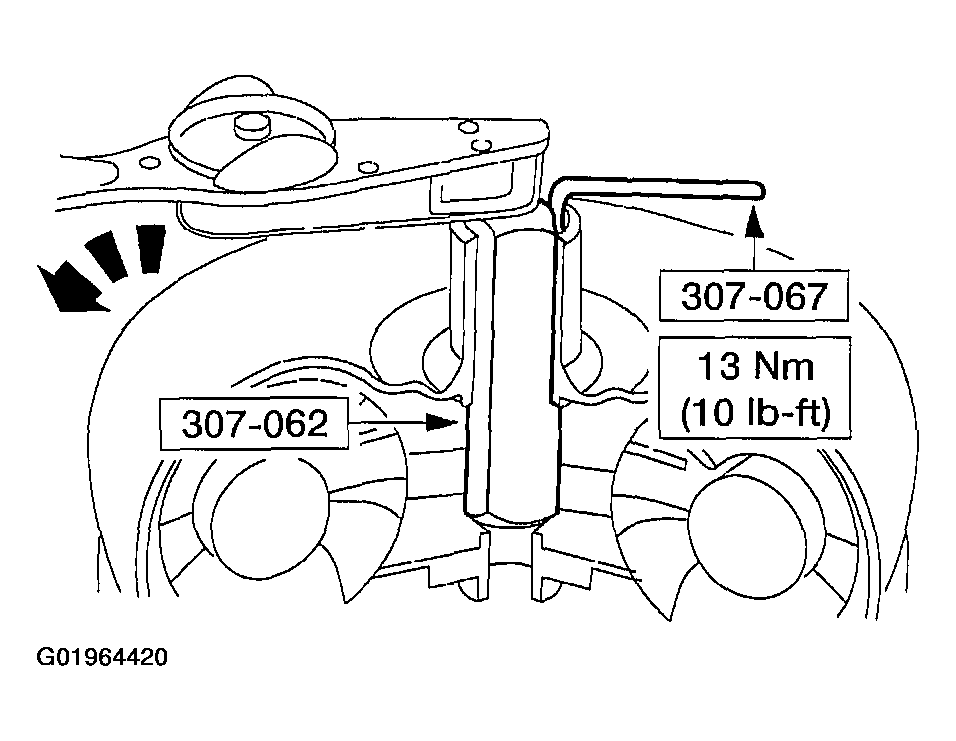

  Fig 3: Turning Special Tool Counterclockwise
  Courtesy of FORD MOTOR CO.
