Torque Converter End Play Check: Procedure

WARNING: This page is about a different car, the 2002 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

Install the special tool into the torque converter pump drive.
- Tighten the inner post until the tool is securely locked.

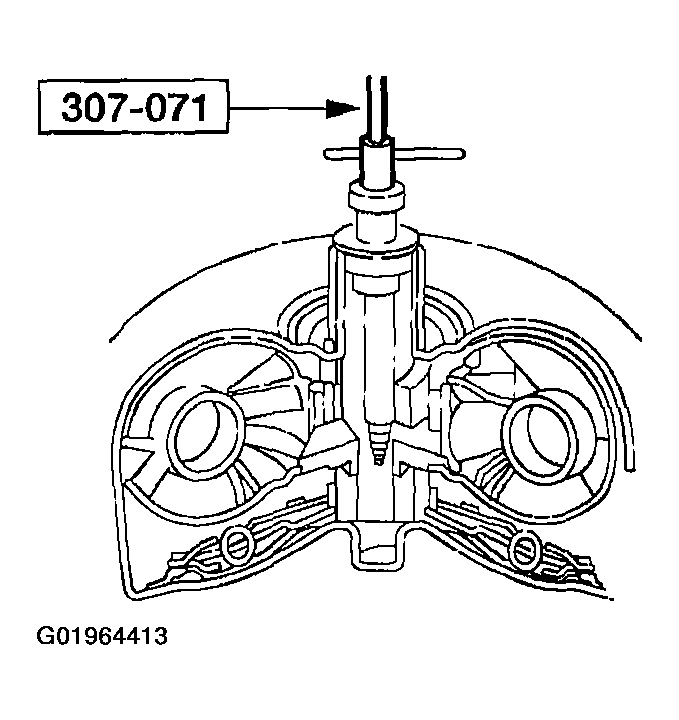

  Fig 1: Installing Special Tool Into Torque Converter Pump Drive
  Courtesy of FORD MOTOR CO.
Install the special tool on the converter pump drive hub and zero the dial indicator.

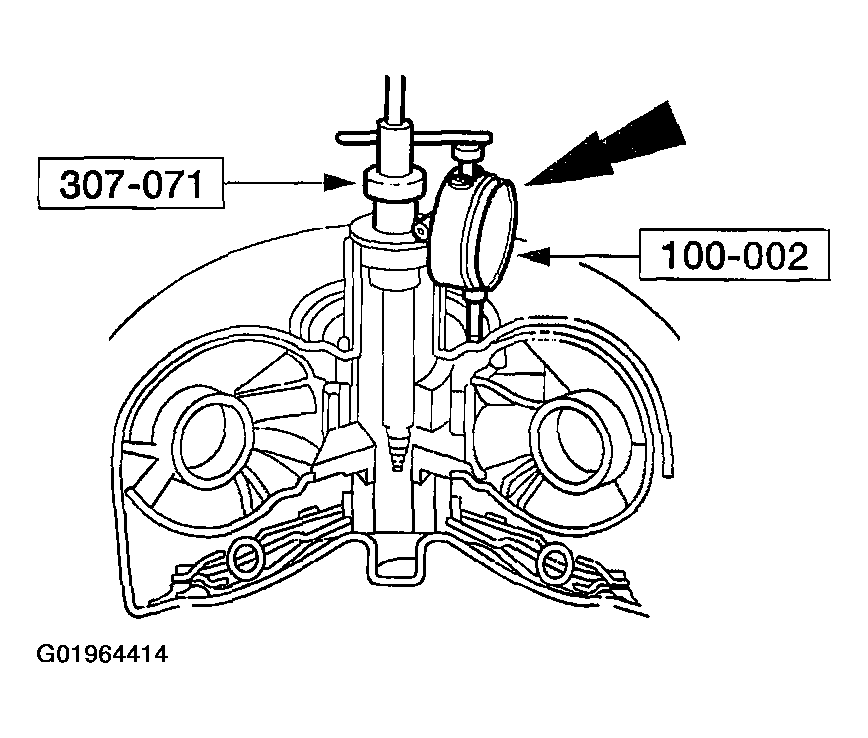

Fig 2: Installing Special Tool On Converter Pump Drive Hub And Zero Dial Indicator
Courtesy of FORD MOTOR CO.
Lift up on the special tool and note the dial indicator reading.
- If the reading exceeds end play limits, install a new or remanufactured torque converter.

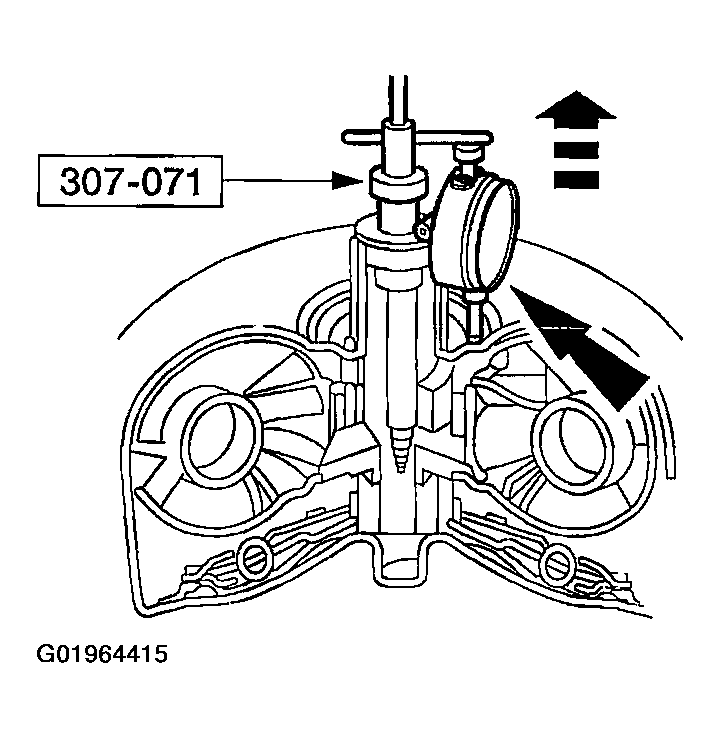

  Fig 3: Lifting Up Special Tool
  Courtesy of FORD MOTOR CO.
Torque Converter End Play

Fig 4: Torque Converter End Play Chart
Courtesy of FORD MOTOR CO.
Remove the special tools.
