Output Shaft And Direct Clutch Cylinder: Disassembly

WARNING: This page is about a different car, the 2002 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: The index mark on the output shaft must be aligned with the index mark on the output shaft ring gear during the assembly procedure.

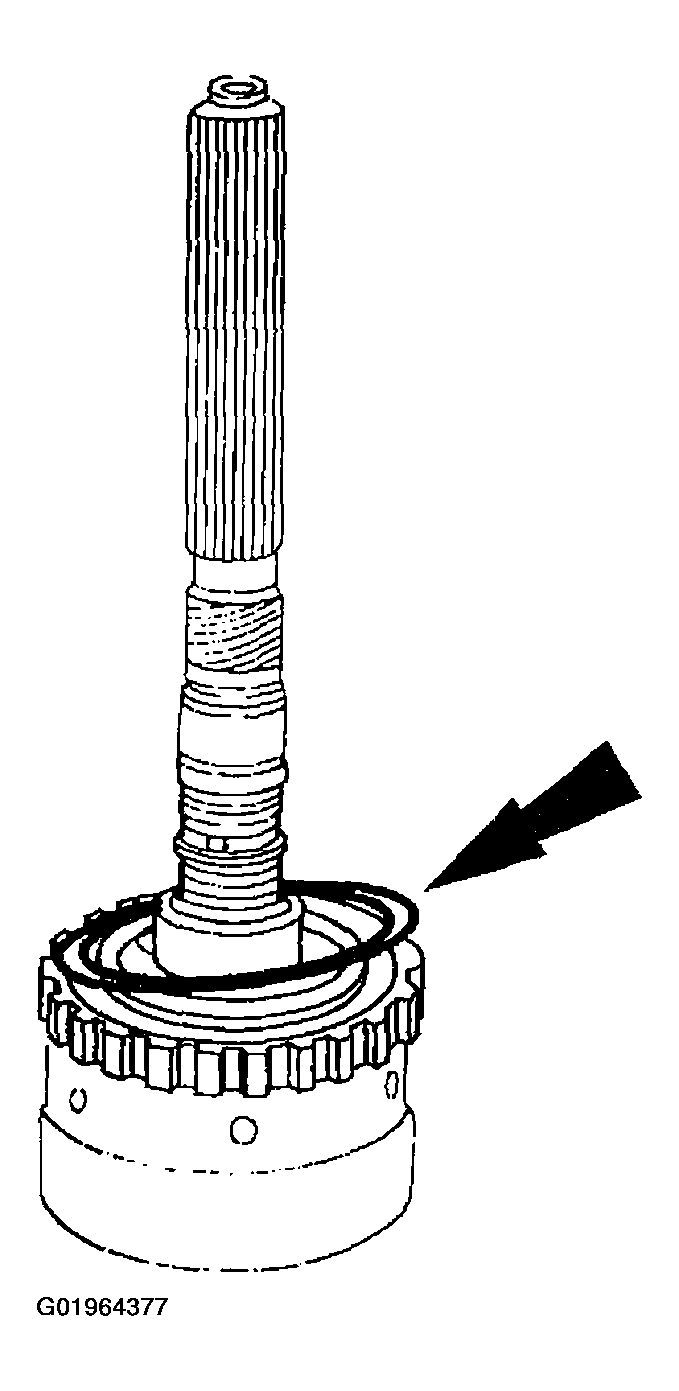

    Fig 1: Removing Ring Gear Snap Ring
    G01964377Courtesy of FORD MOTOR CO.
  1. Remove the ring gear snap ring.
  2. Separate the ring gear and output shaft.
    Fig 2: Separating Ring Gear And Output Shaft
    G01964378Courtesy of FORD MOTOR CO.
  3. Remove the three output shaft seal rings.

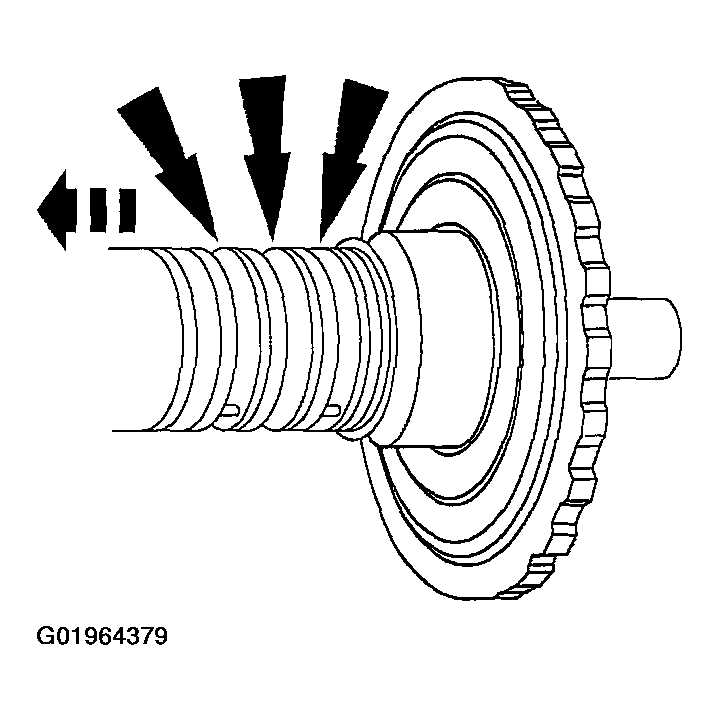

    Fig 3: Removing Three Output Shaft Seal Rings
    G01964379Courtesy of FORD MOTOR CO.
  4. Remove the output shaft hub snap ring and the output shaft hub.
    Fig 4: Removing Output Shaft Hub Snap Ring And Output Shaft Hub
    G01964380Courtesy of FORD MOTOR CO.
  5. Remove the two direct clutch seal rings.

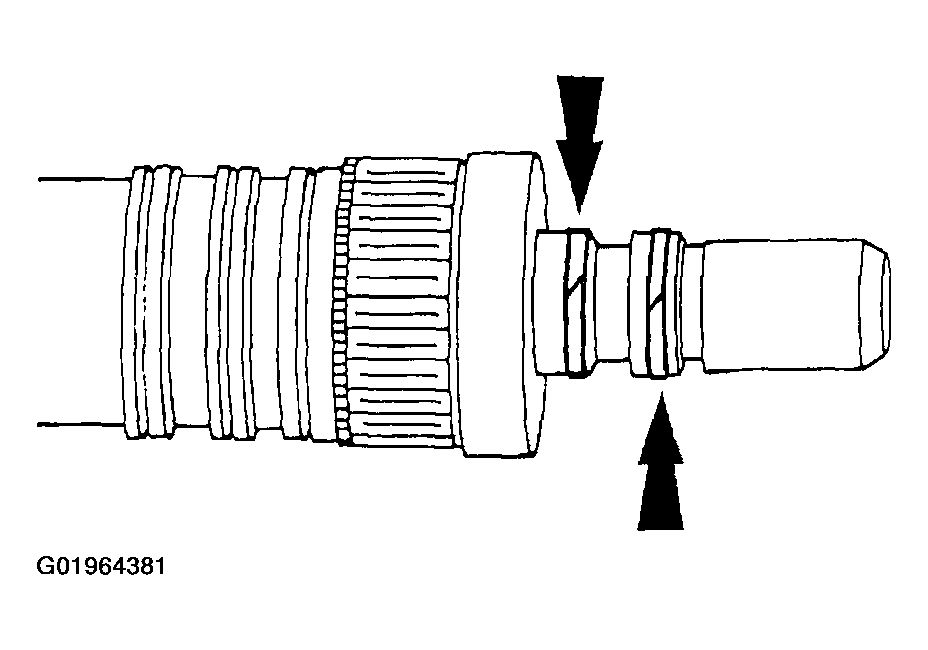

    Fig 5: Removing Two Direct Clutch Seal Rings
    G01964381Courtesy of FORD MOTOR CO.
  6. Remove the No. 7 direct clutch inner bearing support.
    1. Remove the direct clutch hub.
    2. Remove the No. 7 direct clutch inner bearing support.

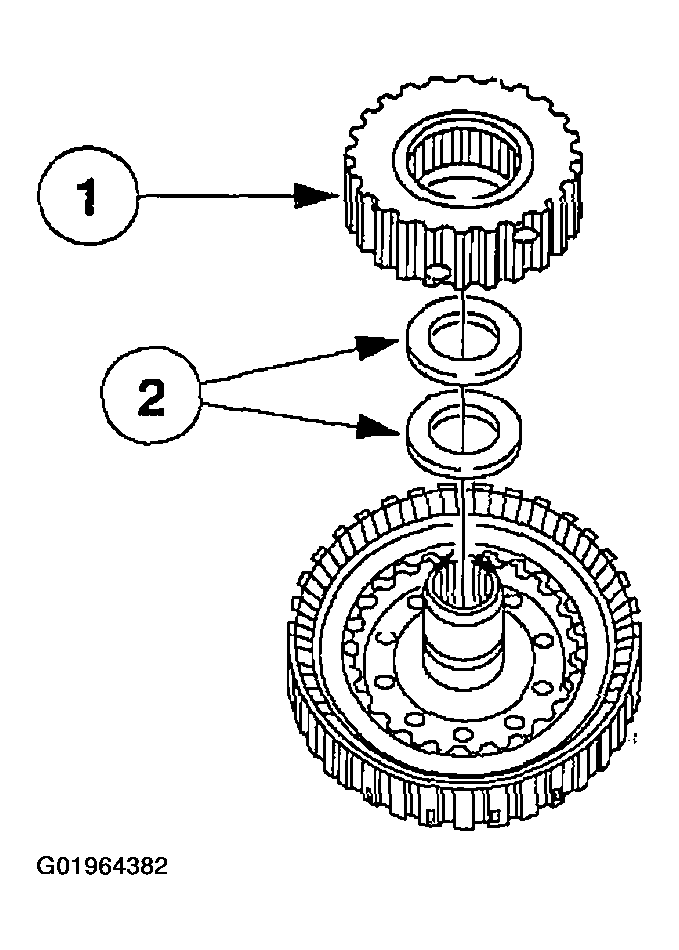

      Fig 6: Removing No. 7 Direct Clutch Inner Bearing Support
      G01964382Courtesy of FORD MOTOR CO.
  7. Inspect the clutch cylinder thrust surfaces, piston bore and clutch plate serrations for scores or burrs. Minor scores or burrs may be removed with a crocus cloth. Install a new clutch cylinder if badly scored or damaged.
  8. Check the fluid passage in the clutch cylinder for obstructions. Clean out all fluid passages. Inspect the clutch piston for scores and install new if necessary. Inspect the check balls for freedom of movement and correct seating.
  9. Check clutch release spring for distortion and cracks. Install a new spring (including wave spring) if distorted or cracked.
  10. Inspect composition clutch plates, steel clutch plates and clutch pressure plate for worn or scored bearing surfaces. Install new parts if they are deeply scored or burred.
  11. Check the clutch plates for flatness and fit on the clutch hub serrations. Discard any plate that does not slide freely on the serrations or that is not flat.
  12. Check the clutch hub thrust surfaces for scores and clutch hub splines for wear.
  13. Remove the direct clutch pack.
    1. Remove the selective retaining ring.
    2. Remove the direct clutch pack.

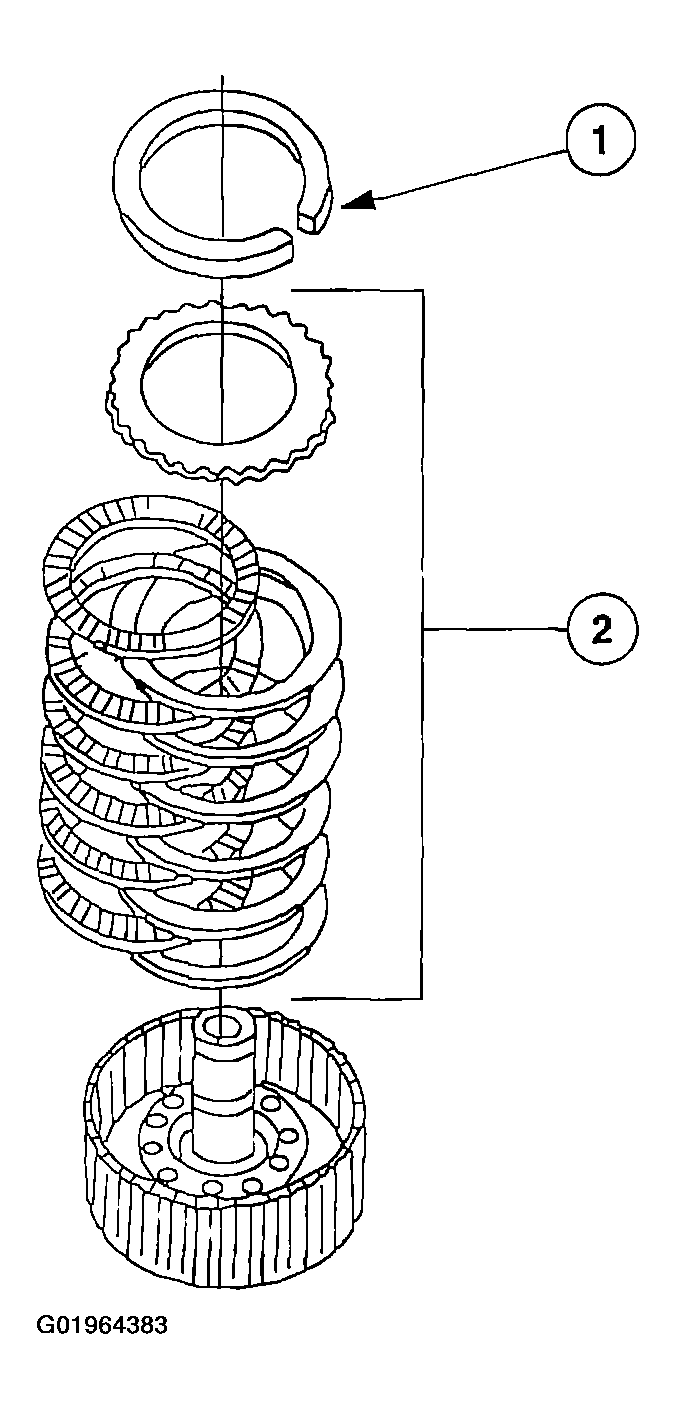

      Fig 7: Removing Direct Clutch Pack
      G01964383Courtesy of FORD MOTOR CO.
  14. Using the special tool, compress the piston return spring and remove the snap ring.

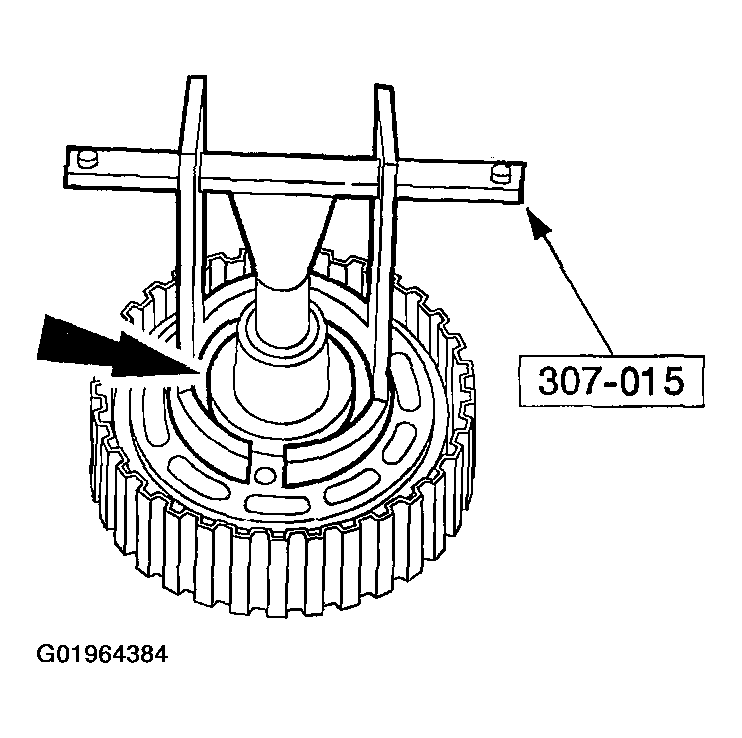

    Fig 8: Compress Piston Return Spring And Removing Snap Ring
    G01964384Courtesy of FORD MOTOR CO.
  15. WARNING: Wear safety glasses when using compressed air.
    NOTE: If necessary, use regulated compressed air (207 kPa max pressure) to remove the clutch piston.
    Fig 9: Removing Support And Spring Assembly And Piston
    G01964385Courtesy of FORD MOTOR CO.
  16. Remove the support and spring assembly and piston.
  17. Remove the inner piston seal.

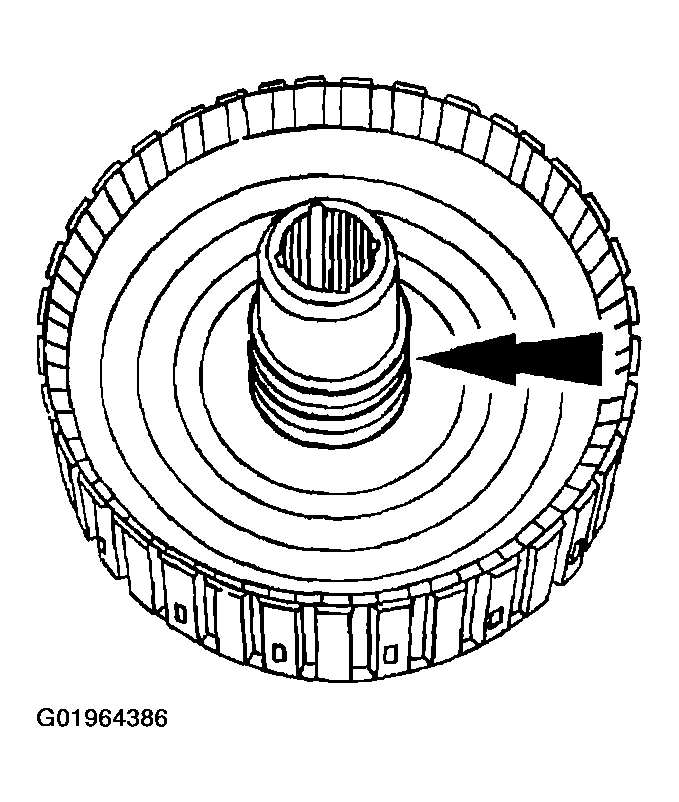

    Fig 10: Removing Inner Piston Seal
    G01964386Courtesy of FORD MOTOR CO.
  18. Remove the outer piston seal.

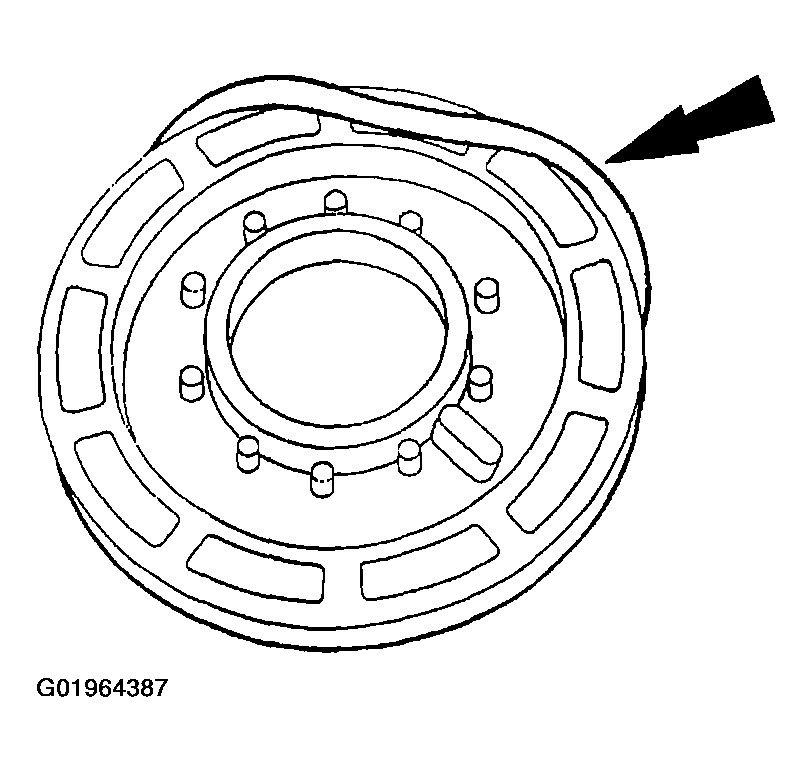

    Fig 11: Removing Outer Piston Seal
    G01964387Courtesy of FORD MOTOR CO.
