Direct Clutch Disassembled View

WARNING: This page is about a different car, the 2002 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

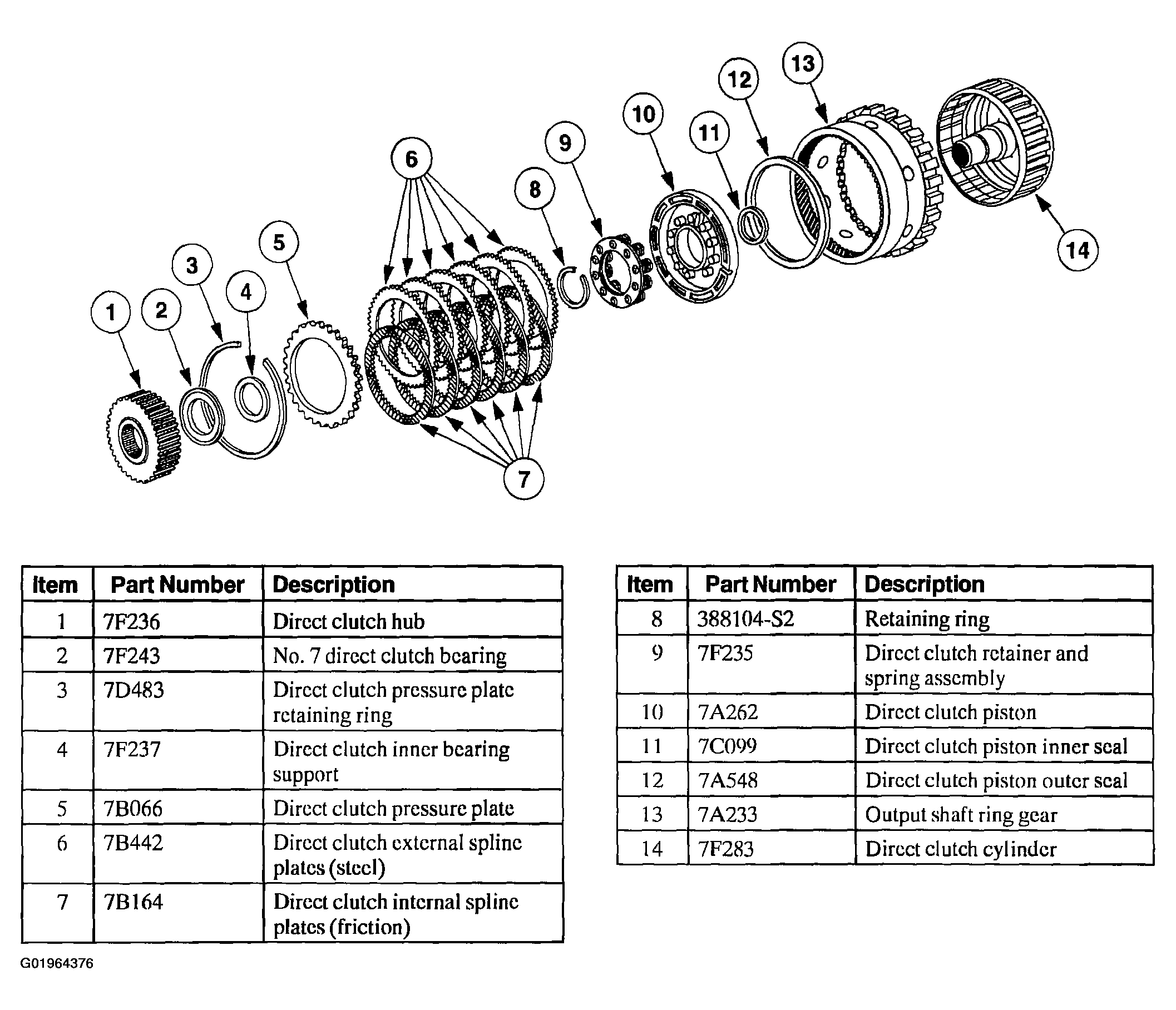

Fig 1: View Of Direct Clutch
G01964376Courtesy of FORD MOTOR CO.
