Transmission Connector Layouts: Notes

WARNING: This page is about a different car, the 2002 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

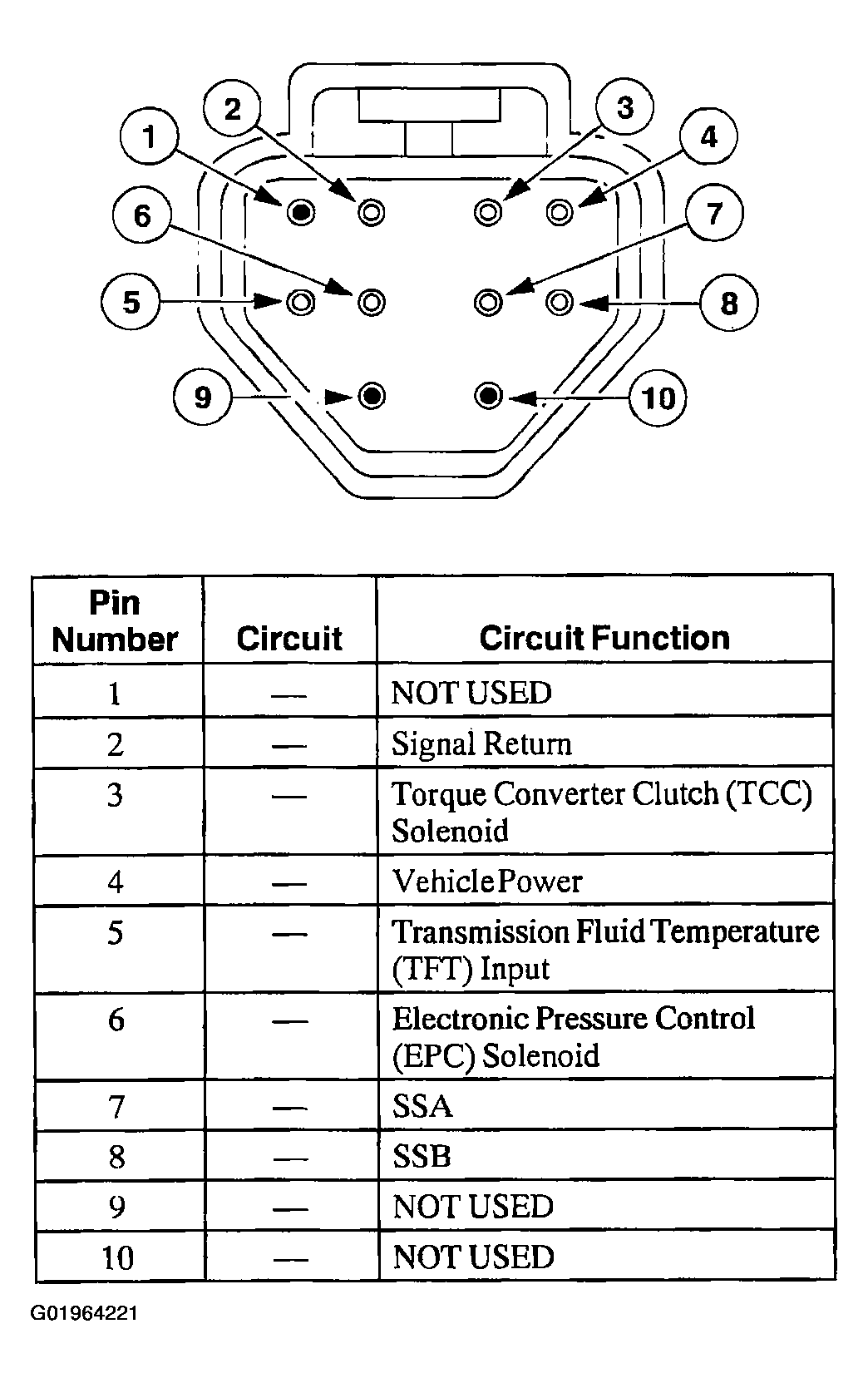

Fig 1: Identifying Transmission Vehicle Harness Connector

Courtesy of FORD MOTOR CO.

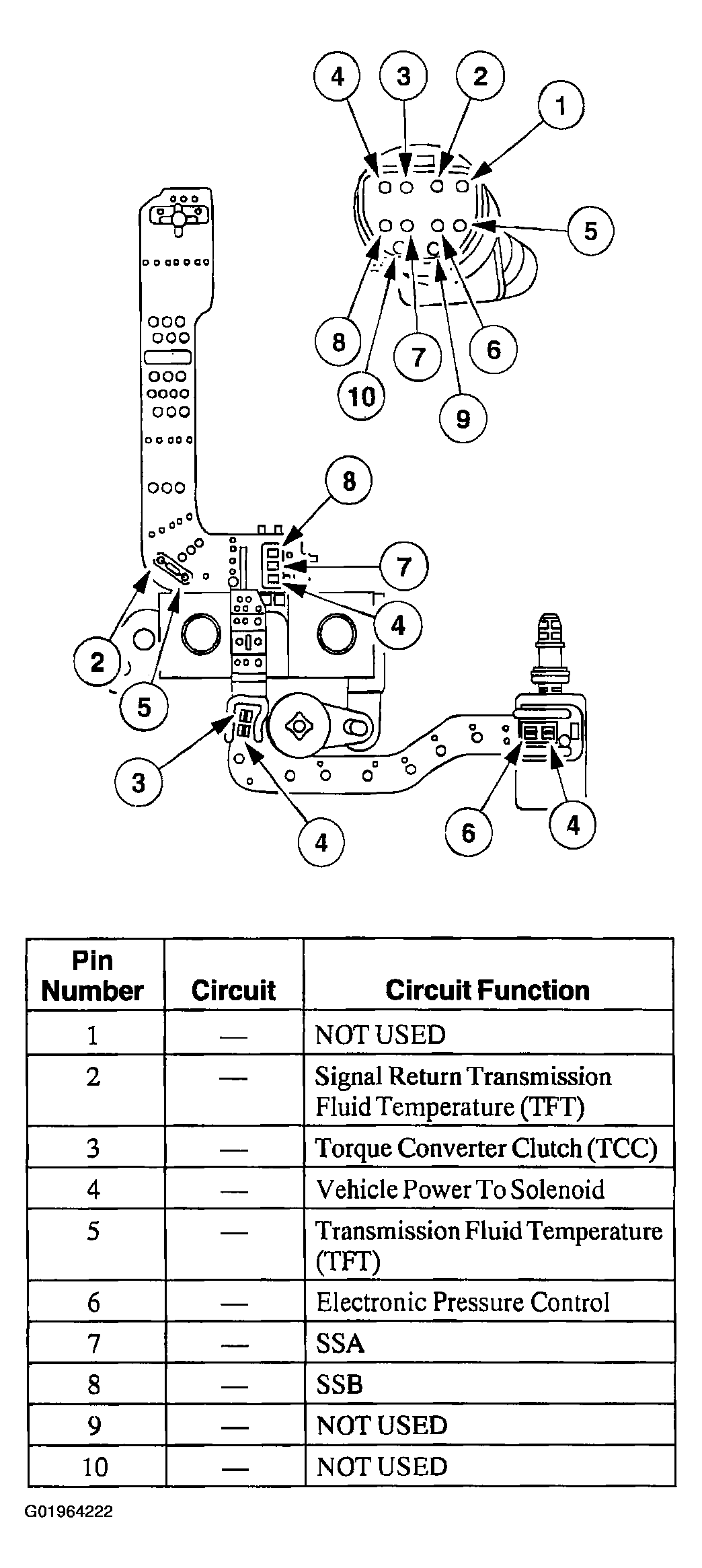

Fig 2: Identifying Transmission Internal Harness Connector

Courtesy of FORD MOTOR CO.

Fig 3: Identifying Digital Transmission Range (TR) Sensor Connector

Courtesy of FORD MOTOR CO.

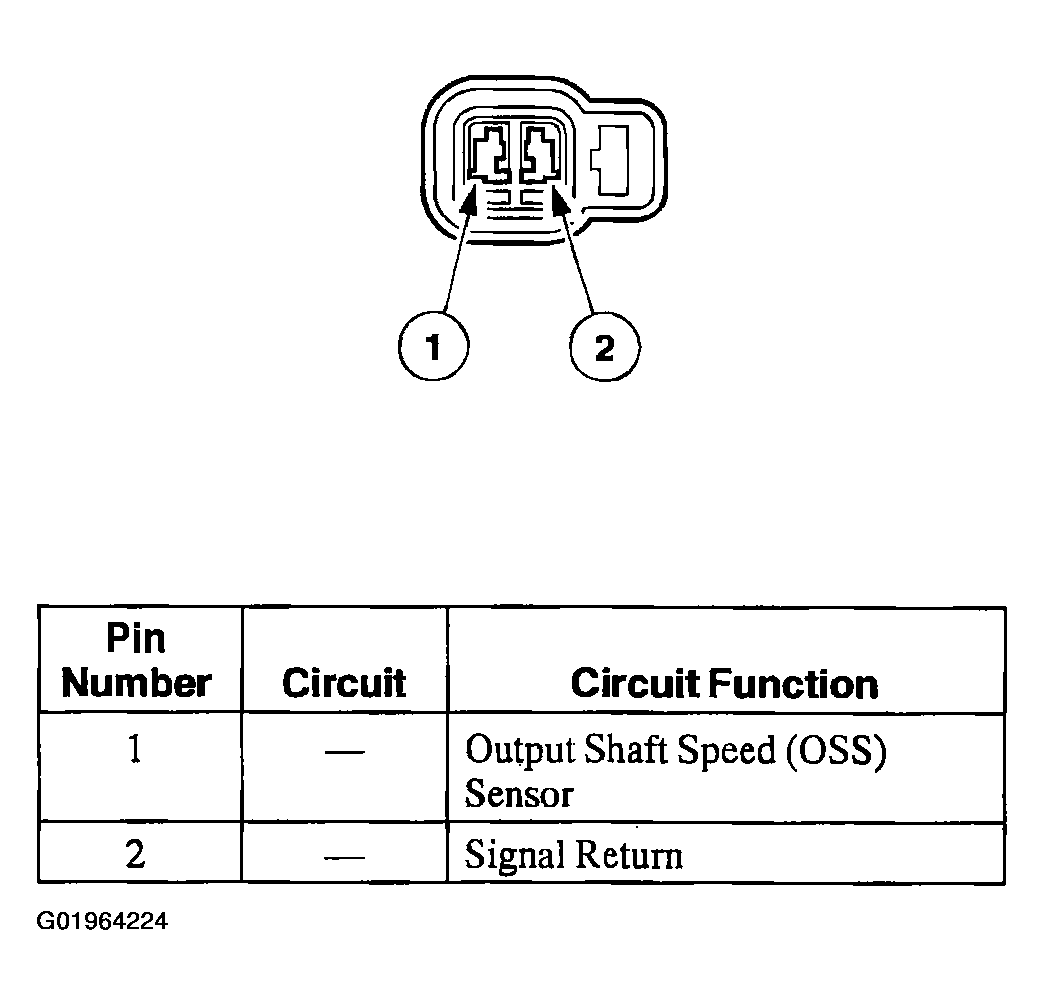

Fig 4: Identifying Output Shaft Speed (OSS) Sensor Harness Connector

Courtesy of FORD MOTOR CO.
