Digital Transmission Range (TR) Sensor Diagnosis Chart: Notes

WARNING: This page is about a different car, the 2002 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

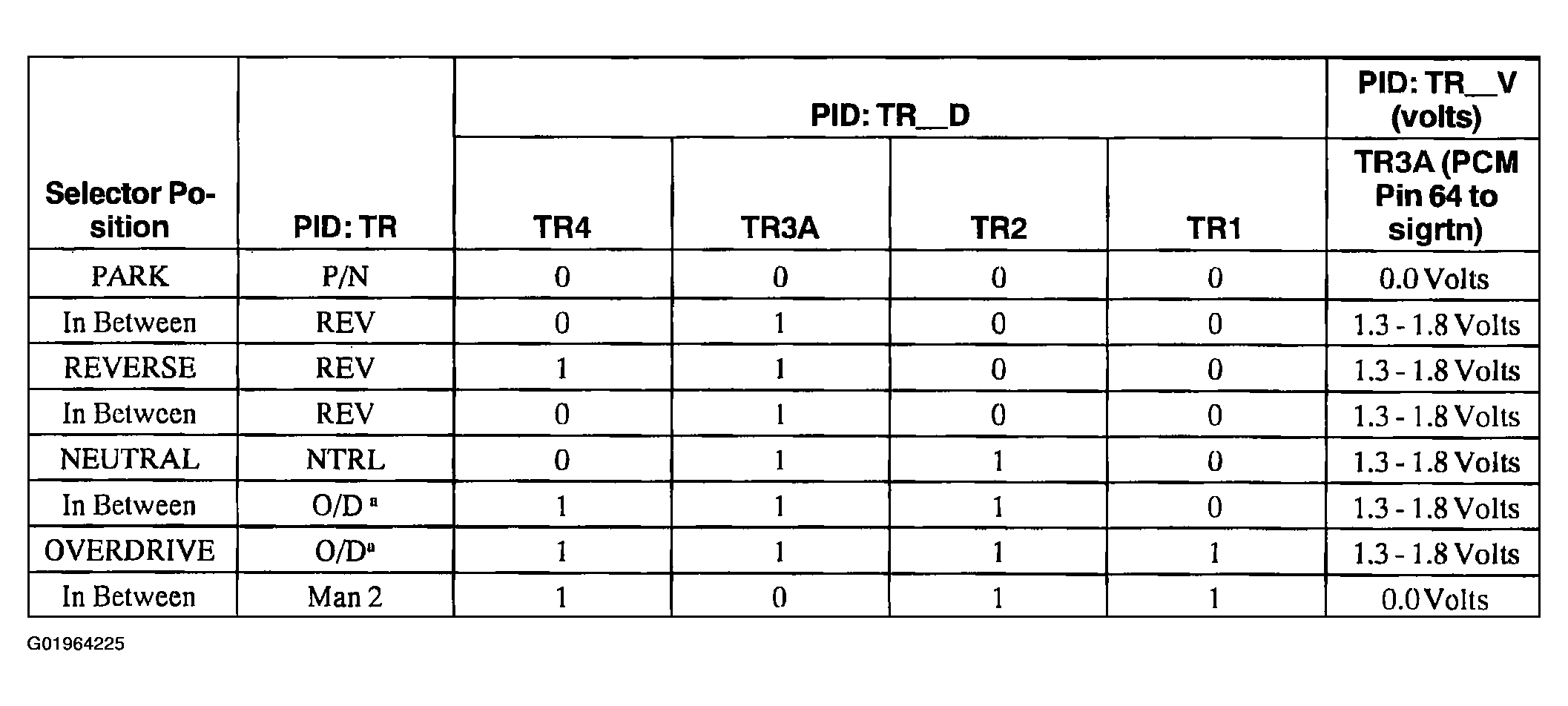

Fig 1: Digital Transmission Range (TR) Sensor Diagnosis Chart (1 Of 2)
G01964225Courtesy of FORD MOTOR CO.

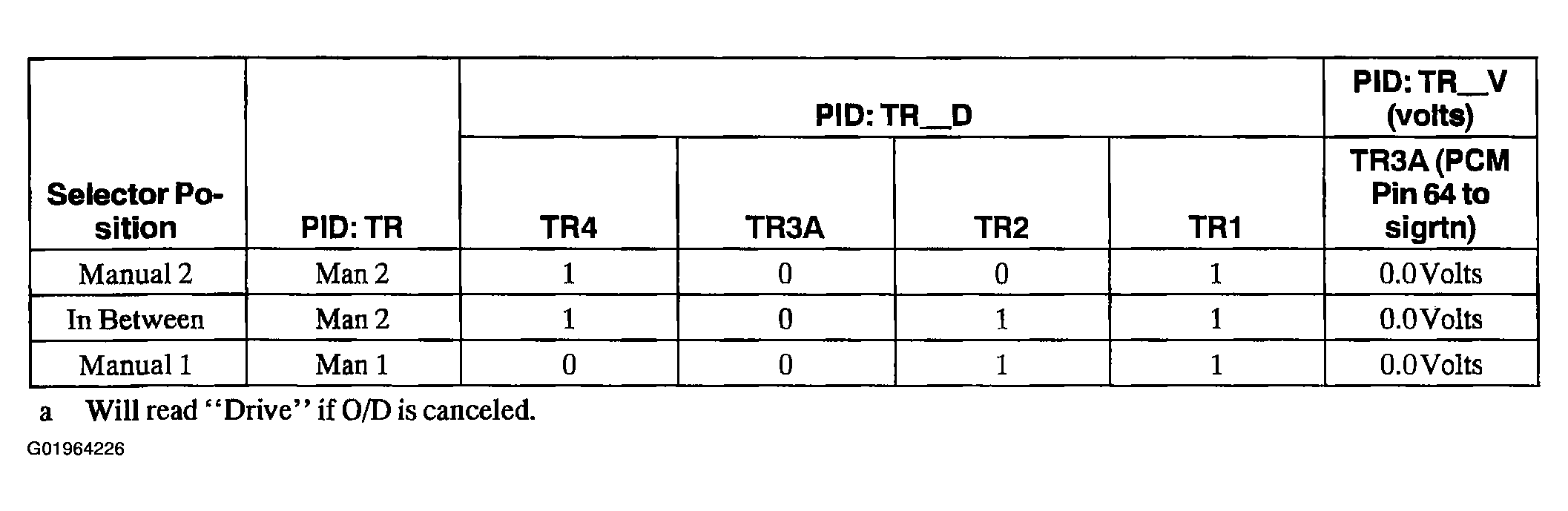

Fig 2: Digital Transmission Range (TR) Sensor Diagnosis Chart (2 Of 2)
G01964226Courtesy of FORD MOTOR CO.
  1. TR___V is the voltage at the PCM pin 64 (TR3A Circuit) to signal return.
  2. "In Between" reading could be caused by a shift cable or digital TR sensor misaligned or a digital TR sensor circuit failure of TR1, TR2, TR3A, or TR4.
  3. TR___D: 1= Open Digital TR switch, 0= Closed Digital TR switch.
  4. EEC-V Control System Breakout Box Readings: Taken from PCM signal pins for TR1, TR2, TR3A, TR4 to signal return.
    • Voltages for TR1, TR2, TR4:
    • 0 = 0.0 volts.
    • 1 = 9.0 - 14.0 volts.
    • Voltage for TR3A:
    • 0 = 0.0 volts.
    • 1 = 1.3 - 1.8 volts.
