4R70W Shift Speeds 4.09:1 Axle Ratio, Stripped Chassis

WARNING: This page is about a different car, the 2002 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

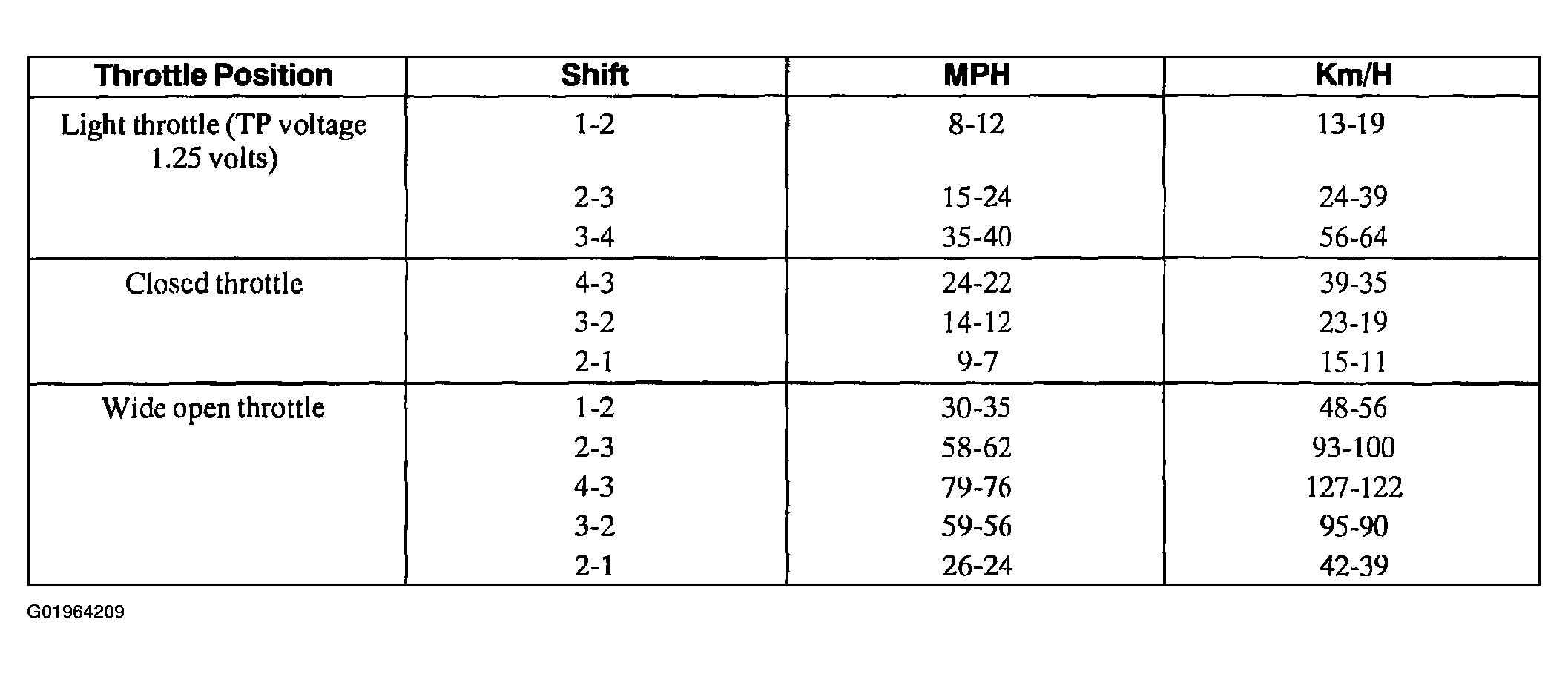

Fig 1: 4R70W Shift Speeds 4.09:1 Axle Ratio, Stripped Chassis Chart
G01964209Courtesy of FORD MOTOR CO.
