Pinpoint Test E: Output Shaft Speed (OSS) Sensors

WARNING: This page is about a different car, the 2002 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to Figure preceding these pinpoint tests.

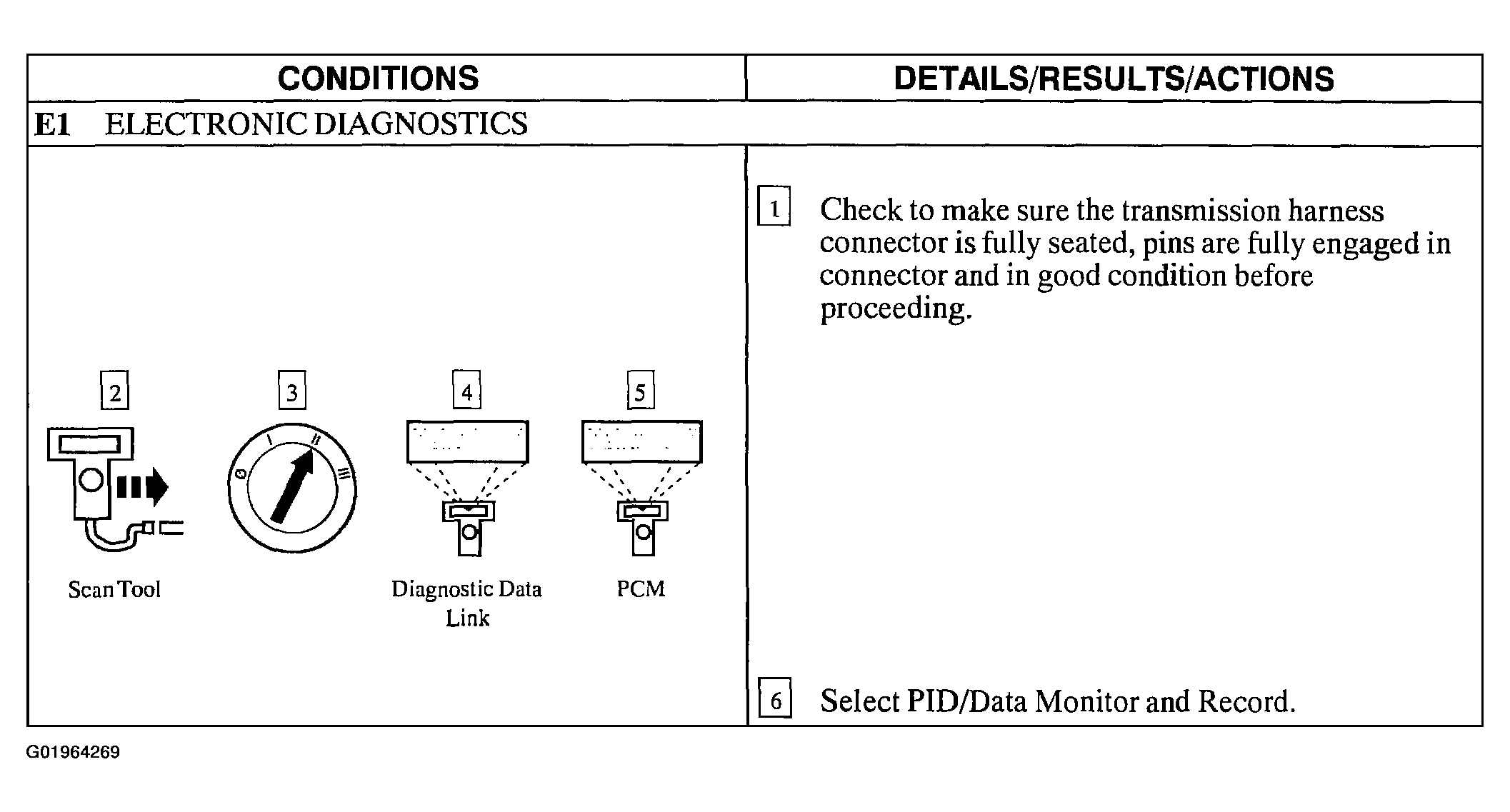

Fig 1: Pinpoint Test E: Output Shaft Speed (OSS) Sensors (E1)

Courtesy of FORD MOTOR CO.

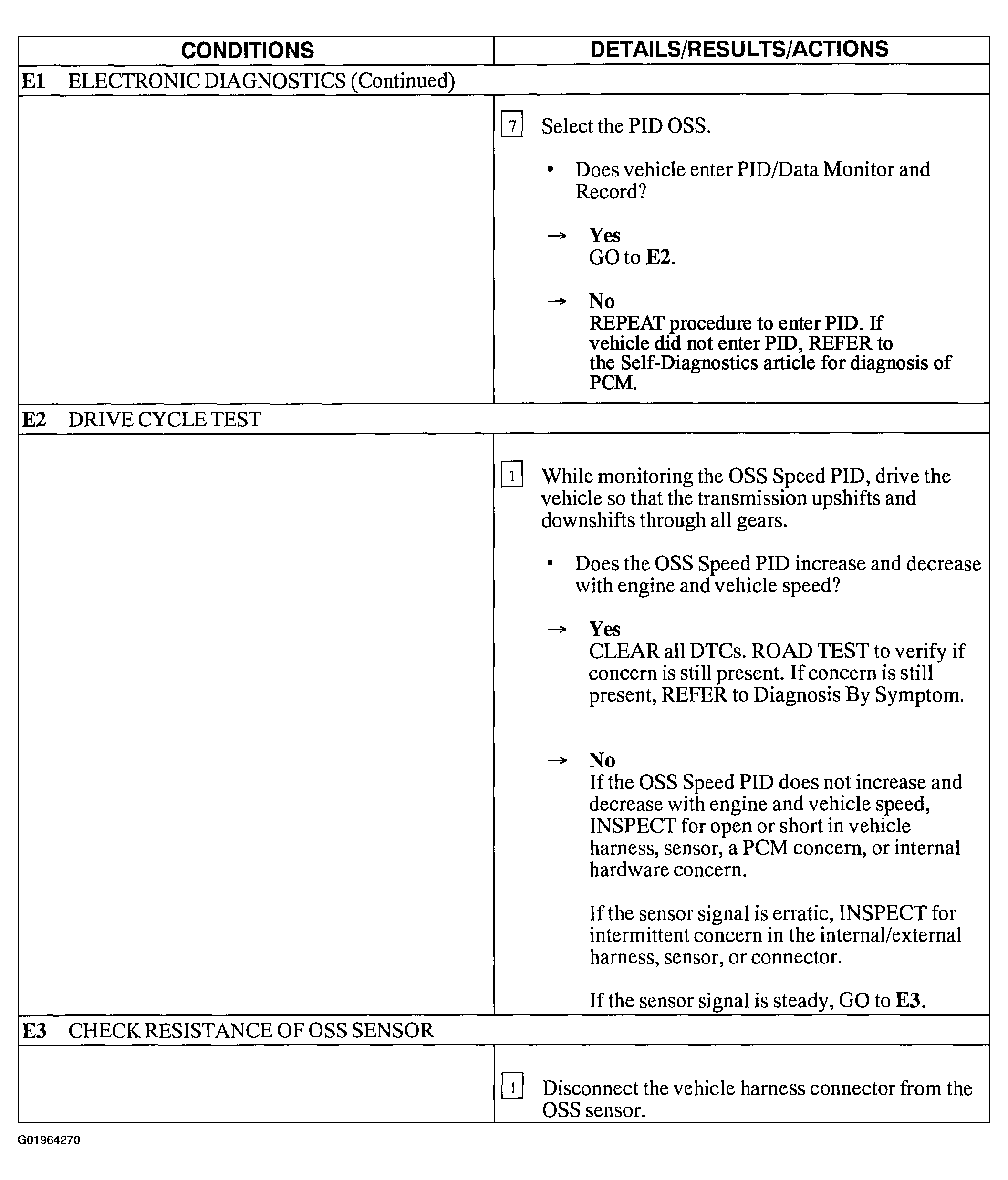

Fig 2: Pinpoint Test E: Output Shaft Speed (OSS) Sensors (E1-E3)

Courtesy of FORD MOTOR CO.

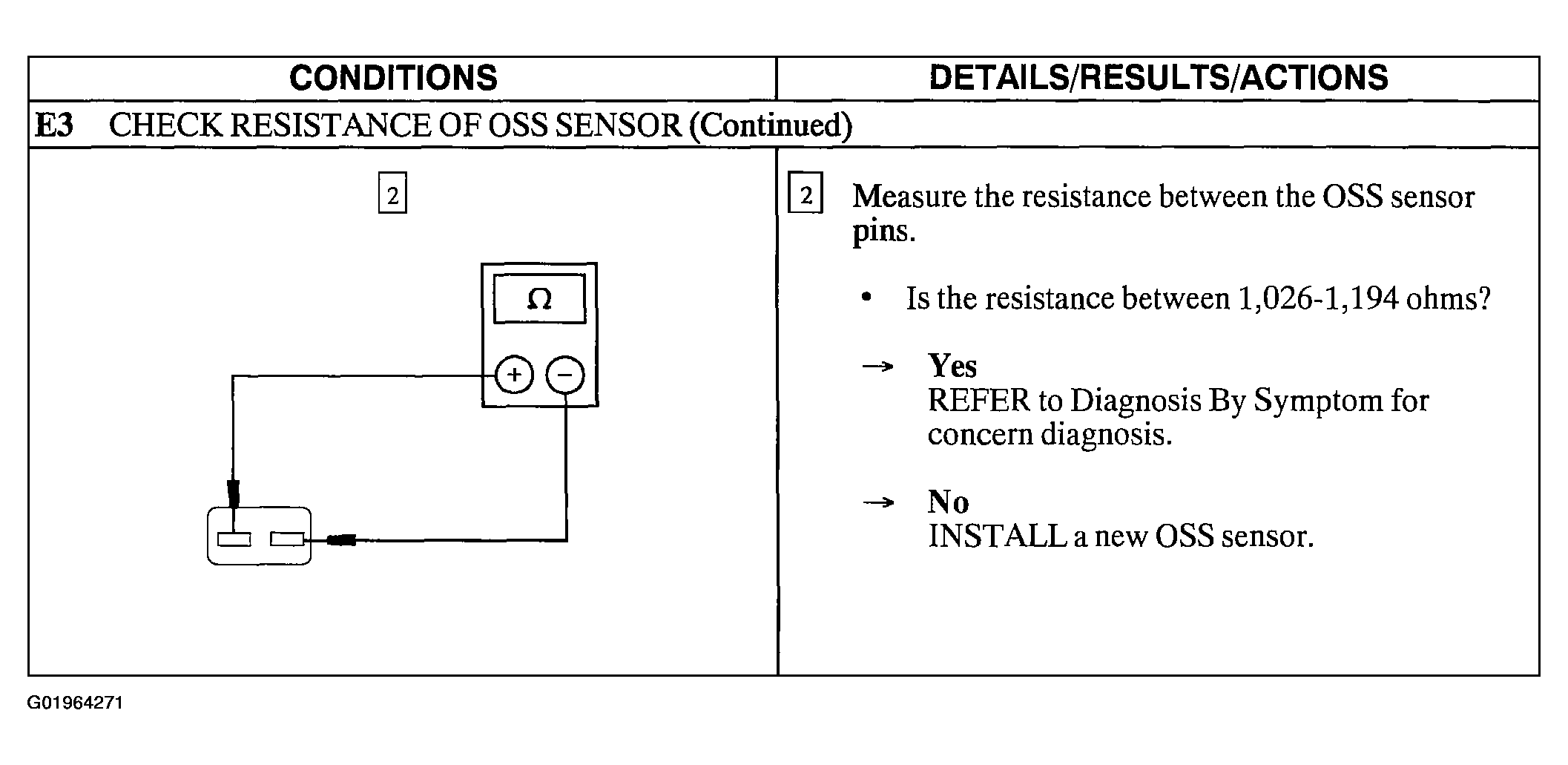

Fig 3: Pinpoint Test E: Output Shaft Speed (OSS) Sensors (E3)

Courtesy of FORD MOTOR CO.
