Pinpoint Test C: Digital Transmission Range (TR) Sensor

WARNING: This page is about a different car, the 2002 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to Figure preceding these pinpoint tests.

NOTE: Refer to the DIGITAL TRANSMISSION RANGE (TR) SENSOR DIAGNOSIS CHART preceding these pinpoint tests.

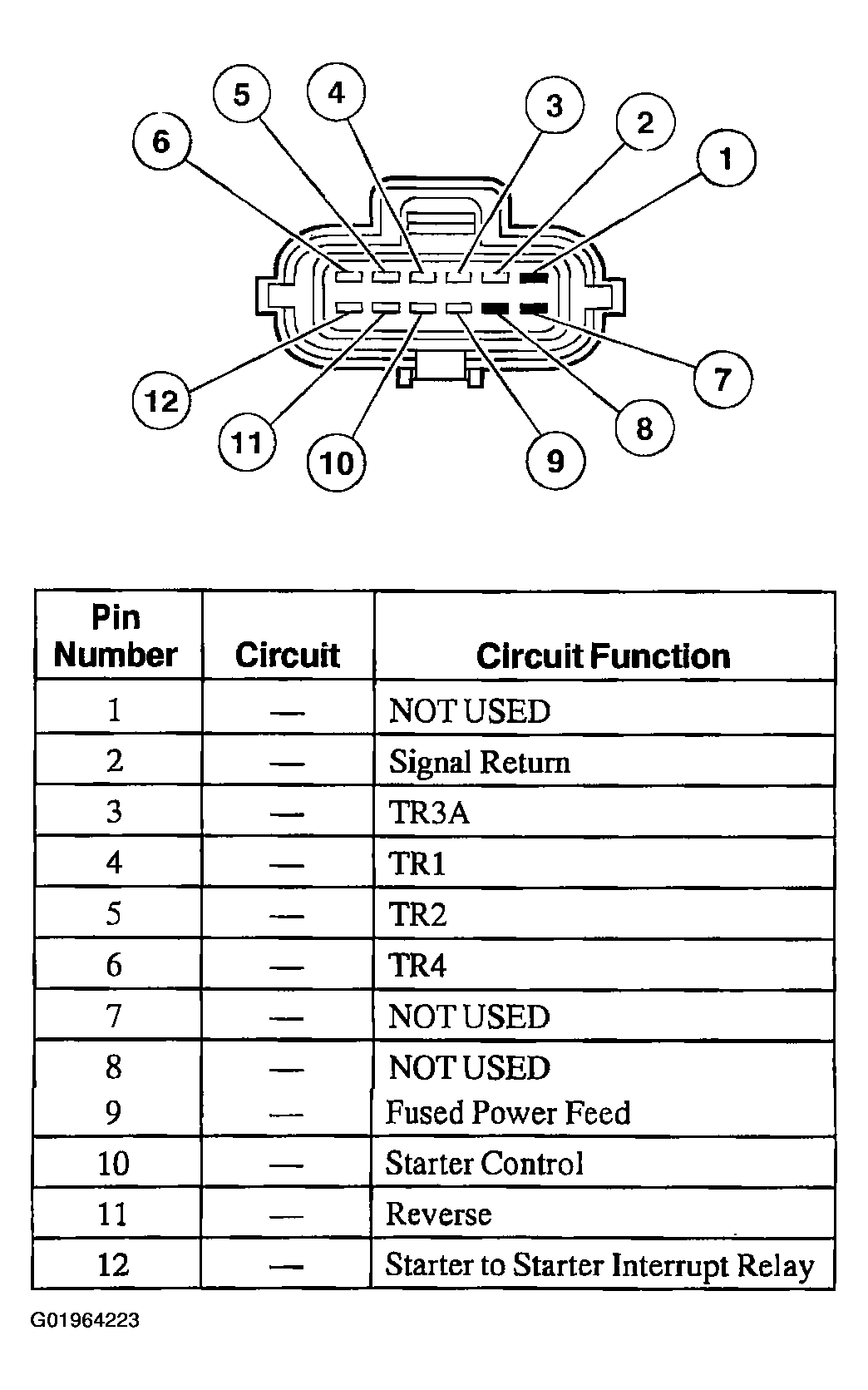

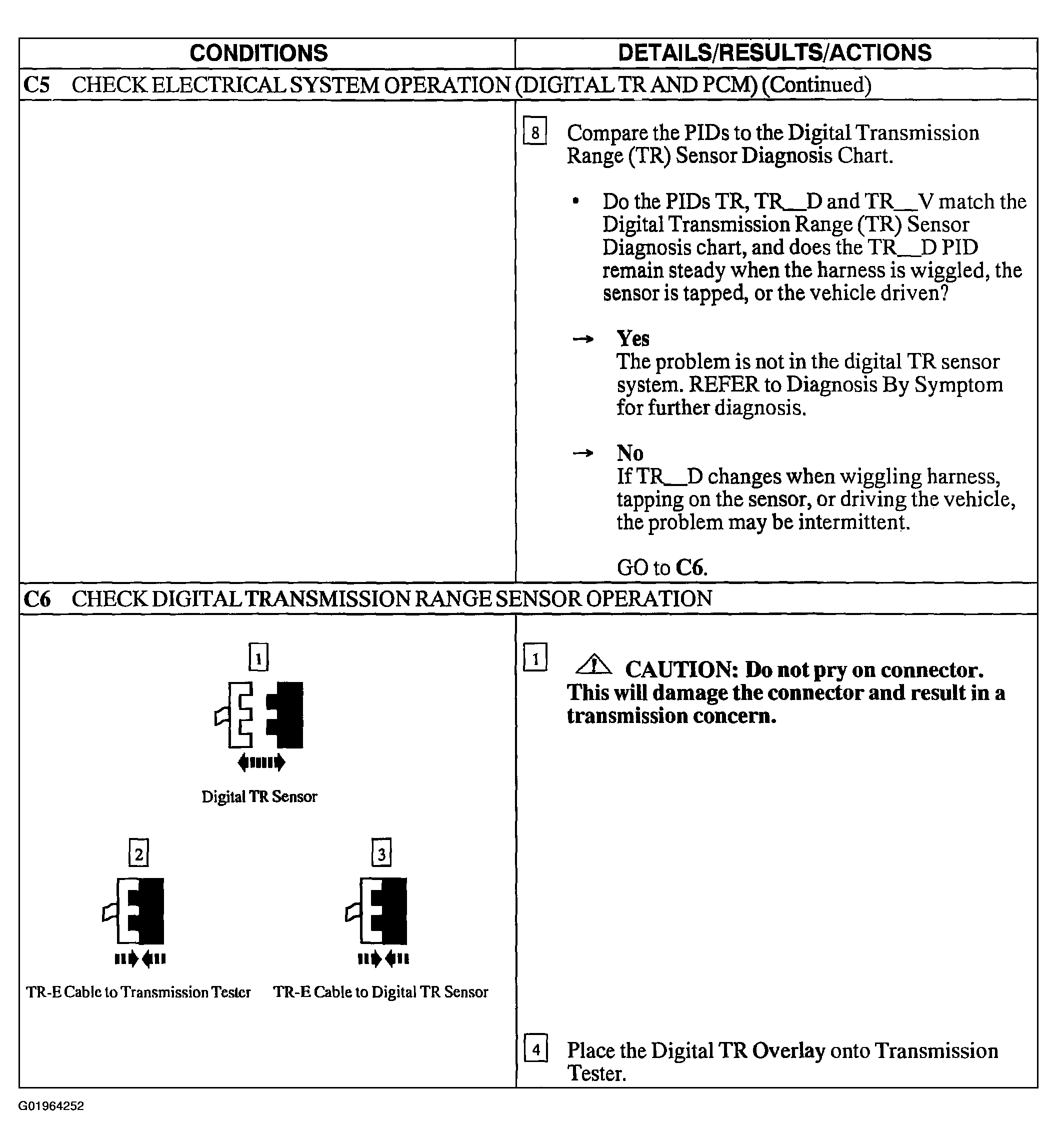

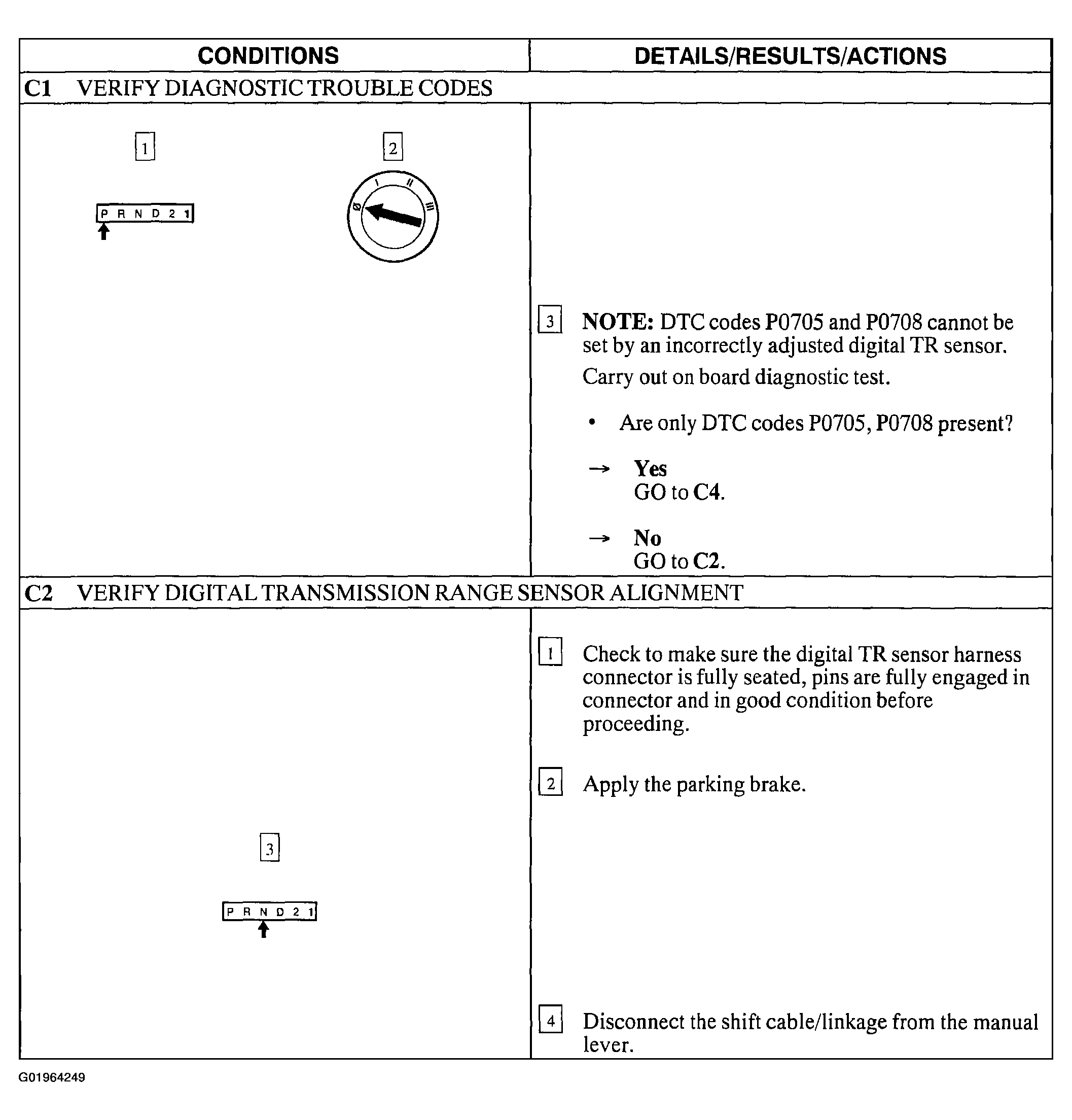

Fig 1: Pinpoint Test C: Digital Transmission Range (TR) SENSOR (C1-C2)

Courtesy of FORD MOTOR CO.

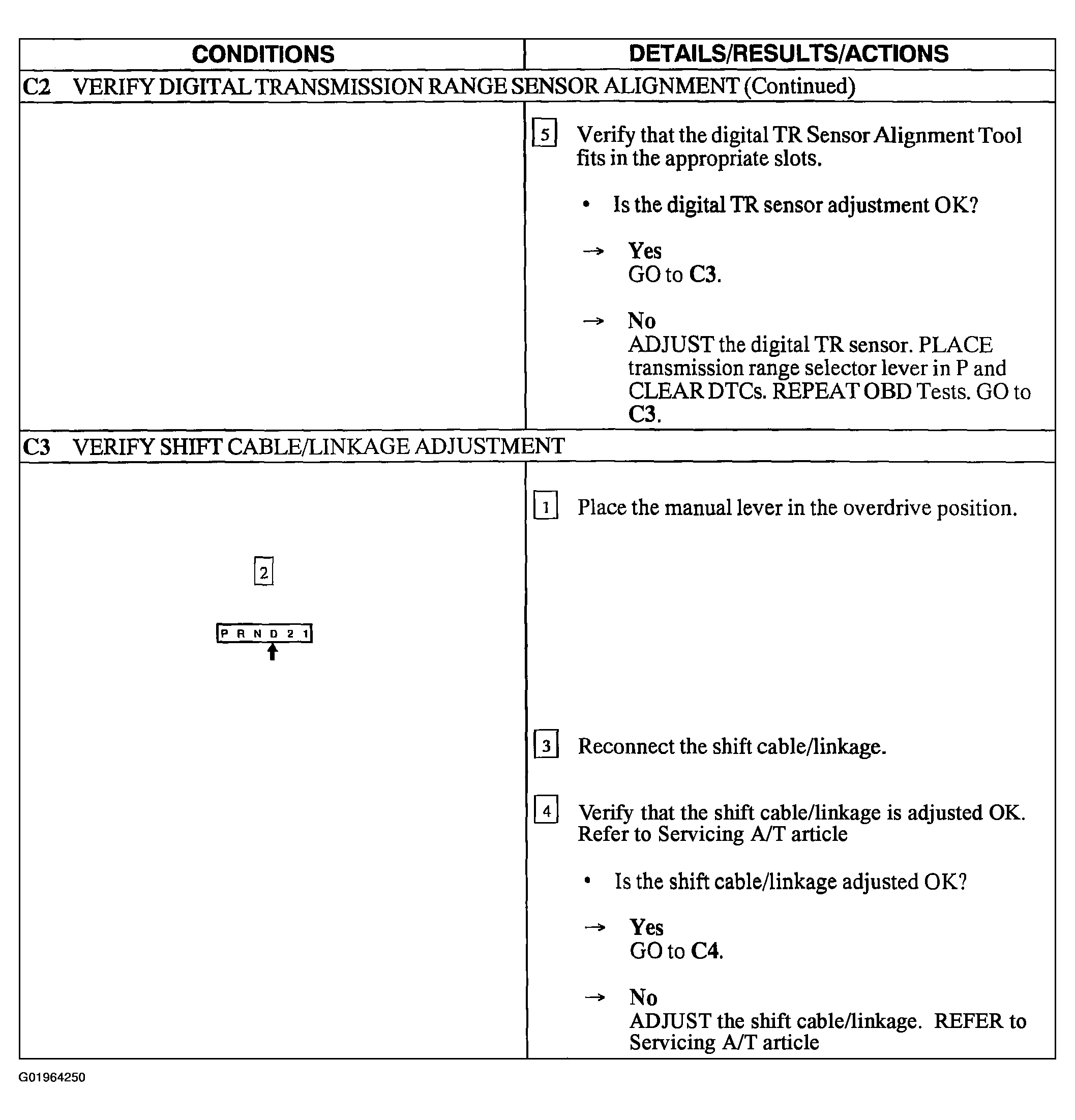

Fig 2: Pinpoint Test C: Digital Transmission Range (TR) SENSOR (C2-C3)

Courtesy of FORD MOTOR CO.

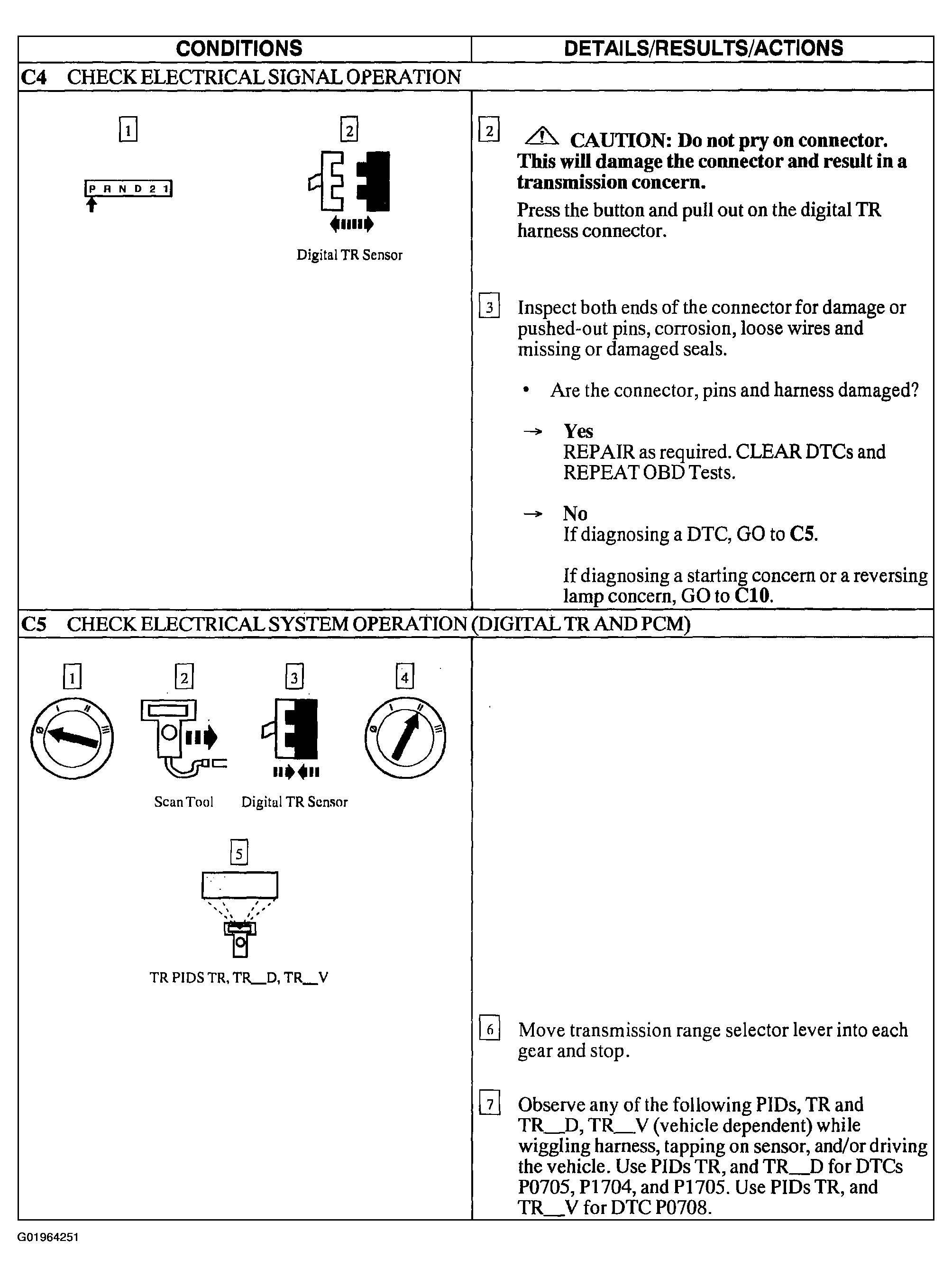

Fig 3: Pinpoint Test C: Digital Transmission Range (TR) SENSOR (C4-C5)

Courtesy of FORD MOTOR CO.

Fig 4: Pinpoint Test C: Digital Transmission Range (TR) SENSOR (C5-C6)

Courtesy of FORD MOTOR CO.

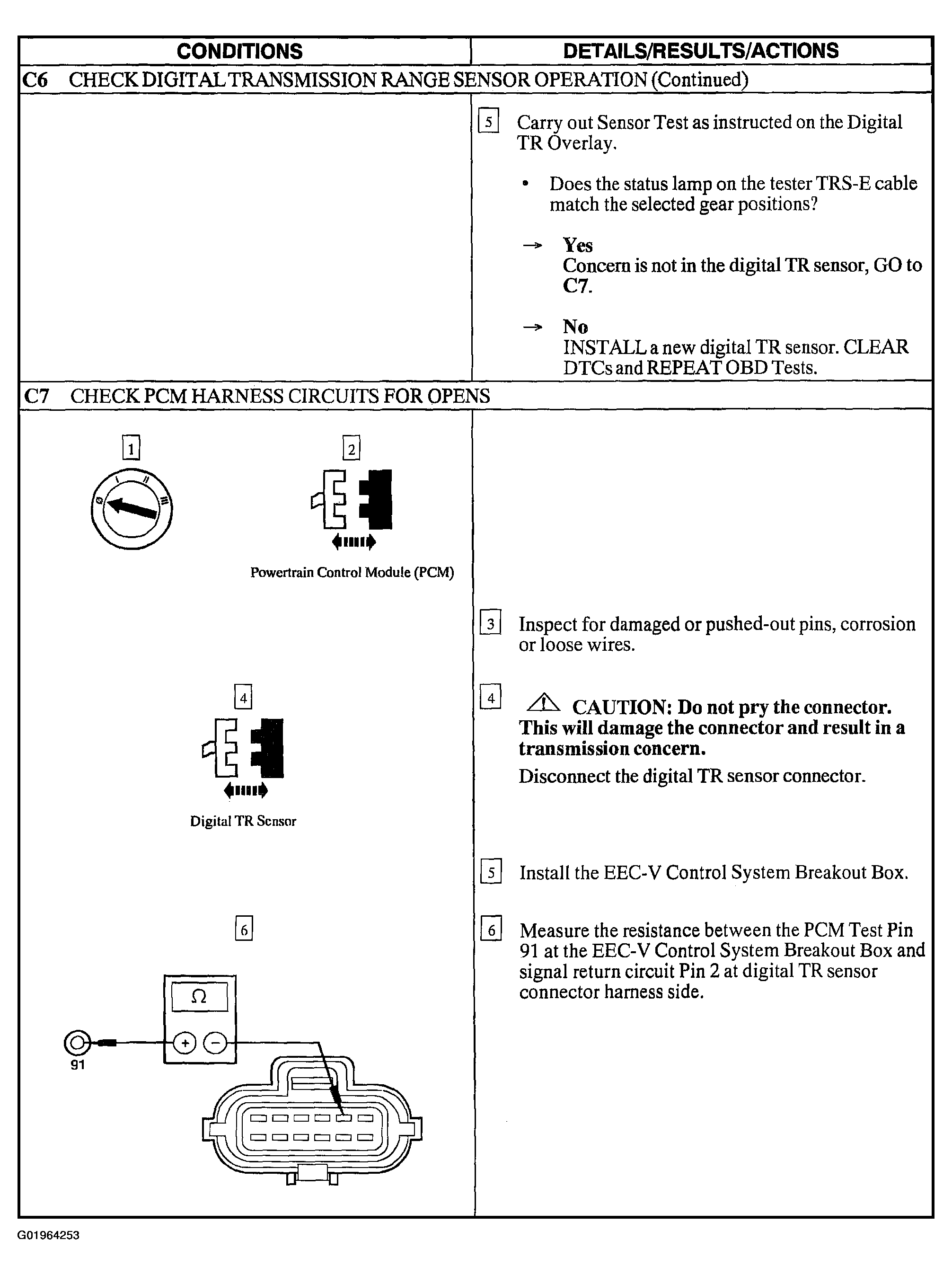

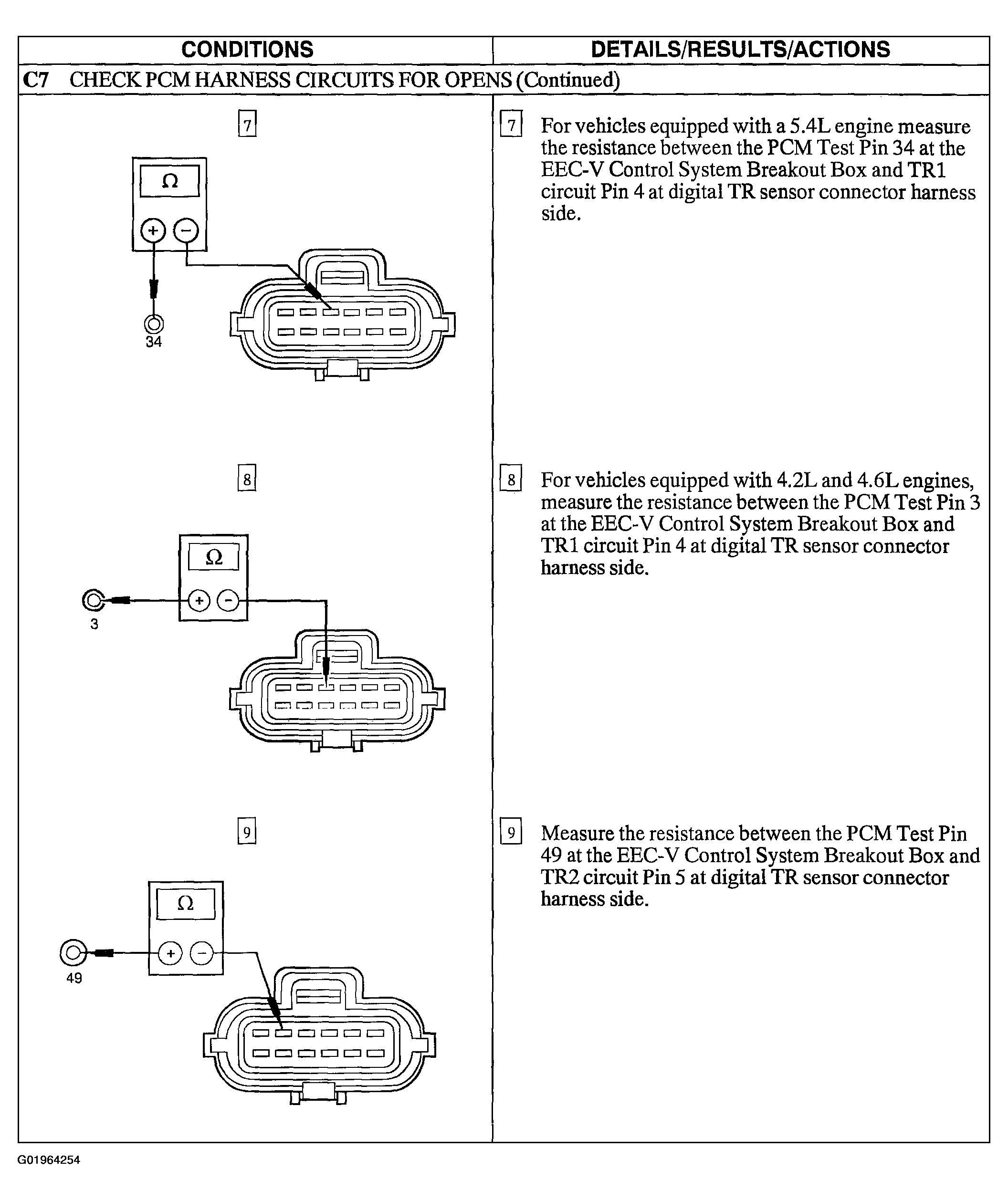

Fig 5: Pinpoint Test C: Digital Transmission Range (TR) SENSOR (C6-C7)

Courtesy of FORD MOTOR CO.

Fig 6: Pinpoint Test C: Digital Transmission Range (TR) SENSOR (C7)

Courtesy of FORD MOTOR CO.

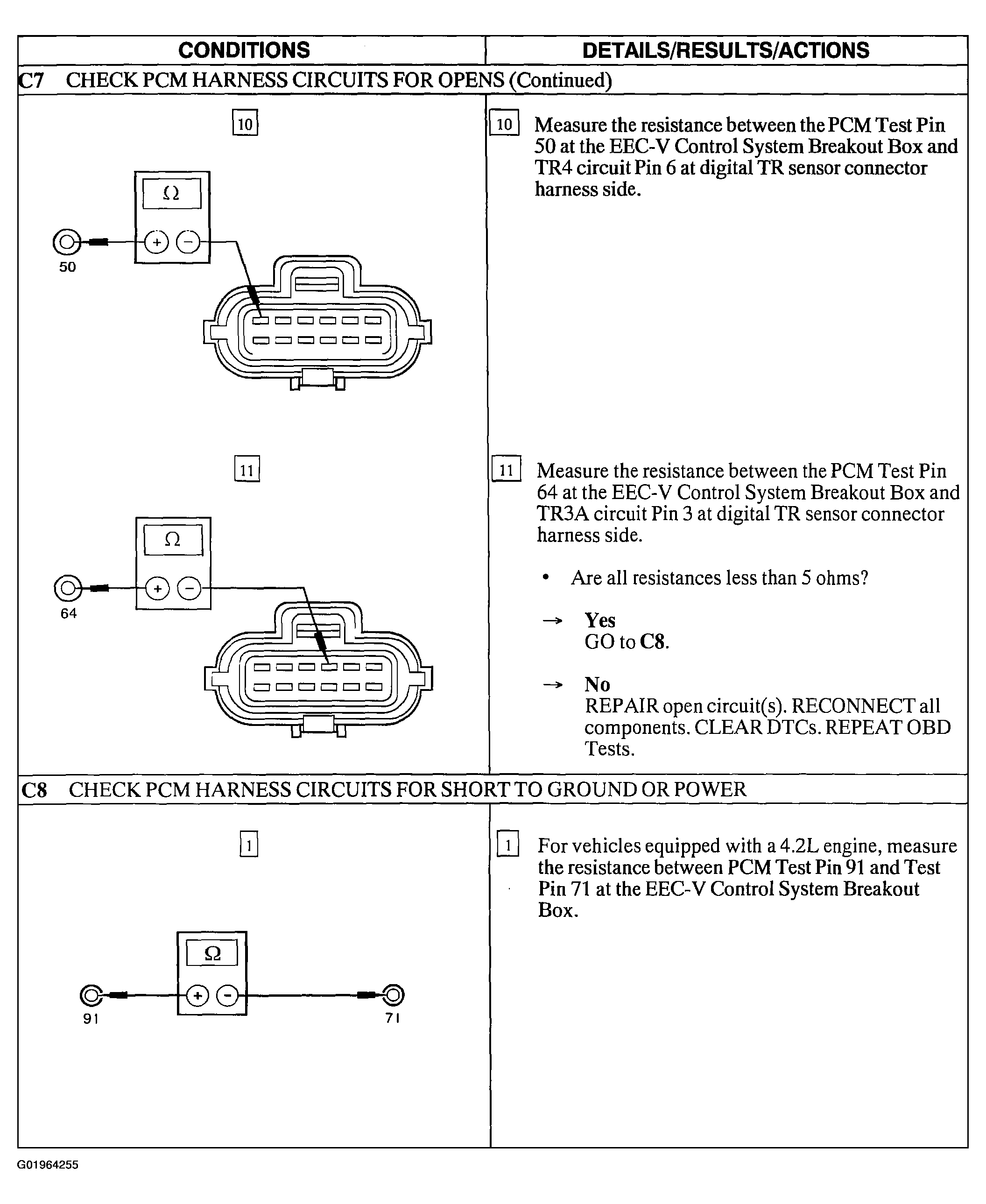

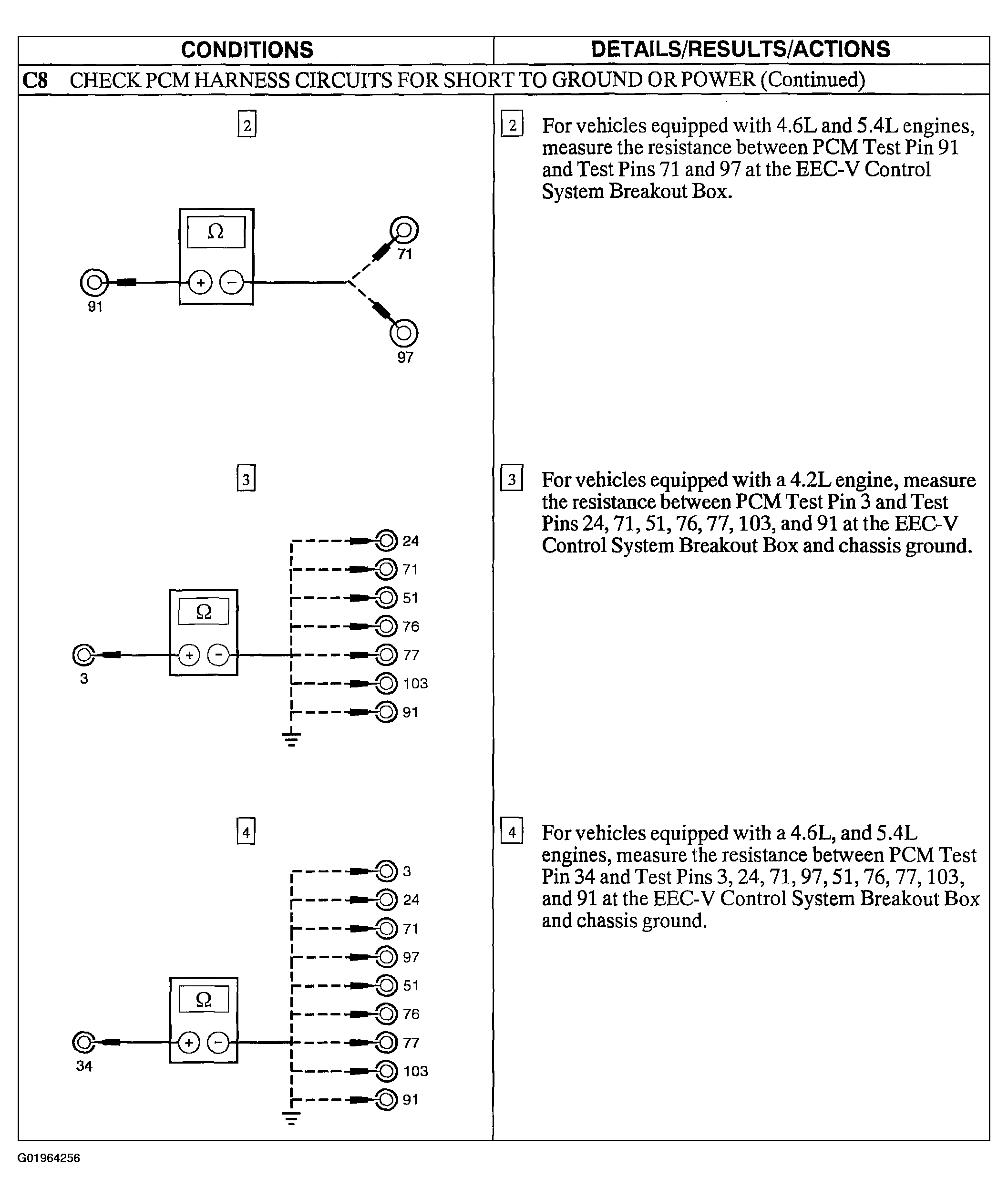

Fig 7: Pinpoint Test C: Digital Transmission Range (TR) SENSOR (C7-C8)

Courtesy of FORD MOTOR CO.

Fig 8: Pinpoint Test C: Digital Transmission Range (TR) SENSOR (C8)

Courtesy of FORD MOTOR CO.

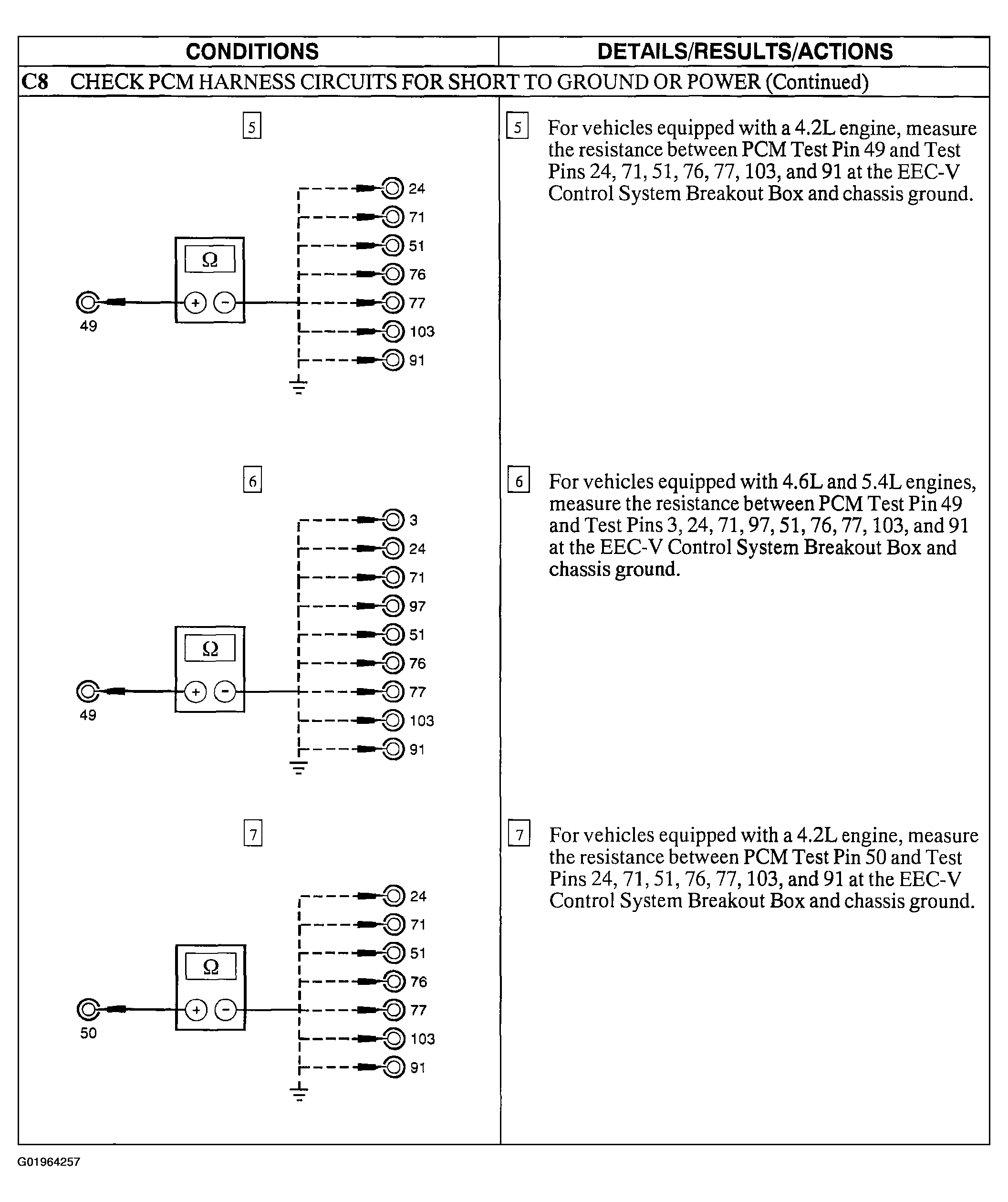

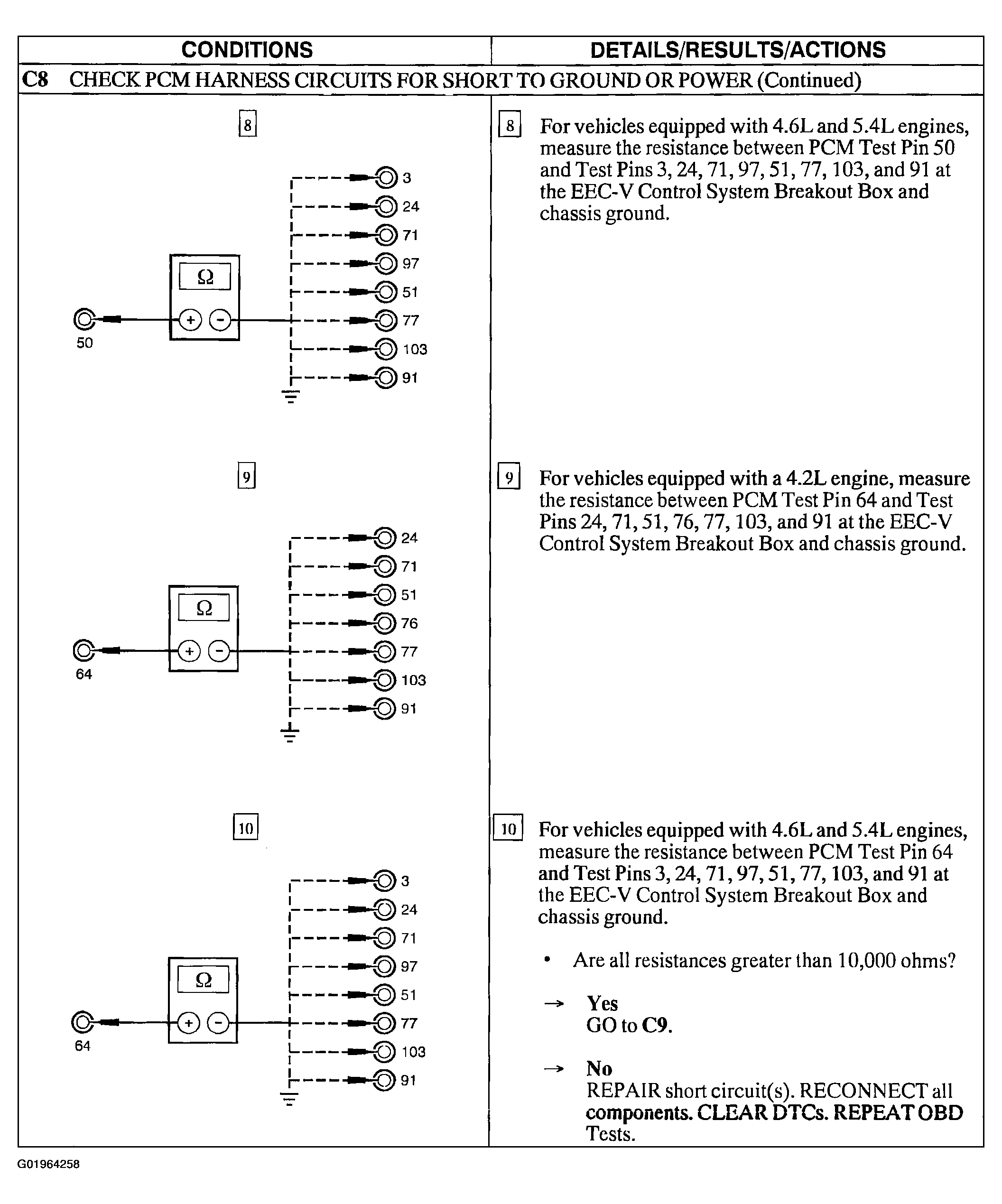

Fig 9: Pinpoint Test C: Digital Transmission Range (TR) SENSOR (C8)

Courtesy of FORD MOTOR CO.

Fig 10: Pinpoint Test C: Digital Transmission Range (TR) SENSOR (C8)

Courtesy of FORD MOTOR CO.

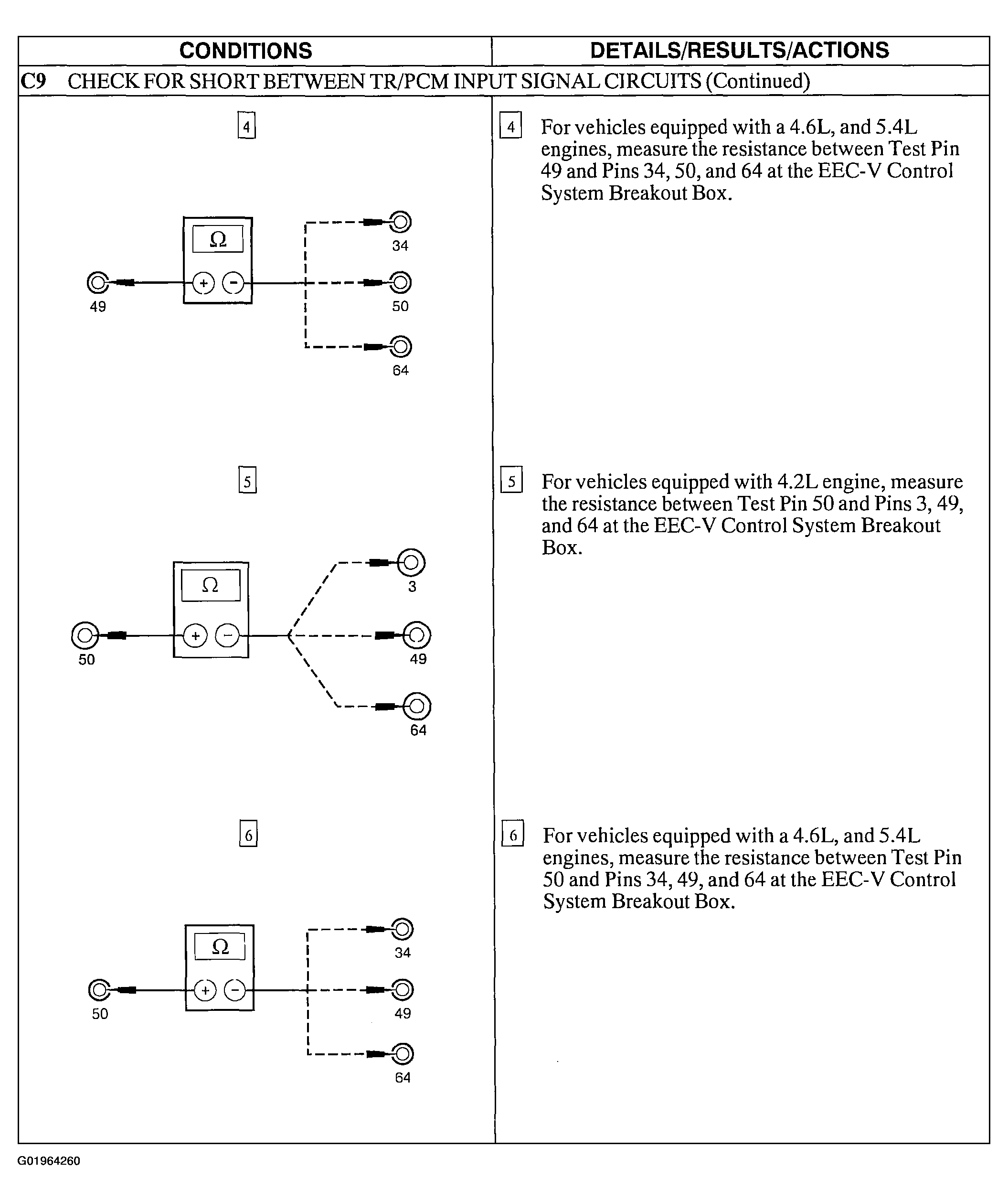

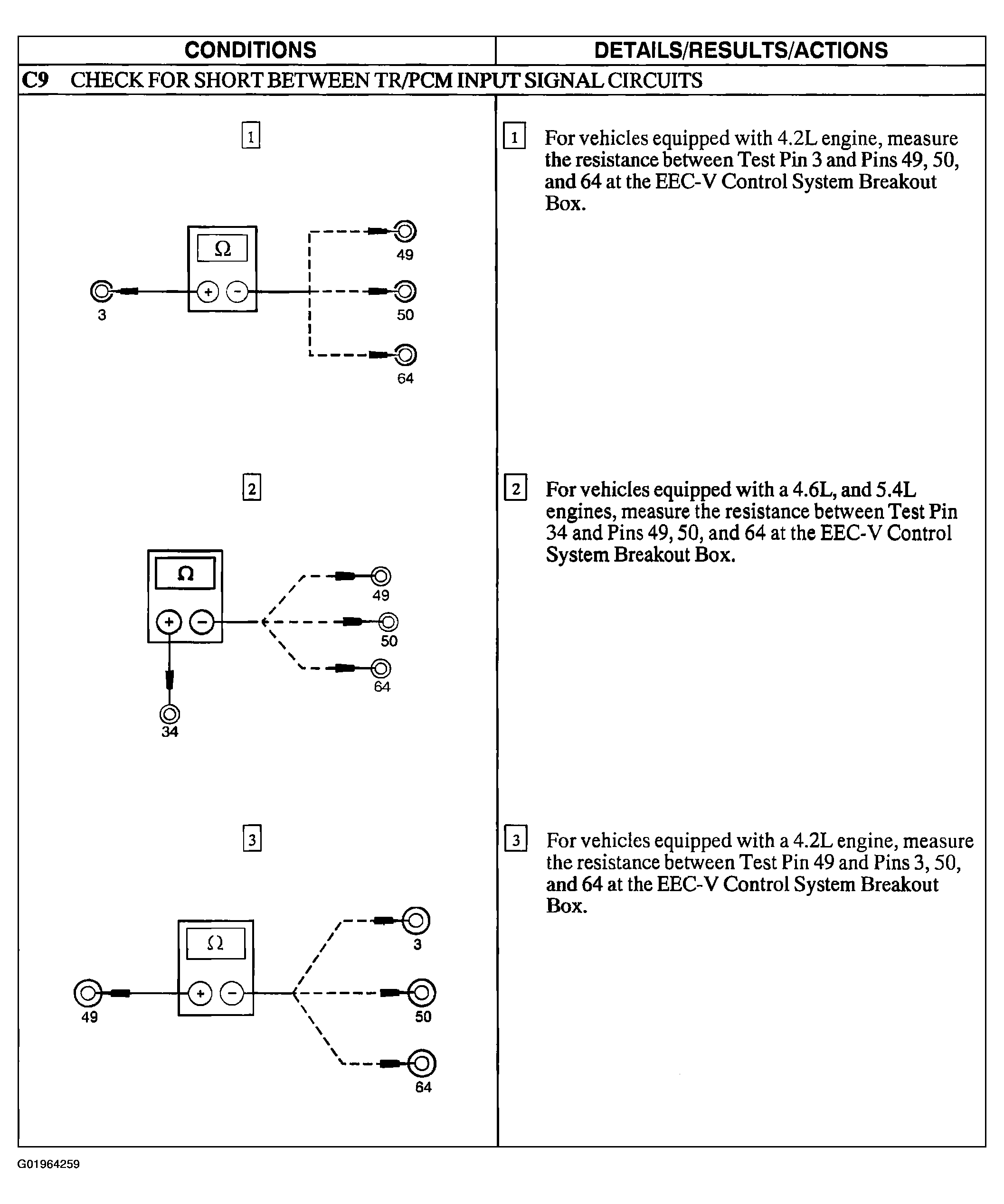

Fig 11: Pinpoint Test C: Digital Transmission Range (TR) SENSOR (C9)

Courtesy of FORD MOTOR CO.

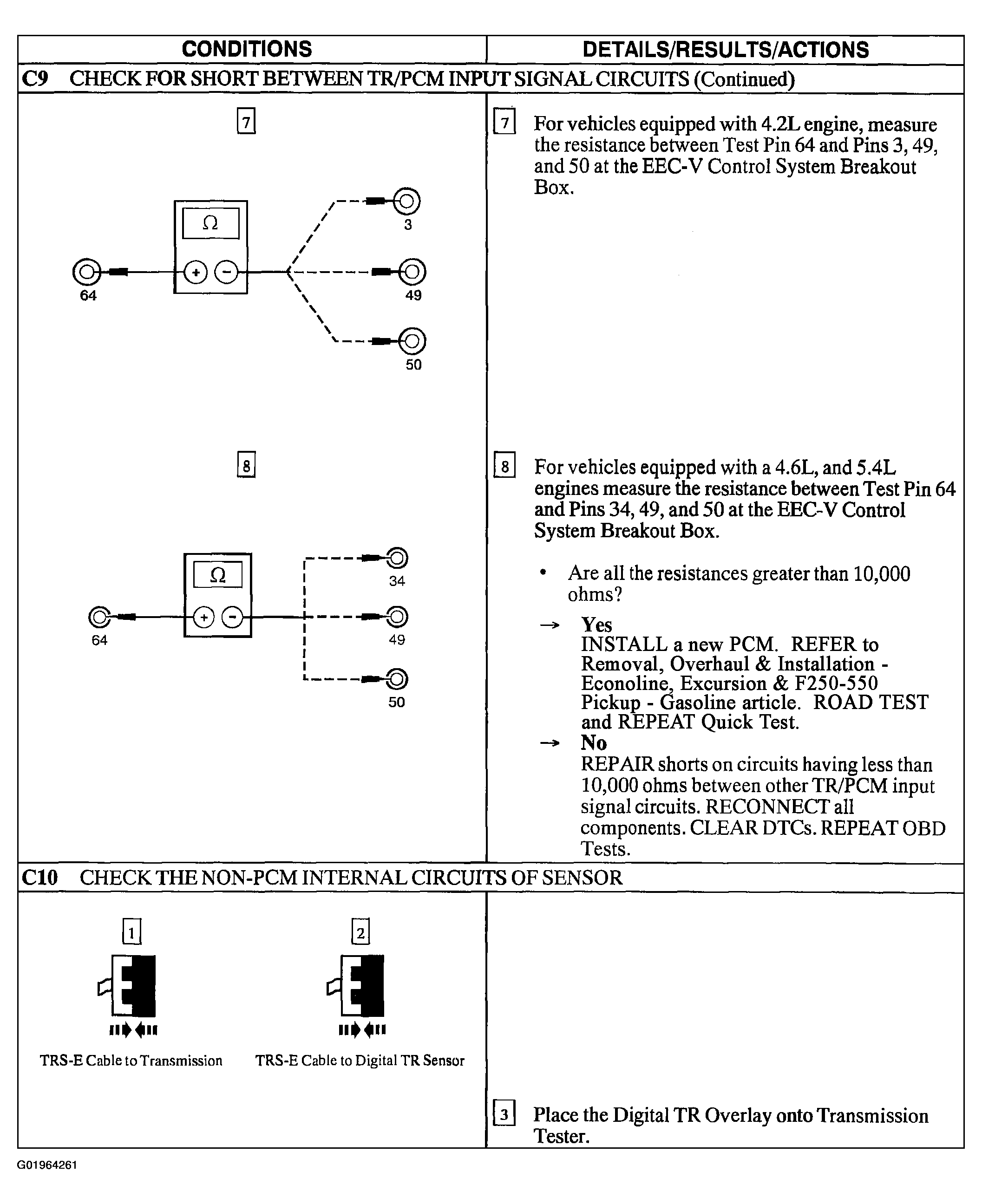

Fig 12: Pinpoint Test C: Digital Transmission Range (TR) SENSOR (C9)

Courtesy of FORD MOTOR CO.

Fig 13: Pinpoint Test C: Digital Transmission Range (TR) SENSOR (C9-C10)

Courtesy of FORD MOTOR CO.

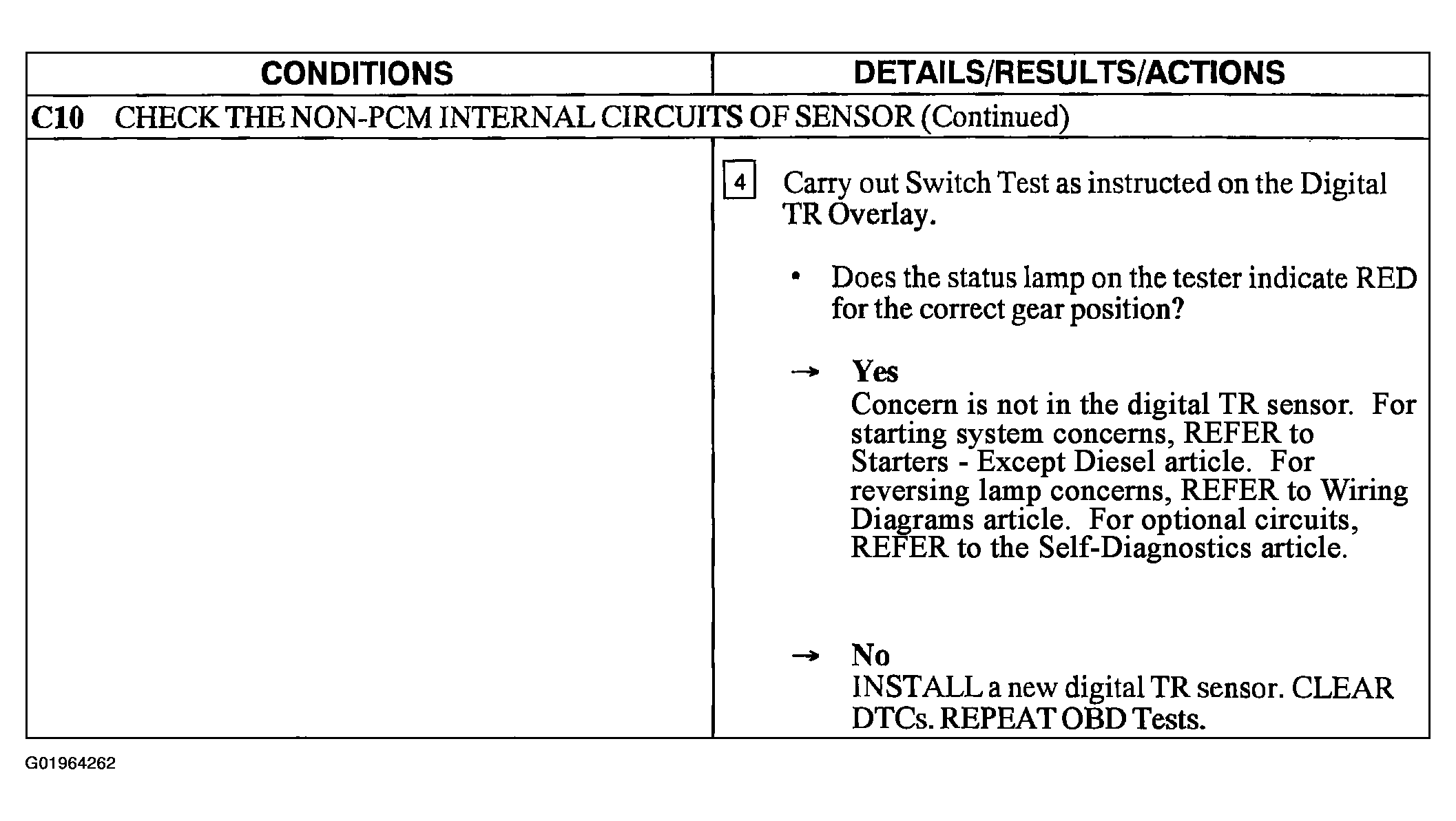

Fig 14: Pinpoint Test C: Digital Transmission Range (TR) SENSOR (C10)

Courtesy of FORD MOTOR CO.
