Special Tool(s)

WARNING: This page is about a different car, the 2002 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

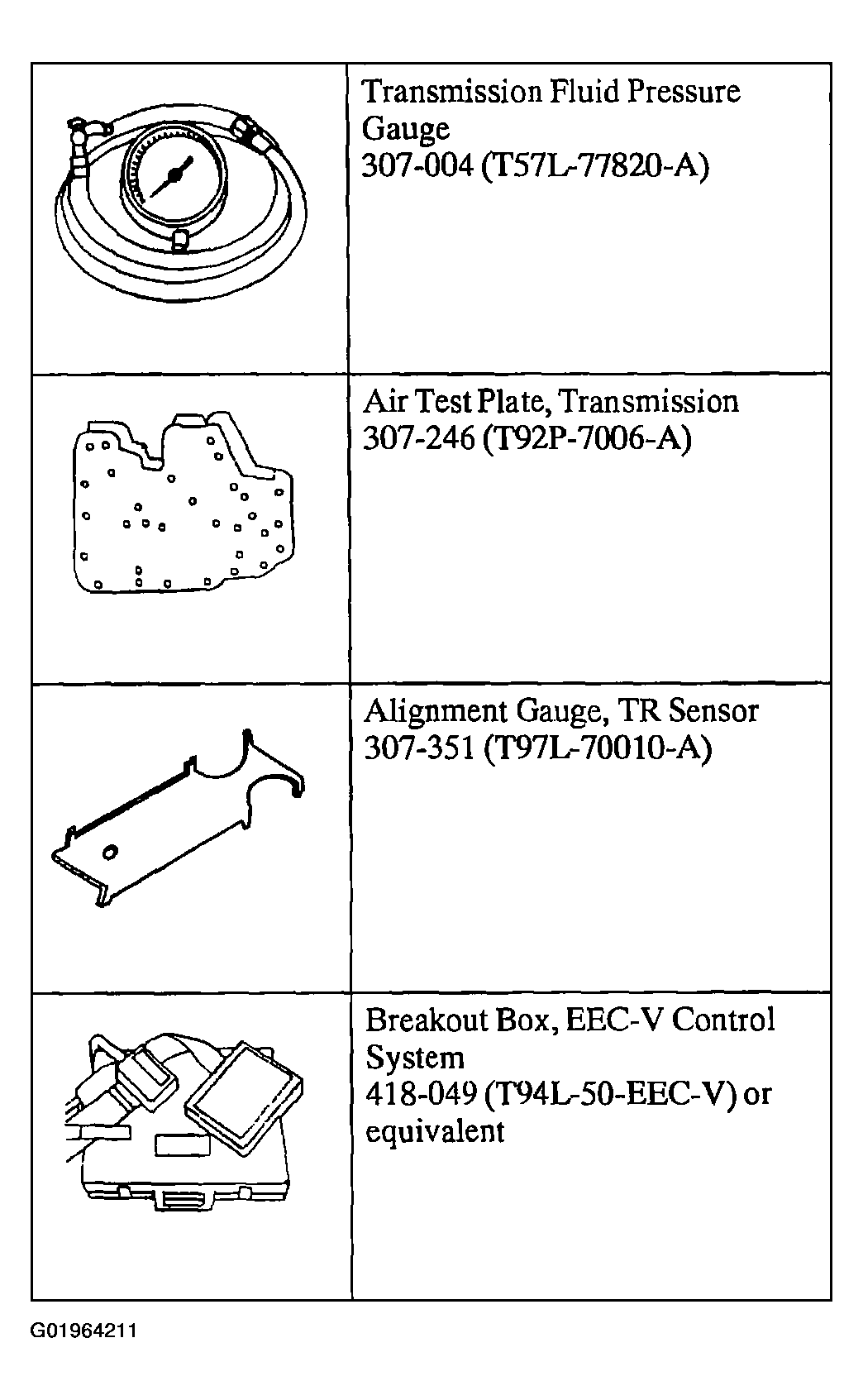

Fig 1: Identifying Special Tool(s) (1 Of 2)

Courtesy of FORD MOTOR CO.

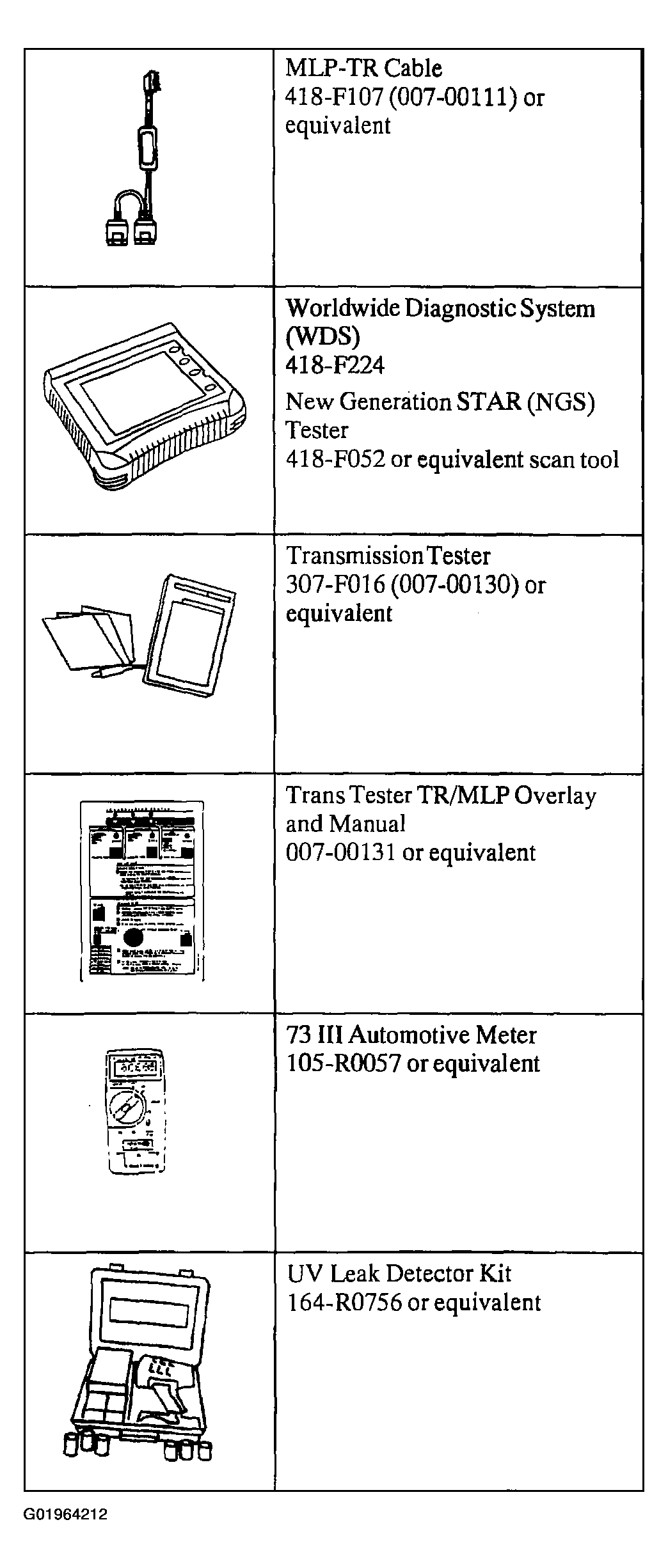

Fig 2: Identifying Special Tool(s) (2 Of 2)

Courtesy of FORD MOTOR CO.

Diagnosing an electronically controlled automatic transmission is simplified by using the following procedures. One of the most important things to remember is that there is a definite procedure to follow. DO NOT TAKE SHORT CUTS OR ASSUME THAT CRITICAL CHECKS OR ADJUSTMENTS HAVE ALREADY BEEN MADE. Follow the procedures as written to avoid missing critical components or steps. By following the diagnostic sequence, the technician will be able to diagnose and repair the concern the first time.
