Shift Concerns: Timing Concerns - Early/Late

WARNING: This page is about a different car, the 2002 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

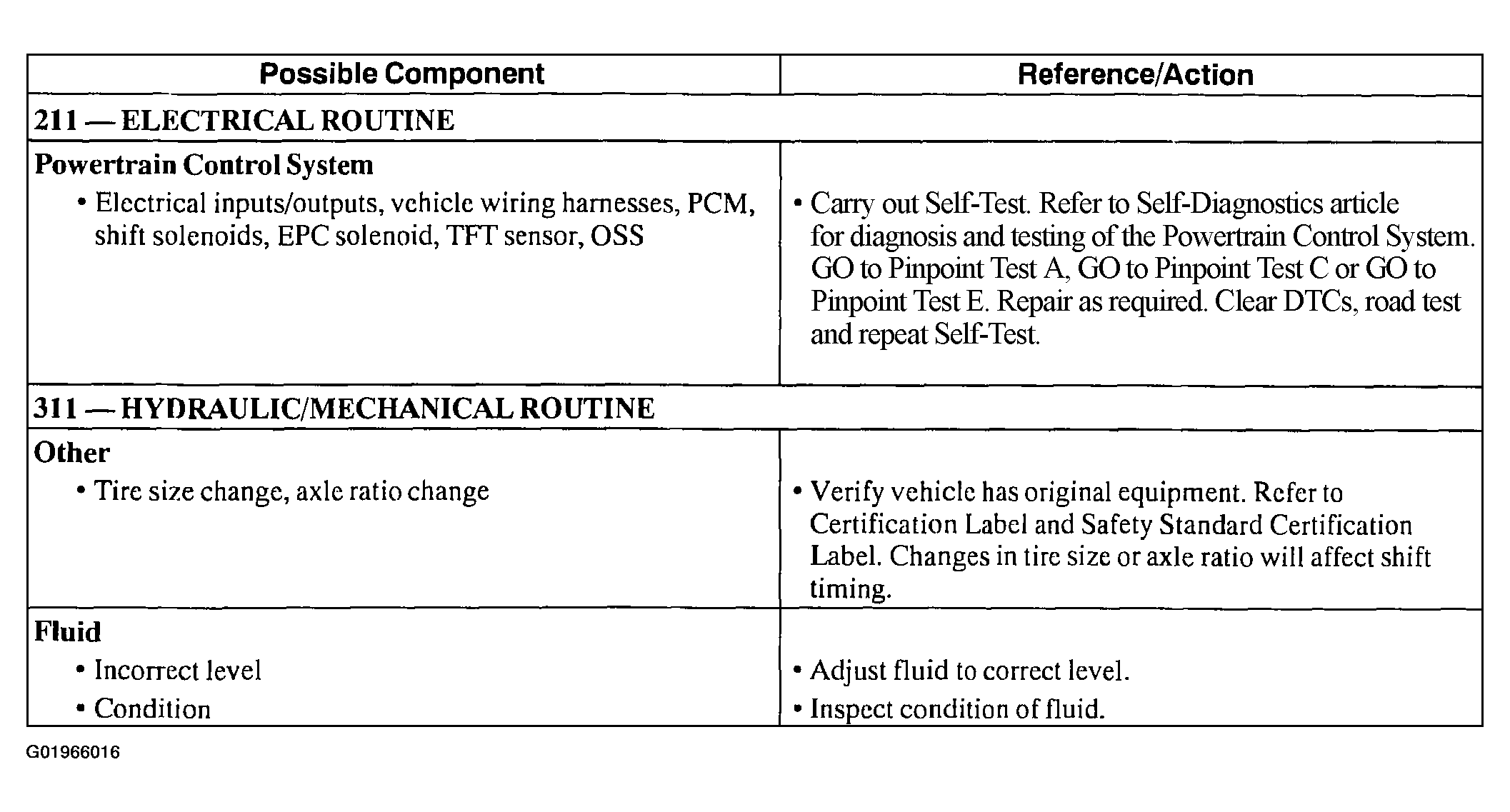

Fig 1: Diagnostic Routines 211/311 - Shift Concerns: Timing Concerns - Early/Late (1 Of 2)
G01966016Courtesy of FORD MOTOR CO.

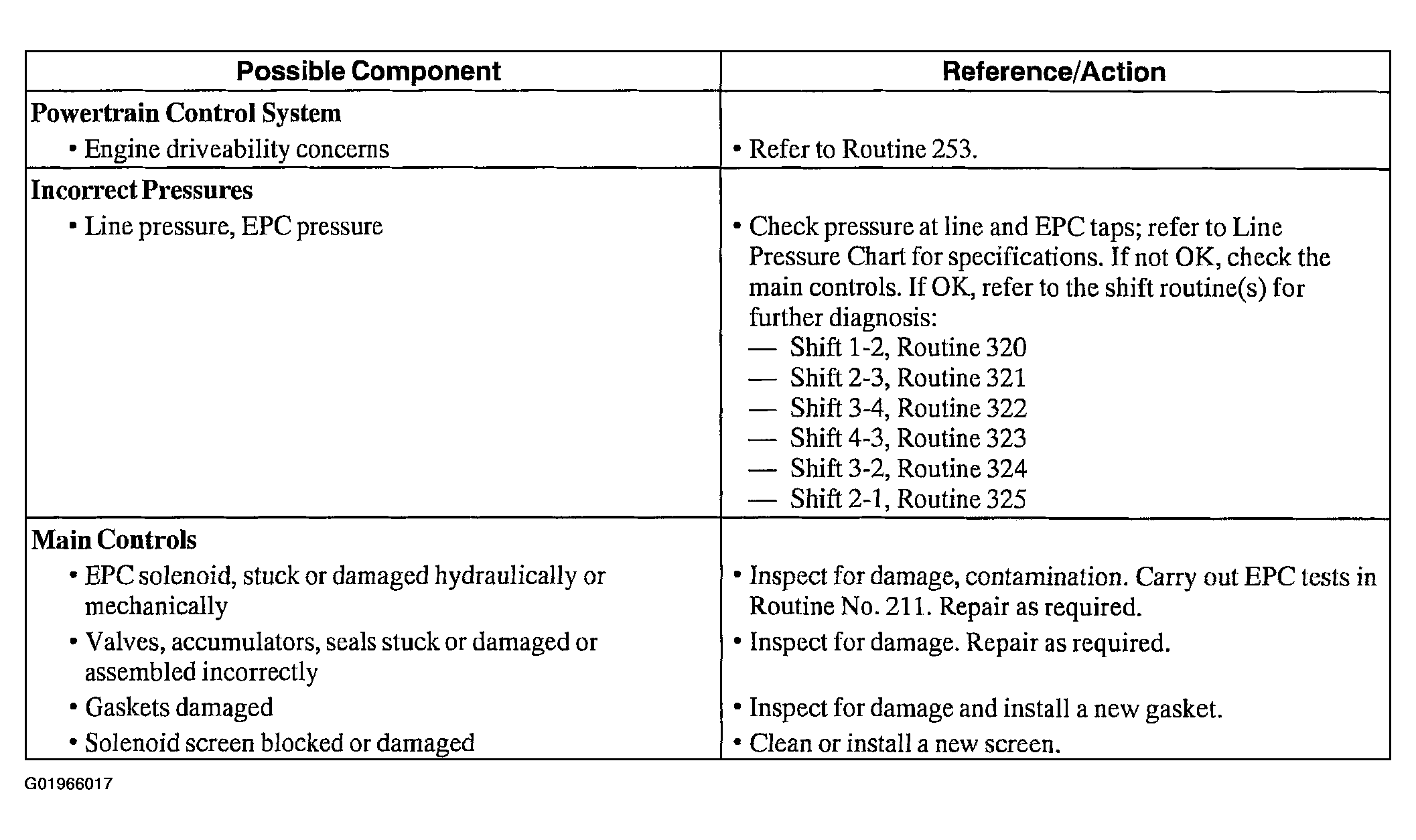

Fig 2: Diagnostic Routines 211/311 - Shift Concerns: Timing Concerns - Early/Late (2 Of 2)
G01966017Courtesy of FORD MOTOR CO.
