Main Components And Functions

WARNING: This page is about a different car, the 2002 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

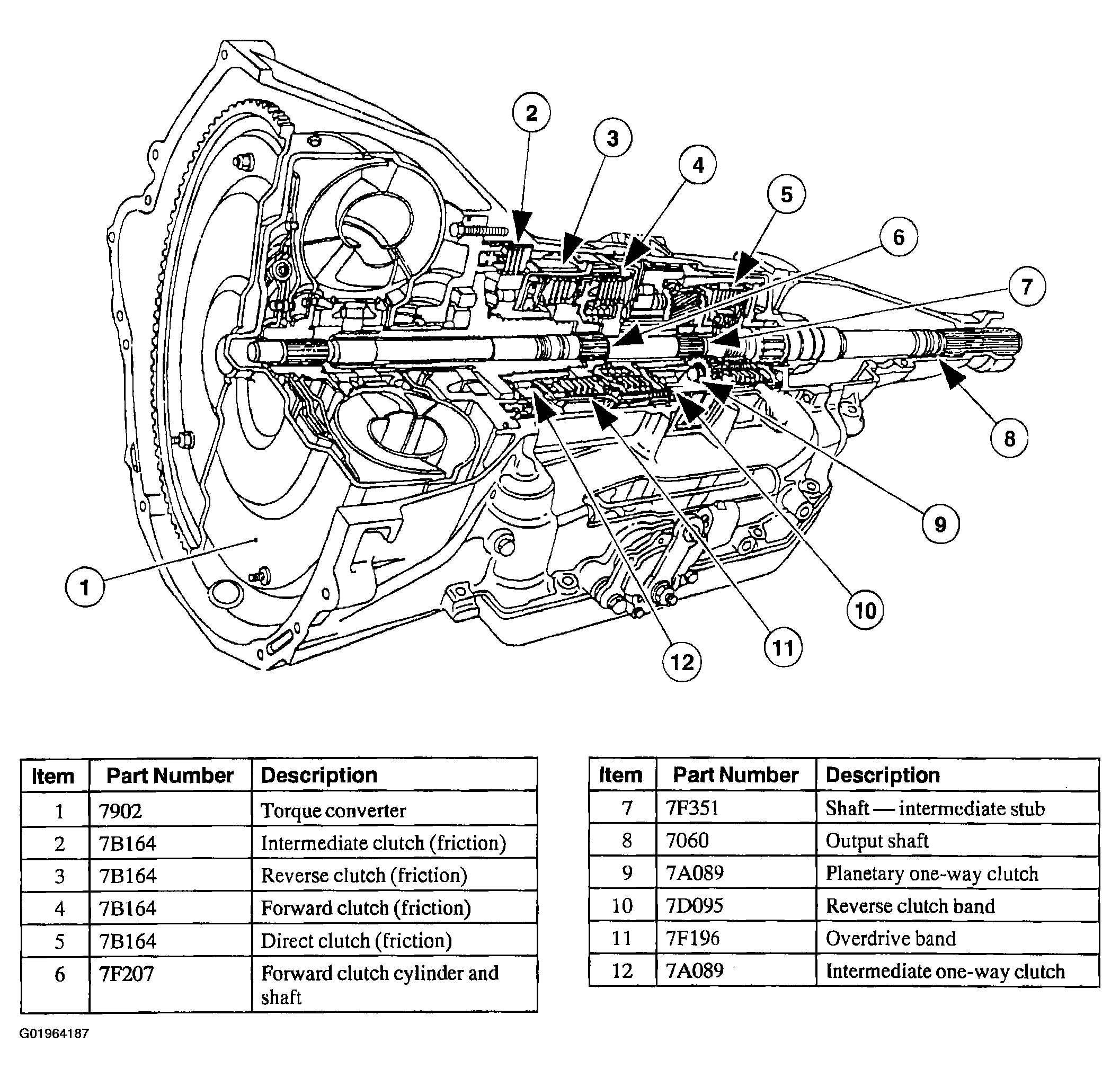

Fig 1: Sectional View Of Transmission Main Components
G01964187Courtesy of FORD MOTOR CO.
