Disassembled Views

WARNING: This page is about a different car, the 2002 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

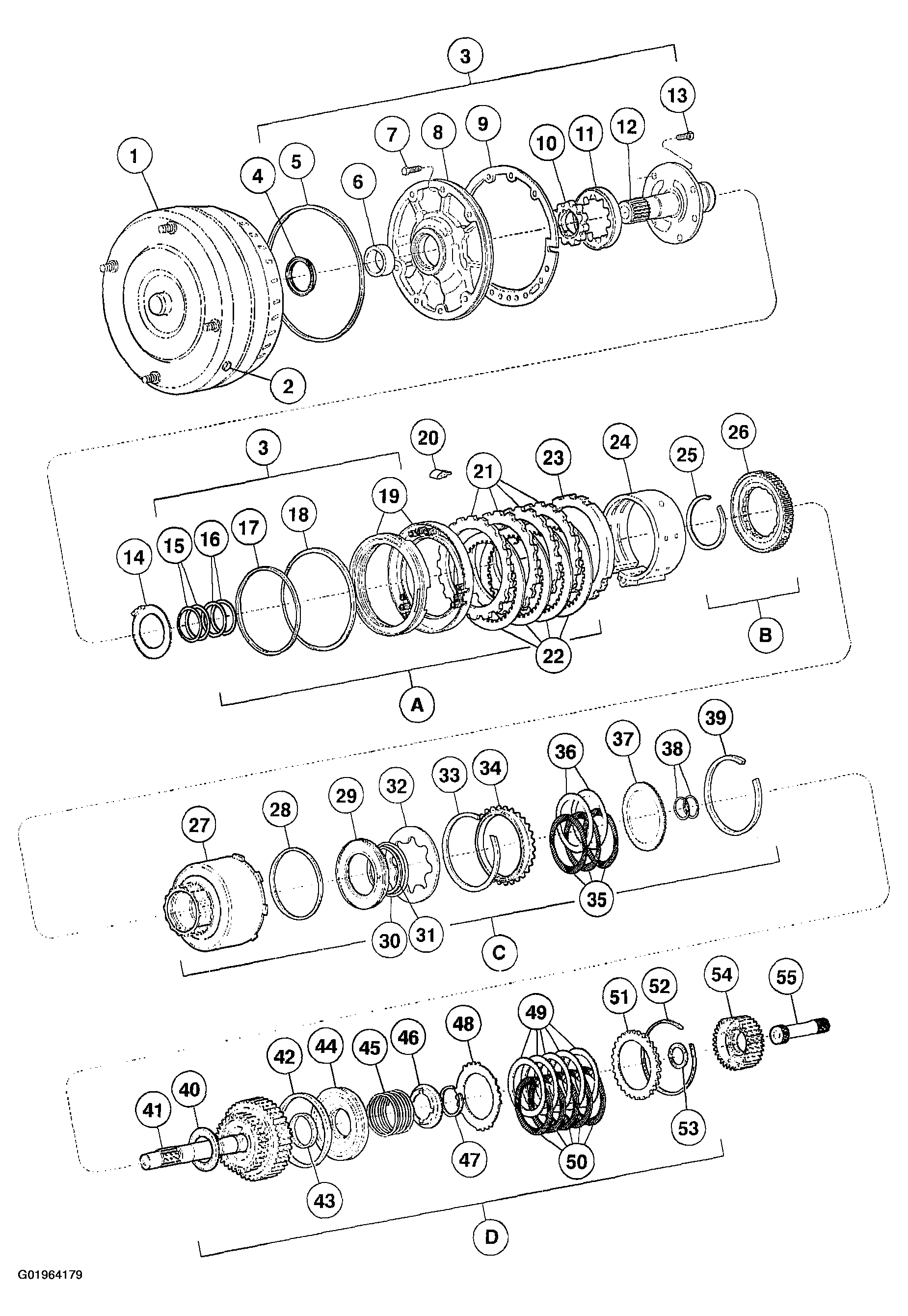

Fig 1: Disassembled View Of 4R70W Automatic Transmission System (1 Of 2)

Courtesy of FORD MOTOR CO.

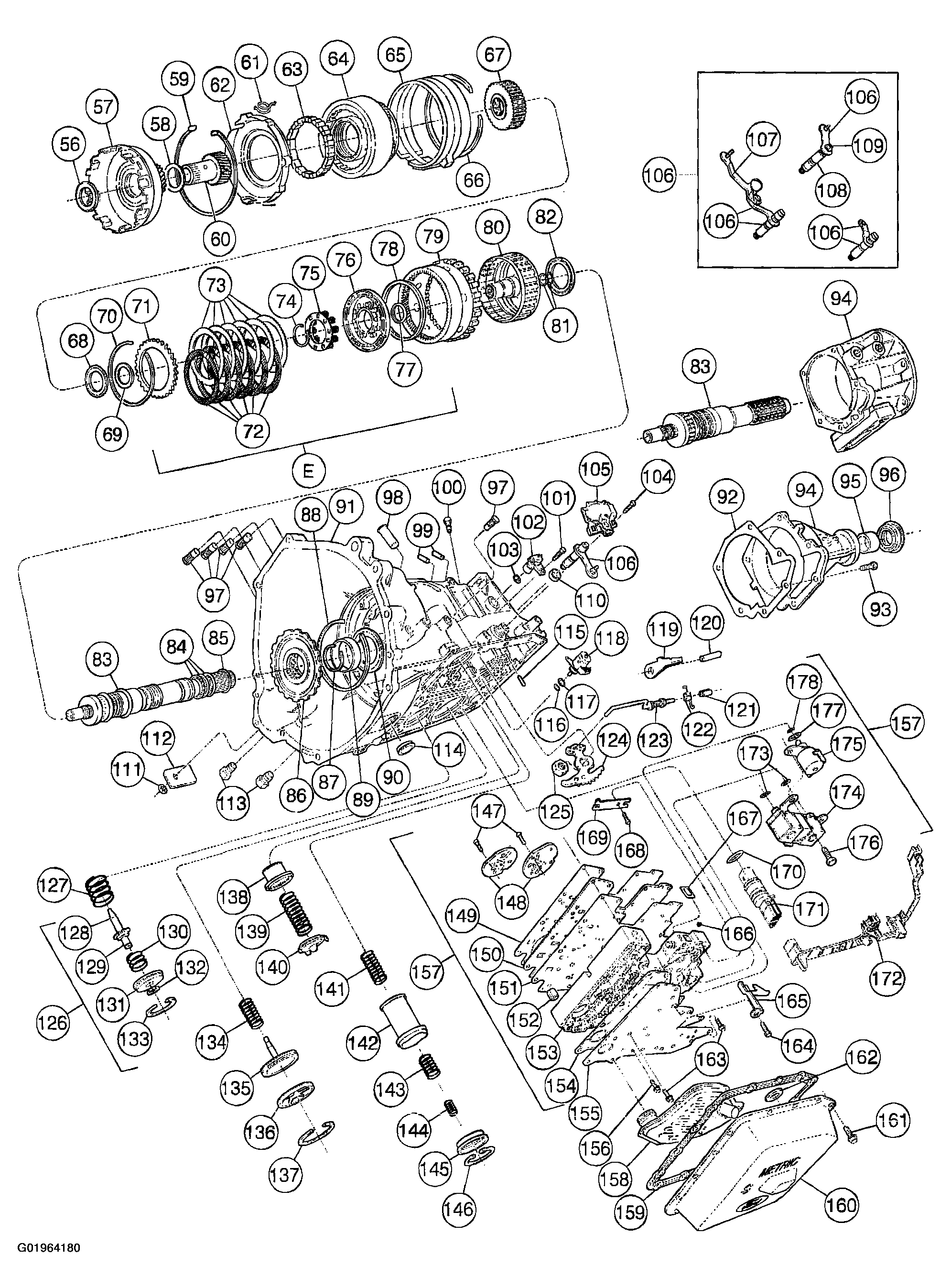

Fig 2: Disassembled View Of 4R70W Automatic Transmission System (2 Of 2)

Courtesy of FORD MOTOR CO.

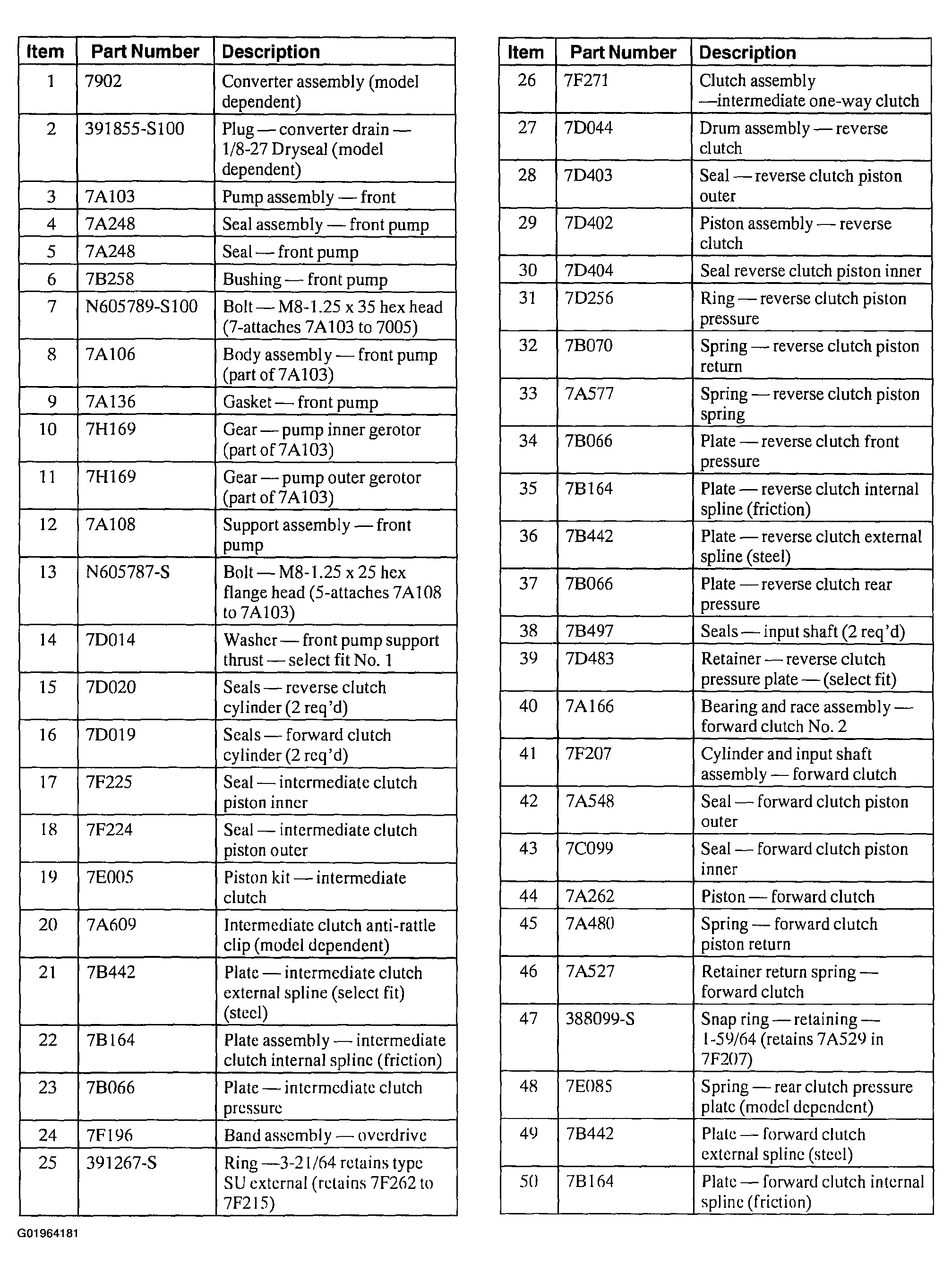

Fig 3: 4R70W Automatic Transmission System Description Legend (1 - 50)

Courtesy of FORD MOTOR CO.

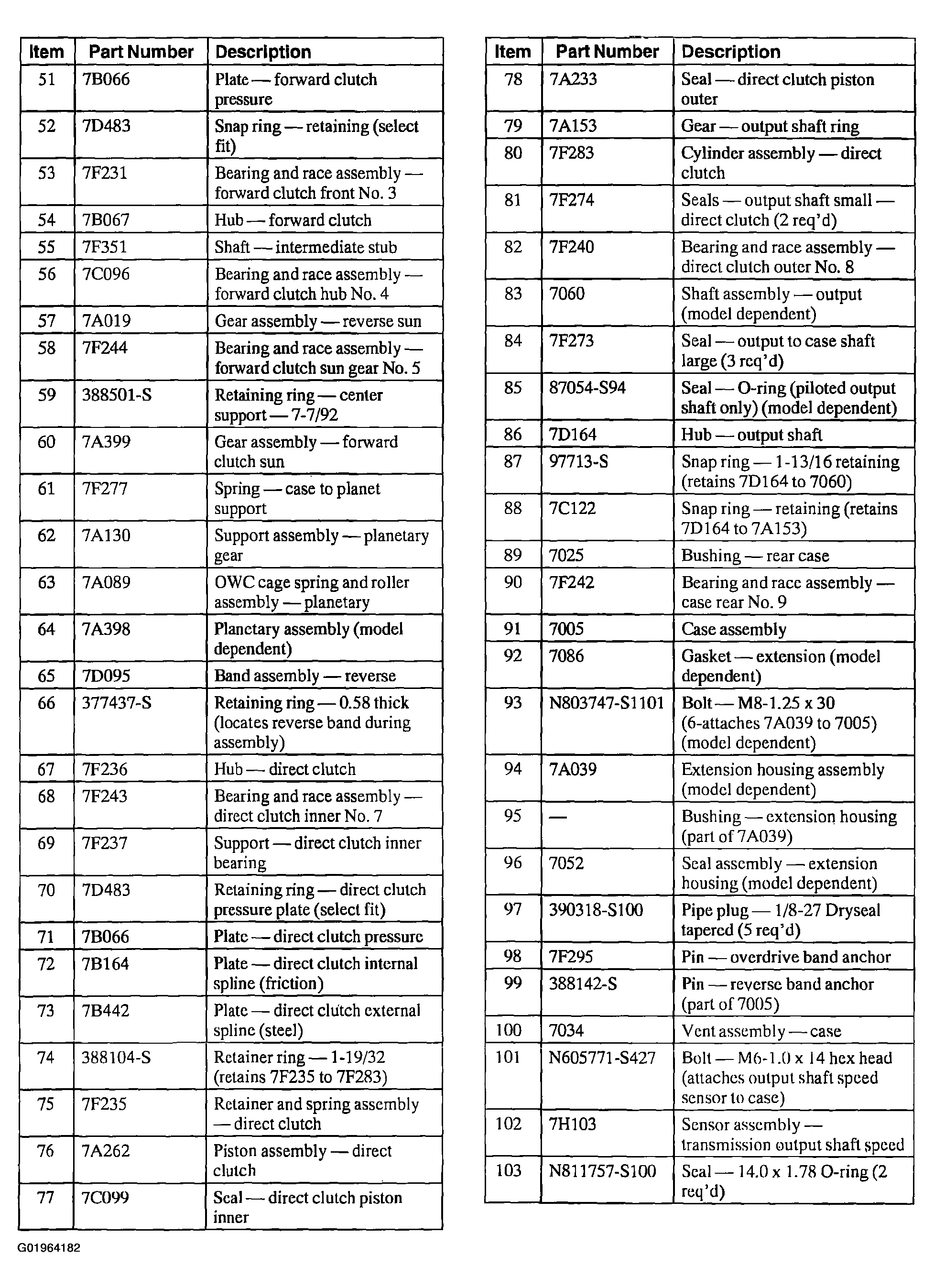

Fig 4: 4R70W Automatic Transmission System Description Legend (51 - 103)

Courtesy of FORD MOTOR CO.

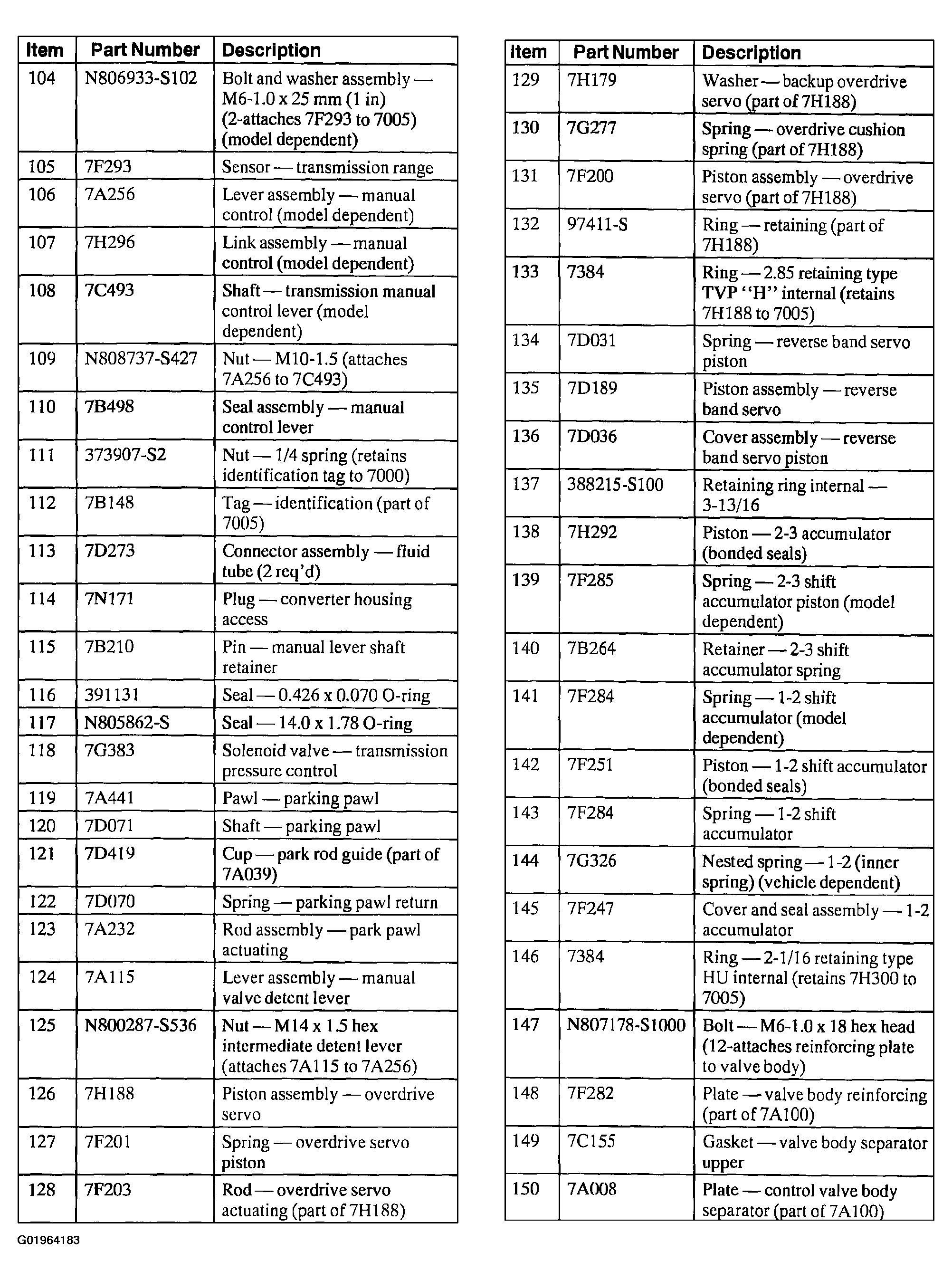

Fig 5: 4R70W Automatic Transmission System Description Legend (104 - 150)

Courtesy of FORD MOTOR CO.

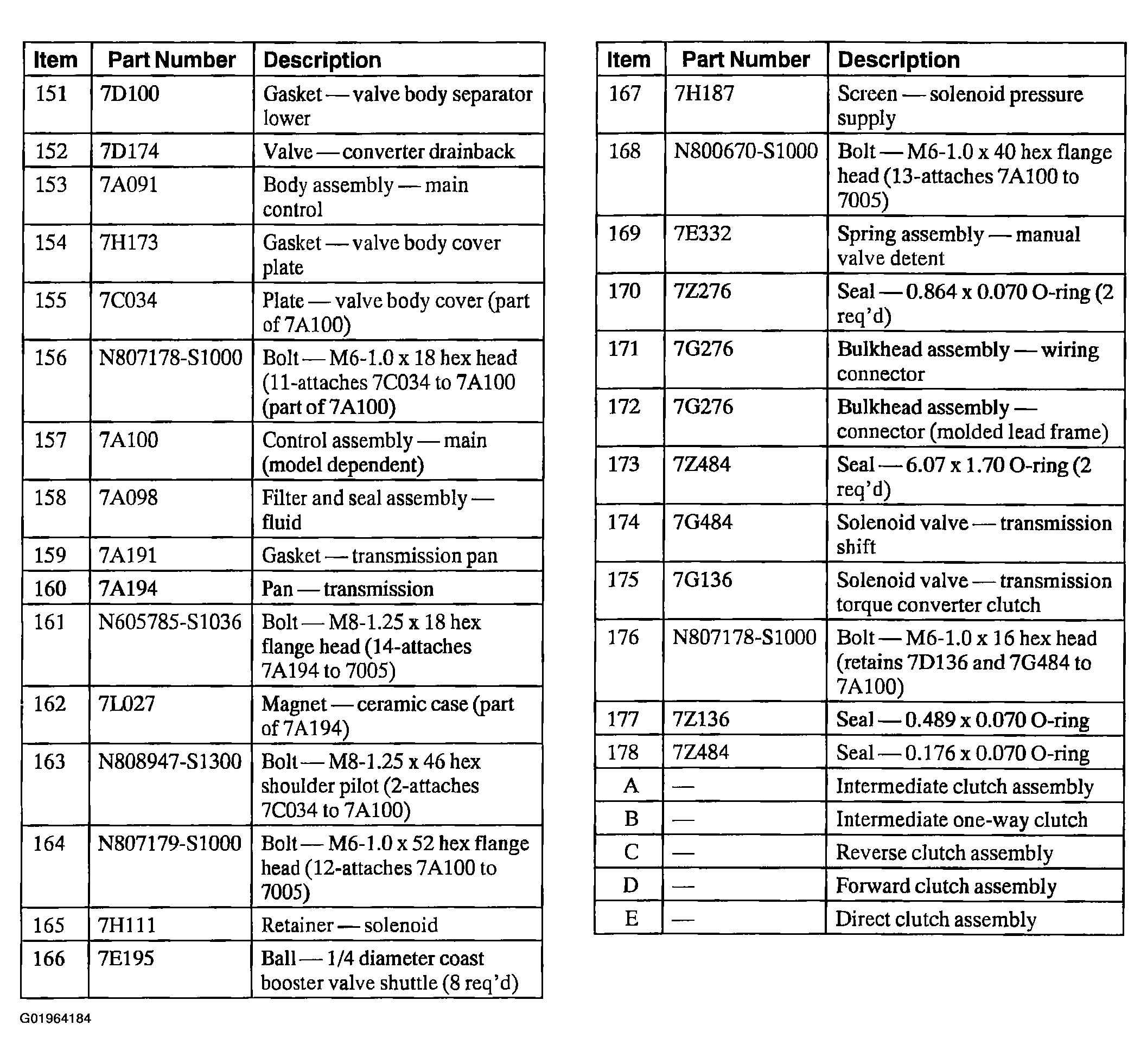

Fig 6: 4R70W Automatic Transmission System Description Table (151 - 178; A - E)

Courtesy of FORD MOTOR CO.
