One-Way Clutch-Intermediate

WARNING: This page is about a different car, the 2002 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

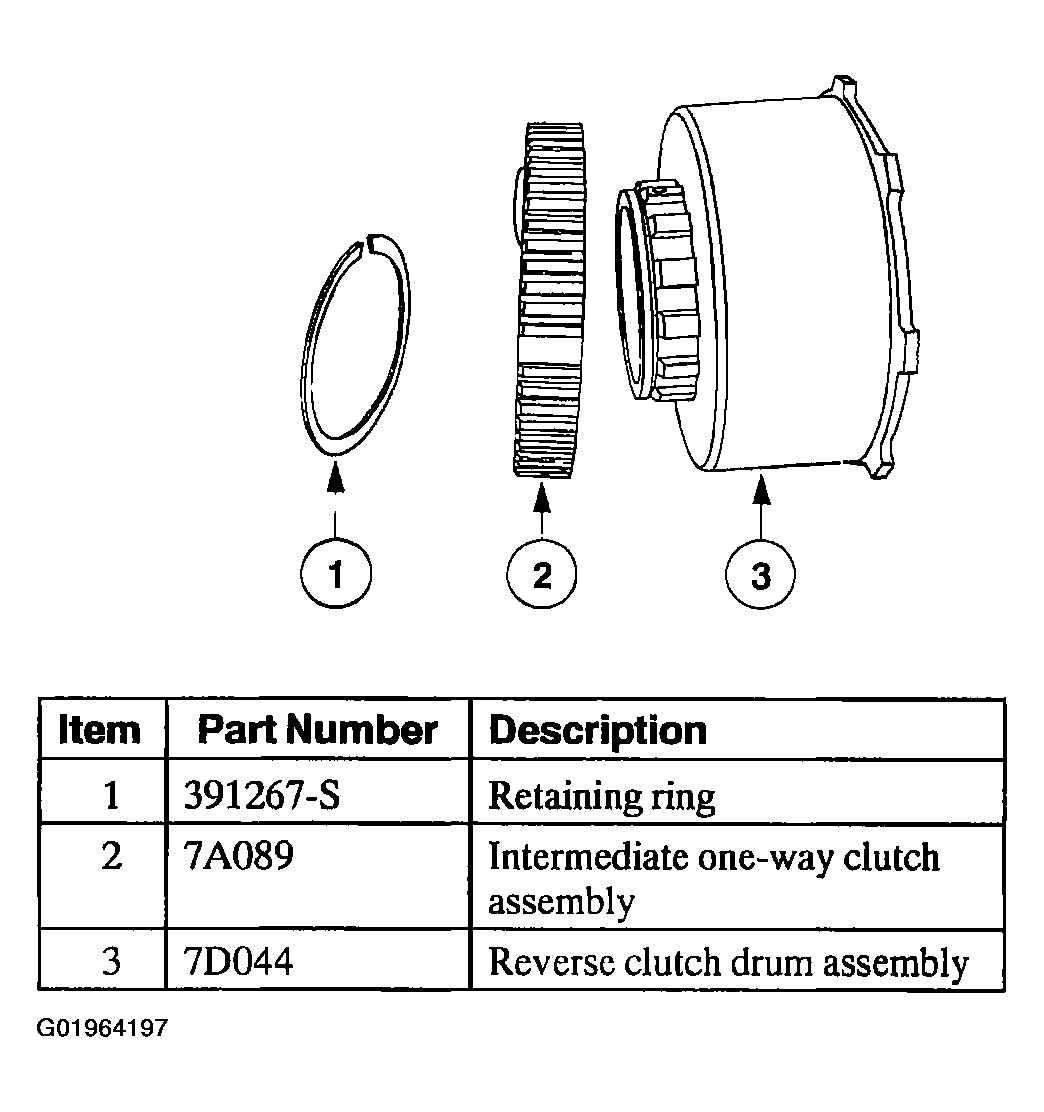

Fig 1: Disassembling View Of One-Way Clutch-Intermediate
G01964197Courtesy of FORD MOTOR CO.

The intermediate one-way clutch works with the intermediate friction clutch to hold the reverse clutch drum and reverse sun gear stationary in second gear during acceleration. The intermediate one-way clutch freewheels in third gear and during coasting in second gear, Overdrive and D ranges.
