Apply Components: Clutch-Reverse

WARNING: This page is about a different car, the 2002 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

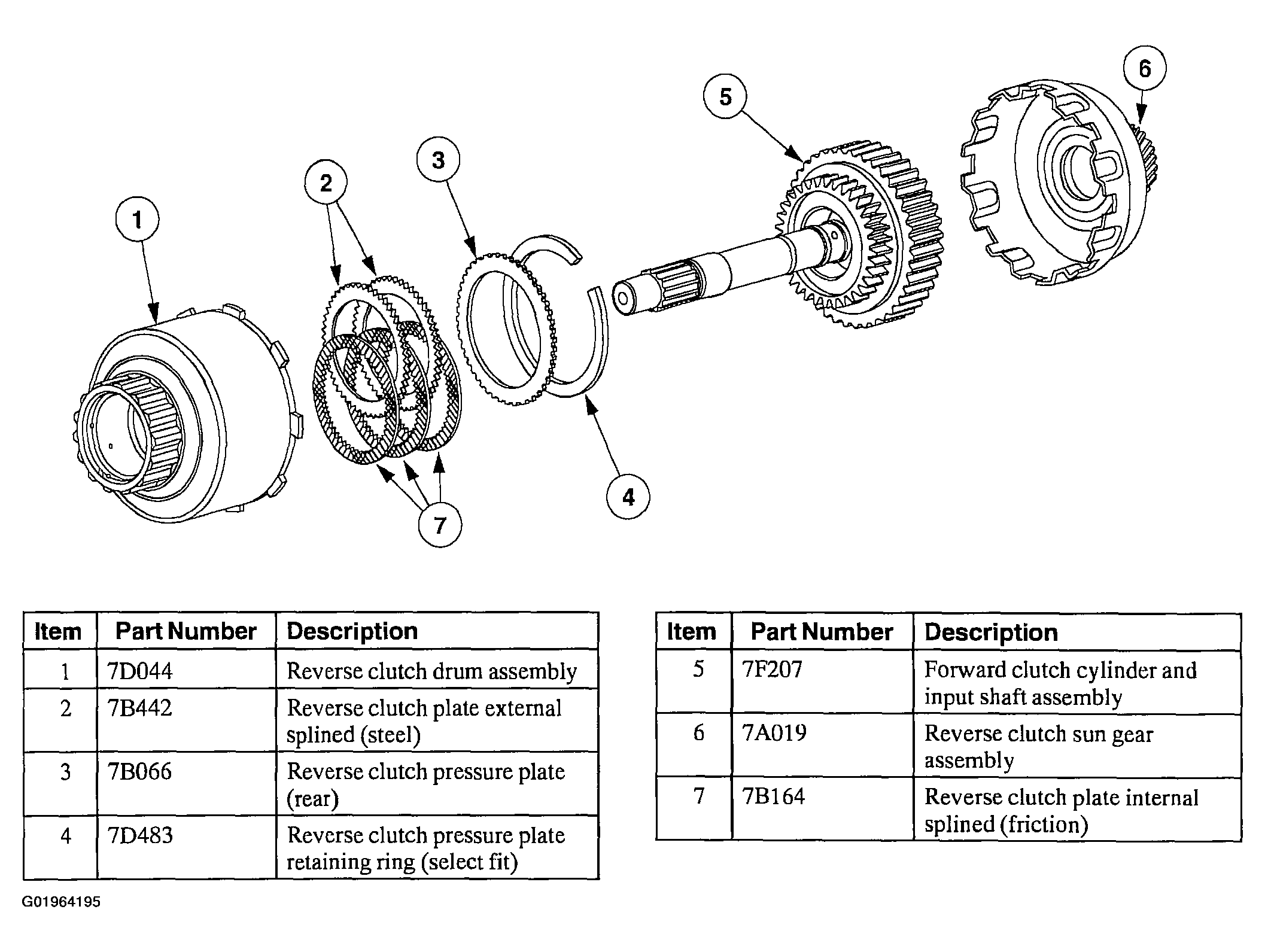

Fig 1: Disassembling View Of Clutch-Reverse
G01964195Courtesy of FORD MOTOR CO.

The reverse clutch couples the input shaft to the reverse sun gear, applied in reverse range only.
