Apply Components: Clutch-Forward

WARNING: This page is about a different car, the 2002 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

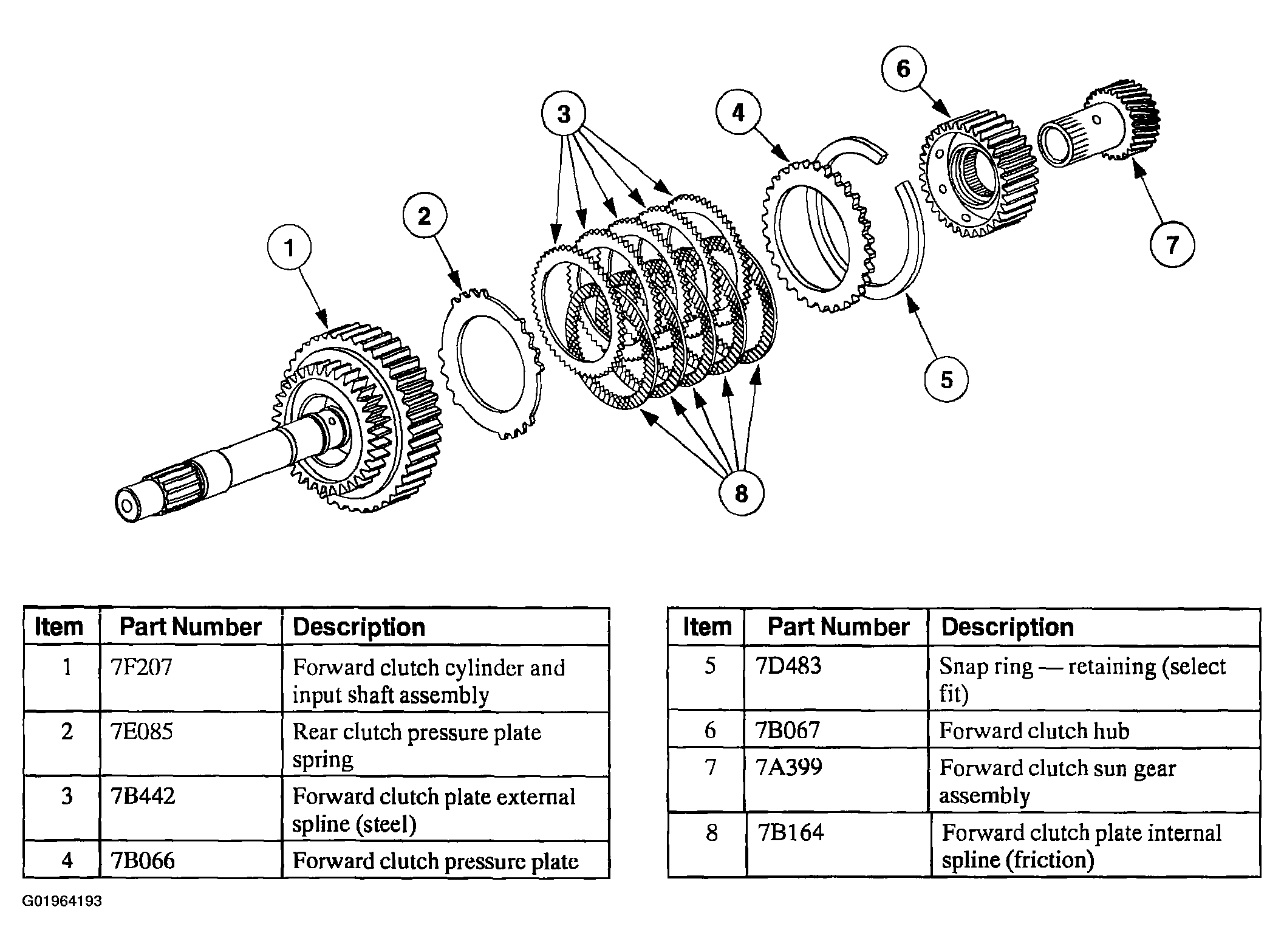

Fig 1: Disassembling View Of Clutch-Forward
G01964193Courtesy of FORD MOTOR CO.

The forward clutch couples the forward clutch cylinder and input shaft to the forward sun gear in first, second, and third gears. The forward clutch is not applied in fourth gear.
