Apply Components: Clutch-Direct

WARNING: This page is about a different car, the 2002 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

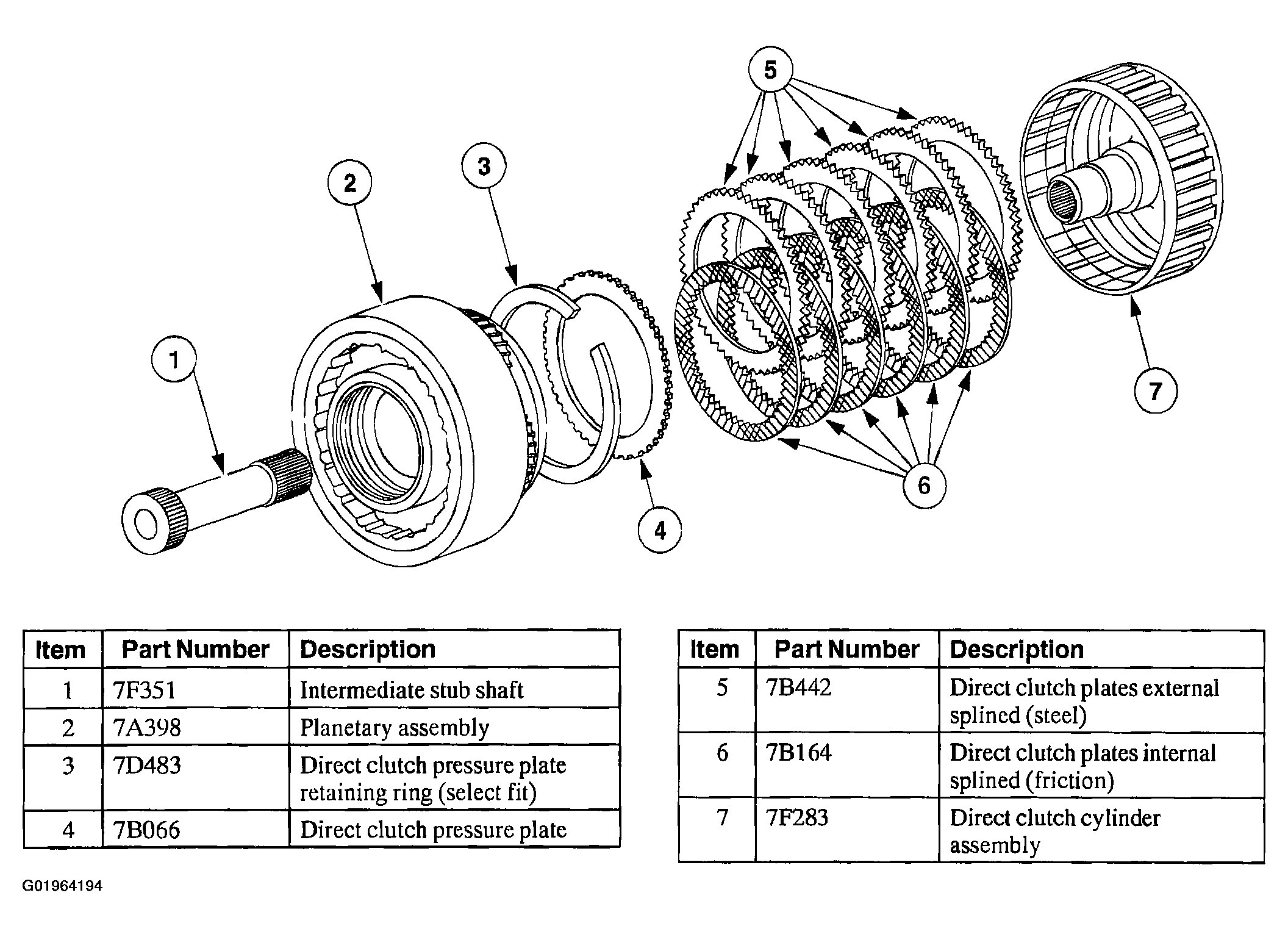

Fig 1: Disassembling View Of Clutch-Direct
G01964194Courtesy of FORD MOTOR CO.

The direct clutch couples the input shaft to the planet carrier through the stub shaft in third and fourth gears.
