Fluid Capacity
WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
CAUTION:
Using a transmission fluid that indicates a dual usage MERCON® and MERCON V® in a transmission application requiring MERCON®, may cause transmission damage. Use of any fluid other than the recommended fluid may cause transmission damage.
NOTE:
Refer to the transmission fluid level indicator and the Owner's Guide for the type of transmission fluid required. Some fluid labels may indicate dual usage such as MERCON® and MERCON V®. These dual-usage fluids are not to be used in transmission that use only the MERCON®-type fluid. These dual-usage fluids may be used in transmissions that require MERCON V® use.
NOTE:
Always use the transmission fluid level indicator to check and set the correct level of the transmission fluid.

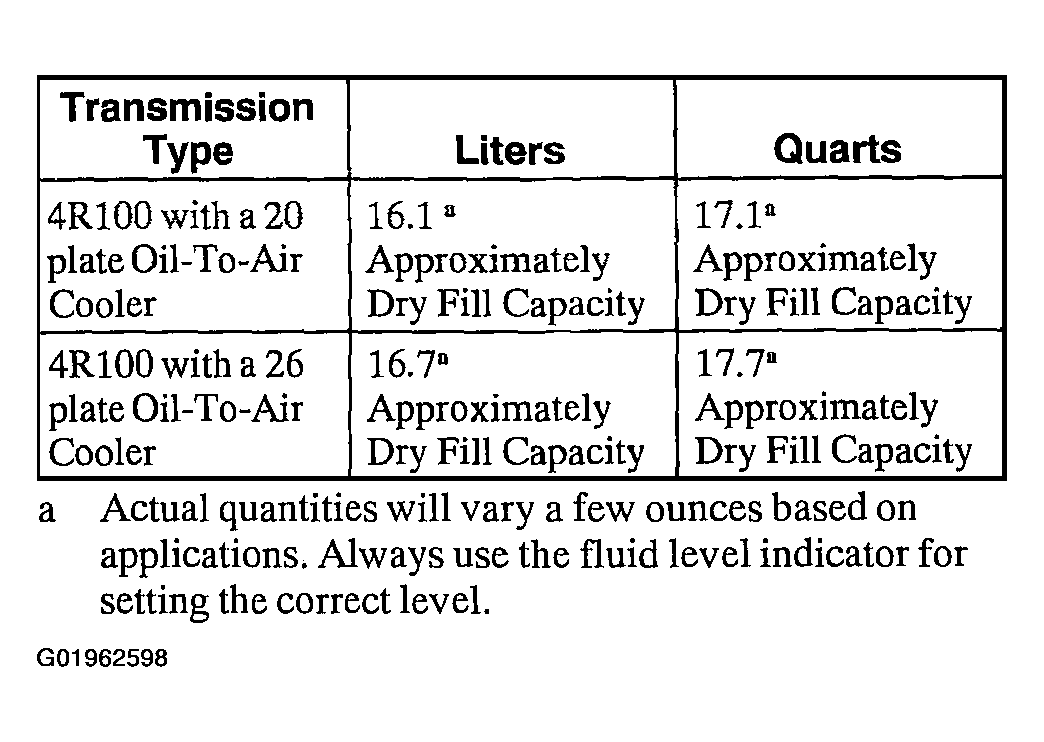

The above fluid capacities are approximate dry fill capacity and include fluid coolers and fluid cooler tubes. Fluid level indicator should be used to determine actual fluid requirement and fluid specifications. Check level at operating temperature. DO NOT OVERFILL.
The transmission fluid should be changed every 30,000 miles (48,000 km) regardless of normal or special operating conditions.
Once the vehicle is equipped with the in-line transmission fluid filter, the filter should be replaced every 30,000 miles (48,000 km). The in-line transmission fluid filter should be replaced during any transmission overhaul, exchanges, repair or if internal contamination is present. If the vehicle is equipped with a in-line transmission fluid filter the filter only needs to be replaced. If the vehicle is not equipped with a in-line transmission fluid filter a new in-line transmission fluid filter kit should be installed.
