Vehicle Speed Sensor (VSS) - 7.3L Diesel: Removal

WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the vehicle speed sensor (VSS).
    1. Disconnect the VSS electrical connector.
    2. Remove the bolt.
    3. Remove the VSS.

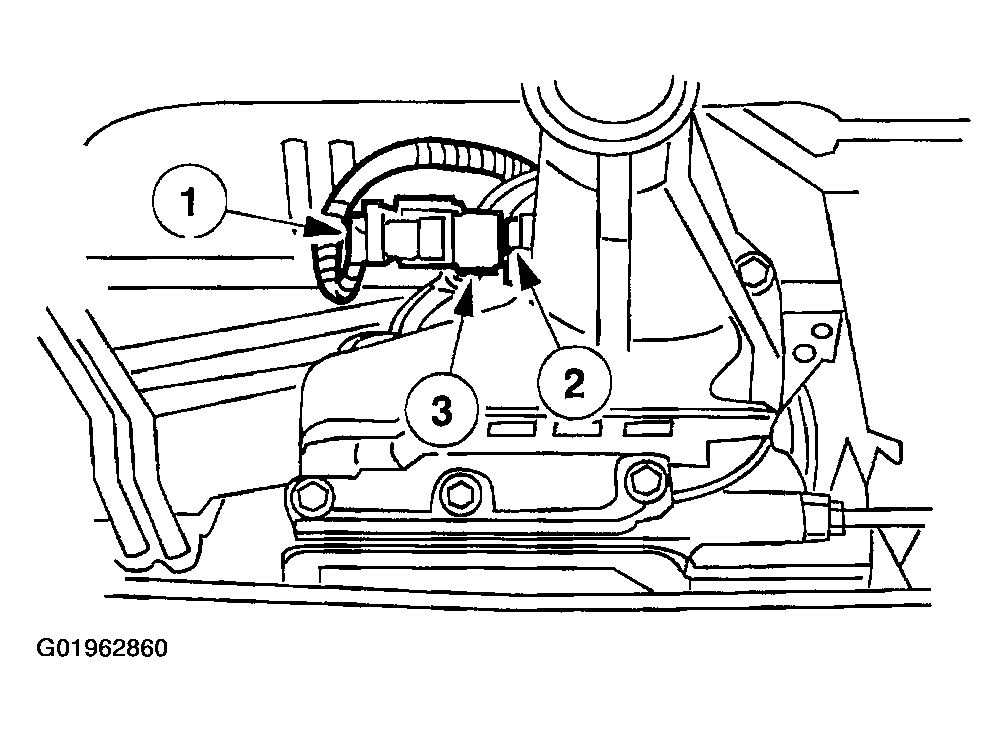

      Fig 1: Disconnecting VSS Electrical Connector
      G01962860Courtesy of FORD MOTOR CO.
  3. Remove the vehicle speed sensor driven gear.
    1. Remove the retaining clip.
    2. Remove the driven gear.

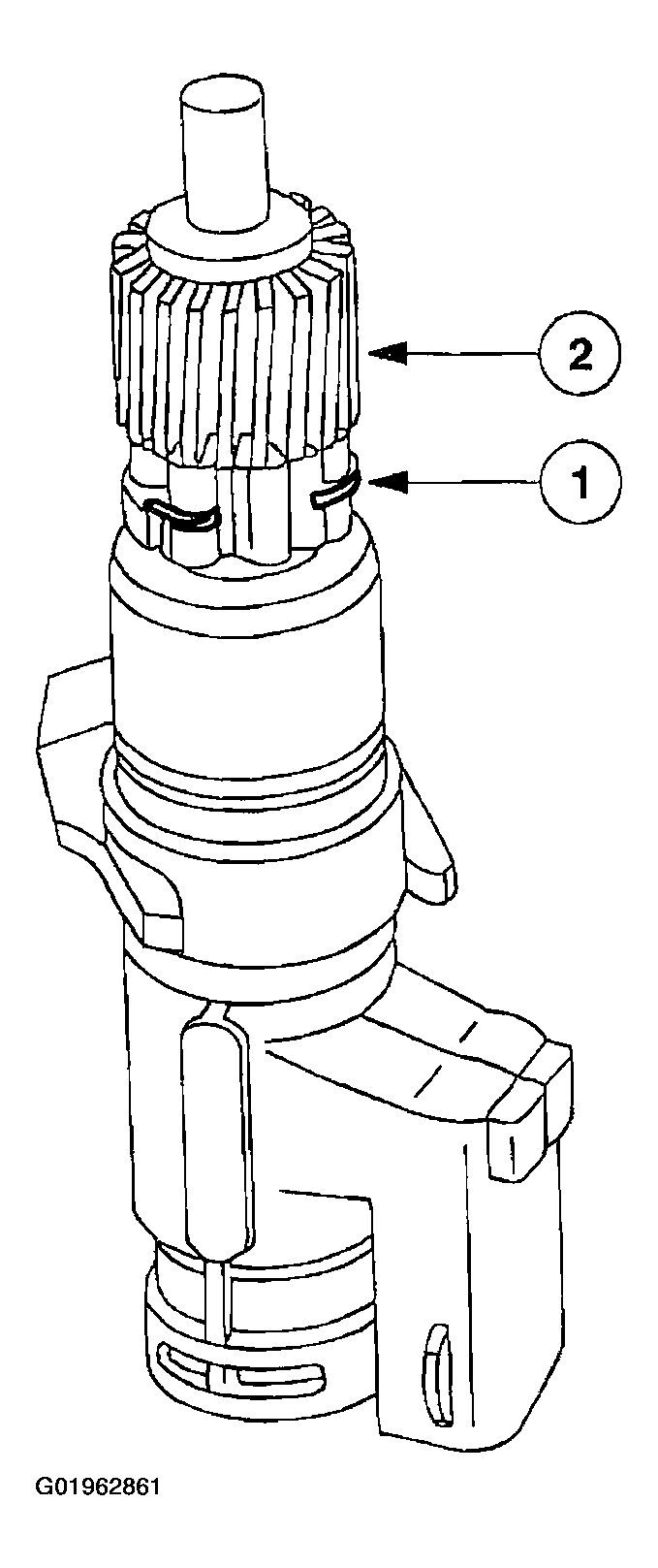

      Fig 2: Removing Vehicle Speed Sensor Driven Gear
      G01962861Courtesy of FORD MOTOR CO.
