Vehicle Speed Sensor (VSS) - 7.3L Diesel: Installation

WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the vehicle speed sensor driven gear.
    1. Install the driven gear.
    2. Install the retaining clip.

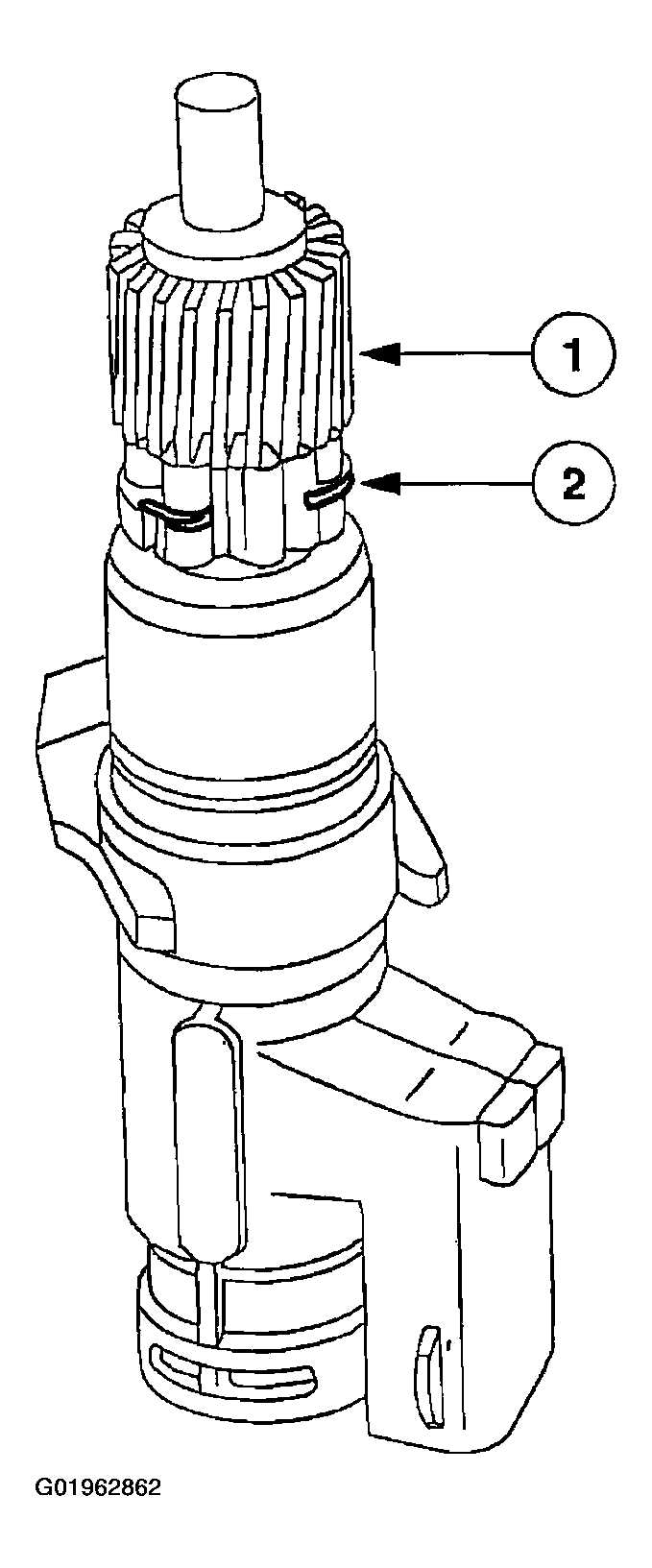

      Fig 1: Installing Vehicle Speed Sensor Driven Gear
      G01962862Courtesy of FORD MOTOR CO.
  2. Install the vehicle speed sensor (VSS).
    1. Install the VSS.
    2. Install the bolt.
    3. Connect the electrical connector.

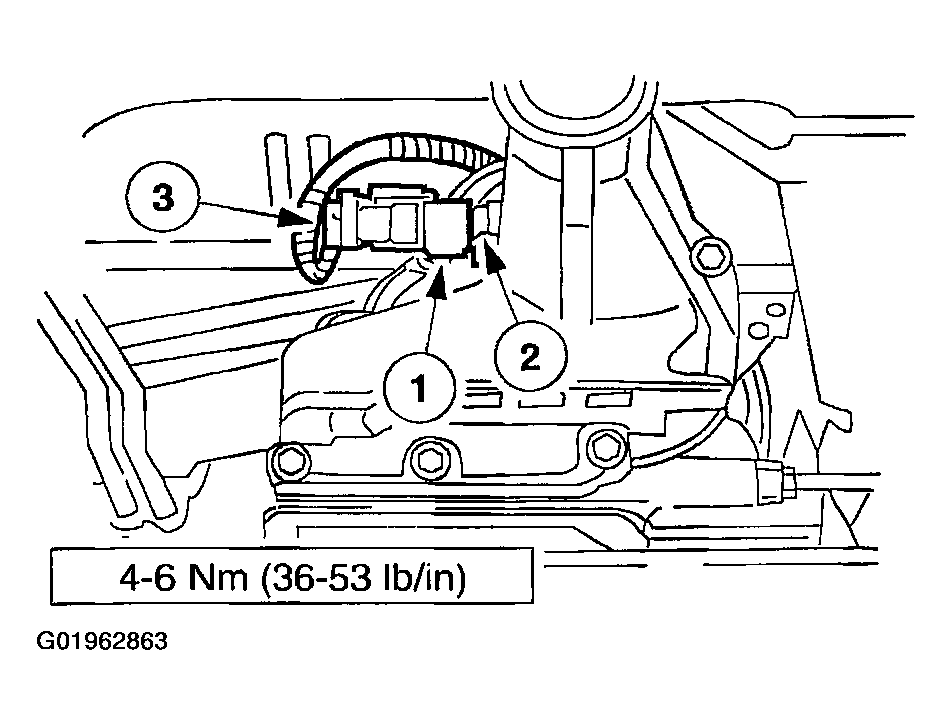

      Fig 2: Connecting VSS Electrical Connector
      G01962863Courtesy of FORD MOTOR CO.
  3. Lower the vehicle.
