Transmission Insulator And Retainer: Removal

WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the nuts.
    Fig 1: Removing Rear Transmission Mount Nuts
    G01962947Courtesy of FORD MOTOR CO.
  3. Install the high lift transmission jack with the special tool to the transmission.

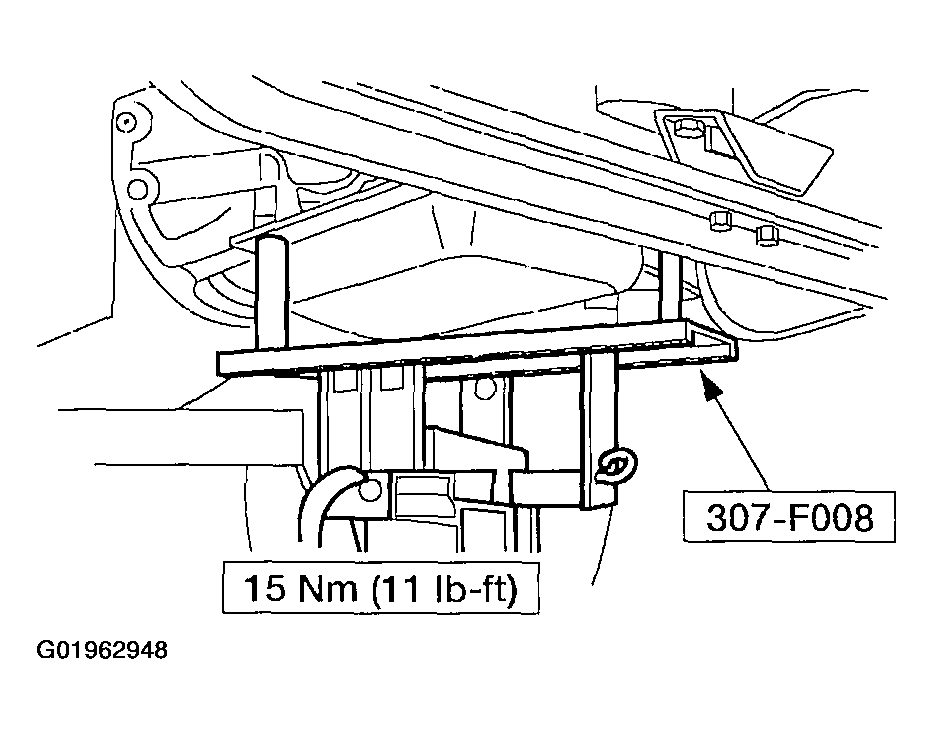

    Fig 2: Installing High Lifting Transmission Jack With Special Tool To Transmission
    G01962948Courtesy of FORD MOTOR CO.
    4. CAUTION: Be sure not to raise the back of the transmission too high, if it makes contact with the underbody, damage to the TSS and OSS sensors will occur.
  4. Remove the rear transmission mount.
    1. Raise the transmission up off the rear crossmember support.
    2. Remove the bolts.
    3. Remove the rear transmission mount.

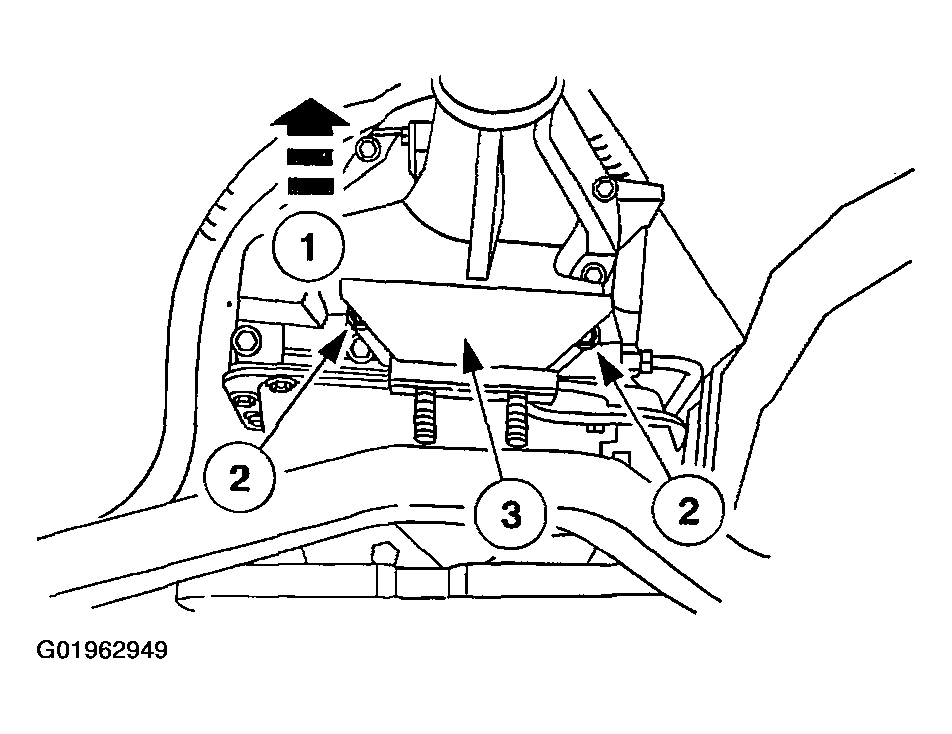

      Fig 3: Removing Rear Transmission Mount
      G01962949Courtesy of FORD MOTOR CO.
