Transmission Insulator And Retainer: Installation

WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the insulator and retainer.
    Fig 1: Installing Insulator And Retainer
    G01962950Courtesy of FORD MOTOR CO.
  2. Lower the transmission on to the rear crossmember support.

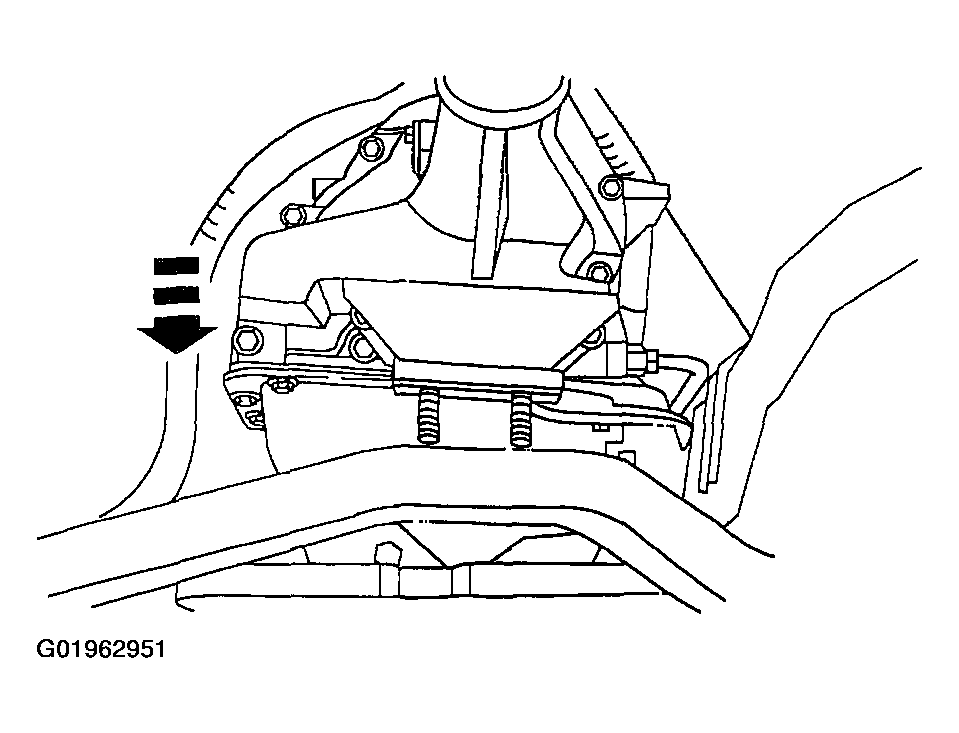

    Fig 2: Identifying Lower Transmission On To Rear Crossmember Support
    G01962951Courtesy of FORD MOTOR CO.
  3. Install the nuts.

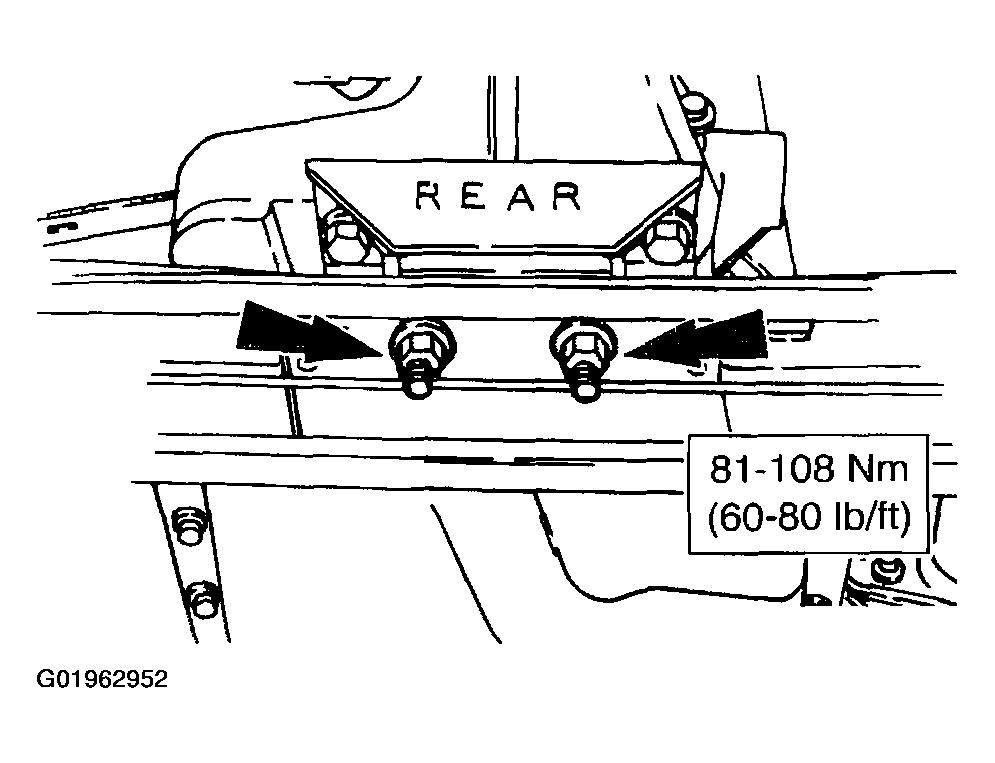

    Fig 3: Installing Rear Transmission Mount Nuts
    G01962952Courtesy of FORD MOTOR CO.
  4. Remove the high lift transmission jack with the special tool from the transmission.

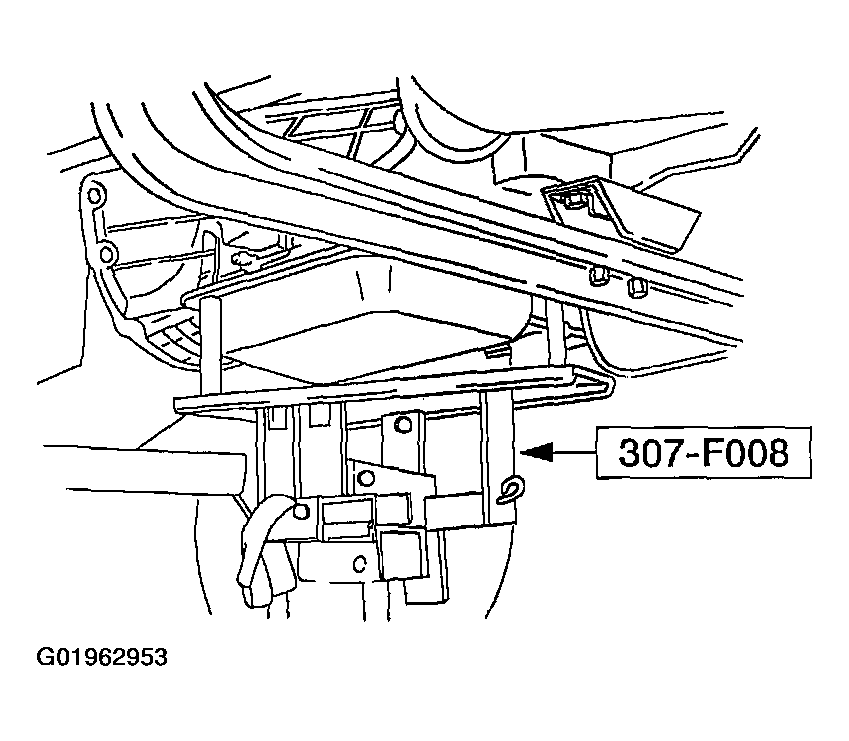

    Fig 4: Removing High Lift Transmission Jack With Special Tool From Transmission
    G01962953Courtesy of FORD MOTOR CO.
  5. Install the transmission fluid pan-to-case retaining bolts.

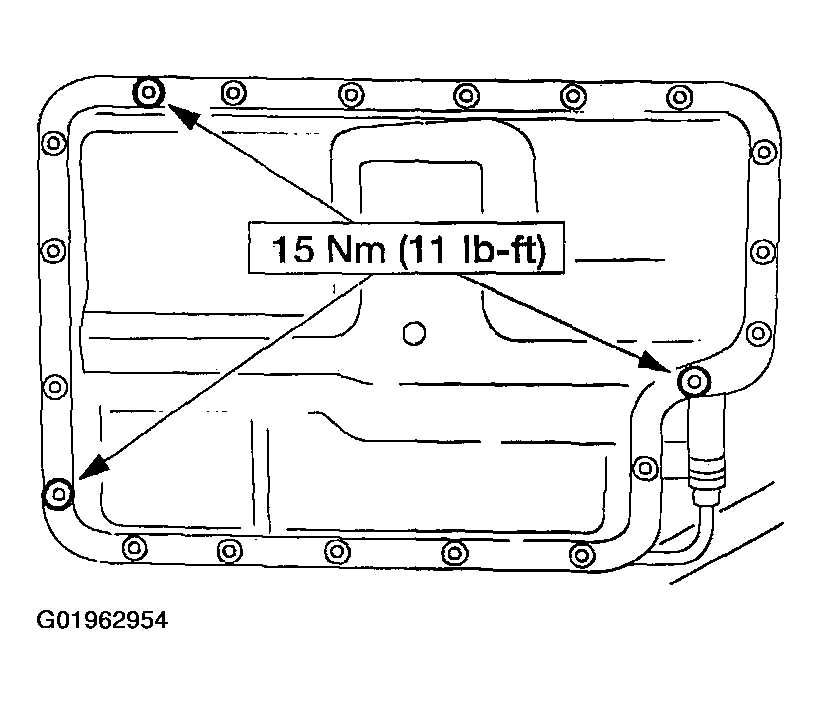

    Fig 5: Installing Transmission Fluid Pan-To-Case Retaining Bolts
    G01962954Courtesy of FORD MOTOR CO.
  6. Remove the supports and lower the vehicle.
