Transmission Filler Tube: Installation

WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Coat the O-ring at the bottom of the fluid filler tube with clean automatic transmission fluid. If removed install the starter wiring harness.

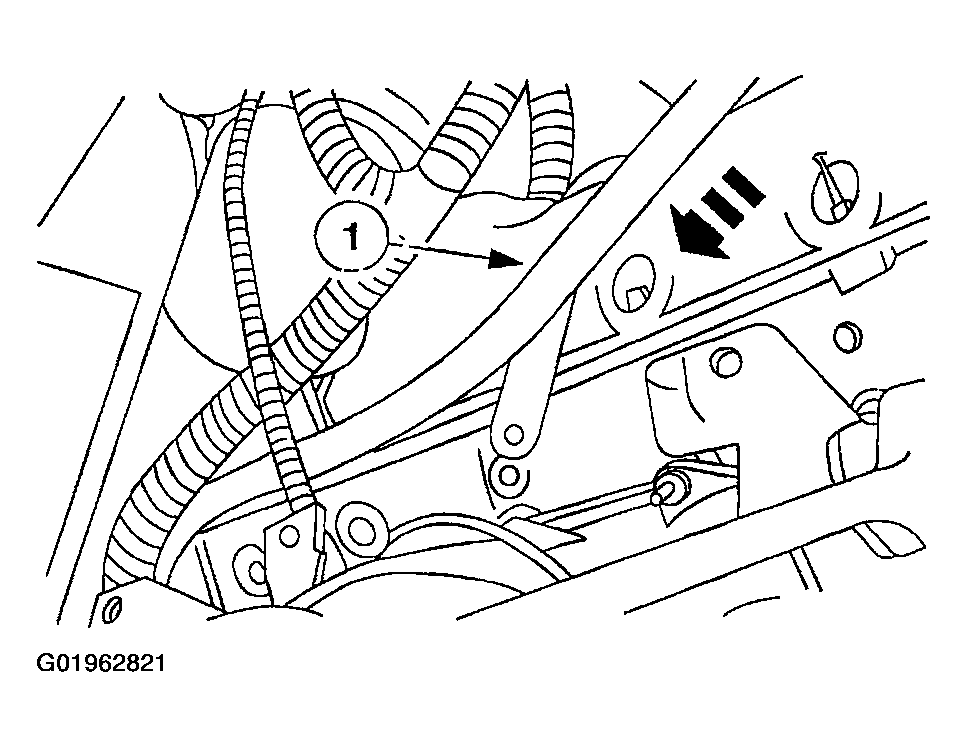

    Fig 1: Installing Fluid Filler Tube
    G01962821Courtesy of FORD MOTOR CO.
  1. Install the fluid filler tube.
  2. Install the bolt.

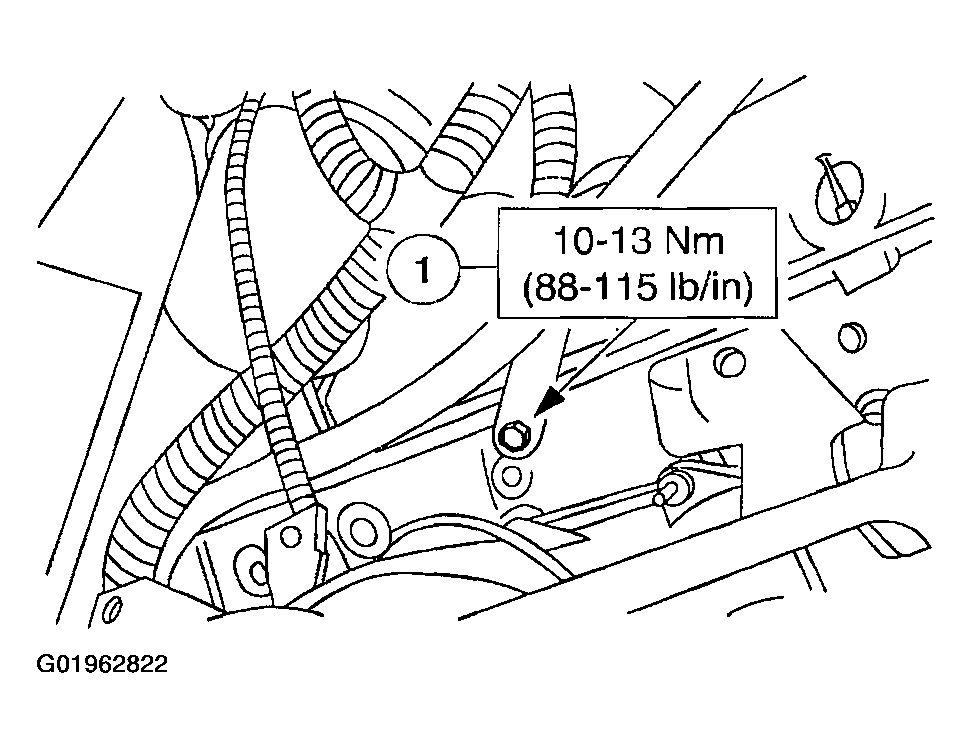

    Fig 2: Installing Bolt
    G01962822Courtesy of FORD MOTOR CO.
  3. Install the inner wheel liner.

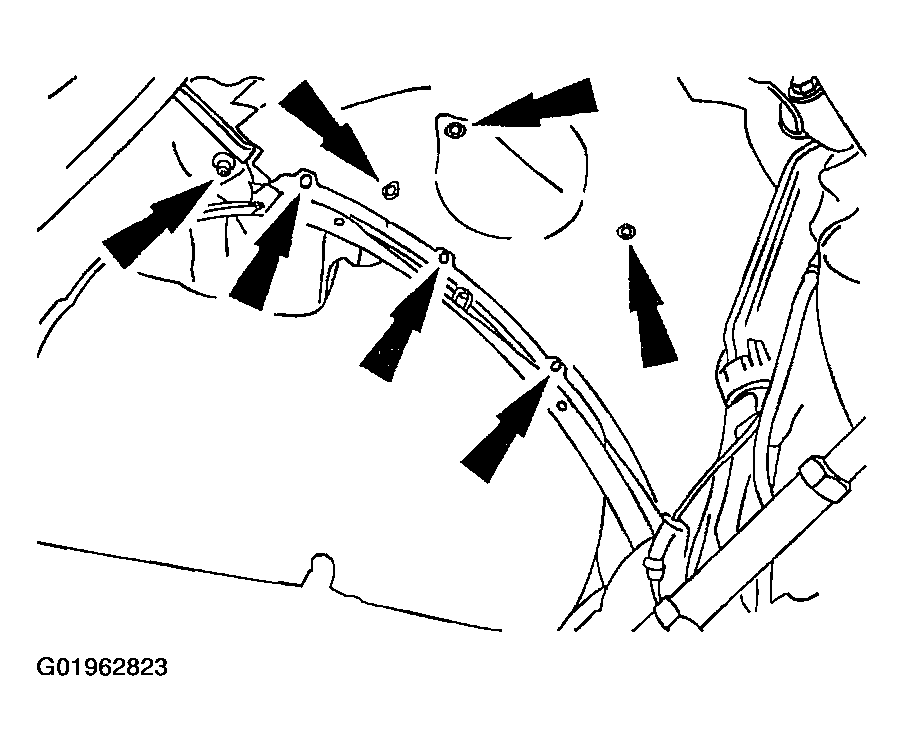

    Fig 3: Installing Inner Wheel Liner
    G01962823Courtesy of FORD MOTOR CO.
  4. Install the RH front wheel.
  5. Lower the vehicle.
  6. Install the fluid level indicator.

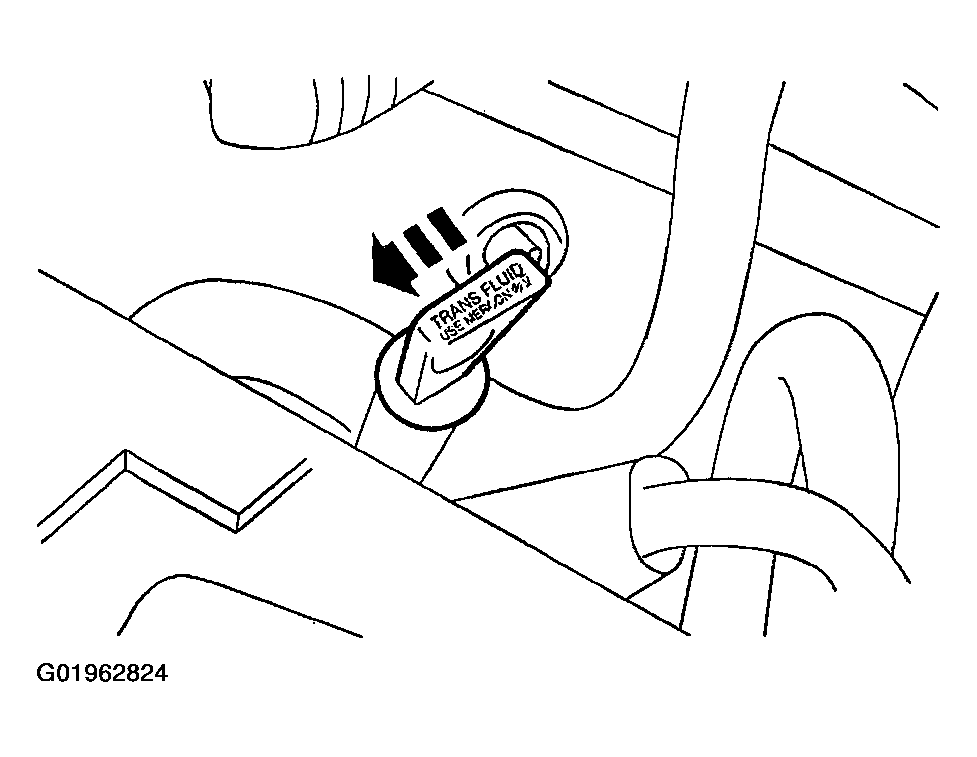

    Fig 4: Installing Fluid Level Indicator
    G01962824Courtesy of FORD MOTOR CO.
  7. Connect the battery ground cable.
