Park System: Removal

WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For internal park mechanism service, refer to MANUAL CONTROL LEVER SHAFT AND SEAL .
  1. Remove the extension housing and the extension housing gasket. For additional information, refer to EXTENSION HOUSING SEAL AND BUSHING .
  2. Remove the parking rod guide plate.
    1. Remove the bolts.
    2. Remove the parking rod guide plate.

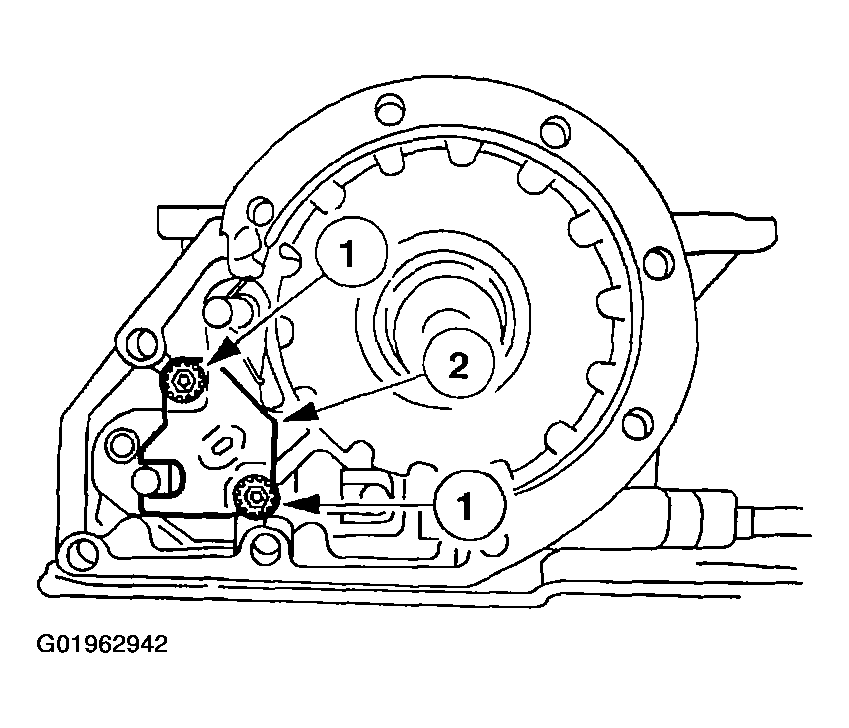

      Fig 1: Removing Parking Rod Guide Plate
      G01962942Courtesy of FORD MOTOR CO.
    3. NOTE: If installing a new park gear, refer to OUTPUT SHAFT - Check Diesel Engine  or OUTPUT SHAFT - Check Gas Engine .
  3. Remove the park pawl shaft.
    1. Remove the park pawl return spring.
    2. Remove the park pawl.
    3. Remove the park pawl shaft.

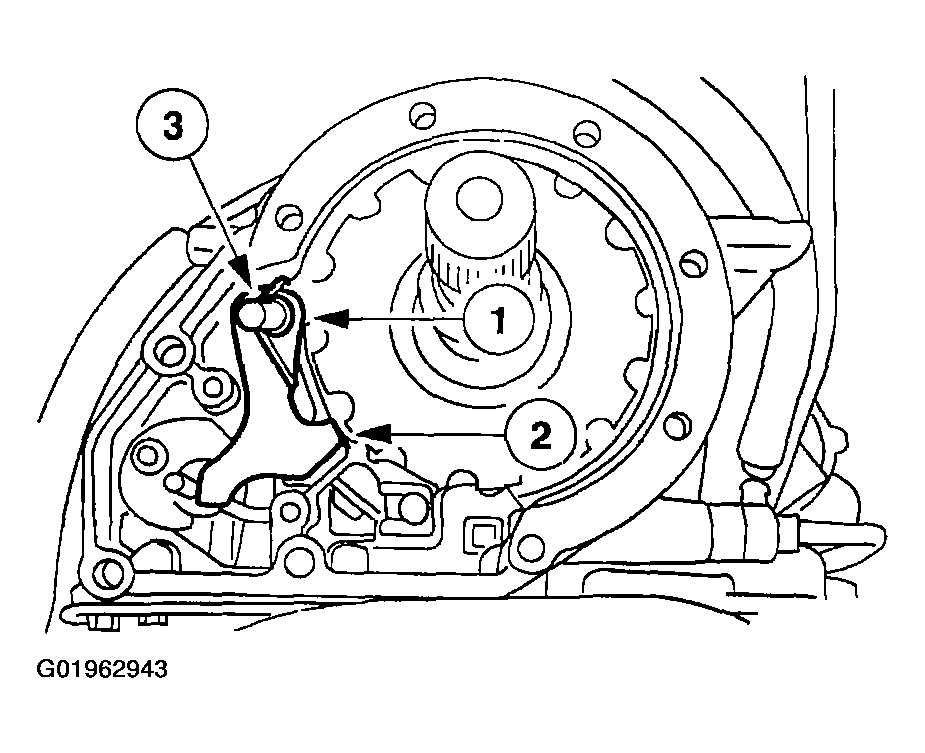

      Fig 2: Removing Park Pawl Shaft
      G01962943Courtesy of FORD MOTOR CO.
