Park System: Installation

WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: If installing a new park gear, refer to OUTPUT SHAFT - Check Diesel Engine  or OUTPUT SHAFT - Check Gas Engine .
  1. Install the park pawl shaft.
    1. Install the park pawl shaft.
    2. Install the park pawl.
    3. Install the park pawl return spring.

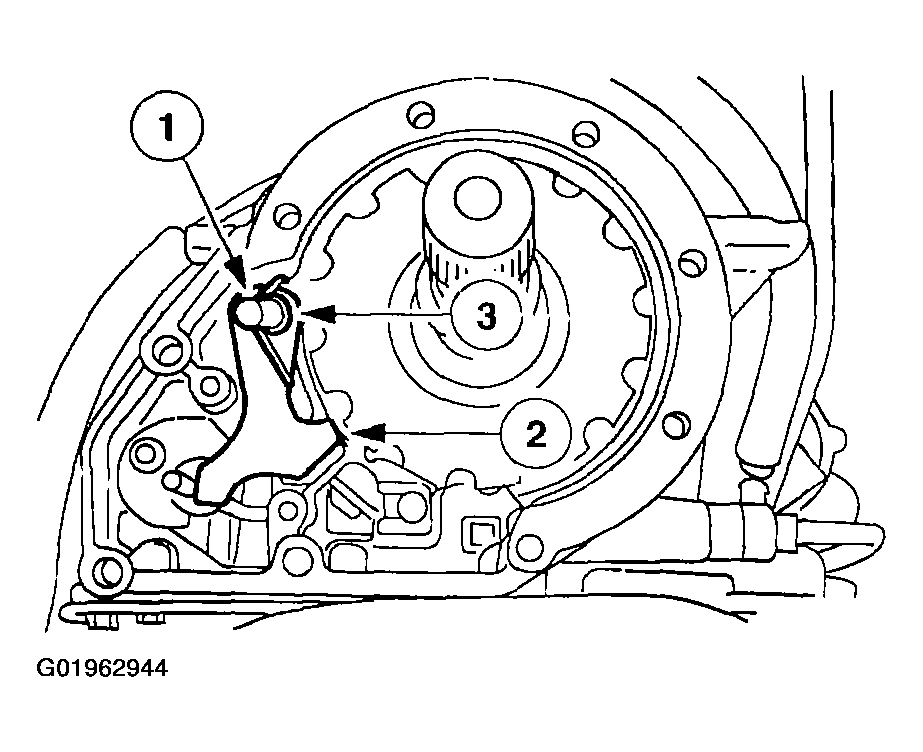

      Fig 1: Installing Park Pawl Shaft
      G01962944Courtesy of FORD MOTOR CO.
  2. Install the parking rod guide plate.
    1. Install the parking rod guide plate.
    2. Install the bolts.

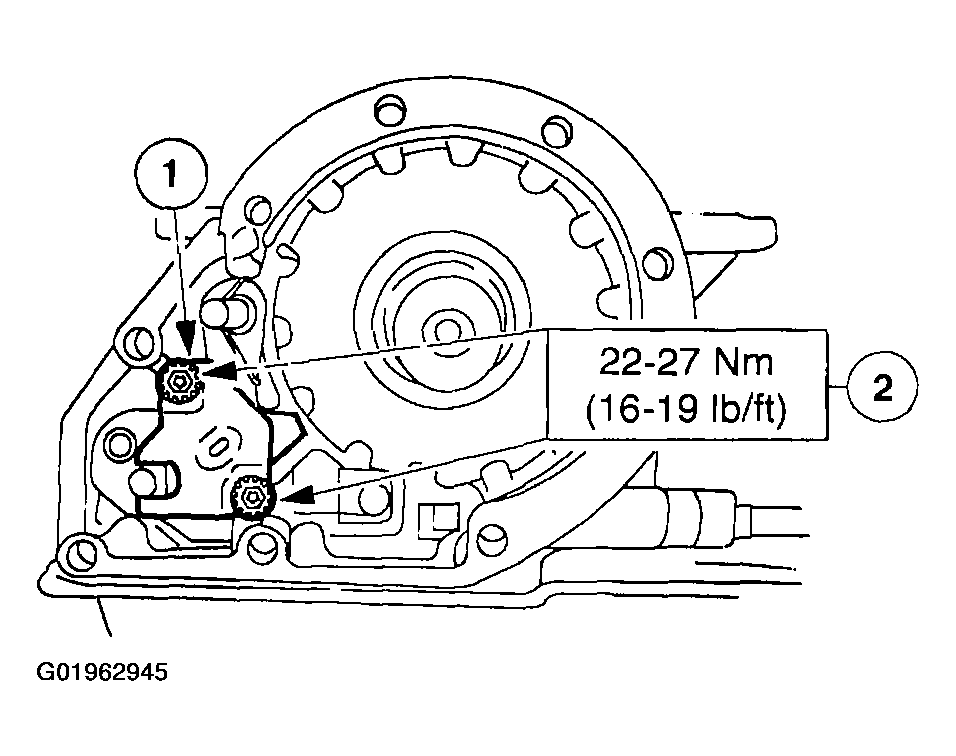

      Fig 2: Installing Parking Rod Guide Plate
      G01962945Courtesy of FORD MOTOR CO.
  3. Install the extension housing gasket and the extension housing.
