Digital Transmission Range (Tr) Sensor: Installation

WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the digital TR sensor.
    1. Install the sensor.
    2. Loosely install the bolts.
      Fig 1: Installing Sensor
      G01962932Courtesy of FORD MOTOR CO.
    2. NOTE: Make sure that the manual control lever is in the neutral position.
    Fig 2: Using Special Tool And Aligning Digital TR Sensor
    G01962933Courtesy of FORD MOTOR CO.
  2. Using the special tool, align the digital TR sensor. The tool is designed to fit snug.
  3. Tighten the bolts.

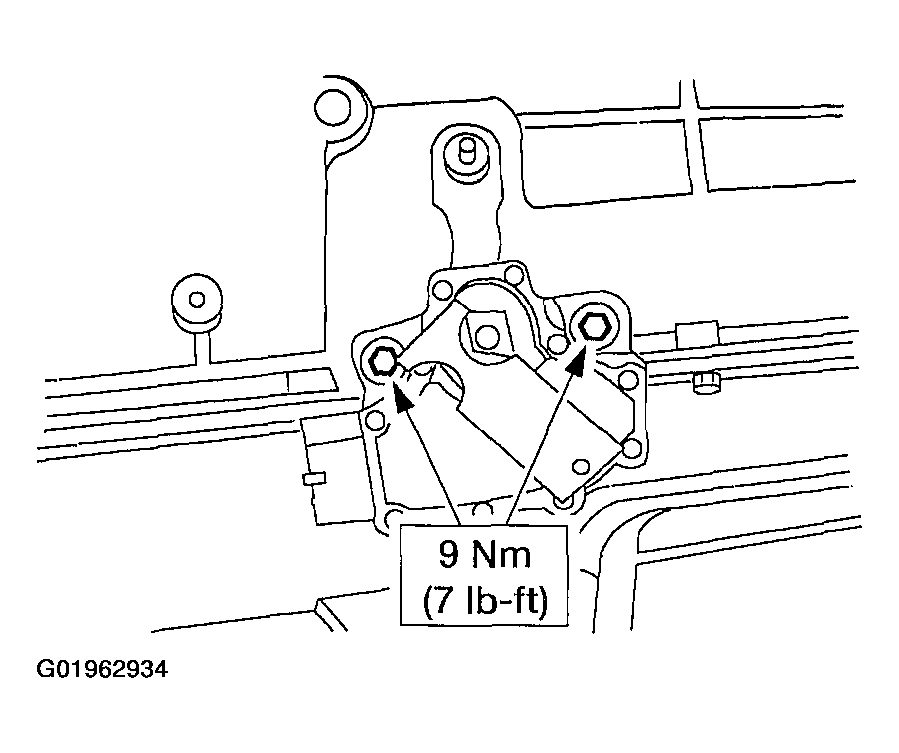

    Fig 3: Tightening Sensor Bolts
    G01962934Courtesy of FORD MOTOR CO.
  4. Reconnect the shift cable at the manual control lever.
    Fig 4: Reconnecting Shift Cable At Manual Control Lever
    G01962935Courtesy of FORD MOTOR CO.
  5. Reconnect the connector.

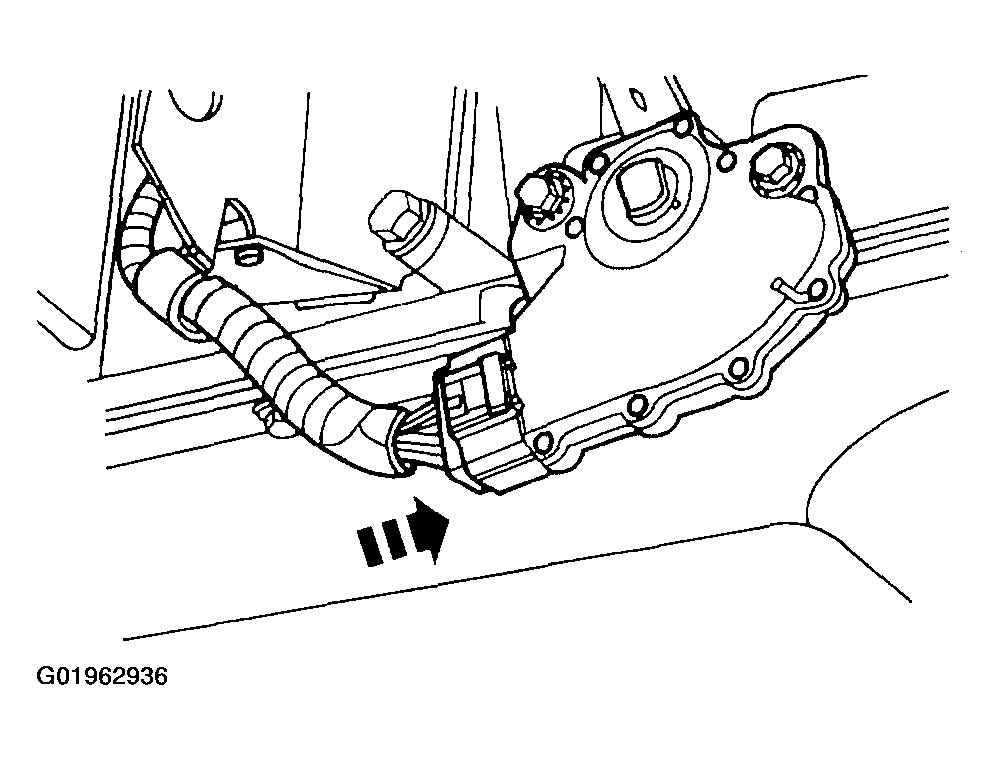

    Fig 5: Connecting Connector
    G01962936Courtesy of FORD MOTOR CO.
  6. Reconnect the battery ground cable.
  7. Lower the vehicle.
