Torque Converter Turbine To Pump Stator Interference Check

WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Position the torque converter with the converter hub up.
Install a pump stator support, engaging the mating splines of the stator support shaft.

Fig 1: Installing Pump Stator Support
Courtesy of FORD MOTOR CO.
Install the input shafts, engaging the splines with the turbine hub.

Fig 2: Installing Input Shafts
Courtesy of FORD MOTOR CO.
Hold the stator support stationary and attempt to rotate the turbine with the input shafts.
- The turbine and lockup clutch assemblies should rotate in both directions, without any signs of interference or metallic scraping noise.

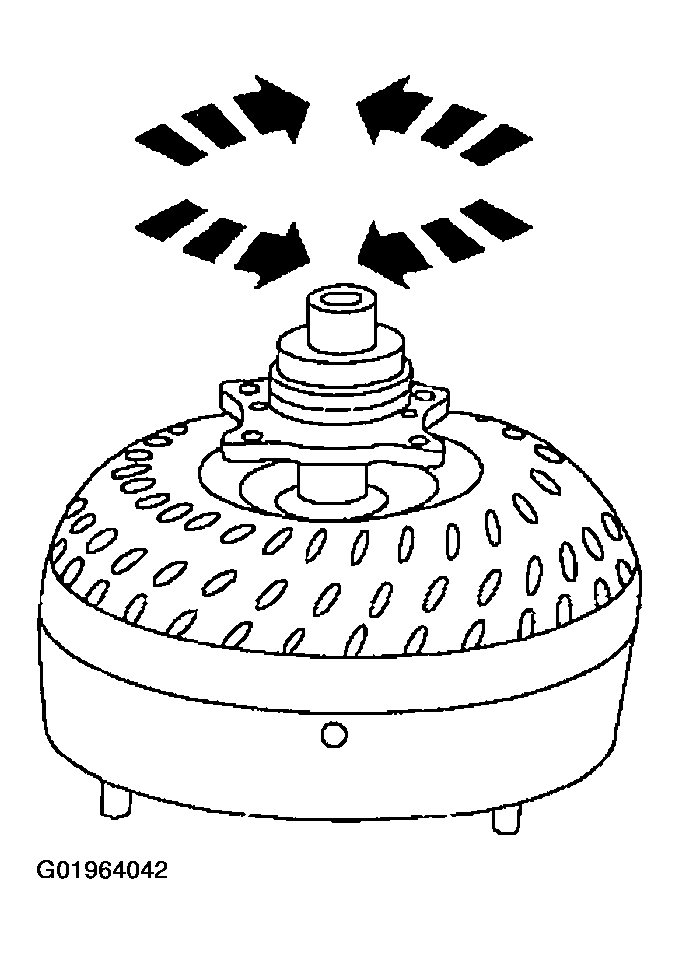

  Fig 3: Rotating Turbine With Input Shafts
  Courtesy of FORD MOTOR CO.
If interference exist, the stator front thrust washer may be worn, allowing the stator to hit the turbine. In such cases, a new or remanufactured torque converter must be installed.
- Check the converter crankshaft pilot for nicks or damaged surfaces that could cause interference when installing the torque converter into the crankshaft pilot. Check the converter front impeller hub for nicks or sharp edges that would damage the pump seal.
