Torque Converter End Play Check: Procedure

WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

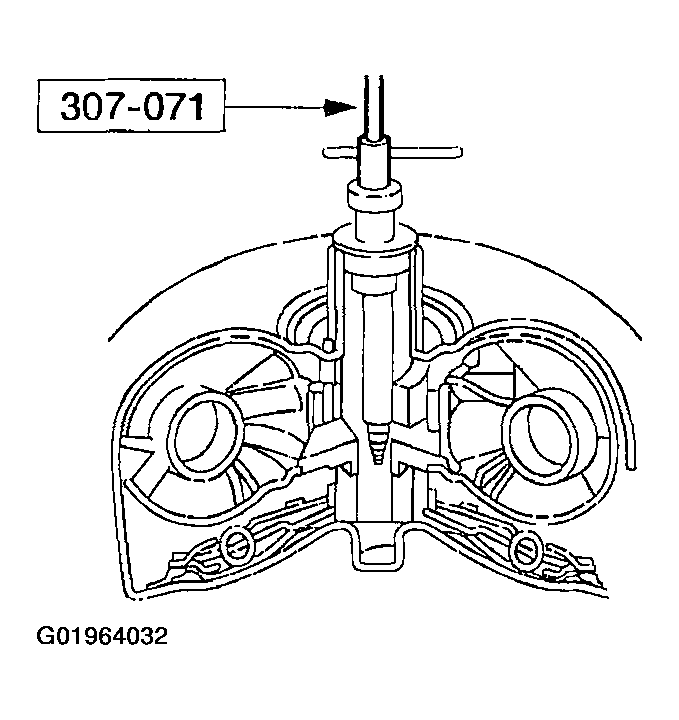

  1. Install the special tool into the torque converter pump drive.
    • Tighten the inner post until the tool is securely locked.
      Fig 1: Installing Special Tool Into Torque Converter Pump Drive
      G01964032Courtesy of FORD MOTOR CO.

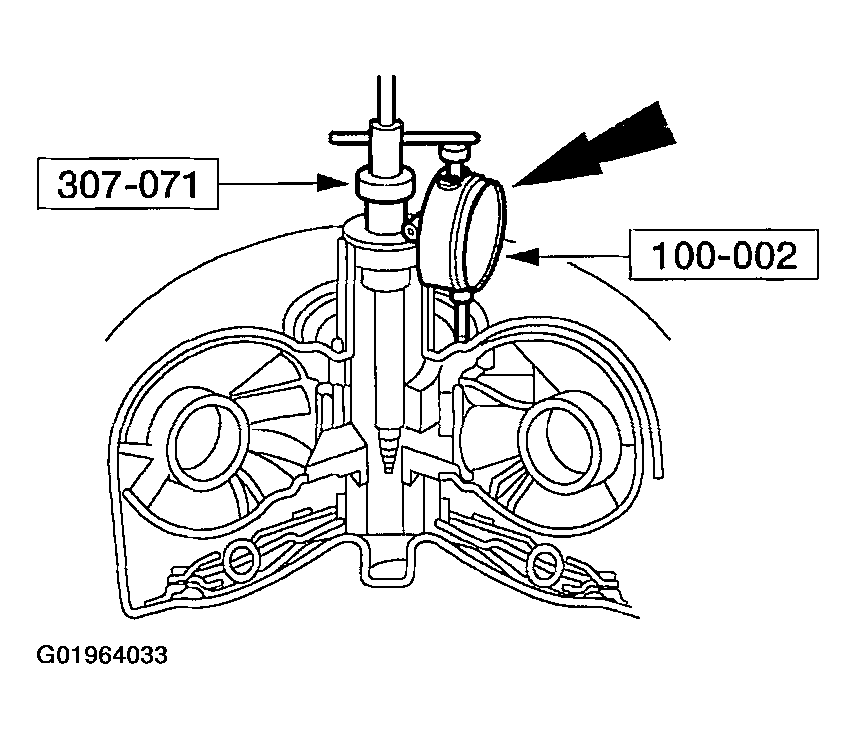

  2. Install the special tool on the converter pump drive hub and zero the dial indicator.
    Fig 2: Installing Special Tool On Converter Pump Drive Hub And Zero Dial Indicator
    G01964033Courtesy of FORD MOTOR CO.

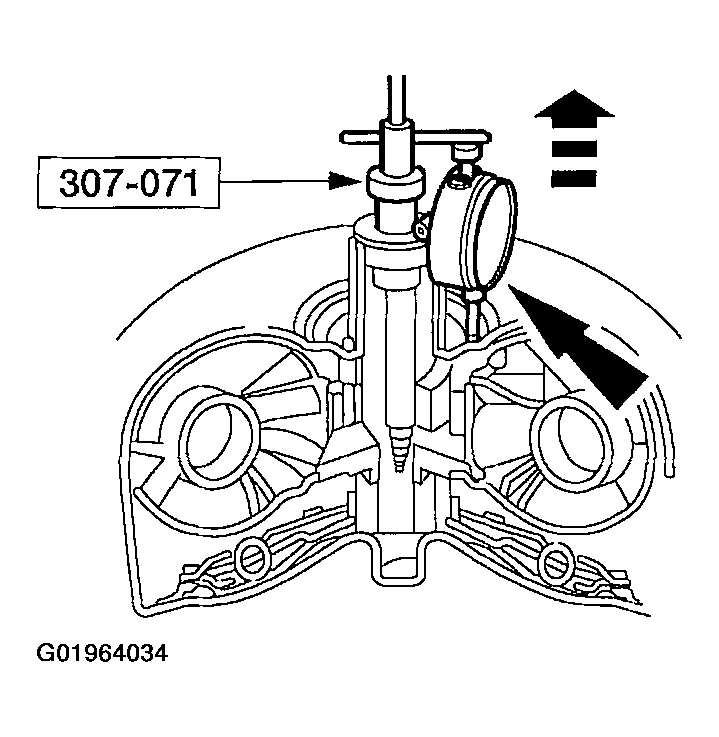

  3. Lift up on the special tool as far as it will move and note the dial indicator reading.
    • If the reading exceeds end play limits, install a new or remanufactured torque converter.

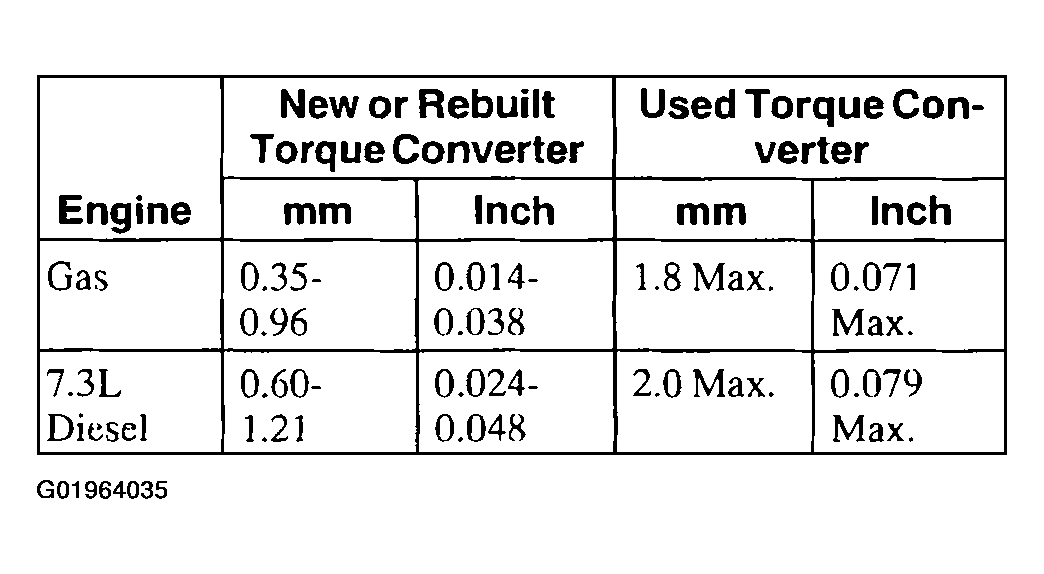

      TORQUE CONVERTER END PLAY

      Fig 3: Torque Converter End Play Specification Table
      G01964034Courtesy of FORD MOTOR CO.
  4. Remove the special tool.
    Fig 4: Removing Special Tool
    G01964035Courtesy of FORD MOTOR CO.
