Reverse Clutch Piston: Disassembly

WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the reverse clutch piston outer lip seal.

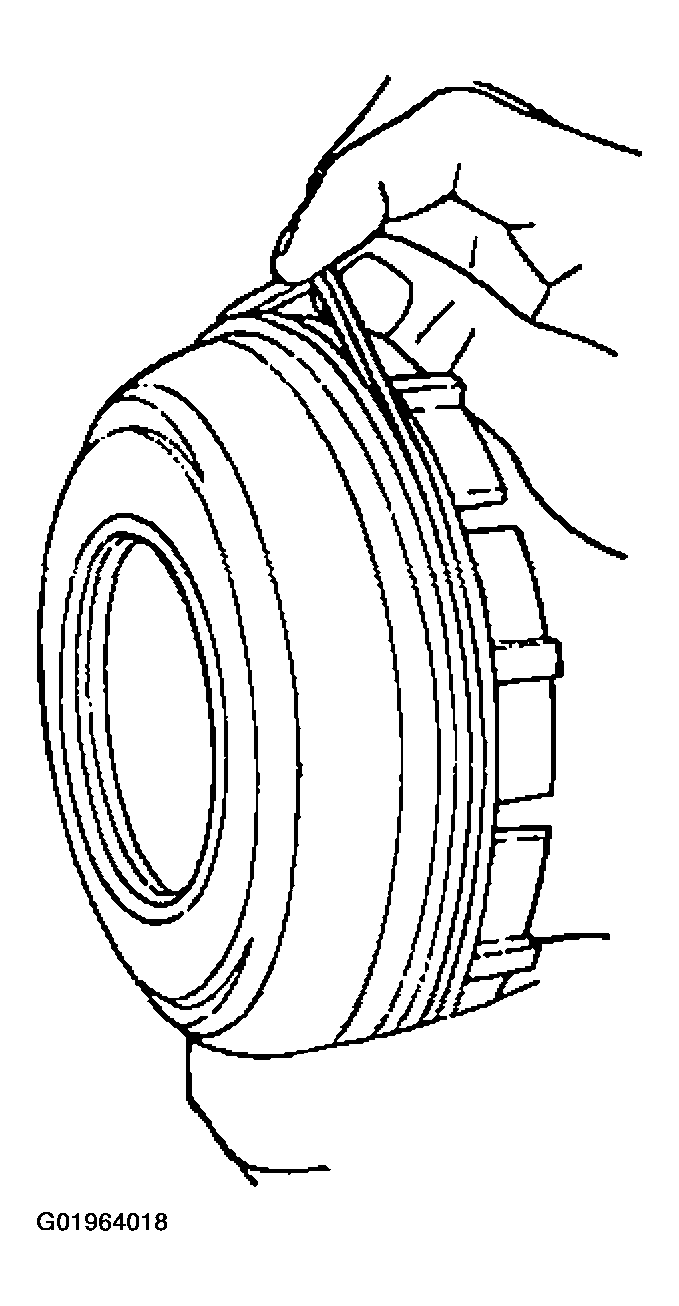

    Fig 1: Removing Reverse Clutch Piston Outer Lip Seal
    G01964018Courtesy of FORD MOTOR CO.
  2. Remove the reverse clutch piston inner lip seal.
    Fig 2: Removing Reverse Clutch Piston Inner Lip Seal
    G01964019Courtesy of FORD MOTOR CO.
