Overdrive Ring Gear And Center Shaft Assembly: Disassembly

WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

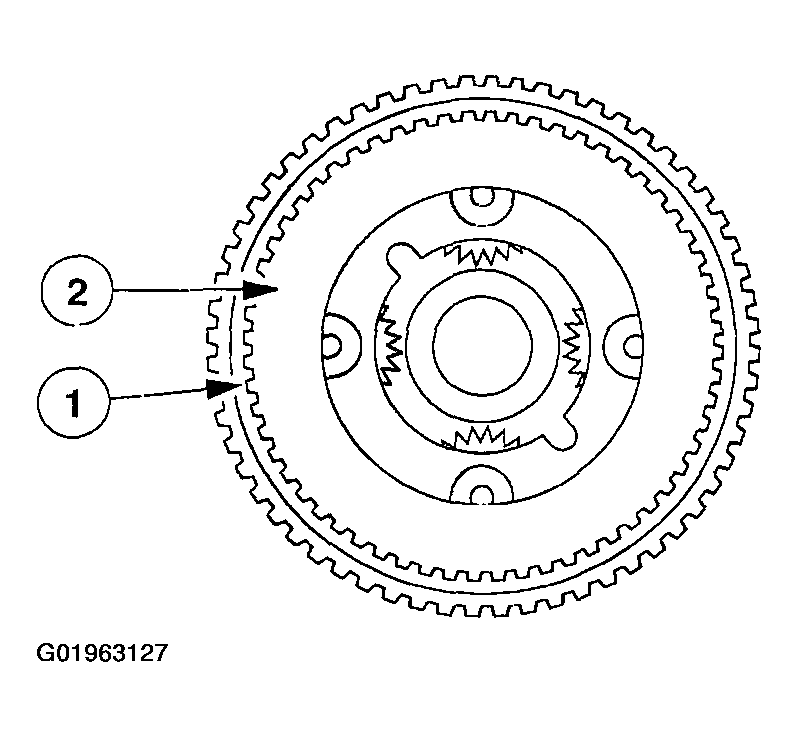

Remove the overdrive one-way clutch outer race.
1. Remove the retaining ring.
2. Remove the overdrive one-way clutch outer race.

  Fig 1: Removing Overdrive One-Way Clutch Outer Race
  Courtesy of FORD MOTOR CO.

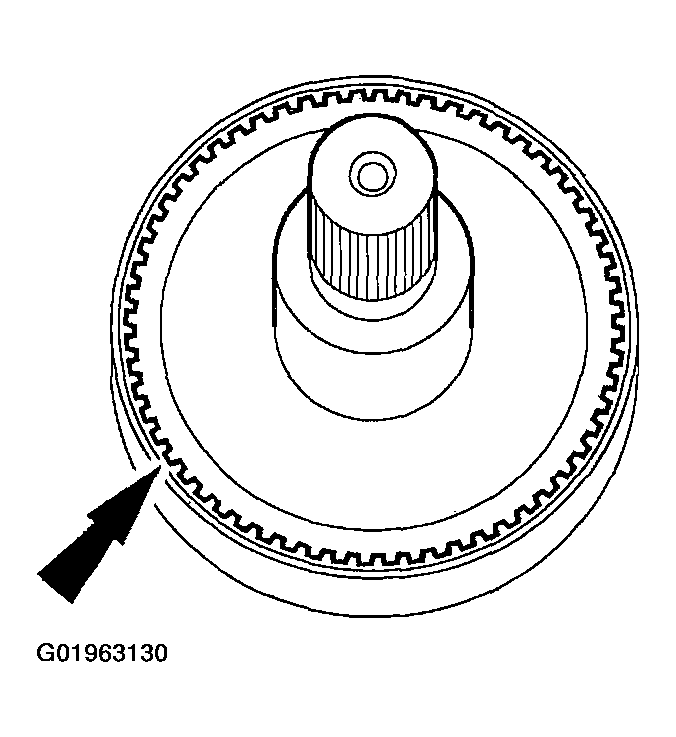

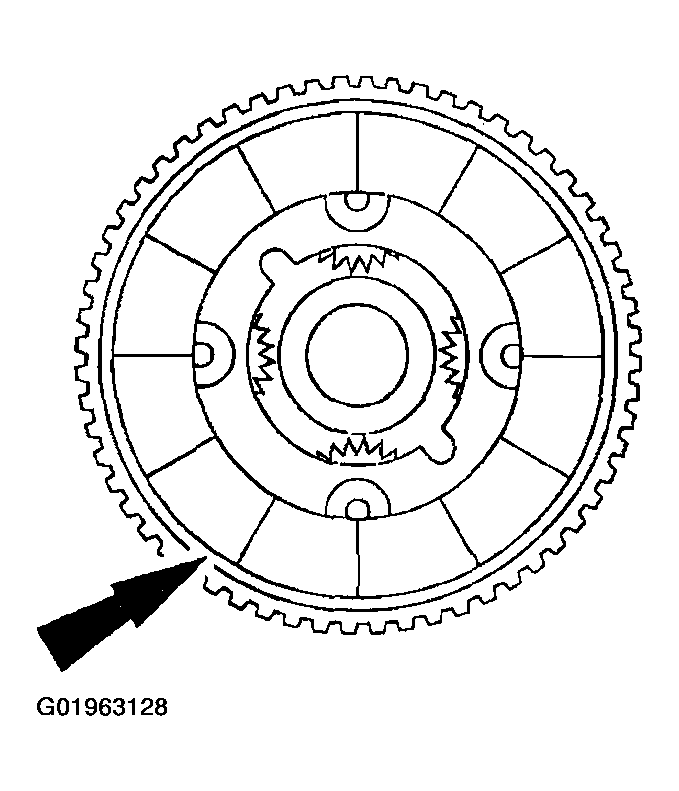

Remove the No. 3 overdrive overrunning clutch plastic thrust washer.

Fig 2: Removing No 3 Overdrive Overrunning Clutch Plastic Thrust Washer
Courtesy of FORD MOTOR CO.

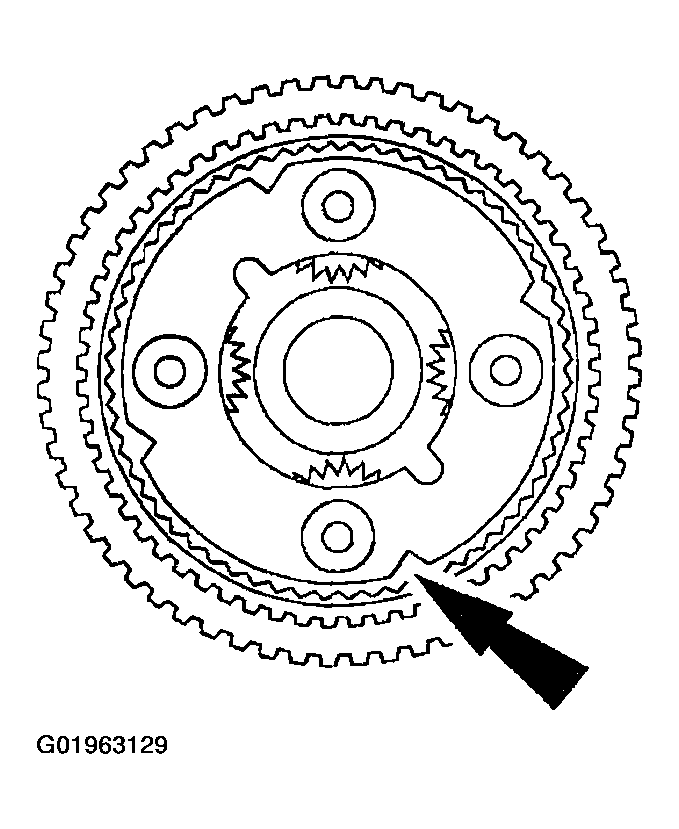

The No. 4 overdrive planet thrust bearing may stay in the ring gear. Remove the overdrive planet assembly.

Fig 3: Removing Overdrive Planet Assembly
Courtesy of FORD MOTOR CO.
Remove the wave retaining ring

Fig 4: Removing Wave Retaining Ring
Courtesy of FORD MOTOR CO.

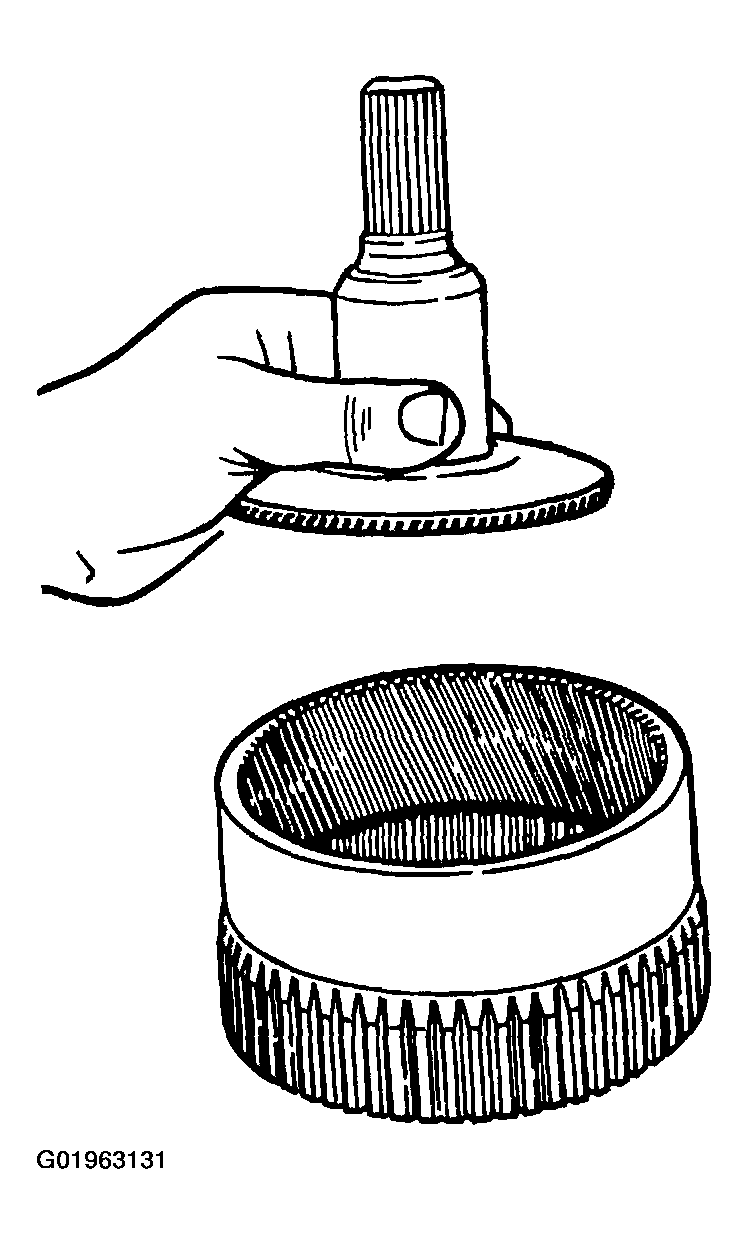

Remove the overdrive center shaft.

Fig 5: Removing Overdrive Center Shaft
Courtesy of FORD MOTOR CO.

CAUTION: Use care not to damage the thrust bearing or damage to transmission may occur.

NOTE: The individual parts of the planet assemblies are not repairable.

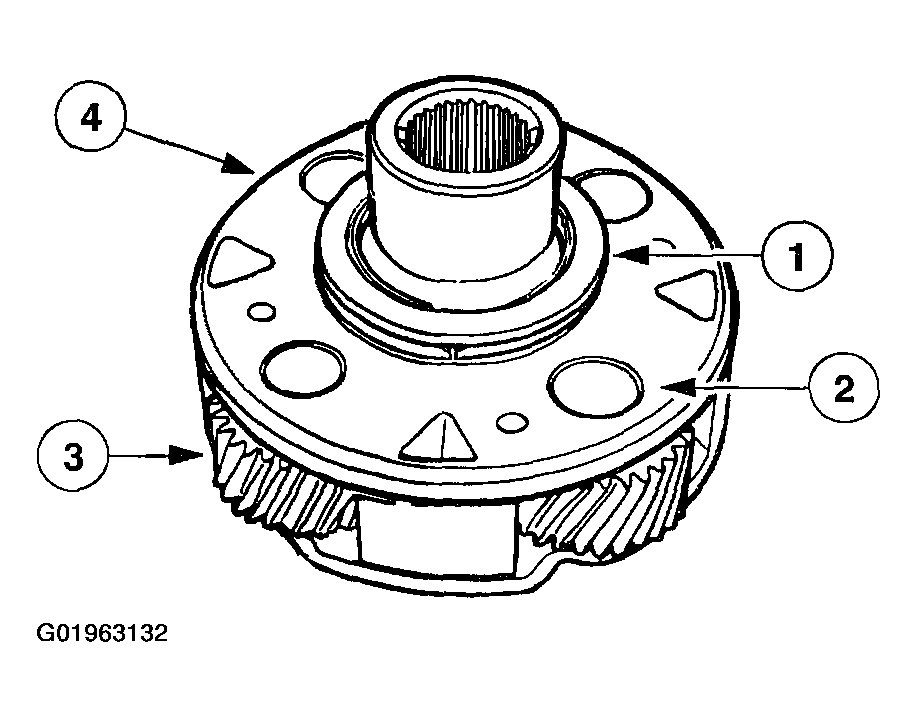

Inspect the No. 4 overdrive planet thrust bearing assembly.
1. Remove the No. 4 overdrive planet thrust bearing assembly. Wash the thrust bearing thoroughly in cleaning solvent. Blow dry the bearing with compressed air and lubricate with clean transmission fluid. Replace any bearing and race that show any sign of wear.

  Fig 6: Inspecting No. 4 Overdrive Planet Thrust Bearing Assembly
  Courtesy of FORD MOTOR CO.
2. Inspect the pinion shafts in the planet assembly. Check for looseness and damage.
3. Inspect the pinion gears for damage and free rotation.
4. Inspect the planet carrier for damage.
