Main Control Valve Body - Disassembly And Assembly: Assembly

WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the control valves and springs from the lower main control valve body.

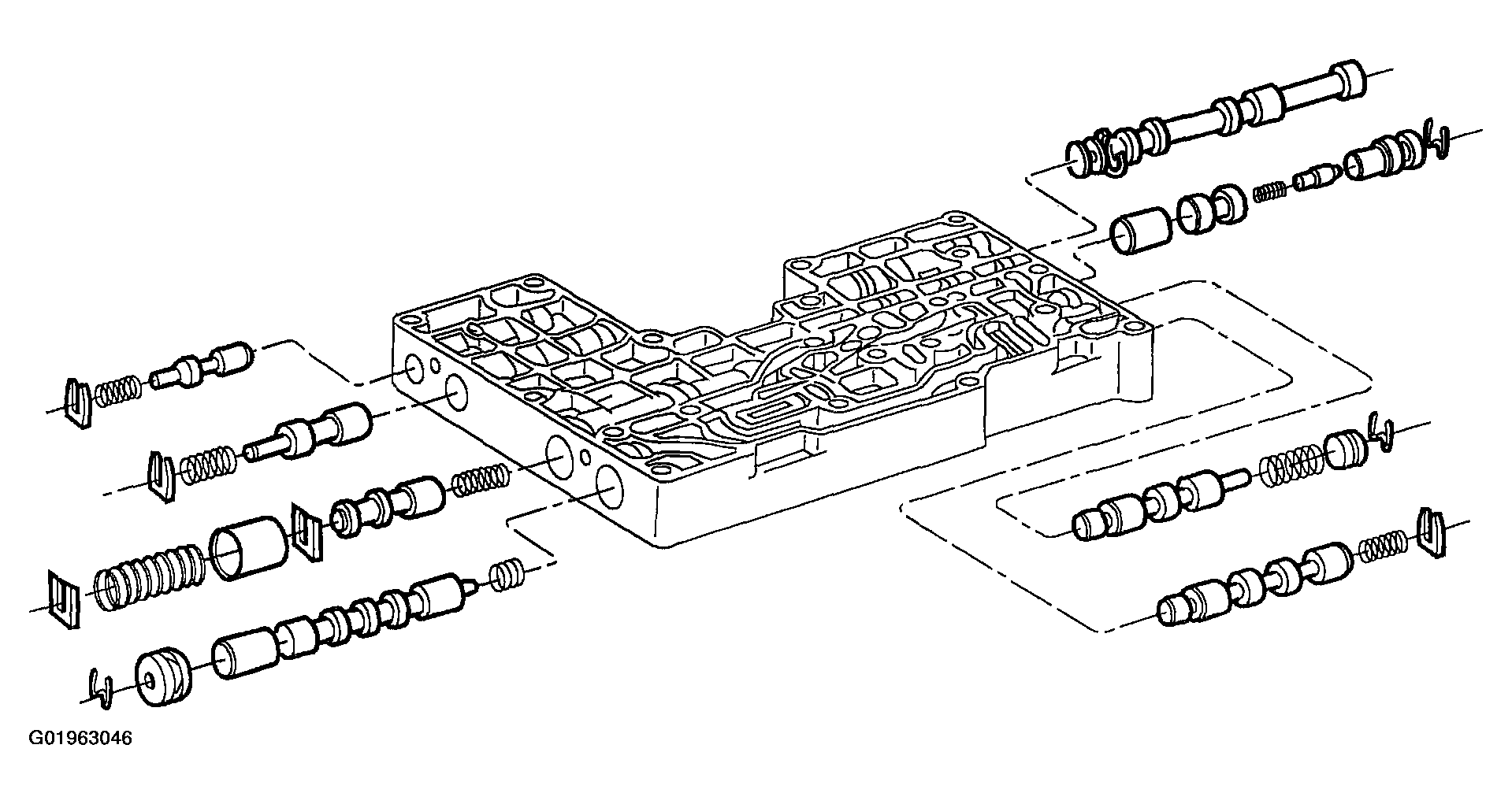

    Fig 1: Installing Control Valves And Springs From Lower Main Control Valve Body
    G01963046Courtesy of FORD MOTOR CO.
  2. Install the control valves and springs from the upper main control valve body.
    Fig 2: Installing Control Valves And Springs From Upper Main Control Valve Body
    G01963047Courtesy of FORD MOTOR CO.
  3. Install the check ball.
    Fig 3: Check Ball Description Chart
    G01963048Courtesy of FORD MOTOR CO.

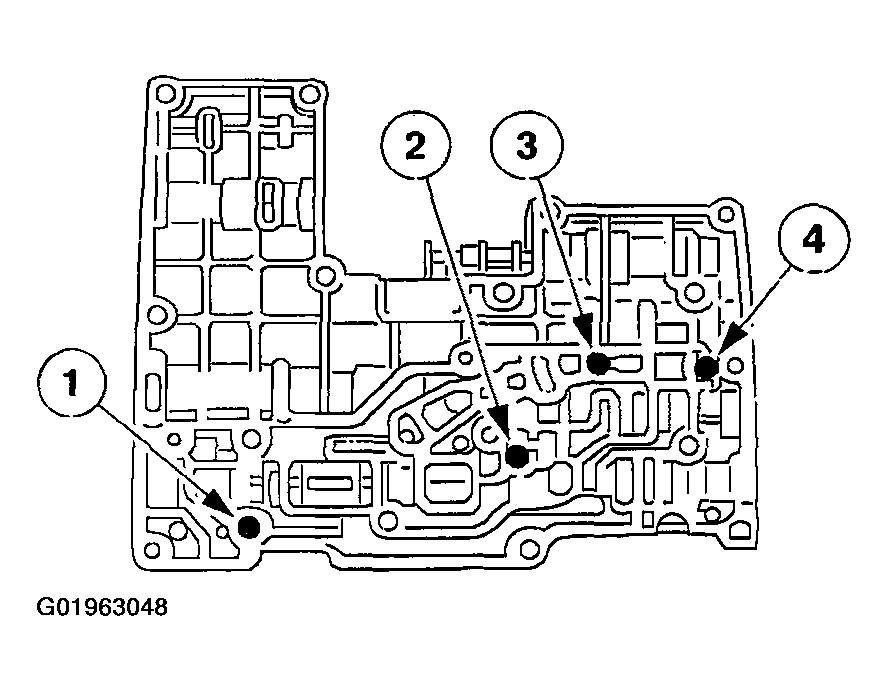

    Fig 4: Installing Check Ball
    G01963049Courtesy of FORD MOTOR CO.
  4. Using the special tools, install the lower control valve body.
    1. Install the special tools.
    2. Install the control valve body separator plate.
    3. Install the lower control valve body.
    4. Install the bolts.

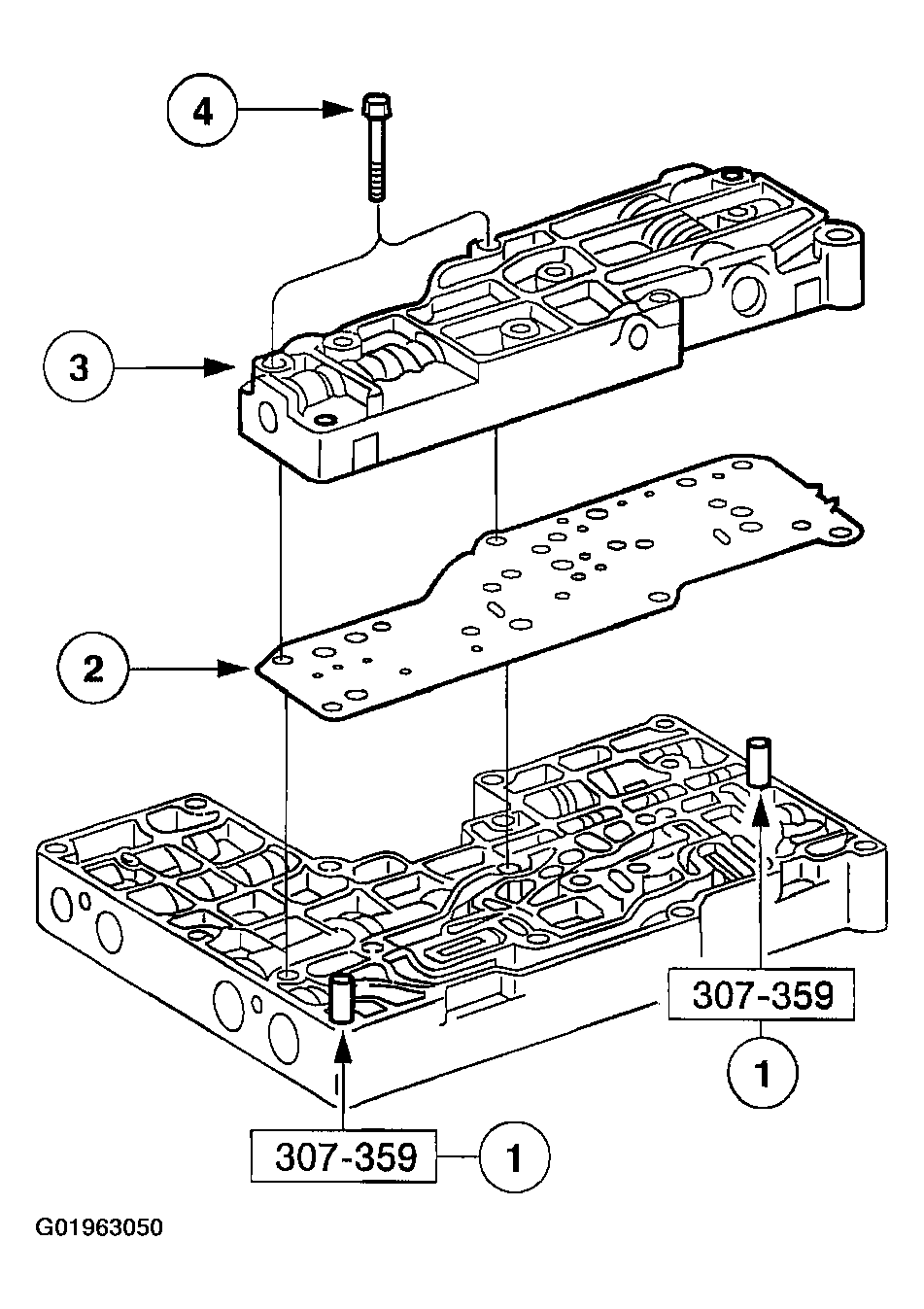

      Fig 5: Installing Lower Control Valve Body
      G01963050Courtesy of FORD MOTOR CO.
