Input Shell: Disassembly

WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove and discard the forward/reverse sun gear retaining ring.
    Fig 1: Removing Forward/Reverse Sun Gear Retaining Ring
    G01963231Courtesy of FORD MOTOR CO.
  2. Remove the No. 14 input shell thrust washer.
    Fig 2: Removing No. 14 Input Shell Thrust Washer
    G01963232Courtesy of FORD MOTOR CO.
  3. Remove the forward/reverse sun gear.

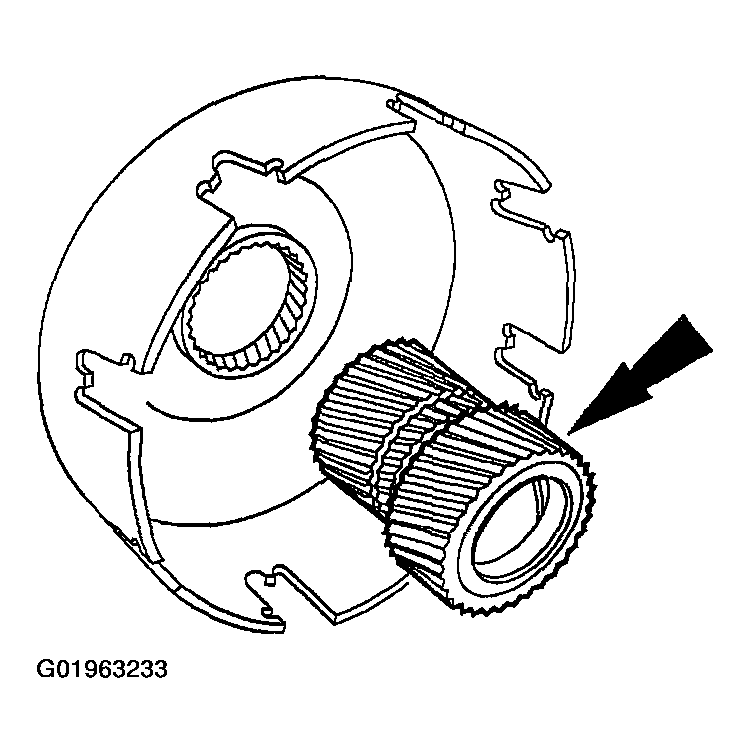

    Fig 3: Removing Forward/Reverse Sun Gear
    G01963233Courtesy of FORD MOTOR CO.
