Forward Hub And Ring Gear: Disassembly

WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the No.8C forward clutch hub thrust washer.

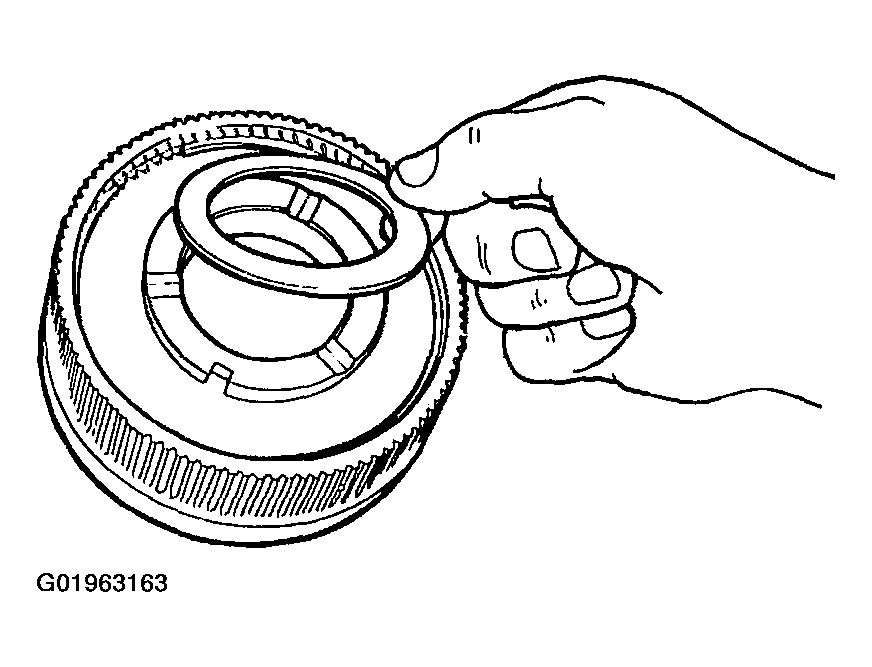

    Fig 1: Removing No. 8C Clutch Hub Thrust Washer
    G01963163Courtesy of FORD MOTOR CO.
  2. Remove the forward hub retaining ring.

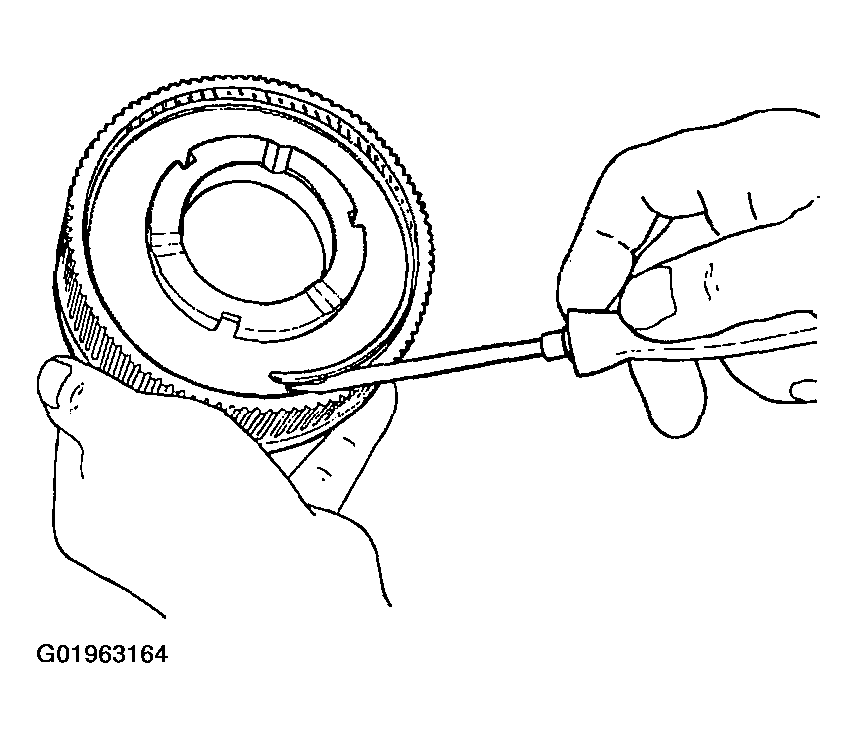

    Fig 2: Removing Forward Hub Retaining Ring
    G01963164Courtesy of FORD MOTOR CO.
  3. Remove the forward hub.

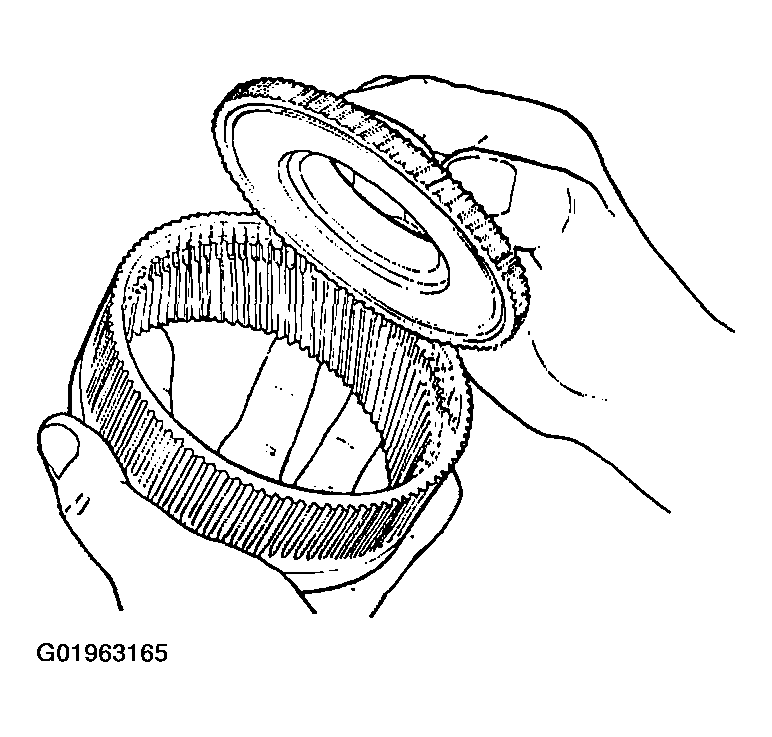

    Fig 3: Removing Forward Hub
    G01963165Courtesy of FORD MOTOR CO.
