Center Support: Disassembly

WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove and discard the direct clutch seal rings.

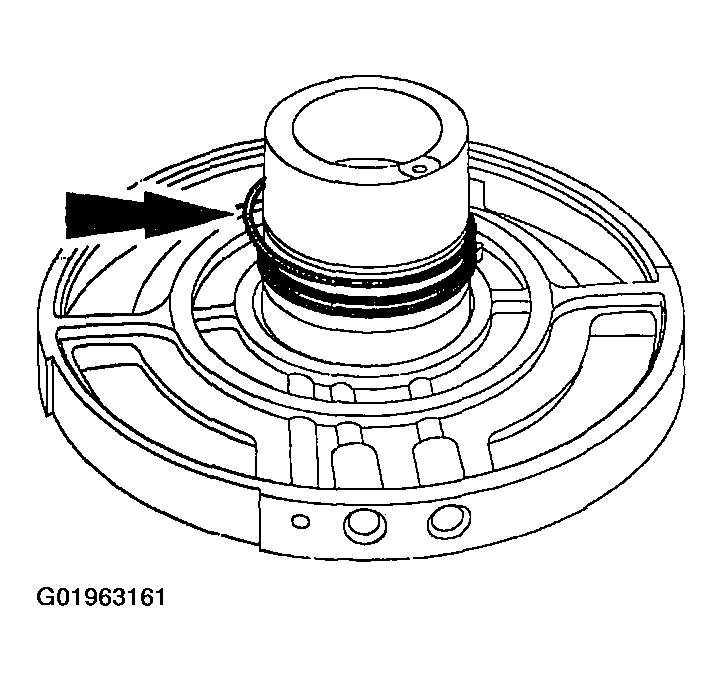

    Fig 1: Removing Direct Clutch Seal Rings
    G01963161Courtesy of FORD MOTOR CO.
  2. Inspect the following for contamination or damage. Clean or install as necessary.
    1. Inspect the ball bearing.
    2. Inspect the feedbolt threads.
    3. Remove and inspect the No. 6 center support thrust washer.
    4. Inspect the inner hub diameter.
    5. Inspect the outer hub diameter.
    6. Inspect the seal ring grooves.

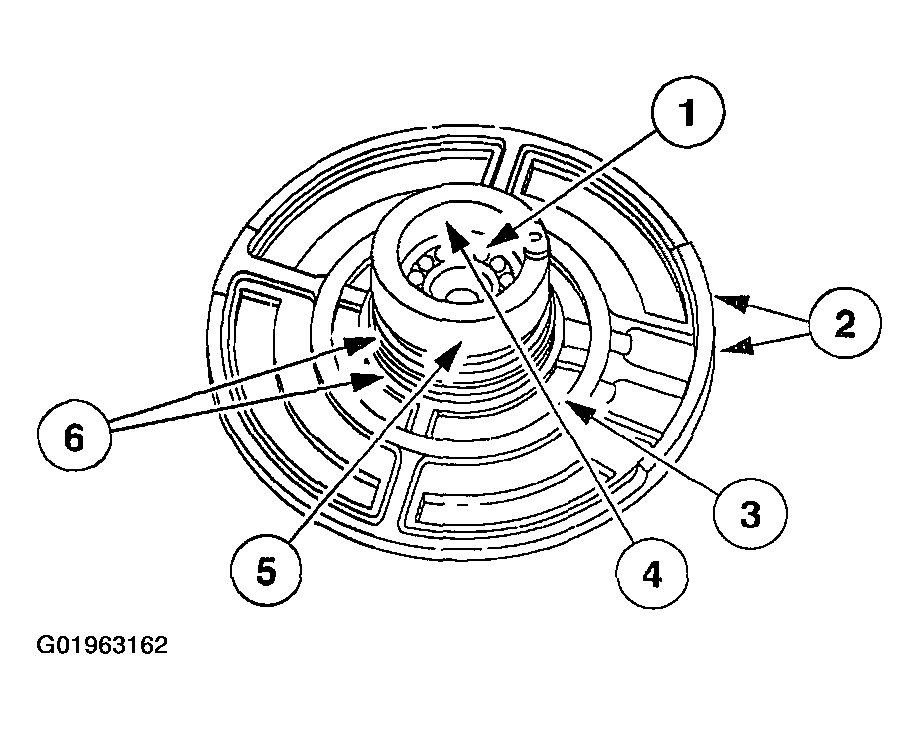

      Fig 2: Inspecting Center Support Components
      G01963162Courtesy of FORD MOTOR CO.
