Pinpoint Test H: Solenoid Mechanical Failure

WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Repair all other DTCs before repairing the following DTCs: P1714, P1715, P1740.

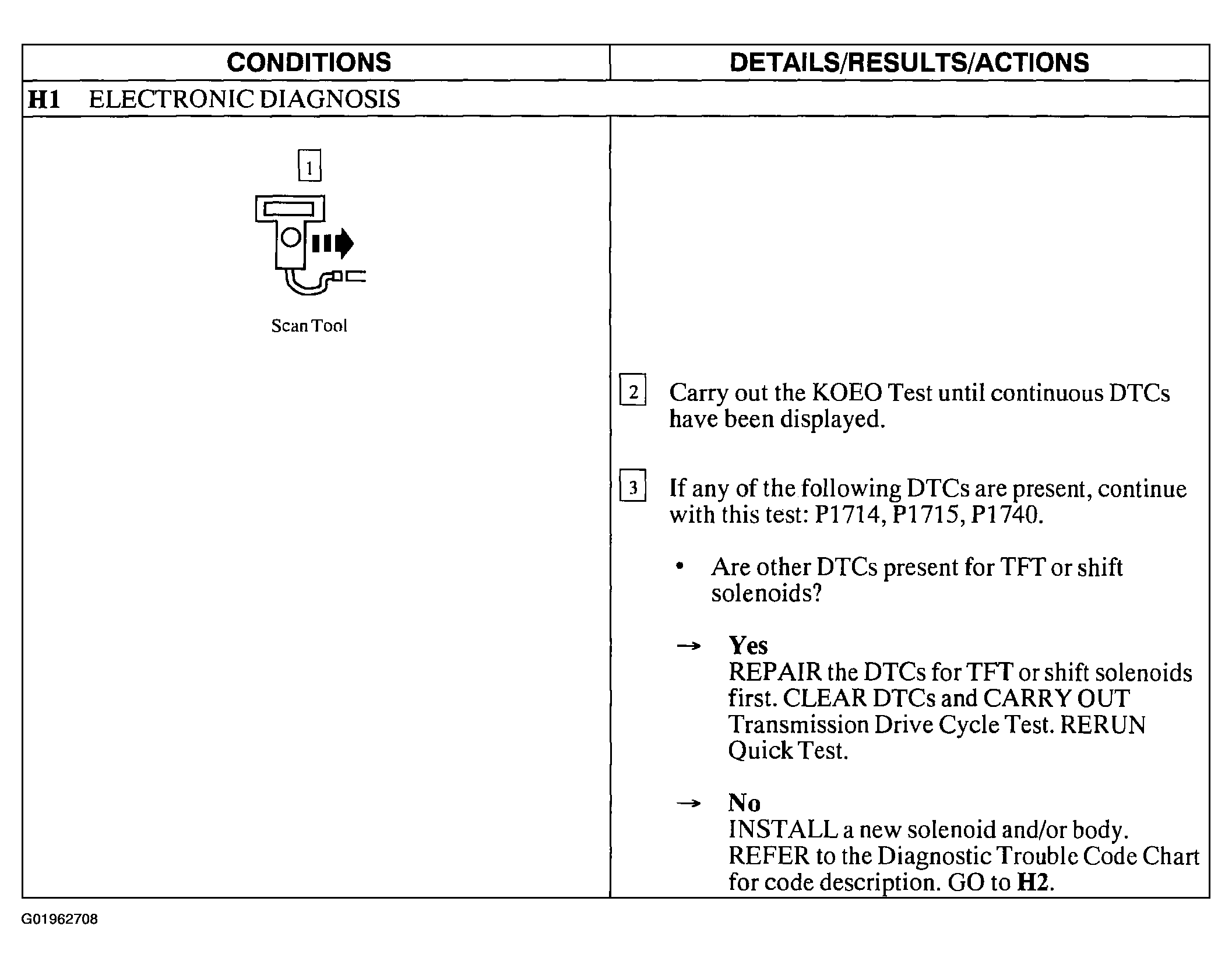

Fig 1: Pinpoint Test H: Solenoid Mechanical Failure Chart (1 Of 2)
G01962708Courtesy of FORD MOTOR CO.

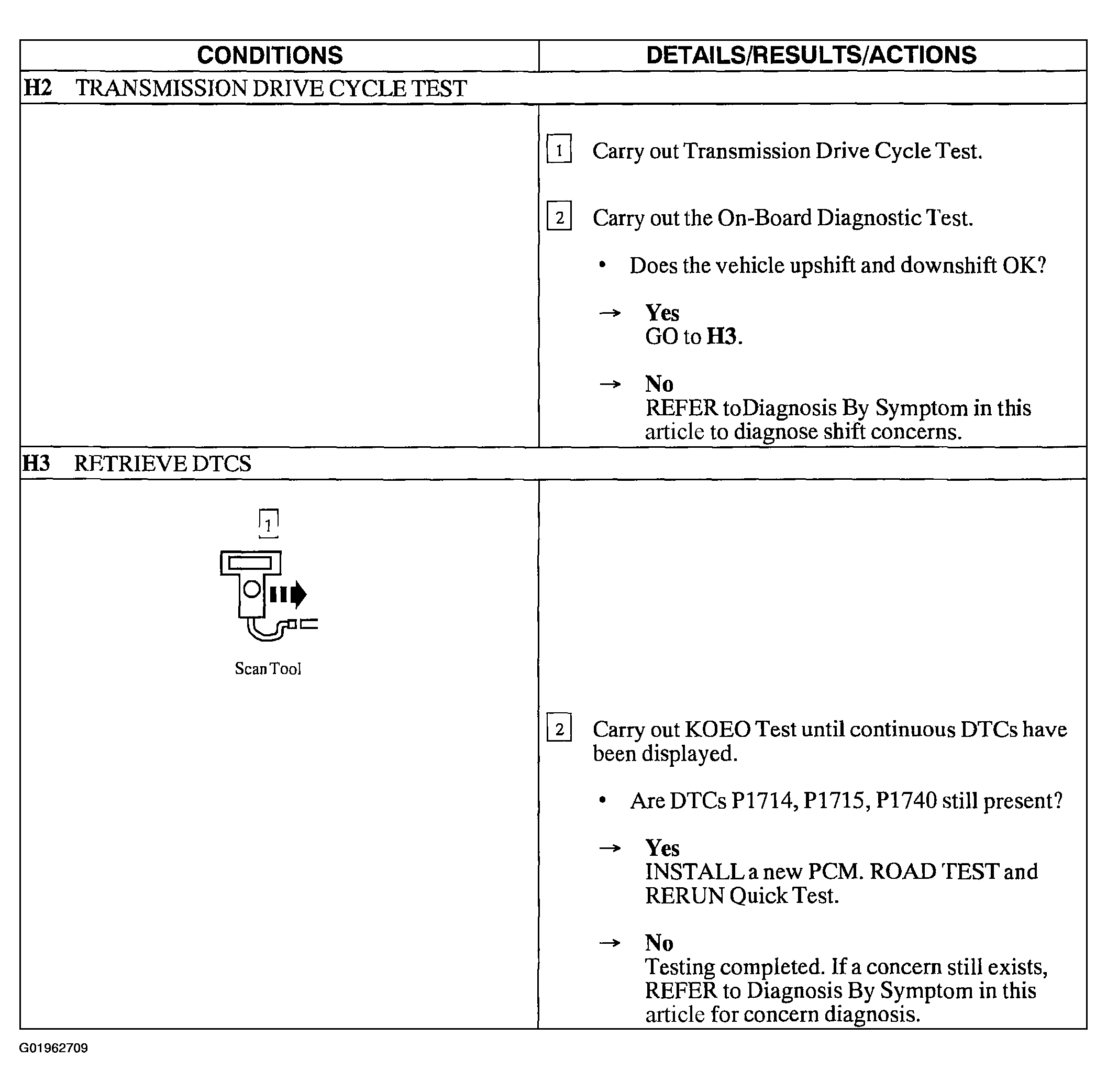

Fig 2: Pinpoint Test H: Solenoid Mechanical Failure Chart (2 Of 2)
G01962709Courtesy of FORD MOTOR CO.
