Pinpoint Test F: Turbine Shaft Speed (TSS) And Output Shaft Speed (OSS) Sensors

WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to the Output Shaft Speed (OSS) Sensor Harness Connector Terminal  illustration.

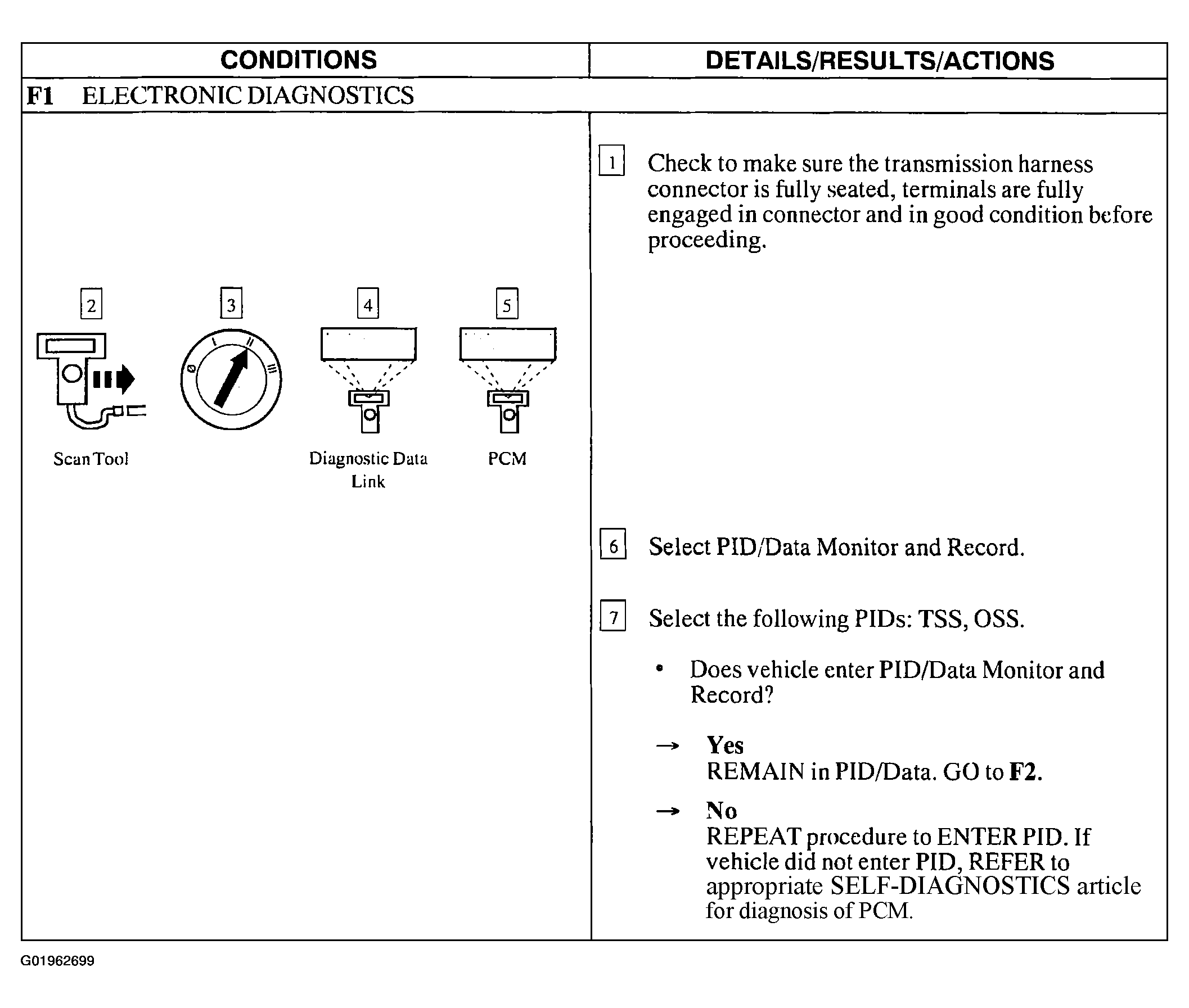

Fig 1: Pinpoint Test F: Turbine Shaft Speed (TSS) And Output Shaft Speed (OSS) Sensors (1 Of 3)
G01962699Courtesy of FORD MOTOR CO.

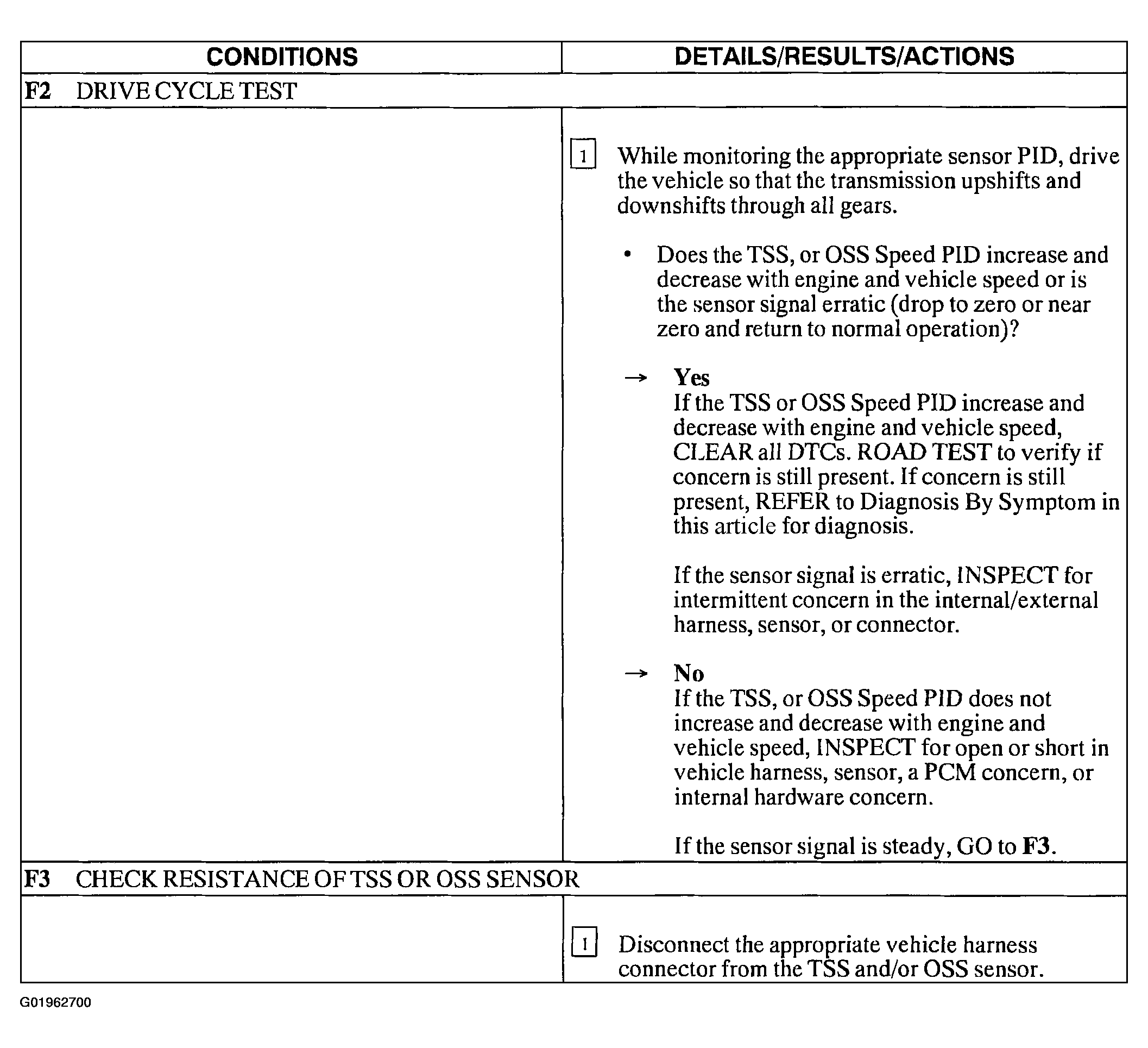

Fig 2: Pinpoint Test F: Turbine Shaft Speed (TSS) And Output Shaft Speed (OSS) Sensors (2 Of 3)
G01962700Courtesy of FORD MOTOR CO.

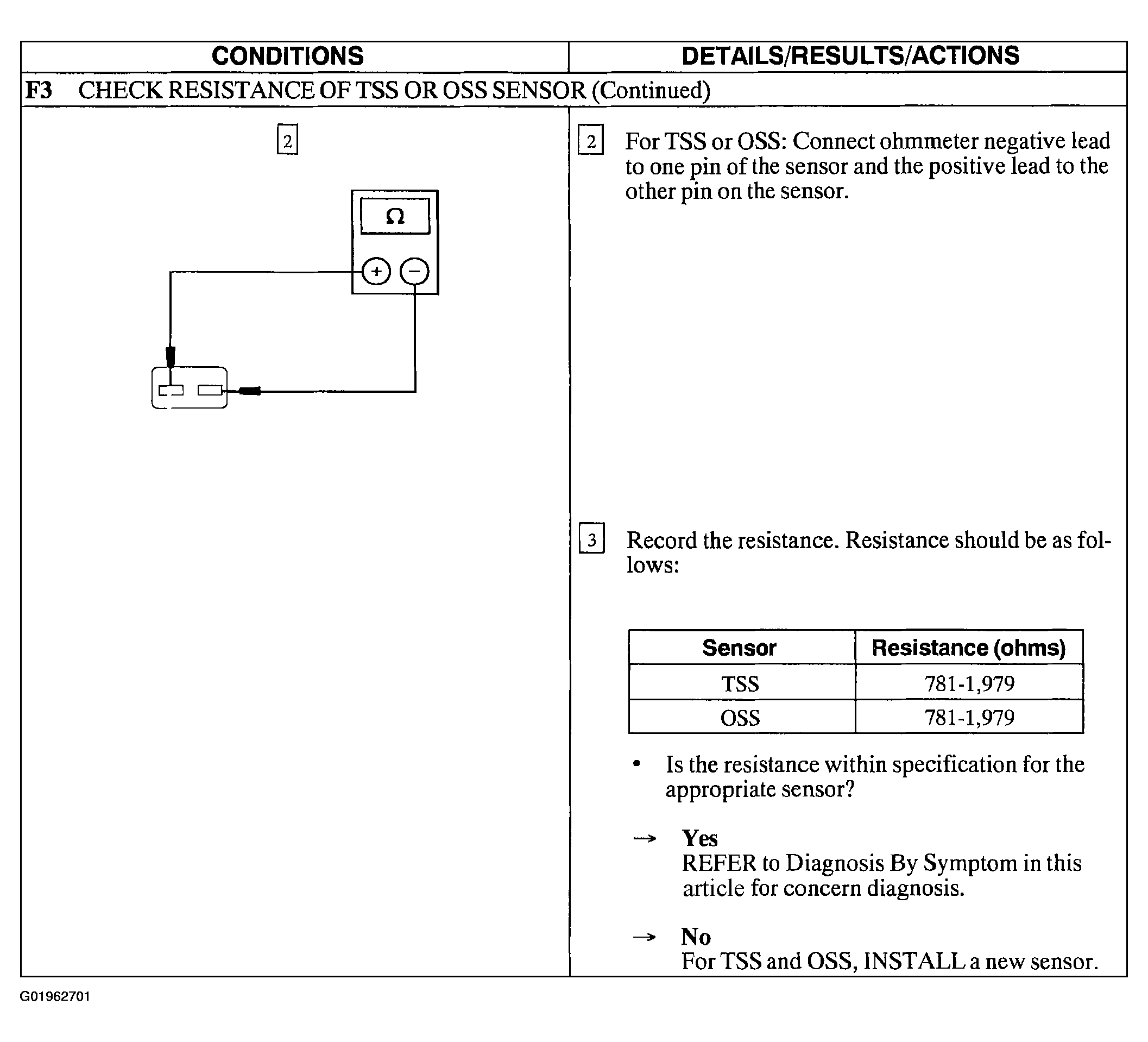

Fig 3: Pinpoint Test F: Turbine Shaft Speed (TSS) And Output Shaft Speed (OSS) Sensors (3 Of 3)
G01962701Courtesy of FORD MOTOR CO.
